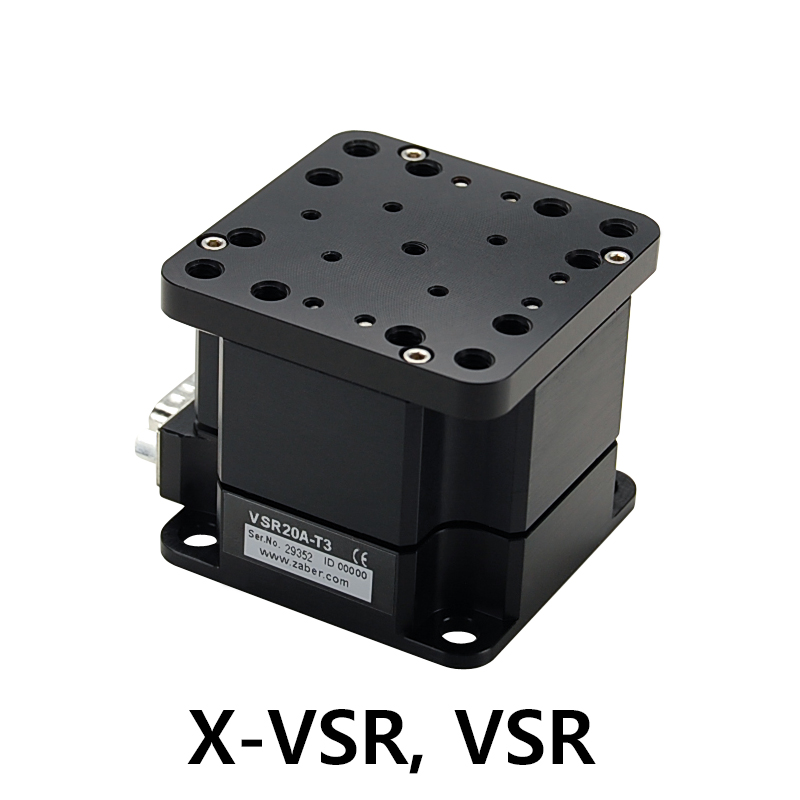

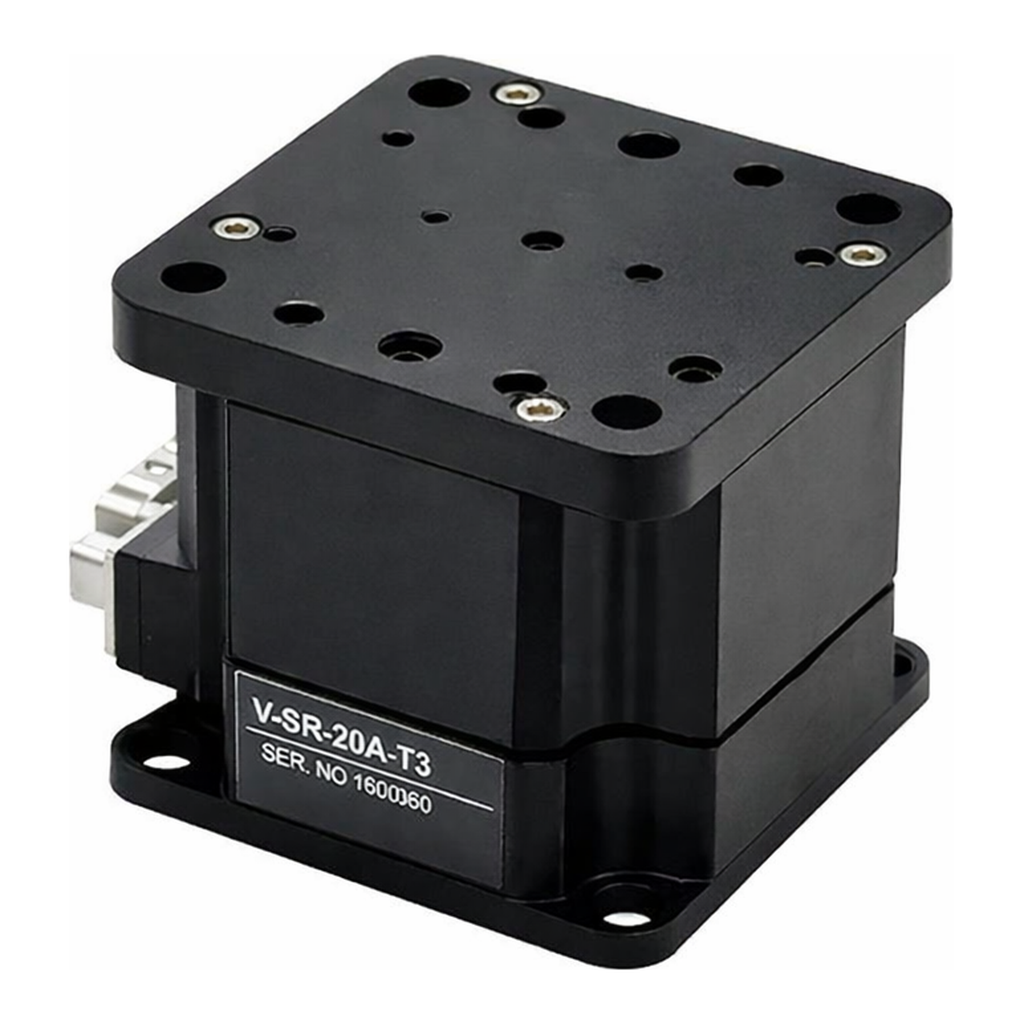

Vertical Stage/수직 이송장치, Vertical lift stages with built-in controllers
■ 20 mm or 40 mm of travel
■ 10 kg load capacity, 20 kg peak thrust
■ Up to 48 mm/s speed
■ 55 or 85 mm retracted height
■ Designed for use with anX-MCB1Series stepper motor controller or any 2-phase stepper motor controller
- Vertical lift stages with built-in controllers
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-725 | X-VSR20A-KX13A | Motorized lift stage, 20 mm travel, integrated controller, plus manual control |
M01-680-730 | X-VSR40A-KX13A | Motorized lift stage, 40 mm travel, integrated controller, plus manual control |
M01-680-735 | VSR20A-T3-MC03 | Motorized lift stage, 20 mm travel, fine resolution |
M01-680-740 | VSR40A-T3-MC03 | Motorized lift stage, 40 mm travel, fine resolution |
- Vertical lift stages with built-in controllers Specification
Specification | ||
--- | --- | --- |
Value | Value | |
--- | --- | --- |
Model | X-VSR Series | VSR Series |
Feature | Motorized Vertical Stages with Built-in controllers | Motorized Vertical Stage |
Microstep Size (Default Resolution) | 0.09525 µm | 0.09525 µm |
Built-in Controller | Yes | No, X-MCB1(48 V) Recommended |
Accuracy (unidirectional) | 35 µm | 35 µm |
Repeatability | < 1 µm | < 1 µm |
Loaded Backlash (10 N) | < 10 µm | < 10 µm |
Maximum Speed | 48 mm/s | 48 mm/s |
Peak Thrust | 200 N | 200 N |
Maximum Continuous Thrust | 100 N | 100 N |
Communication Interface | RS-232 | |
Communication Protocol | Zaber ASCII (Default), Zaber Binary | |
Maximum Centered Load | 100 N | 100 N |
Maximum Cantilever Load | 300 N-cm | 300 N-cm |
Pitch | 0.08 degrees | 0.08 degrees |
Roll | 0.08 degrees | 0.08 degrees |
Maximum Current Draw | 950 mA | |
Power Supply | 24-48 VDC | |
Power Plug | 2-pin Screw Terminal | |
Linear Motion Per Motor Rev | 1.2182 mm | 1.2192 mm |
Motor Steps Per Rev | 200 | 200 |
Motor Type | Stepper (2 phase) | Stepper (2 phase) |
Motor Rated Current | 1500 mA/phase | 1500 mA/phase |
Inductance | 1.9 mH/phase | 1.9 mH/phase |
Default Resolution | 1/64 of a step | |
Data Cable Connection | Locking 4-pin M8 | 1/64 of a step |
Mechanical Drive System | Precision Lead Screw | Precision Lead Screw |
Limit or Home Sensing | Magnetic home sensor | Magnetic home sensor |
Manual Control | Yes | |
Axes of Motion | 1 | 1 |
Mounting Interface | M6 and M3 threaded holes | M6 and M3 threaded holes |
Travel Range | 20 ~ 40 mm | 20 ~ 40 mm |
Backlash | <35 um or <120 um | <35 um or <120 um |
