Vacuum Devices/진공 호환 장치
■ Vacuum Devices(진공 호환 장치)는 2가지 제품군으로 분류
- High Vacuum Devices
- Low Vacuum Devices
■ 제품별 주요 특징은 하단 설명 참조

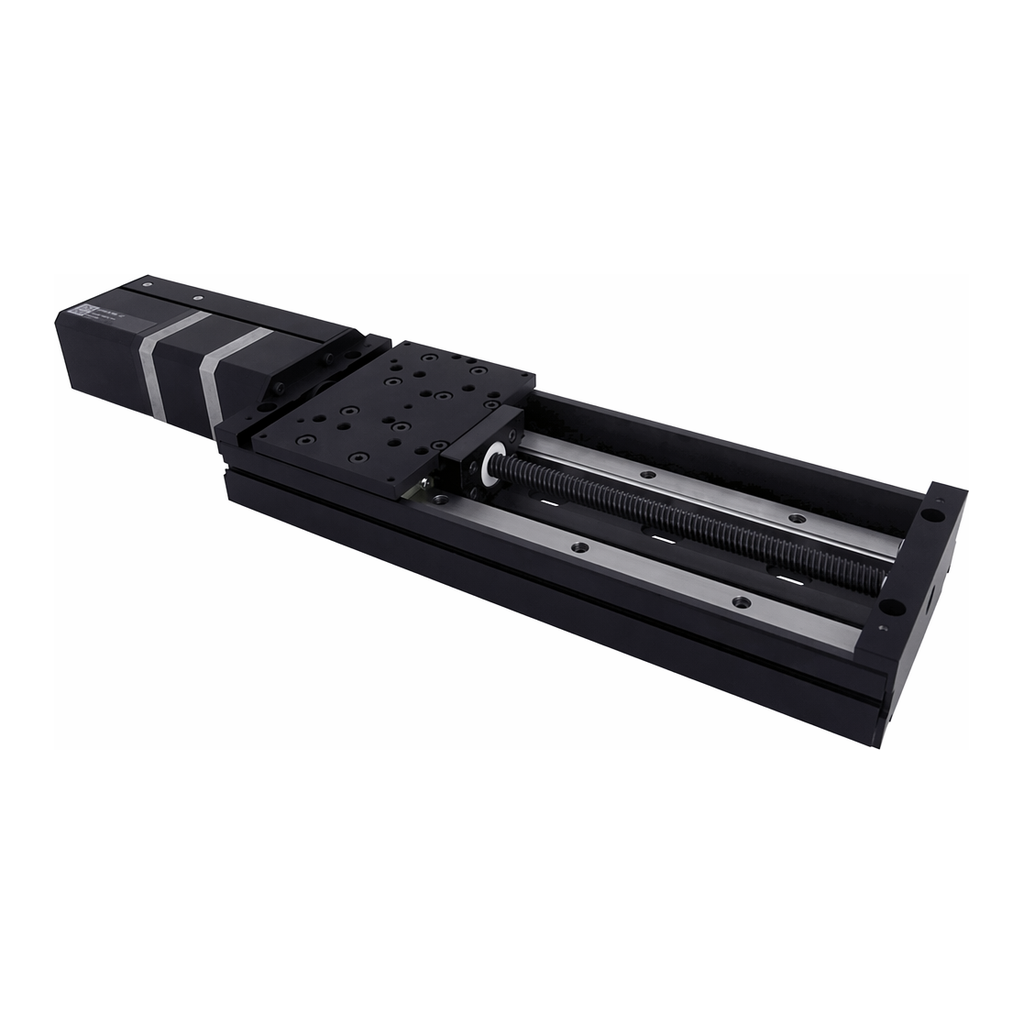

- High Vacuum Devices
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-530 | X-LRQ075AL-SV2-KX14P | High vacuum, motorized linear stage, 75 mm travel, integrated controller, fine resolution, low speed |
M01-680-535 | X-LRQ150AL-SV2-KX14P | High vacuum, motorized linear stage, 150 mm travel, integrated controller, fine resolution, low speed |
M01-680-540 | X-LRQ300AL-SV2-KX14P | High vacuum, motorized linear stage, 300 mm travel, integrated controller, fine resolution, low speed |
M01-680-545 | X-LRQ450AL-SV2-KX14P | High vacuum, motorized linear stage, 450 mm travel, integrated controller, fine resolution, low speed |
M01-680-550 | X-LRQ600AL-SV2-KX14P | High vacuum, motorized linear stage, 600 mm travel, integrated controller, fine resolution, low speed |
M01-680-555 | X-LSM025A-SV2-KX14P | High vacuum, motorized Linear Stage, 25 mm travel, integrated controller, fine resolution, low speed |
M01-680-560 | X-LSM050A-SV2-KX14P | High vacuum, motorized Linear Stage, 50 mm travel, integrated controller, fine resolution, low speed |
M01-680-565 | X-LSM100A-SV2-KX14P | High vacuum, motorized Linear Stage, 100 mm travel, integrated controller, fine resolution, low speed |
M01-680-570 | X-LSM150A-SV2-KX14P | High vacuum, motorized Linear Stage, 150 mm travel, integrated controller, fine resolution, low speed |
M01-680-575 | X-LSM200A-SV2-KX14P | High vacuum, motorized Linear Stage, 200 mm travel, integrated controller, fine resolution, low speed |
M01-680-580 | T-NA08A25-SV2-KT03X06P | High vacuum linear actuator, 25 mm travel, RS-232 |
M01-680-585 | T-NA08A50-SV2-KT03X06P | High vacuum linear actuator, 50 mm travel, RS-232 |
- High Vacuum Devices Specification
Specification | |||
--- | --- | --- | --- |
Value | Value | Value | |
--- | --- | --- | --- |

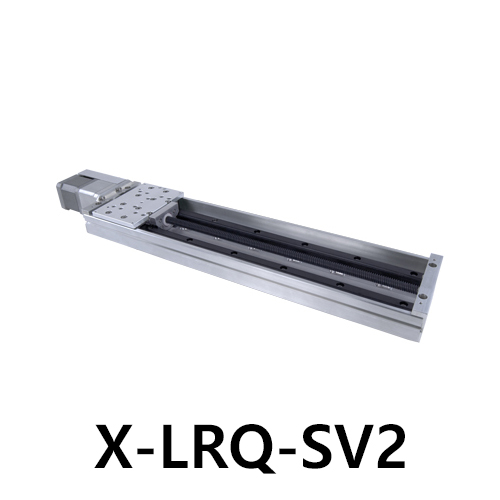

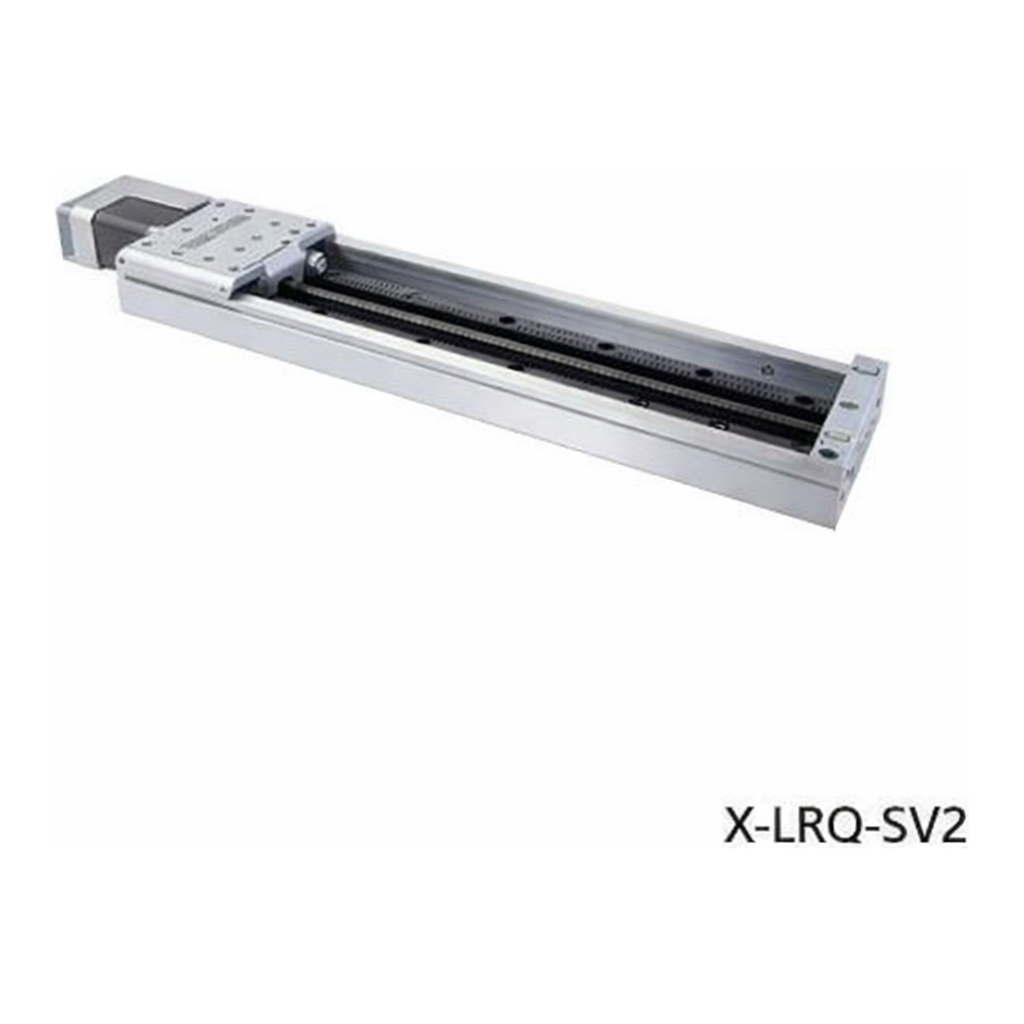

Model | X-LRQ-SV2 Series | X-LSM-SV2 Series | T-NA-SV2 Series |
Feature | High vacuum motorized linear stages with built-in controllers | High vacuum miniature motorized linear stages with built-in controllers | High vacuum micro linear actuators with built-in controllers |
Built-in Controller | Yes | Yes | Yes |
Repeatability | < 2.5 µm | <1 ~4 um | < 1 µm |
Communication Interface | RS-232 | RS-232 | RS-232 |
Communication Protocol | Zaber ASCII (Default), Zaber Binary | Zaber ASCII (Default), Zaber Binary | Zaber Binary |
Maximum Centered Load | 1000 N | 100 N | 46 N |
Maximum Cantilever Load | 3000 N-cm | 300 N-cm | |
Guide Type | Recirculating Ball Linear Guide | Needle roller bearing | |
Maximum Current Draw | 1200 mA | 350 mA | 350 mA |
Power Supply | 24-48 VDC | 24-48 VDC | 12-16 VDC |
Power Plug | None, useX-PIB | None, useX-PIB | None, use T-DSUB9-P |
Motor Steps Per Rev | 200 | 200 | 200 |
Data Cable Connection | Teflon flying leads with M8 4 pin M/F | Teflon flying leads with M8 4 pin M/F | Teflon flying leads with Minidin 6 pin M/F |
Mechanical Drive System | Precision lead screw | Precision lead screw | Precision lead screw |
Limit or Home Sensing | Magnetic home sensor | Magnetic hall sensor | Magnetic hall sensor |
Manual Control | No | No | No |
Axes of Motion | 1 | 1 | 1 |
LED Indicators | Yes | Yes | Yes, Bi-colour |
Mounting Interface | M6 and M3 threaded holes | M3 and M6 threaded holes and M4 threaded center hole | 3/8-32 nut, 3/8` shank, or M3 screws |
Vacuum Compatible | High vacuum (10-6Torr) | High vacuum (10-6Torr) | High vacuum (10-6Torr) |
Operating Temperature Range | 0 to 50 degrees C | 0 to 50 degrees C | 0 to 50 degrees C |
RoHS Compliant | Yes | Yes | Yes |
CE Compliant | Yes | Yes | Yes |
Tranvel Range | 75 ~ 600 mm | 25.4 ~ 203.2 mm | 25.4 or 50.8 mm |
Accuracy | 15 ~ 150 um | 8 ~ 61 um | 15 or 30 um |
Maximum Speed | 35 ~ 205 mm/s | 24 ~ 100 mm/s | 8 mm/s |
Peak Thrust | 60 ~100 N | 15 ~35 N | 46 N |
- Low Vacuum Devices
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-600 | X-LRQ075AL-SV1-KX14P | Low vacuum, motorized linear stage, 75 mm travel, integrated controller, fine resolution, low speed |
M01-680-605 | X-LRQ150AL-SV1-KX14P | Low vacuum, motorized linear stage, 150 mm travel, integrated controller, fine resolution, low speed |
M01-680-610 | X-LRQ300AL-SV1-KX14P | Low vacuum, motorized linear stage, 300 mm travel, integrated controller, fine resolution, low speed |
M01-680-615 | X-LRQ450AL-SV1-KX14P | Low vacuum, motorized linear stage, 450 mm travel, integrated controller, fine resolution, low speed |
M01-680-620 | X-LRQ600AL-SV1-KX14P | Low vacuum, motorized linear stage, 600 mm travel, integrated controller, fine resolution, low speed |
M01-680-625 | X-LSM025A-SV1-KX14P | Low vacuum, motorized Linear Stage, 25 mm travel, integrated controller, fine resolution, low speed |
M01-680-630 | X-LSM050A-SV1-KX14P | Low vacuum, motorized Linear Stage, 50 mm travel, integrated controller, fine resolution, low speed |
M01-680-635 | X-LSM100A-SV1-KX14P | Low vacuum, motorized Linear Stage, 100 mm travel, integrated controller, fine resolution, low speed |
M01-680-640 | X-LSM150A-SV1-KX14P | Low vacuum, motorized Linear Stage, 150 mm travel, integrated controller, fine resolution, low speed |
M01-680-645 | X-LSM200A-SV1-KX14P | Low vacuum, motorized Linear Stage, 200 mm travel, integrated controller, fine resolution, low speed |
M01-680-650 | T-NA08A25-SV1-KT03X06P | Low vacuum linear actuator, 25 mm travel, RS-232 |
M01-680-655 | T-NA08A50-SV1-KT03X06P | Low vacuum linear actuator, 50 mm travel, RS-232 |
- Low Vacuum Devices Specification
Specification | |||
--- | --- | --- | --- |
Value | Value | Value | |
--- | --- | --- | --- |
Model | X-LRQ-SV1 Series | X-LSM-SV1 Series | T-NA-SV1 Series |
Feature | High vacuum motorized linear stages with built-in controllers | High vacuum miniature motorized linear stages with built-in controllers | High vacuum micro linear actuators with built-in controllers |
Built-in Controller | Yes | Yes | Yes |
Repeatability | < 2.5 µm | <1 ~4 um | < 1 µm |
Communication Interface | RS-232 | RS-232 | RS-232 |
Communication Protocol | Zaber ASCII (Default), Zaber Binary | Zaber ASCII (Default), Zaber Binary | Zaber Binary |
Maximum Centered Load | 1000 N | 100 N | 46 N |
Maximum Cantilever Load | 3000 N-cm | 300 N-cm | |
Guide Type | Recirculating Ball Linear Guide | Needle roller bearing | |
Maximum Current Draw | 1200 mA | 350 mA | 350 mA |
Power Supply | 24-48 VDC | 24-48 VDC | 12-16 VDC |
Power Plug | None, useX-PIB | None, useX-PIB | None, use T-DSUB9-P |
Motor Steps Per Rev | 200 | 200 | 200 |
Data Cable Connection | Teflon flying leads with M8 4 pin M/F | Teflon flying leads with M8 4 pin M/F | Teflon flying leads with Minidin 6 pin M/F |
Mechanical Drive System | Precision lead screw | Precision lead screw | Precision lead screw |
Limit or Home Sensing | Magnetic home sensor | Magnetic hall sensor | Magnetic hall sensor |
Manual Control | No | No | No |
Axes of Motion | 1 | 1 | 1 |
LED Indicators | Yes | Yes | Yes, Bi-colour |
Mounting Interface | M6 and M3 threaded holes | M3 and M6 threaded holes and M4 threaded center hole | 3/8-32 nut, 3/8` shank, or M3 screws |
Vacuum Compatible | High vacuum (10-3Torr) | High vacuum (10-3Torr) | High vacuum (10-3Torr) |
Operating Temperature Range | 0 to 50 degrees C | 0 to 50 degrees C | 0 to 50 degrees C |
RoHS Compliant | Yes | Yes | Yes |
CE Compliant | Yes | Yes | Yes |
Tranvel Range | 75 ~ 600 mm | 25.4 ~ 203.2 mm | 25.4 or 50.8 mm |
Accuracy | 15 ~ 150 um | 8 ~ 61 um | 15 or 30 um |
Maximum Speed | 35 ~ 205 mm/s | 24 ~ 100 mm/s | 8 mm/s |
Peak Thrust | 60 ~100 N | 15 ~35 N | 46 N |
