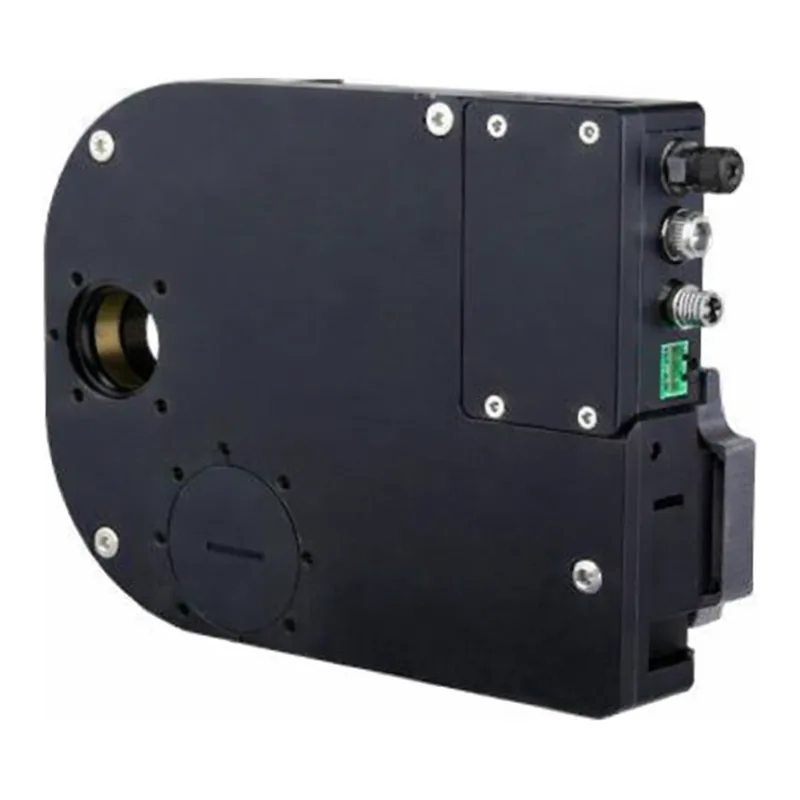

Optical Mounts/옵티컬 마운트
■ Optical Mounts(옵티컬 마운트)는 4가지의 제품시리즈로 분류

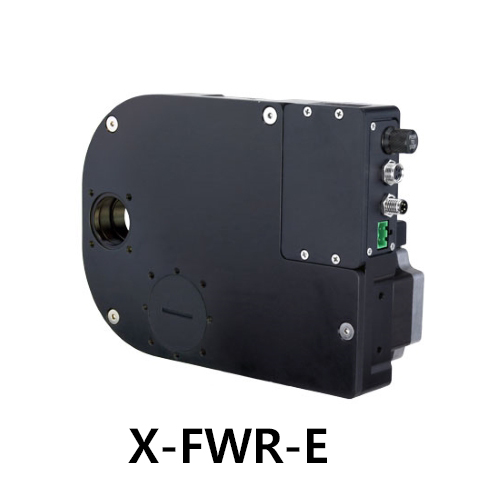

▶ X-FWR-E Series:Motorized filter wheels with built-in controllers and motor encoders

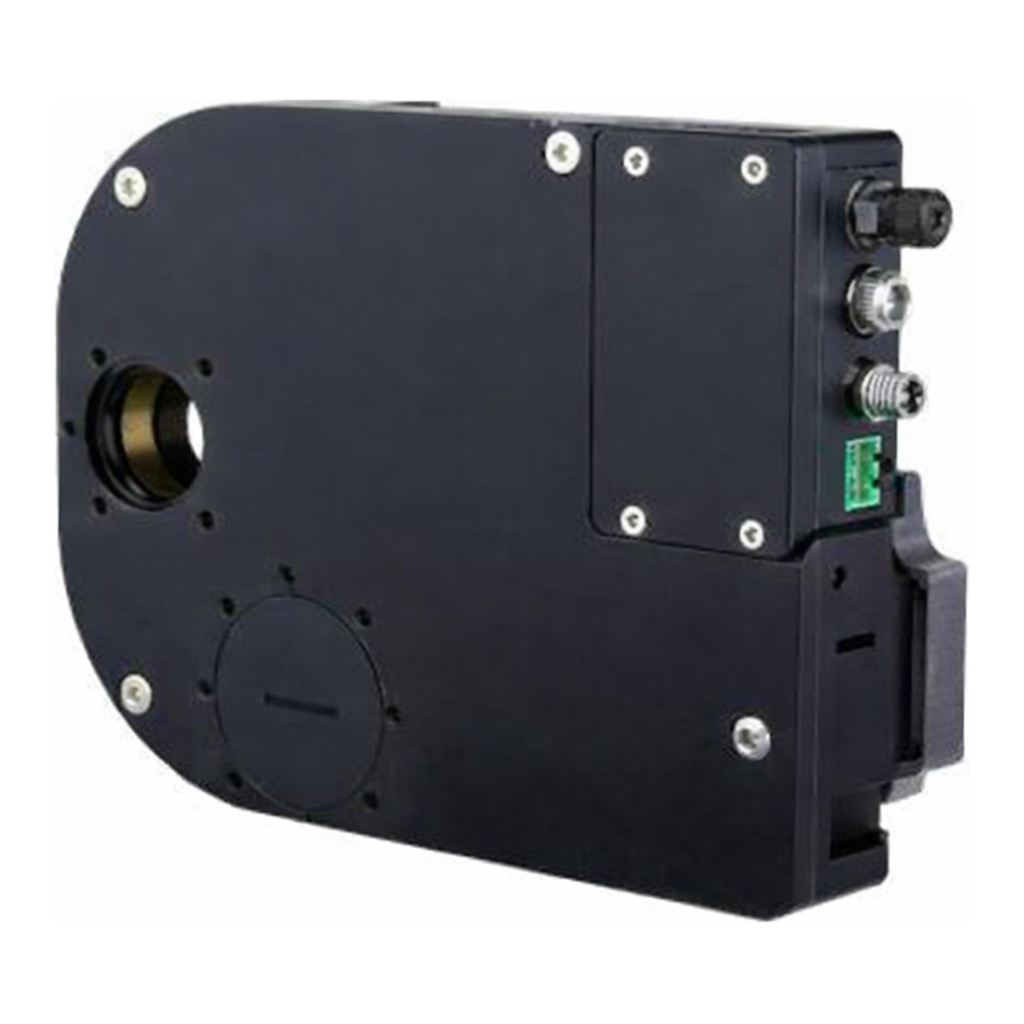

▶ X-FWR Series:Motorized filter wheels with built-in controllers
▶ T-OMG Series:Miniature motorized gimbal optic mounts with built-in controllers
▶ T-MM Series:Motorized mirror mounts with built-in controllers
■ 제품별 주요 특징은 하단 설명 참조
- Optical Mounts
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-880 | X-FWR06A-E02-KX13A-FH0625 | Motorized filter wheel, 10 position filter holder, built-in controller and encoder, North America, 48 V. Powers one axis |
M01-680-883 | X-FWR06A-E02-PTB2-FH0625 | Motorized filter wheel, 10 position filter holder, built-in controller and encoder, Not Included |
M01-680-886 | `X-FWR06A-E02-KX13A-FH0632 | Motorized filter wheel, 7 position filter holder, built-in controller and encoder, North America, 48 V. Powers one axis |
M01-680-889 | X-FWR06A-E02-PTB2-FH0632 | Motorized filter wheel, 7 position filter holder, built-in controller and encoder, Not Included |
M01-680-892 | X-FWR06A-KX14A-FH0625 | Motorized filter wheel, 10 position filter holder, built-in controller, North America, 48 V. Powers multiple axes |
M01-680-895 | X-FWR06A-KX14A-FH0632 | Motorized two-axis optic mount, North America, 48 V. Powers multiple axes |
M01-680-898 | X-FWR06A-PTB2-FH0632 | Motorized two-axis optic mount, Not Included |
M01-680-901 | T-OMG-KT04U | Motorized two-axis optic mount, 15 V. Powers multiple axes |
M01-680-904 | T-MM2-KT04U | Motorized mirror mount, 2 axis, 1/4`-20 thread with M6 adaptor, RS-232 plus manual control, 15 V. Powers multiple axes |
- Optical Mounts Specification 1
Specification | ||
--- | --- | --- |
Value | Value | |
--- | --- | --- |
Model | X-FWR-E | X-FWR |
Microstep Size (Default Resolution) | 0.010714285 degrees | 0.010714285 degrees |
Built-in Controller | Yes | Yes |
Range | 360 degrees | 360 degrees |
Accuracy (unidirectional) | 0.4 degrees | 0.4 degrees |
Repeatability | < 0.1 degrees | < 0.1 degrees |
Backlash | < 0.19 degrees | < 0.19 degrees |
Encoder Resolution | 400 CPR | |
Encoder Type | Motor mounted rotary quadrature encoder | |
Communication Interface | RS-232 | RS-232 |
Communication Protocol | Zaber ASCII (Default), Zaber Binary | Zaber ASCII (Default), Zaber Binary |
Compatible Optic Thickness | 6.5 mm | 6.5 mm |
Maximum Current Draw | 650 mA | 650 mA |
Power Supply | 24-48 VDC | 24-48 VDC |
Power Plug | 2-pin Screw Terminal | 2-pin Screw Terminal |
Motor Steps Per Rev | 200 | 200 |
Motor Type | Stepper (2 phase) | Stepper (2 phase) |
Motor Rated Current | 2100 mA/phase | 2100 mA/phase |
Inductance | 3.2 mH/phase | 3.2 mH/phase |
Default Resolution | 1/56 of a step | 1/56 of a step |
Data Cable Connection | Locking 4-pin M8 | Locking 4-pin M8 |
Motor Frame Size | NEMA 23 | NEMA 23 |
Mechanical Drive System | Synchronous belt | Synchronous belt |
Limit or Home Sensing | Magnetic home sensor | Magnetic home sensor |
Manual Control | Yes | Yes |
Mounting Interface | M6 threaded hole for optic post, M3 holes for AP134 post mount adaptor | M6 threaded hole for optic post, M3 holes for AP134 post mount adaptor |
Operating Temperature Range | 0-50 degrees C | 0-50 degrees C |
RoHS Compliant | Yes | Yes |
CE Compliant | Yes | Yes |
- Optical Mounts Specification 2
Specification | |
--- | --- |
Value | |
--- | --- |
Model | T-OMG |
Built-in Controller | Yes |
Range | `+/- 7 degrees |
Encoder Type | None |
Communication Interface | RS-232 |
Communication Protocol | Zaber Binary |
Aperture Diameter | 24 mm |
Maximum Current Draw | 700 mA |
Power Supply | 12-16 VDC VDC |
Power Plug | 2.1 mm center positive |
Motor Steps Per Rev | 200 |
Motor Type | Stepper (2 phase) |
Inductance | 1.5 mH/phase |
Default Resolution | 1/64 of a step |
Data Cable Connection | Minidin 6 |
Motor Frame Size | NEMA 08 |
Mechanical Drive System | Precision lead screw |
Limit or Home Sensing | Magnetic hall sensor |
Manual Control | Yes, Potentiometer |
Axes of Motion | 2 |
LED Indicators | Yes, Bi-colour |
Mounting Interface | M6 threaded hole for optic post |
Optic Mounting Interface | 1` or 25 mm optics |
Operating Temperature Range | 0 to 50 degrees C |
RoHS Compliant | Yes |
CE Compliant | Yes |
Weight | 0.33 kg |
- Optical Mounts Specification 3
Specification | |
--- | --- |
Value | |
--- | --- |
Model | T-MM |
Microstep Size (Default Resolution) | 0.000086 degrees |
Built-in Controller | Yes |
Range | `-5.27 to +5.27 degrees |
Accuracy (unidirectional) | 0.06 degrees |
Repeatability | < 0.015 degrees |
Backlash | < 0.03 degrees |
Maximum Speed | 3.44 deg/s |
Minimum Speed | 0.000806 deg/s |
Speed Resolution | 0.000806 deg/s |
Encoder Type | None |
Communication Interface | RS-232 |
Communication Protocol | Zaber Binary |
Maximum Centered Load | 15 N |
Maximum Current Draw | 530 mA |
Power Supply | 12-16 VDC |
Power Plug | 2.1 mm center positive |
Angular Motion Per Motor Rev | 0.264 degrees |
Motor Steps Per Rev | 48 |
Motor Type | Stepper (2 phase) |
Inductance | 55 mH/phase |
Default Resolution | 1/64 of a step |
Data Cable Connection | Minidin 6 |
Mechanical Drive System | Precision lead screw |
Limit or Home Sensing | Magnetic home sensors |
Manual Control | Yes |
Axes of Motion | 2 |
LED Indicators | Yes |
