Linear Stage (선형 이송장치)

Linear Stage(선형 이송장치)는 4가지 제품군으로 구성되어 있습니다.

1. Motorized Stage with Built-in Controller and Linear Encoders
2. Motorized Stage with Built-in Controller and Motor Encoders
3. Motorized Stage with Built-in Controller
4. Motorized Stage

각 제품군의 주요 특징은 아래 표를 참고하십시오.

---

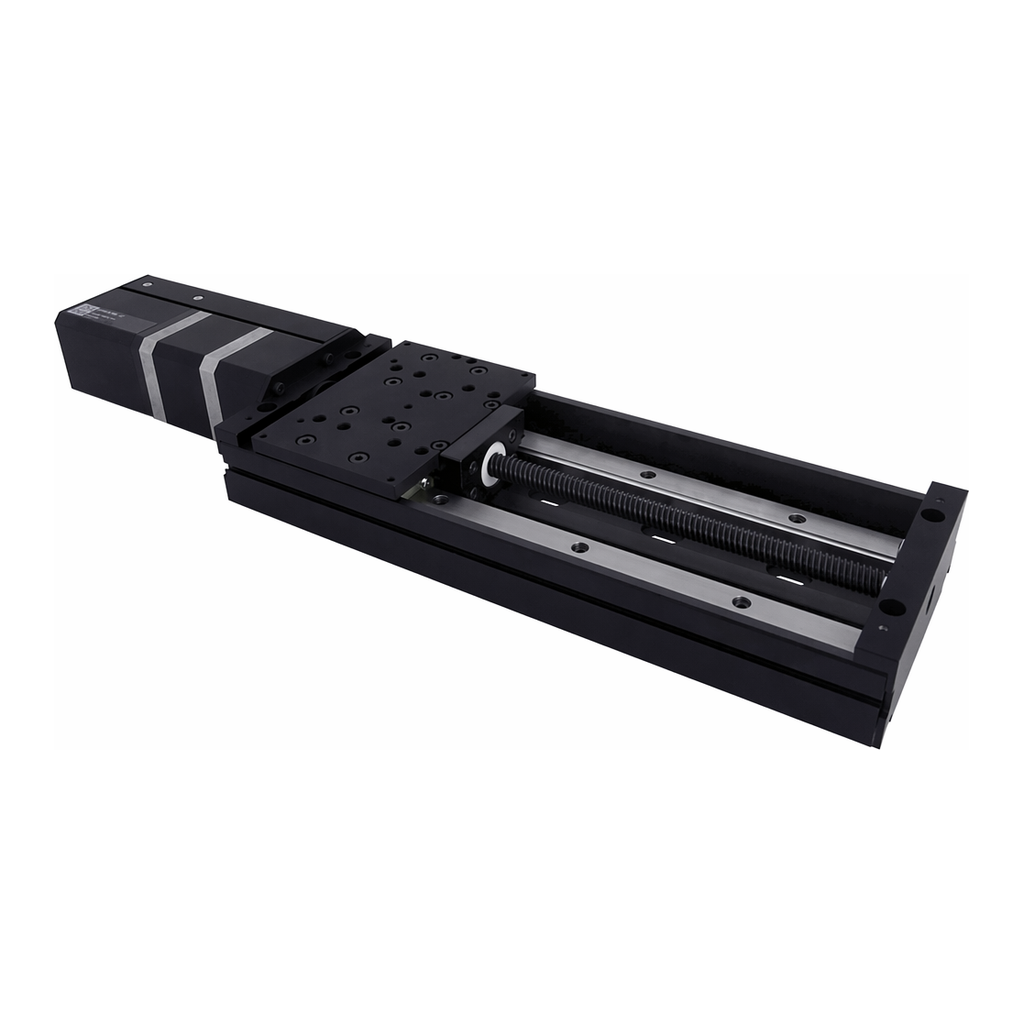

Motorized Stage with Built-in Controller and Linear Encoders

Cat. No.	Model	Description

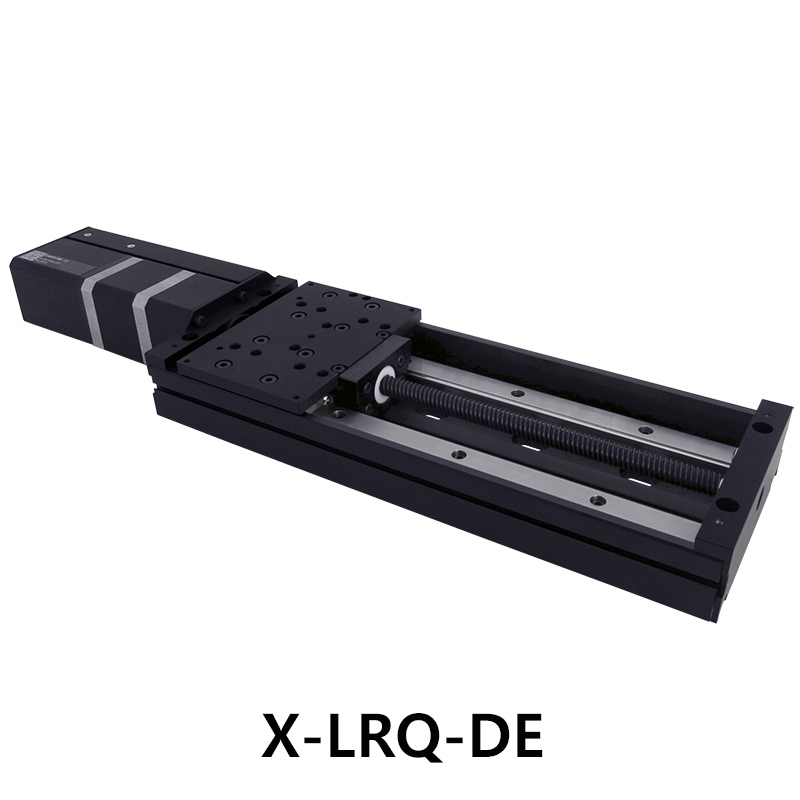

M01-680-005	X-LRQ075AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 75 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
M01-680-010	X-LRQ150AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 150 mm travel, integrated linear encoder and controller
M01-680-015	X-LRQ300AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 300 mm travel, integrated linear encoder and controller
M01-680-020	X-LRQ450AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 450 mm travel, integrated linear encoder and controller
M01-680-025	X-LRQ600AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 600 mm travel, integrated linear encoder and controller
M01-680-030	X-LRQ075AL-DE51C-KX14C	Covered linear stage, 75 mm travel, integrated linear encoder and controller
M01-680-035	X-LRQ150AL-DE51C-KX14C	Covered linear stage, 150 mm travel, integrated linear encoder and controller
M01-680-040	X-LRQ300AL-DE51C-KX14C	Covered linear stage, 300 mm travel, integrated linear encoder and controller
M01-680-045	X-LRQ450AL-DE51C-KX14C	Covered linear stage, 450 mm travel, integrated linear encoder and controller
M01-680-050	X-LRQ600AL-DE51C-KX14C	Covered linear stage, 600 mm travel, integrated linear encoder and controller
M01-680-055	X-LRM100A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 100 mm travel
M01-680-060	X-LRM150A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 150 mm travel
M01-680-065	X-LRM200A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 200 mm travel

Specification

• X-LRQ-DE
• X-LRQ-DEC
• X-LRM-DE

Model	Feature	Built-in Controller	Encoder Type	Encoder Resolution	Communication Interface	Max Load (Centered)	Max Speed	Accuracy
X-LRQ-DE	High precision stage with linear encoders	Yes	Linear quadrature	50 nm	RS-232	1000 N	40~205 mm/s	13~15 µm
X-LRQ-DEC	High precision stage with dust cover	Yes	Linear quadrature	50 nm	RS-232	1000 N	40~205 mm/s	13~15 µm
X-LRM-DE	Miniature steel linear stage	Yes	Linear quadrature	-	RS-232, USB 2.0	500 N	25~100 mm/s	15 µm

---

Motorized Stage with Built-in Controller and Motor Encoders

Cat. No.	Model	Description
M01-680-090	X-LRQ075AL-E01-KX14C	Motorized, lead-screw driven, 75 mm travel, integrated motor encoder and controller
M01-680-095	X-LRQ150AL-E01-KX14C	Motorized, lead-screw driven, 150 mm travel, integrated motor encoder and controller
M01-680-100	X-LRQ300AL-E01-KX14C	Motorized, lead-screw driven, 300 mm travel, integrated motor encoder and controller
...	...	...
M01-680-215	X-LSM200A-E03-KX14A	Motorized linear stage, 200 mm travel, integrated motor encoder and controller, plus manual control

Specification

Model	Feature	Encoder Resolution	Interface	Max Load (Centered)	Max Speed	Accuracy
X-LRQ-E	Closed-loop stage with motor encoder	500 CPR	RS-232	1000 N	40~840 mm/s	15~150 µm
X-LSQ-E	Closed-loop stage with motor encoder	500 CPR	RS-232	200 N	42~1000 mm/s	15~150 µm
X-BLQ-E	Belt-driven closed-loop stage	500 CPR	RS-232	200 N	1100~2000 mm/s	200~3000 µm
X-LRM-E	Miniature steel stage	200 CPR	RS-232, USB 2.0	500 N	25~100 mm/s	8~60 µm
X-LSM-E	Miniature motorized stage	200 CPR	RS-232	100 N	26~104 mm/s	8~61 µm

---

Motorized Stage with Built-in Controller

Cat. No.	Model	Description
M01-680-240	X-LSQ075A-KX14C	Motorized linear stage, 75 mm travel, integrated controller
M01-680-245	X-LSQ150A-KX14C	Motorized linear stage, 150 mm travel, integrated controller
...	...	...
M01-680-335	X-LHM200A-KX14A	Motorized linear stage, 200 mm travel, integrated controller

Specification

Model	Feature	Encoder Type	Interface	Max Load (Centered)	Max Speed	Accuracy
X-LSQ	Motorized linear stage	None	RS-232	200 N	42~1000 mm/s	15~150 µm
X-LRM	Miniature steel stage	None	RS-232, USB 2.0	500 N	25~100 mm/s	8~60 µm
X-LSM	Miniature motorized stage	None	RS-232	100 N	26~104 mm/s	8~61 µm
X-LHM	Motorized linear stage	None	RS-232	30 N	65 mm/s	50~225 µm

---

Motorized Stage

Cat. No.	Model	Description
M01-680-350	LSM025A-T4-MC04	Motorized linear stage, 25 mm travel (controller required)
M01-680-355	LSM050A-T4-MC04	Motorized linear stage, 50 mm travel (controller required)
...	...	...
M01-680-405	LSA25A-T4-MC04	Motorized linear stage, 25 mm travel (controller required)

Specification

Model	Feature	Controller	Max Load (Centered)	Max Speed	Accuracy
LSM	Miniature motorized stage	External	100 N	26~104 mm/s	8~61 µm
LST	High-load motorized stage	External	1000 N	22~420 mm/s	63~375 µm
LSA	Micro motorized stage	External	-	10 mm/s	18~24 µm

---
