Rotary Stage/원형 이송장치
■ Rotary Stage(원형 이송장치)는 2가지 제품군으로 분류
- Motorized Rotary Stage with built-in controllers and direct encoders
- Motorized Rotary Stage with built-in controllers and motor encoders
■ 제품별 주요 특징은 하단 설명 참조

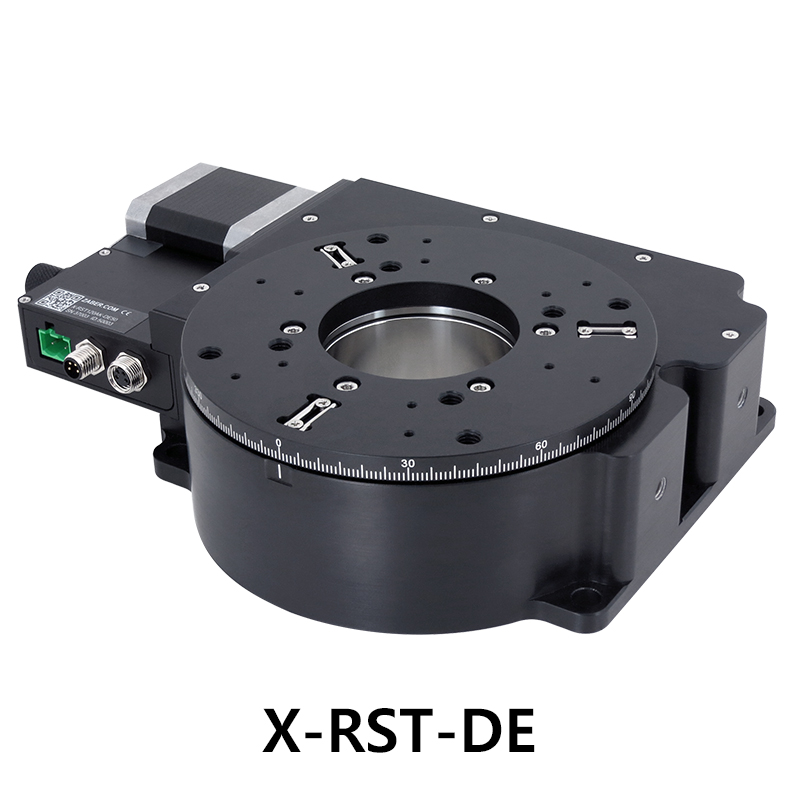

- Motorized Rotary Stage with built-in controllers and direct encoders
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-415 | X-RST120AK-DE50-KX14A | Motorized rotary stage, integrated controller and direct reading encoder, 360 degree rotation, 120 mm diameter, fine resolution, high torque |
- Motorized Rotary Stage with built-in controllers and direct encoders Specification
Specification | |
--- | --- |
Value | |
--- | --- |
Model | X-RST-DE Series |
Feature | High precision motorized rotary stages with built-in controllers and direct encoders |
Built-in Controller | Yes |
Range | 360 degrees |
Accuracy (unidirectional) | 0.01 degrees |
Repeatability | < 0.005 degrees |
Maximum Speed | 24 deg/s |
Encoder Resolution | 16200 CPR |
Encoder Count Size | 0.00005556 deg/count |
Encoder Type | Direct reading optical encoder |
Communication Interface | RS-232 |
Communication Protocol | Zaber ASCII (Default), Zaber Binary |
Maximum Continuous Torque | 1000 N-cm |
Maximum Centered Load | 500 N |
Maximum Cantilever Load | 2000 N-cm |
Stage Top Dimension | 120 mm |
Maximum Current Draw | 1100 mA |
Power Supply | 24-48 VDC |
Power Plug | 2-pin Screw Terminal |
Motor Steps Per Rev | 200 |
Motor Type | Stepper (2 phase) |
Motor Rated Current | 1500 mA/phase |
Inductance | 6.6 mH/phase |
Maximum Angular Momentum | 0.4 kg-m^2/s |
Default Resolution | 1/64 of a step |
Data Cable Connection | Locking 4-pin M8 |
Mechanical Drive System | Precision Worm Gear |
Limit or Home Sensing | Magnetic home sensor |
Manual Control | Yes |
Operating Temperature Range | 0-50 degrees C |
RoHS Compliant | Yes |
CE Compliant | Yes |

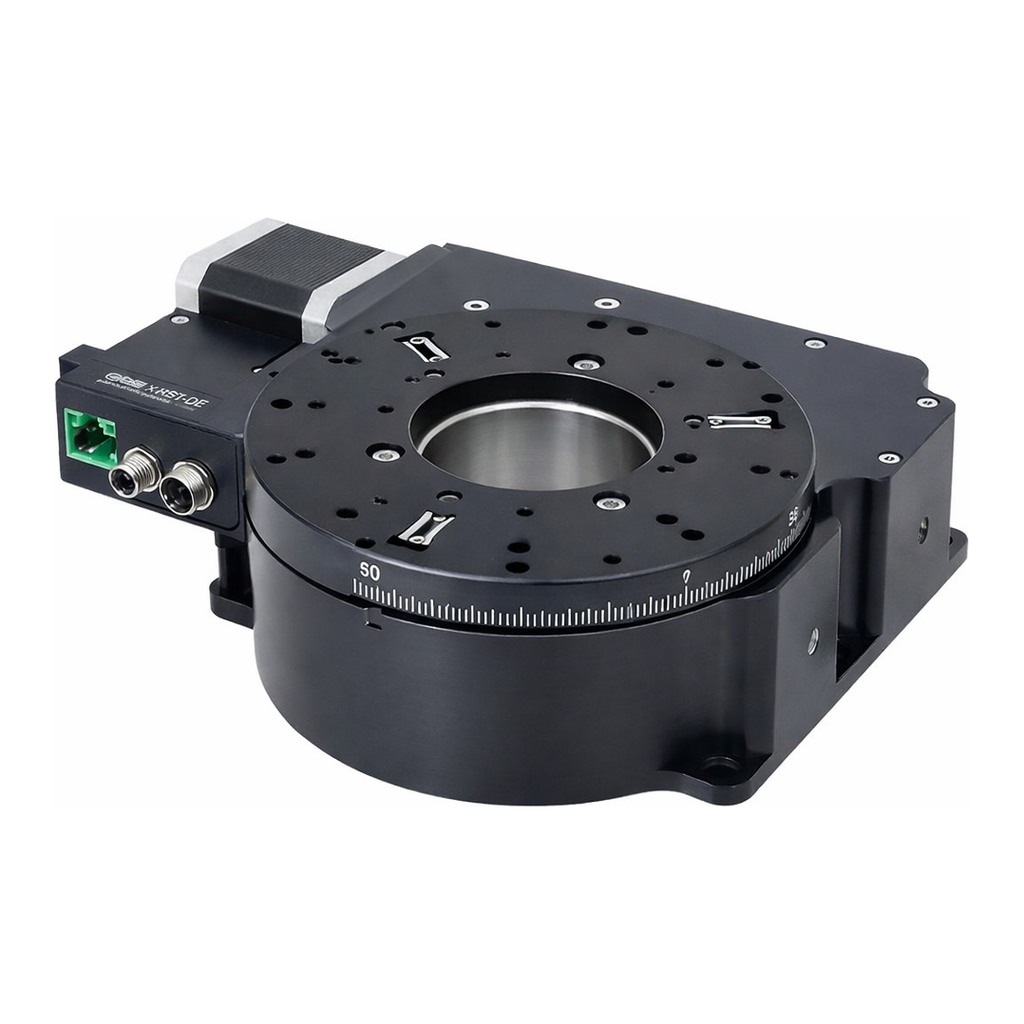

- Motorized Rotary Stage with built-in controllers and motor encoders
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-425 | X-RST120AK-E03-KX14A | Motorized rotary stage, integrated controller and motor encoder, 360 degree rotation, 120 mm diameter, fine resolution, high torque |
M01-680-430 | X-RSB120AD-E01-KX14A | Motorized rotation stage, integrated controller and motor encoder, 360 degree rotation, 120 mm diameter, high speed, motor down |
M01-680-435 | X-RSB120AU-E01-KX14A | Motorized rotation stage, integrated controller and motor encoder, 360 degree rotation, 120 mm diameter, high speed, motor up |
M01-680-440 | X-RSW60A-E03-KX14A | Motorized rotary stage, integrated controller and motor encoder, 360 degree rotation, 60 mm stage top, high torque |
M01-680-445 | X-RSW60C-E03-KX14A | Motorized rotary stage, integrated controller and motor encoder, 360 degree rotation, 60 mm stage top, coarse resolution, high speed |
- Motorized Rotary Stage with built-in controllers and motor encoders Specification
Specification | |||
--- | --- | --- | --- |
Value | Value | Value | |
--- | --- | --- | --- |
Model | X-RST-E Series | X-RSB-E Series | X-RSW-E Series |
Feature | High load motorized rotary stages with built-in controllers and motor encoders | High speed motorized rotary stages with built-in controllers and motor encoders | Motorized rotary stages with built-in controllers and motor encoders |
Built-in Controller | Yes | Yes | Yes |
Range | 360 degrees | 360 degrees | 360 degrees |
Accuracy (unidirectional) | 0.16 degrees | 0.19 degrees | 0.14 degrees |
Repeatability | < 0.005 degrees | < 0.02 degrees | < 0.02 degrees |
Maximum Speed | 24 deg/s | 1800 deg/s | 115 or 450 deg/s |
Encoder Resolution | 200 CPR | 500 CPR | 200 CPR |
Encoder Type | Motor mounted rotary quadrature encoder | Motor mounted rotary quadrature encoder | Motor mounted rotary quadrature encoder |
Communication Interface | RS-232 | RS-232 | RS-232 |
Communication Protocol | Zaber ASCII (Default), Zaber Binary | Zaber ASCII (Default), Zaber Binary | Zaber ASCII (Default), Zaber Binary |
Maximum Continuous Torque | 1000 N-cm | 120 N-cm | 225 or 105 N-cm |
Maximum Centered Load | 500 N | 500 N | 200 N |
Maximum Cantilever Load | 2000 N-cm | 2000 N-cm | 410 N-cm |
Stage Top Dimension | 120 mm | 120 mm | 60 mm |
Maximum Current Draw | 1100 mA | 1200 mA | 950 mA |
Power Supply | 24-48 VDC | 24 - 48 VDC | 24-48 VDC |
Power Plug | 2-pin Screw Terminal | 2-pin Screw Terminal | 2-pin Screw Terminal |
Motor Steps Per Rev | 200 | 200 | |
Motor Type | Stepper (2 phase) | Stepper (2-phase) | Stepper (2 phase) |
Motor Rated Current | 1500 mA/phase | 2100 mA/phase | 1500 mA/phase |
Inductance | 6.6 mH/phase | 7.2 mH/phase | 1 mH/phase |
Default Resolution | 1/64 of a step | 1/64 of a step | 1/64 of a step |
Data Cable Connection | Locking 4-pin M8 | Locking 4-pin M8 | Locking 4-pin M8 |
Mechanical Drive System | Precision Worm Gear | Synchronous belt | Precision Worm Gear |
Limit or Home Sensing | Magnetic home sensor | Magnetic home sensor | Magnetic home sensor |
Manual Control | Yes | Yes | Yes |
Operating Temperature Range | 0-50 degrees C | 0 - 50 degrees C | 0-50 degrees C |
RoHS Compliant | Yes | Yes | Yes |
CE Compliant | Yes | Yes | Yes |
