Linear Actuator/선형 엑츄에이터, Motorized Linear Actuator with Built-in controller and encoders
■ Various Travel Range : 13 mm ~ 300 mm
■ Our most compact, precise and robust actuators with built-in controllers
■ Built-in controller; daisy-chains data and power with other T-Series products
■ Designed to replace standard micrometer heads on manual translation stages
■ Inline and parallel drive configurations
- Motorized Linear Actuator with Built-in controller and encoders
Cat. No. | Model | Description |
--- | --- | --- |

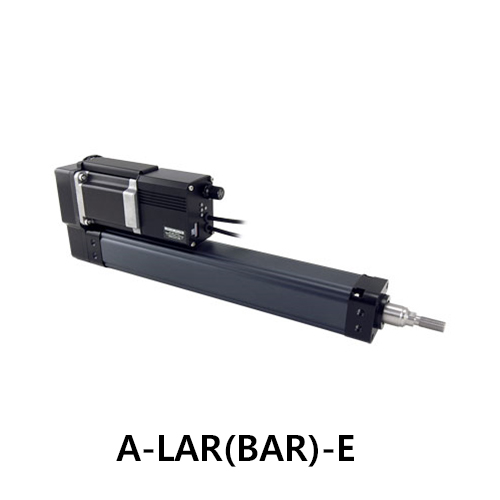

M01-680-665 | A-LAR200ALC-E01-KT07U | Motorized electric cylinders, integrated motor encoder, 200 mm travel, fine resolution, low speed, inline drive |
M01-680-670 | A-LAR300ALC-E01-KT07U | Motorized electric cylinders, integrated motor encoder, 300 mm travel, fine resolution, low speed, inline drive |

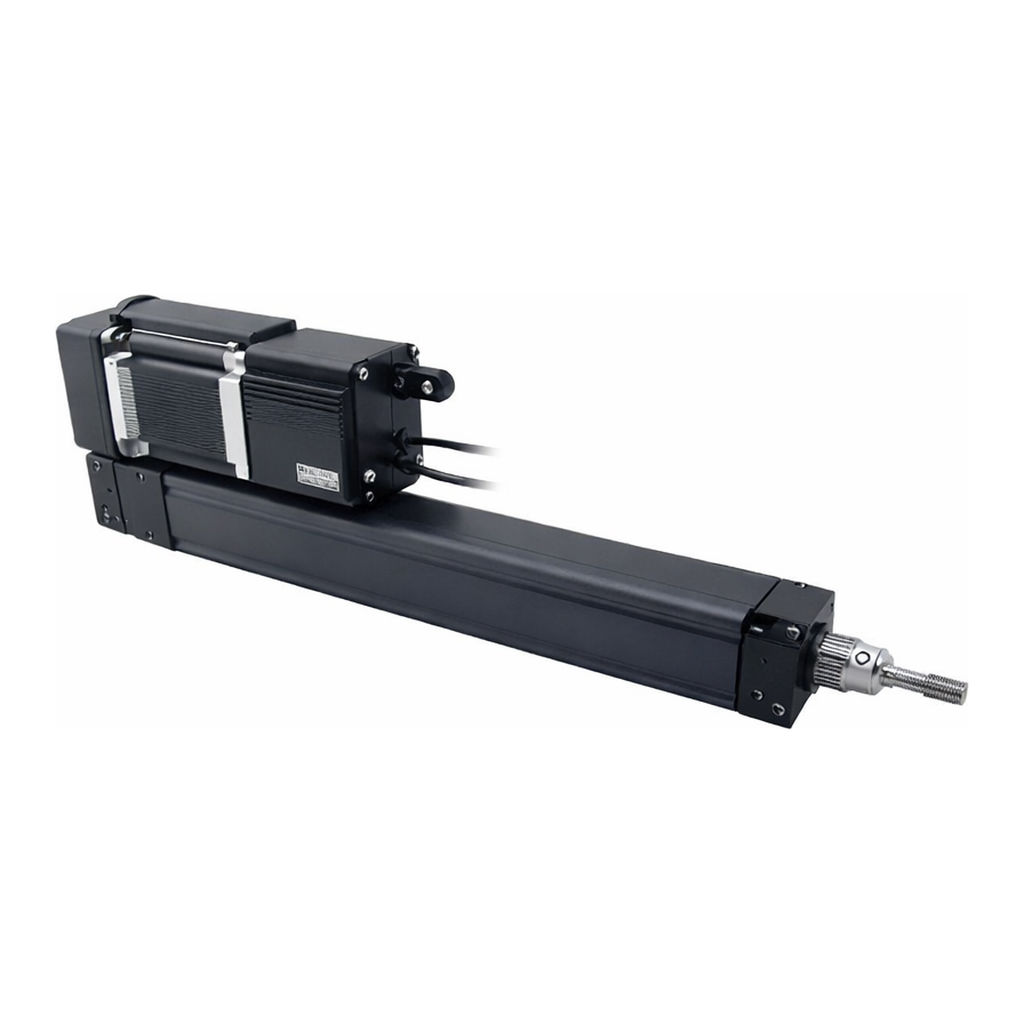

M01-680-675 | A-BAR200BPC-E01-KT07U | Motorized electric cylinder, integrated motor encoder, 200 mm travel, medium resolution, medium speed, inline drive |
M01-680-680 | A-BAR300BLC-E01-KT07U | Motorized electric cylinder, integrated motor encoder, 300 mm travel, medium resolution, medium speed, inline drive |
M01-680-685 | T-NA08A25-KT03U | Linear actuator, 25 mm travel, RS-232 plus manual control |
M01-680-690 | T-NA08A25-S-KT03U | Linear actuator, 25 mm travel, RS-232 control |
M01-680-695 | T-NA08A50-KT03U | Linear actuator, 50 mm travel, RS-232 plus manual control |
M01-680-700 | T-NA08A50-S-KT03U | Linear actuator, 50 mm travel, RS-232 control |
M01-680-705 | T-LA13A-KT03U | Miniature linear actuator, 13 mm travel, RS-232 plus manual control |
M01-680-710 | T-LA28A-KT03U | Miniature linear actuator, 28 mm travel, RS-232 plus manual control |
M01-680-715 | T-LA60A-KT03U | Miniature linear actuator, 60 mm travel, RS-232 plus manual control |
- Motorized Linear Actuator with Built-in controller and encoders Specification
Specification | ||||
--- | --- | --- | --- | --- |
Value | Value | Value | Value | |
--- | --- | --- | --- | --- |
Model | A-LAR-E serise | A-BAR-E series | T-NA Series | T-LA series |
Feature | High Thrust, Fine Resolution, Low speed | High Trust, Medium Resultion, Medium Speed | Micro Actuator, High Accuracy | Miniature Actuator, Econo |
Microstep Size (Default Resolution) | 0.1984375 µm | 0.248046875 µm | 0.047625 µm | 0.09921875 µm |
Built-in Controller | Yes | Yes | Yes | Yes |
Repeatability | < 15 µm | < 30 µm | < 1 µm | < 4 µm |
Backlash | < 255 µm | < 120 µm | < 4 µm | < 6 µm |
Maximum Speed | 40 mm/s | 65 mm/s | 8 mm/s | 4 mm/s |
Minimum Speed | 0.000121 mm/s | 0.000151 mm/s | 0.00022 mm/s | .0009302 mm/s |
Encoder Resolution | 500 CPR | 500 CPR | ||
Encoder Type | Motor mounted rotary quadrature encoder | Motor mounted rotary quadrature encoder | None | None |
Peak Thrust | 540 N | 540 N | 65 N | 25 N |
Maximum Continuous Thrust | 200 N | 540 N | 50 N | 15 N |
Communication Protocol | Zaber ASCII, Zaber Binary (Default) | Zaber ASCII, Zaber Binary (Default) | Zaber Binary, RS-232 | Zaber Binary, RS-232 |
Maximum Current Draw | 1200 mA | 1100 mA | 350 mA | 300 mA |
Power Supply | 24-48 VDC | 24-48 VDC | 12-16 VDC | 12-16 VDC |
Power Plug | Molex Mini-Fit Jr. 3 pin | Molex Mini-Fit Jr. 3 pin | 2.1 mm center positive | 2.1 mm centre positive |
Linear Motion Per Motor Rev | 2.54 mm | 3.175 mm | 0.3048 mm | |
Motor Steps Per Rev | 200 | 200 | 200 | 48 |
Motor Type | Stepper (2 phase) | Stepper (2 phase) | Stepper (2 phase) | Stepper (2 phase) |
Motor Rated Current | 2100 mA/phase | 2100 mA/phase | 1.5 mH/phase | 55 mH/phase |
Data Cable Connection | Minidin 6 M/F | Minidin 6 M/F | Minidin 6 | 1/64 of a step |
Travel Range | 203.2 ~ 304.8 mm | 203.2 ~ 304.8 mm | 25.4 ~ 50.8 mm | 13 ~ 60 mm |
Accuracy | 170 ~255 um | 70 ~ 102 um | 15 ~ 30 um | 24 ~ 36 um |
