Scanning & Microscope Stages/스캐닝&현미경 스테이지

상품 한눈에 보기

ASR-E 및 ASR 시리즈는 정밀 XY 스캐닝 및 현미경 스테이지로, 고정밀 모터 인코더를 내장한 클로즈드 루프 제어를 제공합니다. 반복정밀도 <2 µm, 최대속도 85 mm/s, 크로스 롤러 베어링 가이드 채택으로 안정적이고 정밀한 위치 제어가 가능합니다.

Scanning & Microscope Stages (스캐닝 & 현미경 스테이지)

Scanning & Microscope Stages는 두 가지 시리즈로 구성되어 있습니다.

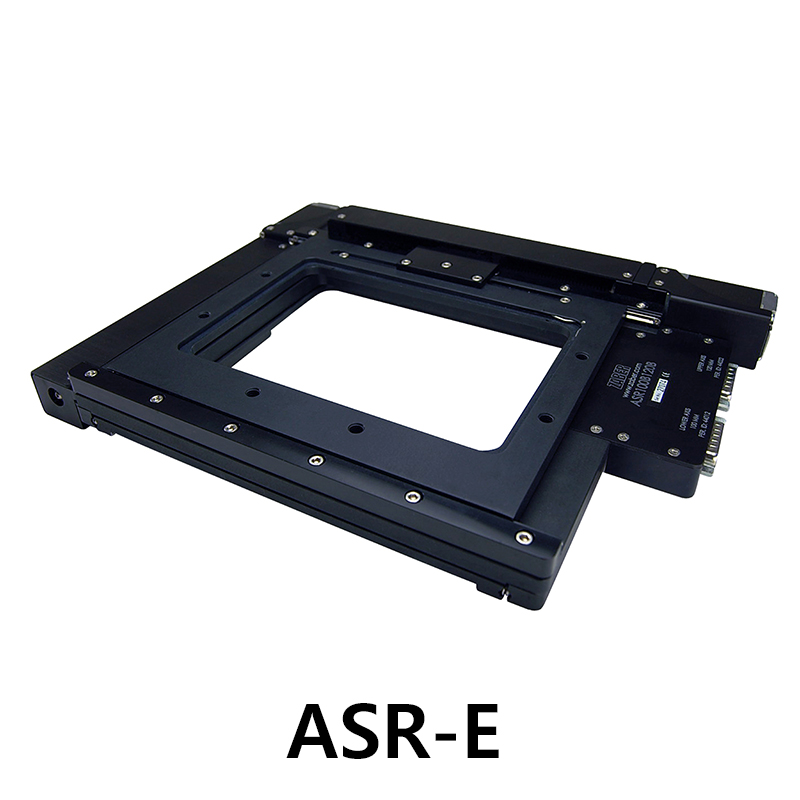

ASR-E Series: Closed-loop motorized XY scanning stages with built-in motor encoders

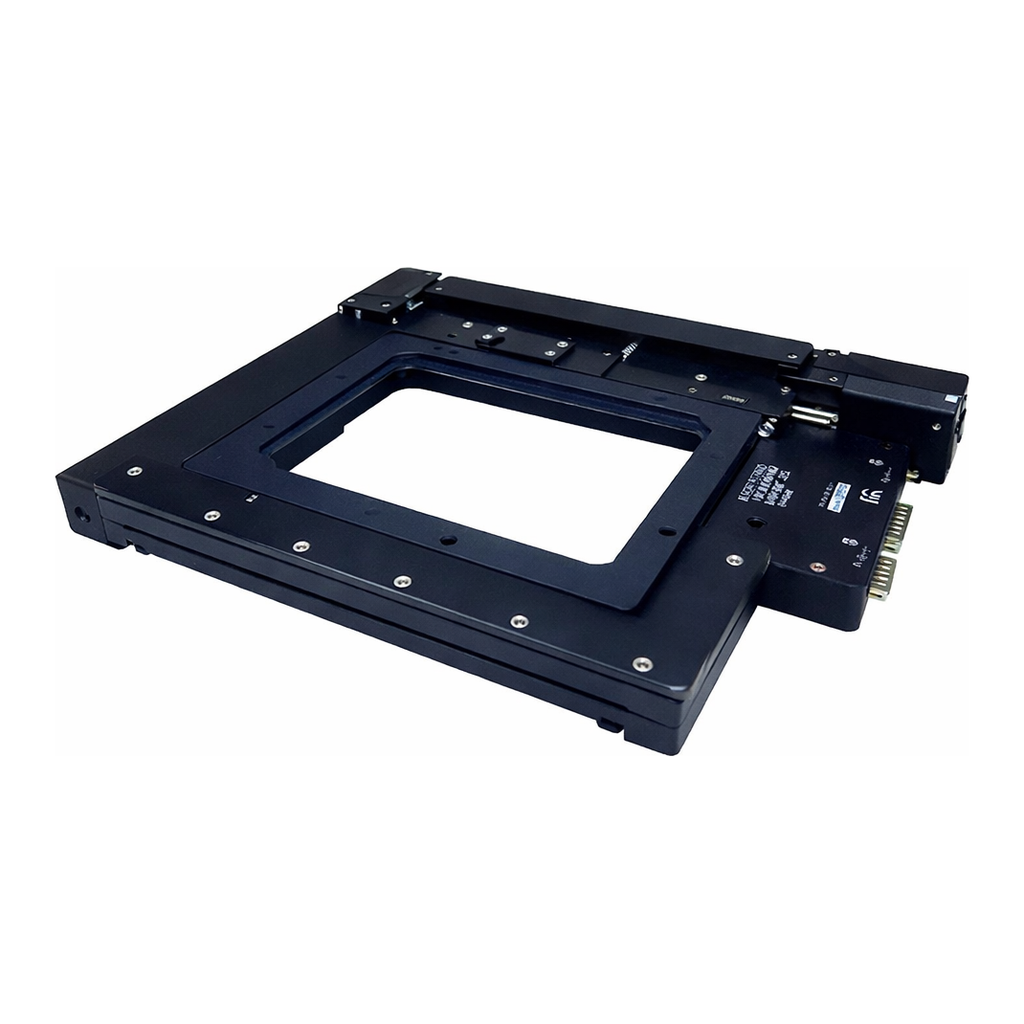

ASR Series: Motorized XY microscope stages

제품별 주요 특징은 아래 표를 참조하세요.

Cat. No.	Model	Description
M01-680-940	ASR050B050B-E03T3-K0047	Closed-loop motorized XY scanning stage, 50 mm x 50 mm travel, X-MCB2 (48 V) Recommended
M01-680-943	ASR050B050B-E03T3-K0062	Closed-loop motorized XY scanning stage, 50 mm x 50 mm travel, X-MCB2 (48 V) Recommended
M01-680-946	ASR100B120B-E03T3-K0045	Closed-loop motorized XY scanning stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended
M01-680-949	ASR100B120B-E03T3-K0046	Closed-loop motorized XY scanning stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended
M01-680-952	ASR100B120B-E03T3-K0047	Closed-loop motorized XY scanning stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended
M01-680-955	ASR100B120B-E03T3-K0056	Closed-loop motorized XY scanning stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended
M01-680-958	ASR050B050B-T3-K0047	Motorized XY microscope stage, 50 mm x 50 mm travel, X-MCB2 (48 V) Recommended
M01-680-961	ASR050B050B-T3-K0062	Motorized XY microscope stage, 50 mm x 50 mm travel, X-MCB2 (48 V) Recommended
M01-680-964	ASR100B120B-T3-K0045	Motorized XY microscope stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended
M01-680-967	ASR100B120B-T3-K0046	Motorized XY microscope stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended
M01-680-970	ASR100B120B-T3-K0047	Motorized XY microscope stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended
M01-680-973	ASR100B120B-T3-K0056	Motorized XY microscope stage, 100 mm x 120 mm travel, X-MCB2 (48 V) Recommended

아래는 두 시리즈의 주요 사양 비교입니다.

Specification	ASR-E Series	ASR Series
Microstep Size (Default Resolution)	0.15625 µm	0.15625 µm
Built-in Controller	No	No
Recommended Controller	X-MCB2 (48 V) Recommended	X-MCB2 (48 V) Recommended
Accuracy (unidirectional)	12 µm	12 µm
Repeatability	< 2 µm	< 2 µm
Backlash	< 4 µm	< 4 µm
Maximum Speed	85 mm/s	85 mm/s
Minimum Speed	0.000095 mm/s	0.000095 mm/s
Speed Resolution	0.000095 mm/s	0.000095 mm/s
Encoder Type	Motor mounted rotary quadrature encoder	-
Peak Thrust	95 N	95 N
Maximum Continuous Thrust	95 N	95 N
Guide Type	Crossed roller bearing	Crossed roller bearing
Pitch	0.02°	0.02°
Roll	0.02°	0.02°
Yaw	0.005°	0.005°
Linear Motion Per Motor Rev	2.00 mm	2.00 mm
Motor Steps Per Rev	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	670 mA/phase	670 mA/phase
Motor Winding Resistance	9.2 Ω/phase	9.2 Ω/phase
Inductance	5.6 mH/phase	5.6 mH/phase
Motor Rated Power	4.2 W	4.2 W
Motor Connection	D-sub 15	D-sub 15
Mechanical Drive System	Precision lead screw	Precision lead screw
Limit or Home Sensing	Magnetic, adjustable home and away sensors	Magnetic, adjustable home and away sensors
Axes of Motion	2	2
Mounting Interface	Separate mounting adaptors available	Separate mounting adaptors available
Operating Temperature Range	0–50°C	0–50°C
RoHS Compliant	Yes	Yes
CE Compliant	Yes	Yes
