MDF-U33V VIP ULT Freezers (-86°C)
Features
Excellent reliability and uniformity within an optimal footprint
The VIP ULtra Low Freezer MDF-U33V is an Ultra Slim, space saving Ultra Low Temperature Freezer. It has improved energy consumption The VIP MDF-U33V has a microprocessor control system, which is secure, easy to use and comprehensive. Set point, alarm parameters and self-diagnostic functions are accessed through a tamper-resistant keypad protocol. Control inputs are managed with convenient push-ad buttons on a unitized, sealed control overlay. The panel is door-mounted and angled for easy access.
With a capacity of up to 216 pieces of two inch boxes (or 144 3 inch boxes), the energy-saving advantages of this efficient VIP MDF-U33V Ultra Low Temperature Freezer system extend to lower per-unit storage costs regardless of the preferred inventory configuration.
PHC offers three other sizes of the VIP ULT freezers:
Benefits
- PHCbi VIP technology achieves up to 30% more storage capacity.
- A newly developed refrigeration system and the Freezer structure offer a quiet experimental environment.
- Two independent and insulated inner doors with gaskets prevent cold air leakage.
Features
- VIP technology maximises storage capacity
- Safe operation with Status Alert continuous
- The inner doors are removable for cleaning and
- Enhanced security
- Improved accessibility
- Quiet operation
- Improved energy consumption
- Can hold up to 216 pcs of 2in boxes
Performance

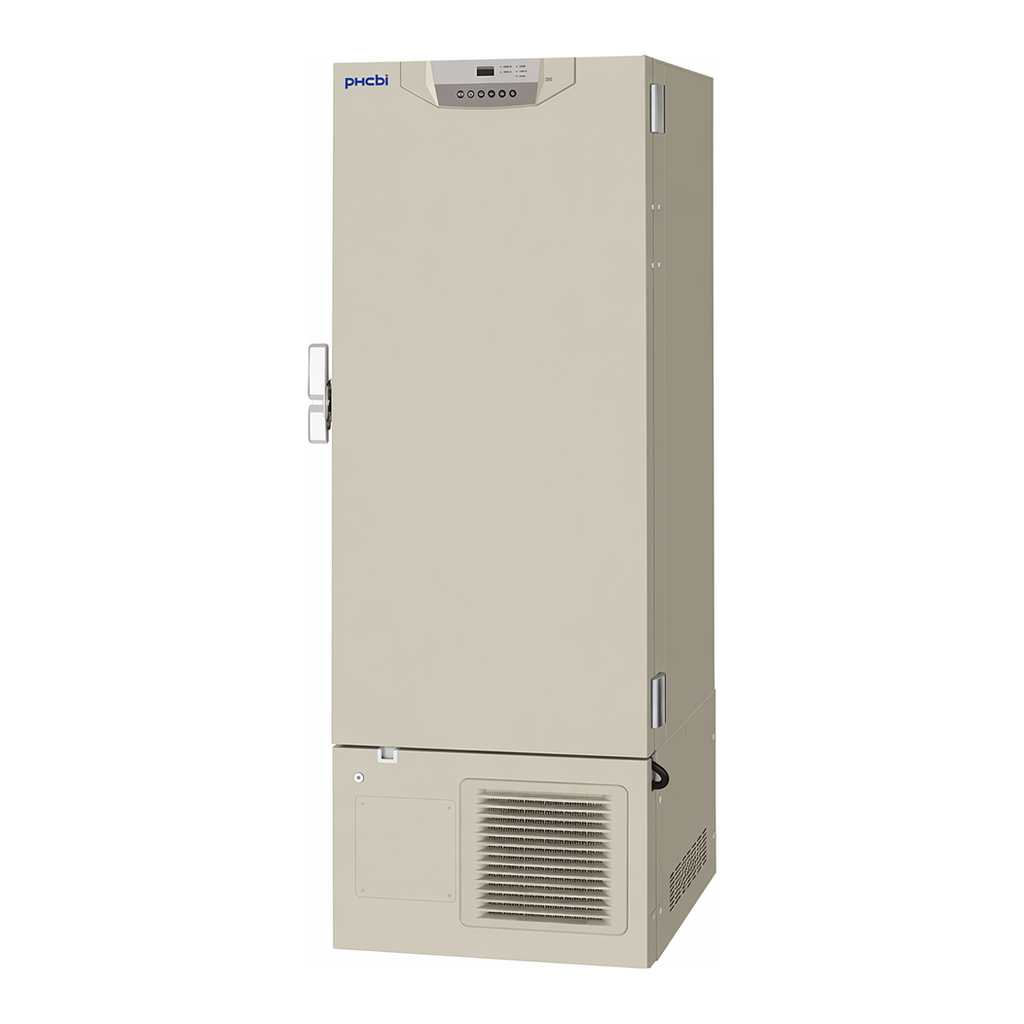

Product Photos
Specifications
| External Dimensions (W x D x H) | 670 x 867 x 1860 mm |
| Internal Dimensions (W x D x H) | 490 x 600 x 1140 mm |
| Volume | 333 litres |
| Net Weight | 255 kg |
| Capacity (Aluminium Racks 2” Boxes) | 216 (2” boxes) |
| Capacity (Stainless Steel Racks 2” Boxe) | - |
| Cooling Performance | -86 °C |
| Temperature Setting Range | -50 to -90 °C |
| Temperature Control Range | -50 to -86 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LED |
| Temperature Sensor | Pt-1000 |
| Refrigeration System | Cascade |
| Compressors | 450/750 W |
| Refrigerant | |
| Insulation Material | PUF / VIP Plus |
| Insulation Thickness | 70 mm |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Outer Doors/Lid | 1 |
| Outer Door Lock | Y |
| Inner Doors/Lid | 2 pieces (insulated) |
| Shelves | |
| Max. Load - Per Shelf | 50 kg |
| Max. Load - Total | 355 kg |
| Vacuum Release Port | N |
| Access Port | 3 |
| Access Port Position | Back, Bottom x 2 |
| Access Port Diameter | 17 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | V-B |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 49 dB [A] |
Accessories
| Drawers | MDF-30R (Max 2) |
| Temperature recorders | |
| -Circular type | MTR-G85 |
| -Continuous strip type | MTR-85H |
| -Recorder housing (if required) | MDF-S3085 |
| RS485 interface module | MTR-480 |
| Liquid CO2 Back-up | CVK-UB2 |
| Liquid N2 Back-up | CVK-UBN2 |

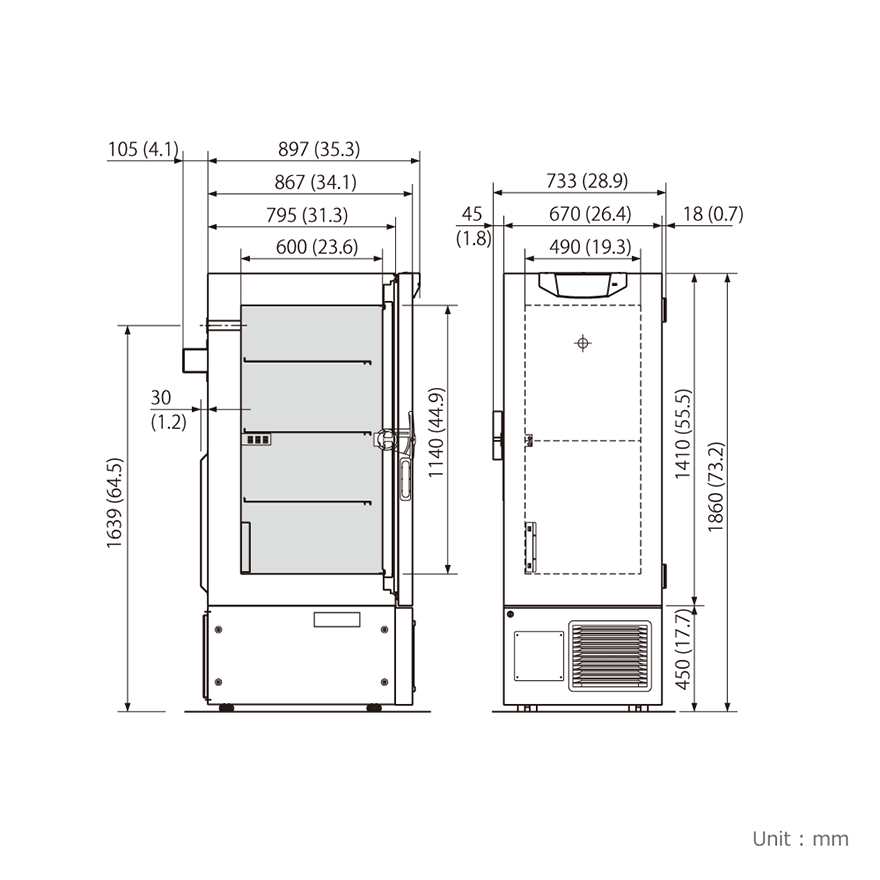

Dimensions
