MDF-DU900V VIP ULT Freezers (-86°C)
Features
Excellent reliability and uniformity within an optimal footprint

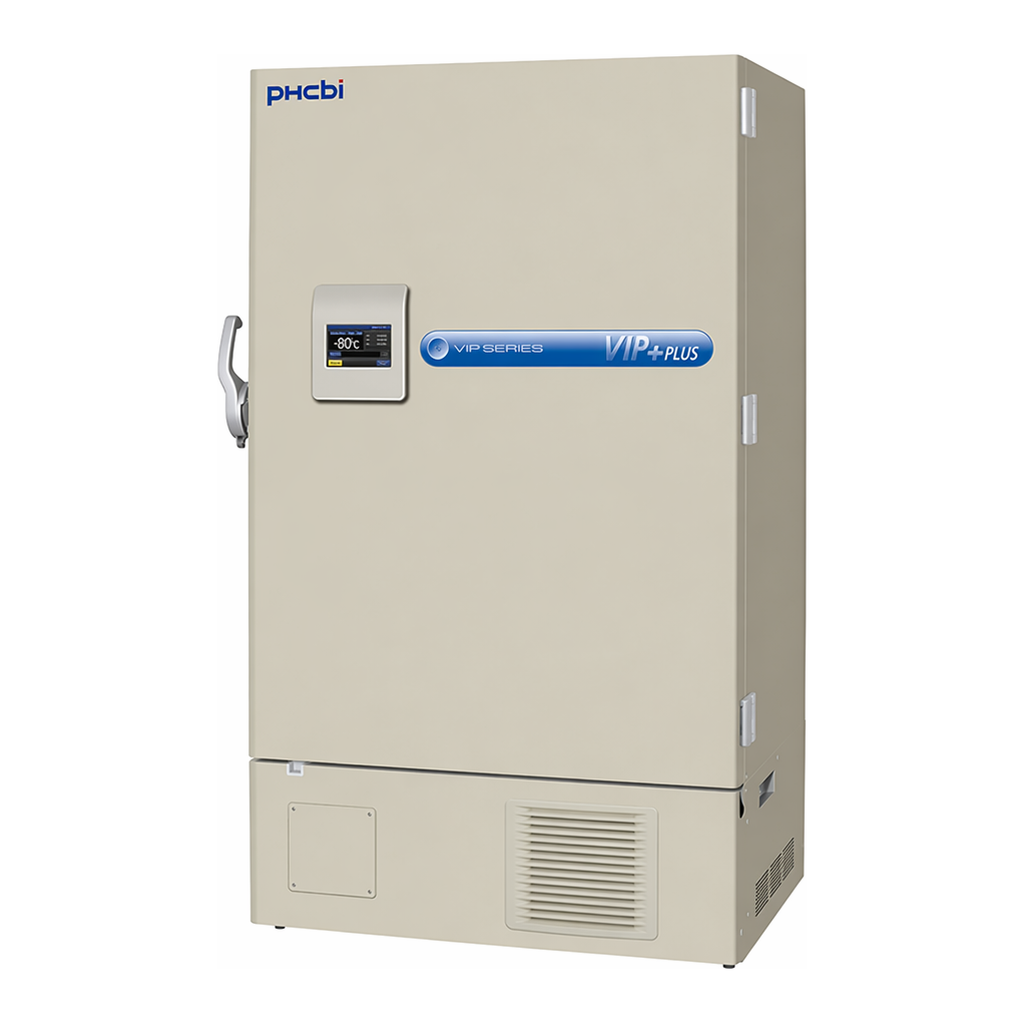

The MDF-DU900V VIP -86°C Upright Freezer provides maximum sample storage capacity within an optimum footprint combined with industry leading cooling performance and reliability for an ideal long-term preservation solution.
Maximum Sample Storage
The use of patented VIP PLUS panels within the large freezer cabinet allows a capacity of up to 672 2” boxes inside a footprint of just 1m2 for maximum storage. The freezer’s conventional depth allows for easy installation.
Ideal for high volume and long term sample storage in biobanks and biorepositories.
Reliable Technologies
Quality of design and manufacture ensures trusted and reliable storage that maintains the integrity of precious samples. The compressors that are specifically designed for ultra-low temperature applications are employed in the proven PHCbi cascade refrigeration system ensuring the highest levels of performance and reliability.
Enhanced Use & Intelligent Security
The new EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC convenient. Important information such as freezer temperature, door opening times and alarm history is logged for monitoring in GLP applications.

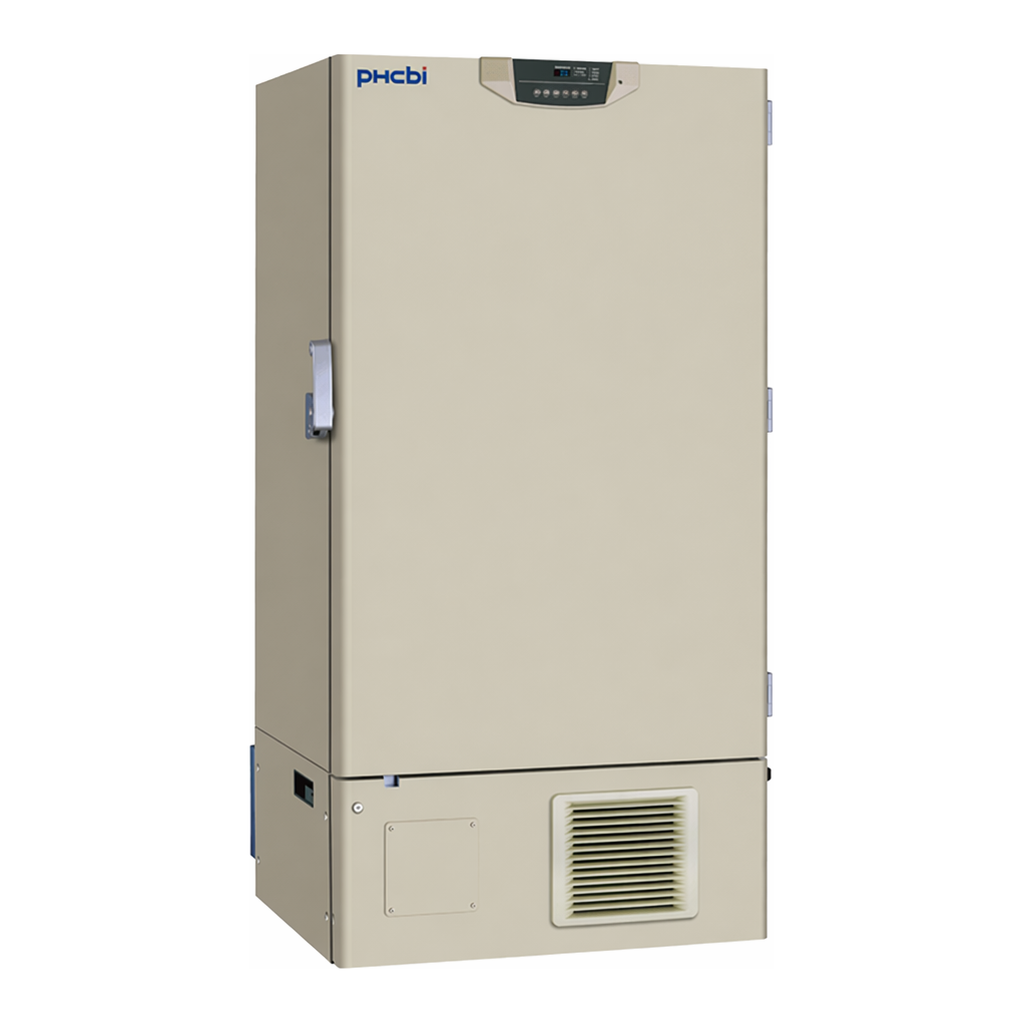

PHC offers three other sizes of the VIP ULT freezers:
Benefits
- Maximum Sample Storage
- EZLatch makes acces to samples convienent
- Certified as a Class IIa Medical Device
- Enhanced Use & Intelligent Security
- Vacuum release port for improved accessibility
Features
- VIP PLUS Insulation maximizes storage capacity.
- New EZlatch Easy-open doorhandle
- Colour LCD Touch Screen
- USB Port
Performance
Product Photos
Specifications
| External Dimensions (W x D x H) | 1150 x 870 x 1990 mm |
| Internal Dimensions (W x D x H) | 1010 x 600 x 1400 mm |
| Volume | 845 litres |
| Net Weight | 372 kg |
| Capacity (Aluminium Racks 2” Boxes) | 672 (2” boxes) |
| Capacity (Stainless Steel Racks 2” Boxe) | - |
| Cooling Performance | -86 °C |
| Temperature Setting Range | -50 to -90 °C |
| Temperature Control Range | -50 to -86 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LCD Touch Screen |
| Temperature Sensor | Pt-1000 |
| Refrigeration System | Cascade |
| Compressors | 2 x 1100 W |
| Refrigerant | |
| Insulation Material | PUF / VIP Plus |
| Insulation Thickness | 70 mm |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Outer Doors/Lid | 1 |
| Outer Door Lock | Y |
| Inner Doors/Lid | 2 pieces (insulated) |
| Shelves | |
| Max. Load - Per Shelf | 50 kg |
| Max. Load - Total | 150 kg |
| Vacuum Release Port | Y |
| Access Port | 2 |
| Access Port Position | Back, Bottom |
| Access Port Diameter | 17 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | V-B |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 52 dB [A] |
Accessories
Options
| Small Inner Door Kit | MDF-9ID-PW (max 2) 4) set of 2 |
| Liquid CO2 back-up | MDF-UB6-PW |
Temperature recorders
| - Circular type | MTR-G85C-PE 5) |
| - Chart paper | RP-85-PW |
| - Ink pen | DF-38FP-PW |
| - Continuous strip type | MTR-85H-PW |
| - Recorder housing | MDF-S3085-PE |
Optional communication systems
| Ethernet interface (LAN) | MTR-L03-PW |
Dimensions
