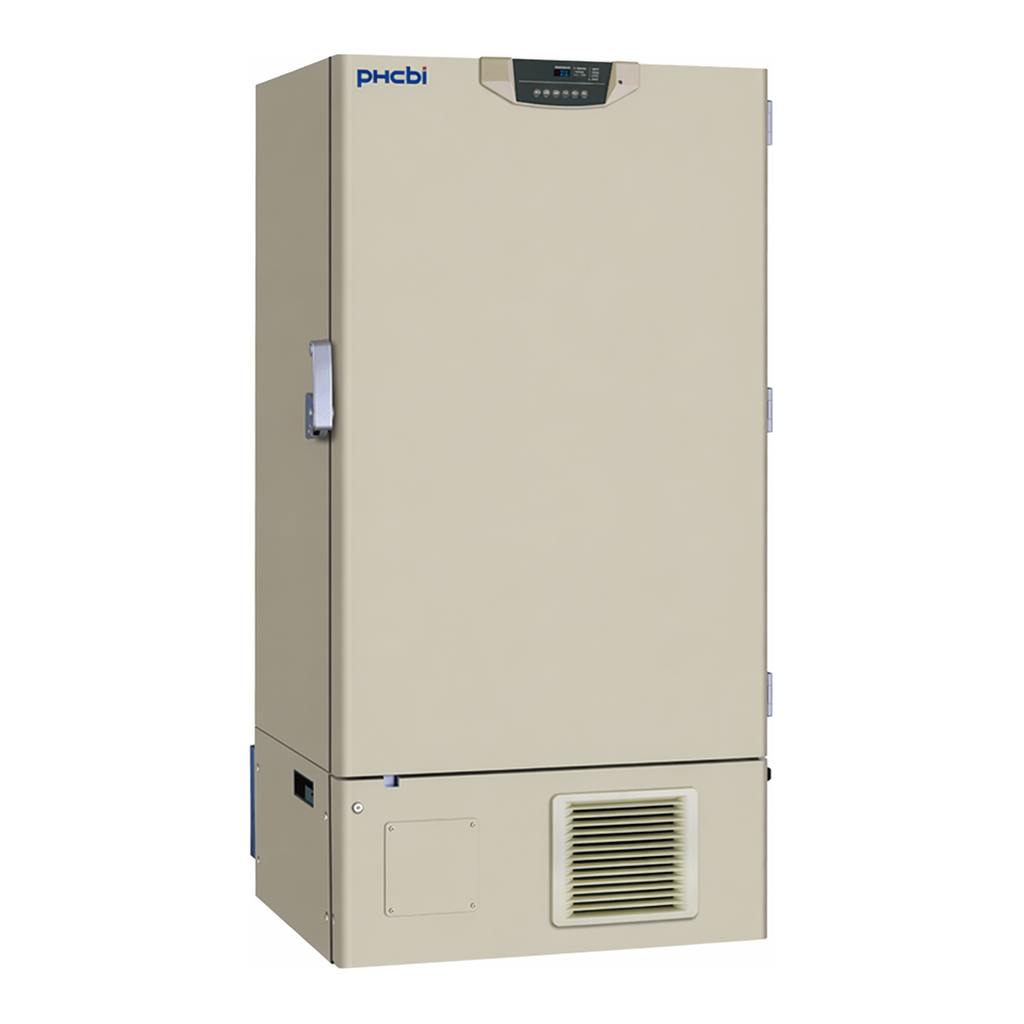

MDF-U74V VIP ULT Freezers (-86°C)

MDF-U74V VIP ULT Freezers (-86°C)

Extra-Large Capacity, Space Saving Ultra-Low Freezer with Improved Energy Consumption

Evolutionary Design

• Panasonic V.I.P. Series -86˚C ultra-low temperature freezers use patented vacuum insulation cabinet construction that reduces wall thickness from 14cm to 7cm (5.5” to 2.7”), achieving up to 30% more storage capacity without increasing footprint.
• Newly developed refrigeration circuit regulates high stage compressor ON-OFF cycles, reducing energy consumption by approx. 14% compared to the previous model.
  (Measured at 23˚C, 230V 50Hz, no load. Actual power consumption varies depending on conditions.)
• Rear ventilation cover and aerodynamic design improve airflow, reduce load, and enhance durability.
• Two independent insulated inner doors with gaskets prevent cold air leakage.

이미지 내 텍스트:
Front / Compressors / Back cover / Rear / Air

Reliability

• Status Alert (Condition monitor) continuously monitors ambient and system conditions and notifies of abnormalities before problems occur.

Accessibility

• Beak-style inner door latch ensures tight sealing and smooth operation.
• Condenser filter located at the bottom right front panel for easy removal and cleaning.

Safety

• Alarm lamp and buzzer warn of power failure or abnormal temperature rise.
• High/low temperature warning provides audible and visual alarms when temperature deviates ±5˚C to ±20˚C (adjustable) from set point.
• Alarm ring-back function reactivates buzzer if alarm condition persists after silencing.
• Microprocessor-controlled blocked filter alarm protects refrigeration circuit.
• One-handed outer door latch allows use of padlock for sample security.
• Digital control panel for easy operation.
• Battery and fan motor replacement notifications provided.

Features Summary

• Maximized capacity with VIP technology
• Safe operation with status alert monitoring
• Enhanced security
• Energy saving design

---

Specifications

*Cooling performance measured at center of freezer (ambient 30°C, no load).
To maintain stable temperature, set point should be at least 5°C higher than lowest indicated temperature.
Specifications subject to change without notice.
Warranty conditions apply; manufacturer not responsible for content loss or damage.

---

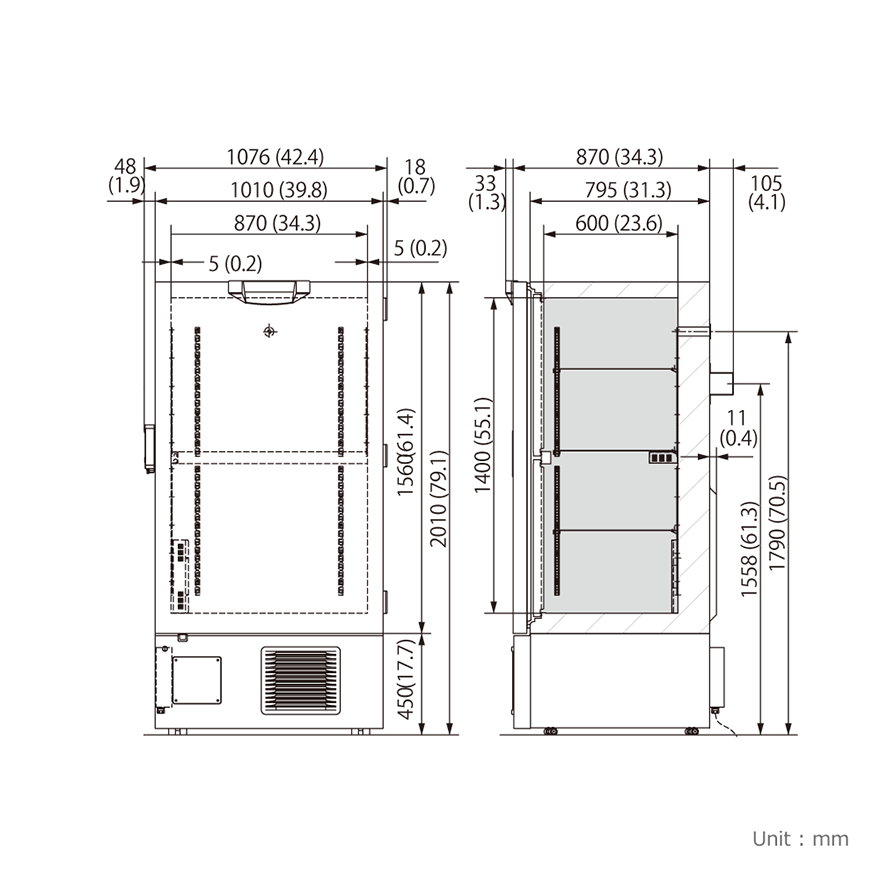

Dimensions (from OCR)

Front View

48 (1.9)
1076 (42.4)
1010 (39.8)
870 (34.3)
5 (0.2)
18 (0.7)
5 (0.2)
1566 (61.4)
2010 (79.1)
450 (17.7)

Side View

33 (1.3)
870 (34.3)
795 (31.3)
600 (23.6)
105 (4.1)
11 (0.4)
1400 (55.1)
1558 (61.3)
1790 (70.5)

Note: Unit : mm (Values in parentheses indicate inches)

---
