MDF-U700VX TwinGuard ULT Freezers (-86°C)

Features

Safe and Secure Extra-Large Capacity Ultra-Low Freezer with Dual Cooling System

Secure storage with new dual cooling system

The Dual Cooling System is newly designed to securely store valuable biological samples. It consists of two individual compressors to provide a reliable -86˚C ultra-low temperature environment. Should unexpected failure occur in one cooling circuit, the other will maintain at least -65˚C.

*Any unexpected failure on either of the single compressor will be alerted.
*The data is a measured example (AT23˚C, 230V/ 50Hz, no load.) Actual power consumption will vary depending on set and ambient conditions loading and local voltage.

Intelligent ECO mode operation

“ECO mode” is an industry first feature. The two compressors, A and B, are independently controlled to optimise operation efficiently to minimise energy consumption by monitoring freezer load status.

*Ambient temperature at 30˚C (-80˚C) *ECO mode’s wave doesn’t settle into pattern. It draws various pattern depends on SV, AT, and usage condition. *The data is a measured example (AT23˚C, 230V/ 50Hz, no load.) Actual power consumption will vary depending on set and ambient conditions loading and local voltage.

Graphic control panel

Central LCD display control panel enhances operability and visibility. Data log function retains operation data for a preset period and the data can be directly transmitted to a PC via MTR-480-PW interface.
*A software must be installed on PC to receive the log data transmission.

The microprocessor has a memory back-up so after a power failure, operation resumes at pre-outage settings. The self diagnostics function will display an error code in the case of abnormality

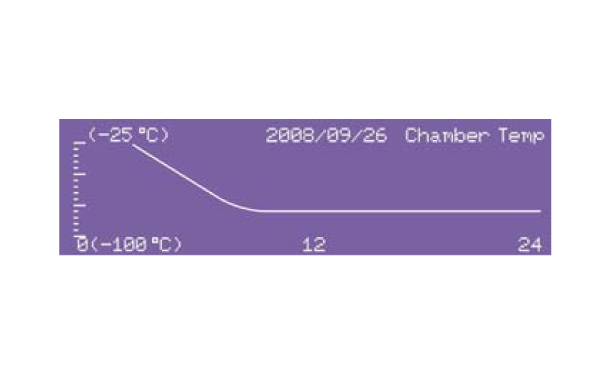

Data management by logging function

Pass word access

Error messages

High efficiency insulation using V.I.P. technology

MDF-U500VX is equipped with a 6 times stronger thermal resistance VIP PLUS while keeping the same wall thickness but with more rigid foam polyurethane.

User-friendly design

Various alarms including high/low temperatures, door ajar, power failure alarm and part replacement notification help to keep samples safe even in an emergency.

Installation space

The VIP panel reduced the cabinet wall thickness from 140mm to 70mm and achieved nearly 30% more storage capacity than conventionally insulated freezers, all without increasing its footprint.

Improved air seal heat resistance structure

To allow the eco mode, and to reduce the frosting, the chamber has a well sealed structure.

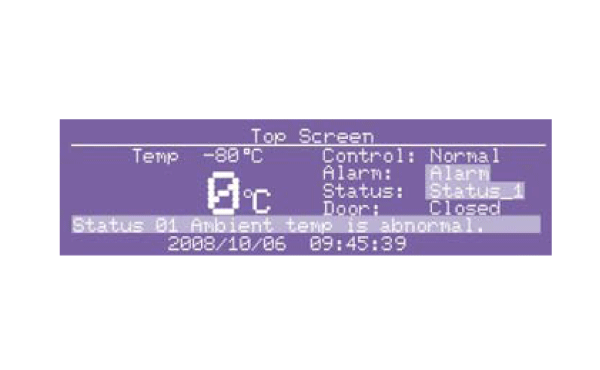

Status Alert

Unconventional operation can cause malfunctions. Function control monitor notifies the unconventional operation to prevent the problems and helps the safe operation.
It always monitors the operation, and the flash lamp notifies the drops in the voltage, an abnormality of the temperature rise when the ambient temp is over 35˚C, lower than approximately 0˚C,and overload operation. It also notifies the time of battery replacement, and the door status.
The status of these alarms and indicators will be shown on the control panel.

Vacuum release port

The vacuum release port allows smooth door openings. The door seal is tightened by a negative pressure generated from the temperature difference between inside the chamber and the ambient environment.

*If the port is kept open, the air intake hole get frozen and clogged, and will not allow the door to open smoothly. We recommend to keep it closed unless it is neccessory.

Door latch

The outer door latch closes smoothly with a single-hand action over a cam action bearing. The outer door can be secured with an independent padlock provided by customer.

Maintenance-free filterless design

Filterless Construction eliminates bothersome filter cleaning.

Features

• Dual cooling system
• Intelligent ECO mode operation
• Maximised capacity with VIP PLUS Technology
• Maintenance-free Filterless design

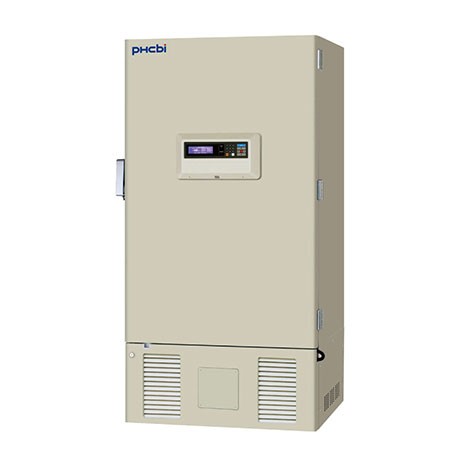

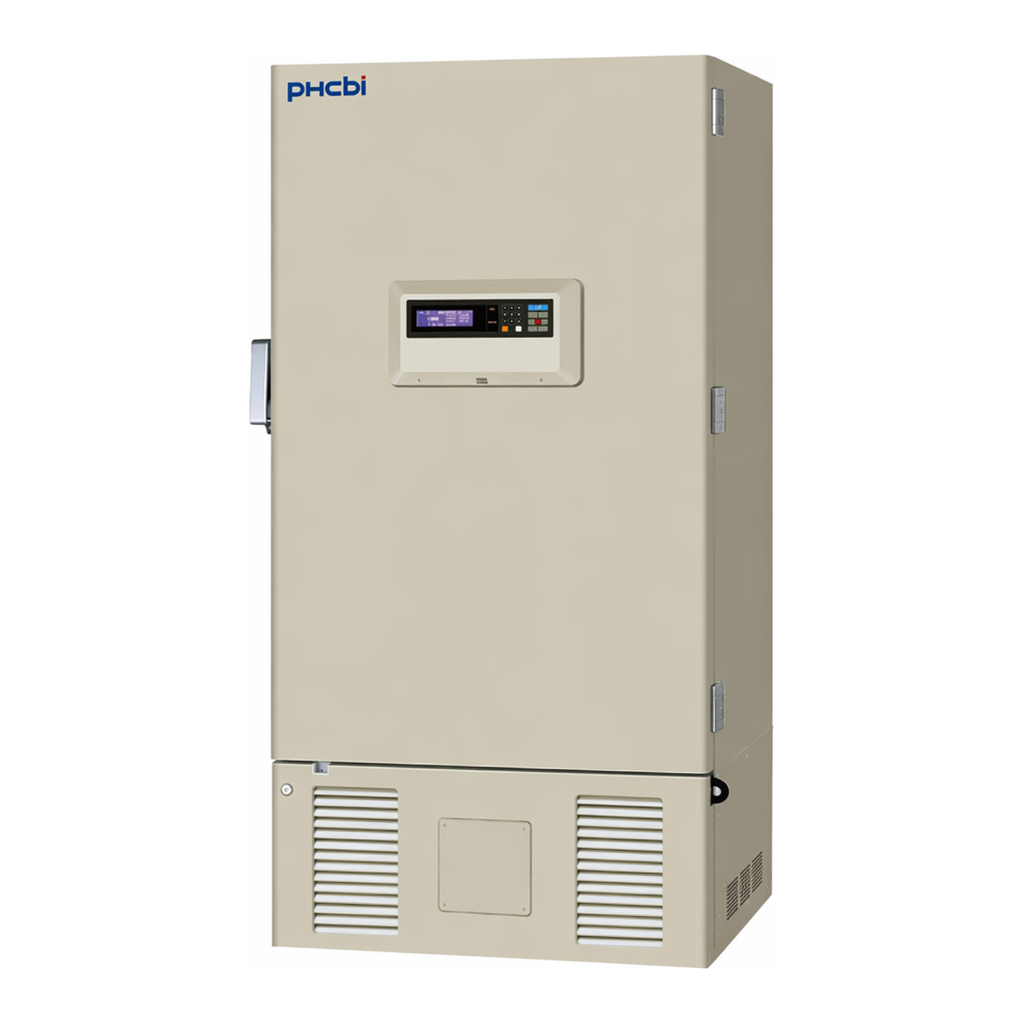

Product Photos

Specfications

External Dimensions (W x D x H)	1010 x 870 x 2010 mm
Internal Dimensions (W x D x H)	870 x 600 x 1400 mm
Volume	728 litres
Net Weight	375 kg
Capacity (Aluminium Racks 2” Boxes)	528 (2” boxes)
Capacity (Stainless Steel Racks 2” Boxe)	336 (2” boxes)
Cooling Performance	-86 °C
Temperature Setting Range	-50 to -90 °C
Temperature Control Range	-50 to -86 °C
Controller	Microprocessor, non-volatile memory
Display	LCD with numerical keys
Temperature Sensor	Pt-1000
Refrigeration System	Independent Dual-Cooling
Compressors	2 x 1100 W
Refrigerant	HFC
Insulation Material	PUF / VIP Plus
Insulation Thickness	-
Exterior Material	Painted Steel
Interior Material	Painted Steel
Outer Doors/Lid	1
Outer Door Lock	Y
Inner Doors/Lid	2
Shelves	3
Max. Load - Per Shelf	50 kg
Max. Load - Total	-
Vacuum Release Port	1 (manual)
Access Port	3
Access Port Position	back x 1, bottom x 2
Access Port Diameter	17
Casters	4 (2 leveling feet)
Power Failure	V-B-R
High Temperature	V-B-R
Low Temperature	V-B-R
Filter	N/A (filter-less)
Door Open	V-B
Power Supply	Local
Frequency	Local
Noise Level	53 dB [A]

Accessories

Options

Small Inner Door Kit	MDF-7ID-PW
Liquid CO2 back-up	MDF-UB2-PW
Temperature recorders
- Circular type	MTR-G85C-PE, MTR-G85A-PA
- Continuous strip type	MTR-85H-PW
- Recorder housing	MDF-S3085-PW

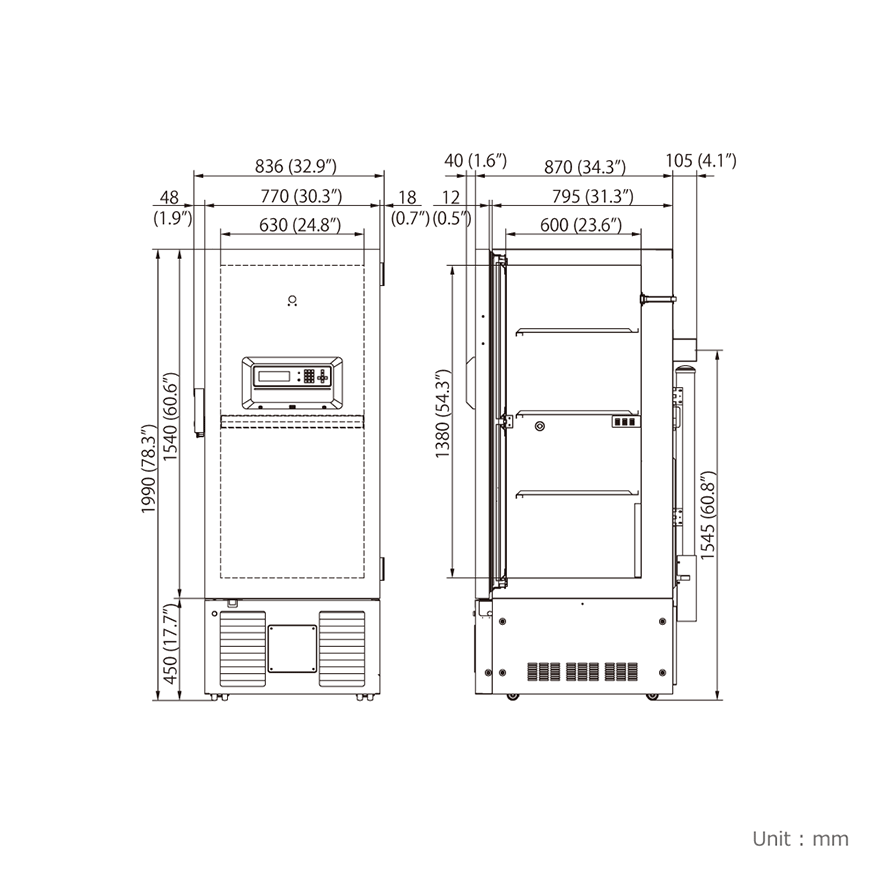

Dimensions
