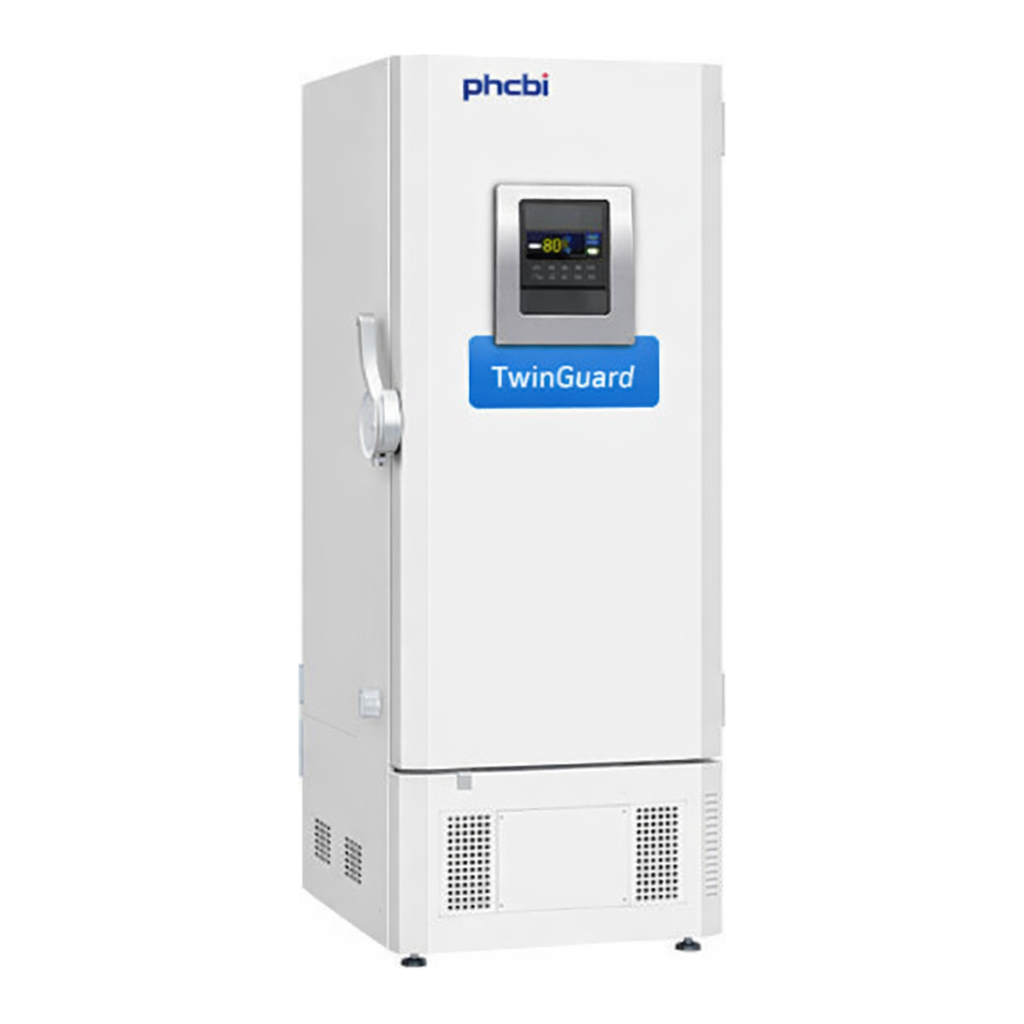

MDF-DU302VX TwinGuard ULT Freezers (-86°C)

MDF-DU302VX TwinGuard ULT Freezers (-86°C)

The most secure ultra-low temperature freezers for the storage of high value samples

The TwinGuard MDF-DU302VX -86°C Ultra Low Temperature Freezer meets the demand for safe, long-term storage of high-value materials.
Two independent refrigeration systems, combined with optional liquid nitrogen or liquid CO₂ back-up systems, provide unmatched protection in the marketplace.

With two independent refrigeration systems, TwinGuard freezers maintain a reliable and uniform -86ºC ultra-low temperature environment.
If one cooling system fails unexpectedly, the other circuit keeps samples safely around -70ºC until service is arranged.

Ultimate Sample Protection

The Dual Cooling System ensures the highest level of protection through two independent refrigeration systems.
If one system fails, the other maintains the freezer in the -70°C range, protecting valuable and irreplaceable samples even in the event of compressor failure.

Efficient Sample Storage

VIP PLUS vacuum insulation and enhanced cabinet design with an insulated outer door ensure optimal temperature uniformity, while reduced wall thickness maximizes storage capacity.

Flexible Shelf Layout

Multiple shelf configurations allow a variety of storage options. Organize samples by transferring existing inventory racks.

Intelligent Interface

The EZlatch makes sample access easier.
A color LCD touch panel allows full user control, even with gloved hands, and a USB port enables convenient data transfer to a PC.
Extended response time to mechanical failures and data logging functions make it ideal for high-security applications such as pathogenic research.

Benefits

• Extreme secure Dual Cooling System
• VIP PLUS insulation
• Flexible shelf layout
• Intelligent Interface
• Innovative Cabinet Design

Features

• Dual Cooling System
• EZlatch
• LCD Touch Screen
• USB Port
• Eco Mode Operation

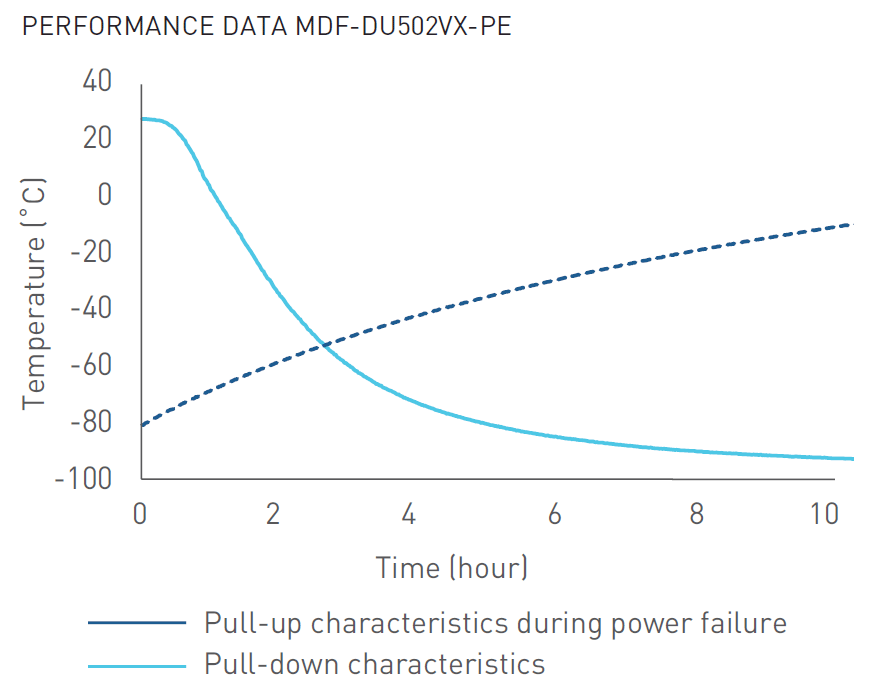

Performance

PERFORMANCE DATA MDF-DU502VX-PE

Temperature [°C] (세로축)
Time (hour) (가로축)
0 2 4 6 8 10
-100 -80 -60 -40 -20 0 20 40

범례 (Legend):

• ──── Pull-up characteristics during power failure
• ──── Pull-down characteristics

Specifications

항목	사양
External Dimensions (W × D × H)	670 × 882 × 1840 mm
Internal Dimensions (W × D × H)	490 × 600 × 1230 mm
Volume	360 L
Net Weight	225 kg
Capacity (Aluminium Racks 2” Boxes)	240 (2” boxes)
Cooling Performance	-86 °C
Temperature Setting Range	-50 to -90 °C
Temperature Control Range	-50 to -86 °C
Controller	Microprocessor, non-volatile memory
Display	LCD Touch Screen
Temperature Sensor	Pt-1000
Refrigeration System	Independent Dual-Cooling
Compressors	2 × 1100 W
Insulation Material	PUF / VIP Plus
Insulation Thickness	80 mm
Exterior / Interior Material	Painted Steel
Outer Doors / Lock	1 / Yes
Inner Doors	2
Max. Load (Per Shelf / Total)	50 kg / 415 kg
Vacuum Release Port	2 (1 automatic, 1 manual)
Access Port	3 (back ×1, bottom ×2)
Access Port Diameter	17 mm
Casters	4 (2 leveling feet)
Power Failure / High Temp / Low Temp Alarm	V-B-R
Filter	Filterless design
Door Open Alarm	V-B
Power Supply / Frequency	Local
Noise Level	52 dB(A)

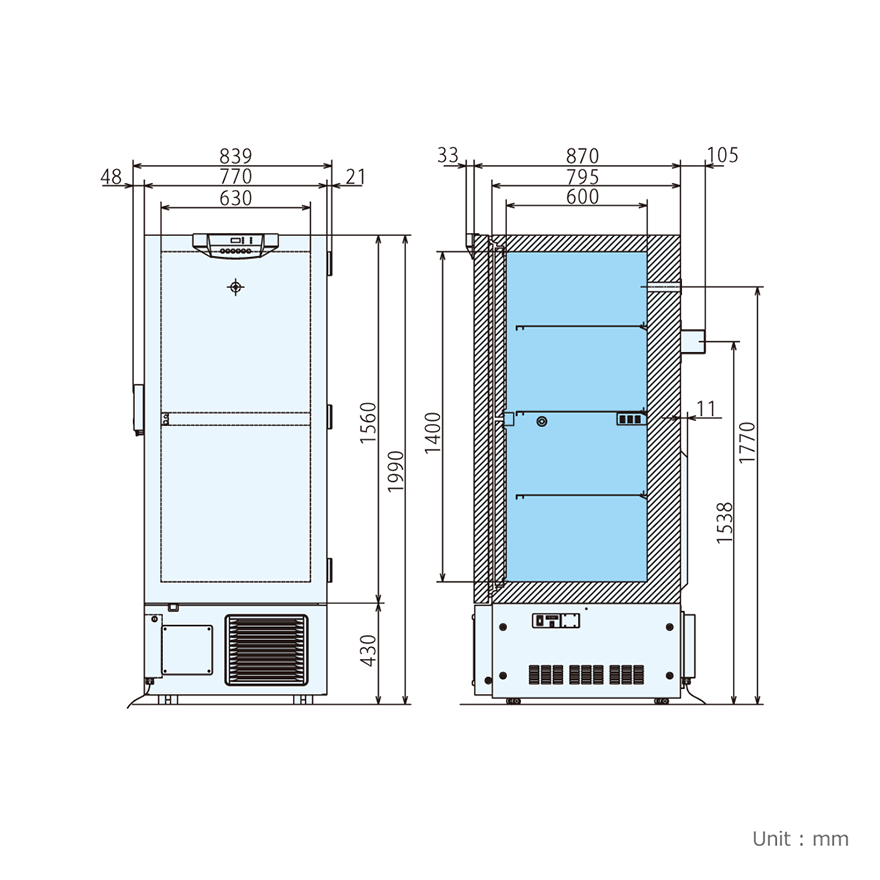

Dimensions

도면에 표시된 주요 치수 (단위: mm):

839
48
770
630
21
1560
1990
430

33
870
795
600
105
11
1400
1538
1770

Unit : mm

좌측은 정면도, 우측은 측면도로 구성되어 있습니다.
