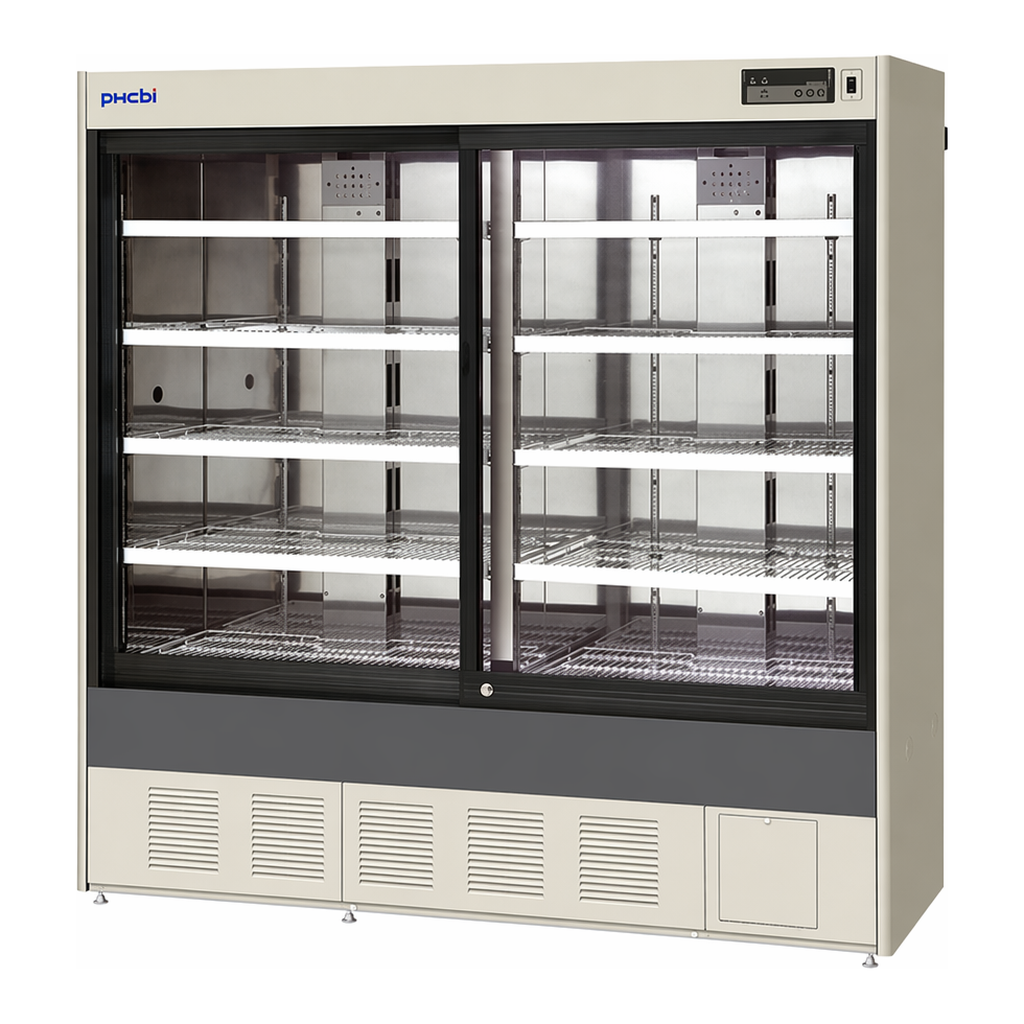

MPR-1014 MPR Sliding Door Pharmaceutical Refrigerators

MPR-1014 MPR Sliding Door Pharmaceutical Refrigerators

Uniform Storage Temperature for Demanding Applications

The +4°C MPR-1014 Pharmaceutical Refrigerator provides precise and stable temperature control for pharmaceuticals, medicines, and temperature-sensitive biologicals (2–14°C). The slim design and optional sliding shelves ensure ergonomic access and efficient storage.

Manufactured by PHCbi, this refrigerator meets the highest standards for pharmaceutical storage. It offers effective and reliable temperature control, quiet operation, and user-friendly design.

---

Environmentally Friendly

CFC-Free

PHCbi refrigerators use commercially available CFC-free, HFC refrigerants and CFC-free insulation materials.

RoHS Compliant

Compliant with EU Directive 2002/95/EU (RoHS), restricting hazardous substances such as lead, cadmium, mercury, and chromium 6+. The MPR series helps reduce environmental pollution and ensures safe operation.

---

Available Models

PHCbi offers seven other models of the MPR Pharmaceutical Refrigerator series:

• MPR-721
• MPR-721R
• MPR-1411
• MPR-1411R
• MPR-514
• MPR-514R
• MPR-1014R

---

Benefits

• Superior cooling performance
• Energy efficient
• CFC-free, HFC refrigerants and insulation
• RoHS compliant
• Uniform storage unaffected by ambient temperature
• Effective temperature control
• Space-saving design

---

Features

• Alarm and safety devices
• High-efficiency cooling compressor
• Microprocessor temperature control
• Fan-forced air circulation
• Cycle defrost system
• Digital temperature display
• Door open alarm
• Abnormal temperature alarm and safety devices

---

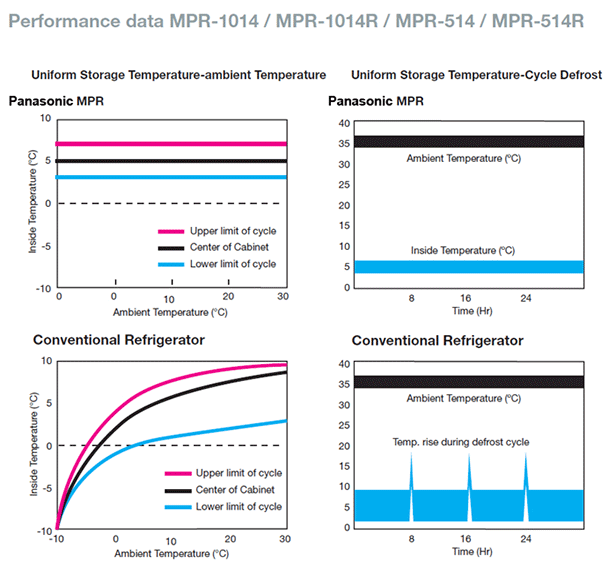

Performance Data

Performance data MPR-1014 / MPR-1014R / MPR-514 / MPR-514R

Uniform Storage Temperature - Ambient Temperature

Panasonic MPR

Inside Temperature (°C)	Ambient Temperature (°C)
Upper limit of cycle (핑크색 선)
Center of Cabinet (검은색 선)
Lower limit of cycle (파란색 선)
그래프 범위: -10 ~ 10 (Inside Temperature), -10 ~ 30 (Ambient Temperature)

Uniform Storage Temperature - Cycle Defrost

Panasonic MPR

Inside Temperature (°C)	Time (Hr)
Ambient Temperature (°C)
Inside Temperature (°C)
그래프 범위: 0 ~ 40 (온도), 0 ~ 24 (시간)

Uniform Storage Temperature - Ambient Temperature

Conventional Refrigerator

Inside Temperature (°C)	Ambient Temperature (°C)
Upper limit of cycle (핑크색 선)
Center of Cabinet (검은색 선)
Lower limit of cycle (파란색 선)
그래프 범위: -10 ~ 10 (Inside Temperature), -10 ~ 30 (Ambient Temperature)

Uniform Storage Temperature - Cycle Defrost

Conventional Refrigerator

Inside Temperature (°C)	Time (Hr)
Ambient Temperature (°C)
Temp. rise during defrost cycle
그래프 범위: 0 ~ 40 (온도), 0 ~ 24 (시간)

Legend:

• Upper limit of cycle — pink line
• Center of Cabinet — black line
• Lower limit of cycle — blue line

This data compares temperature stability and defrost cycle performance between Panasonic MPR and conventional refrigerators.

---

Specifications

Specification	Description
External Dimensions (W × D × H)	1800 × 600 × 1790 mm
Internal Dimensions (W × D × H)	1700 × 465 × 1300 mm
Volume	1033 L
Net Weight	246 kg
Temperature Setting Range	+2 to +14°C
Temperature Control Range	+2 to +14°C
Controller	Microprocessor
Display	LED
Temperature Sensor	Thermistor
Cooling Method	Forced cool air circulation
Defrost Method	Forced type, fully automatic
Refrigerant	—
Insulation Material	PUF
Exterior Material	Painted steel
Interior Material	Stainless steel
Outer Doors	2 sliding doors
Outer Door Lock	Yes
Max. Load (Per Shelf/Drawer)	50 kg
Max. Load (Total)	500 kg
Access Port	1
Access Port Position	Left
Access Port Diameter	30 mm
Casters	4
Interior Light	Fluorescent
Power Failure	V-B-R (Optional)
High Temperature	V-B-R
Low Temperature	V-B-R
Door Open	V-B
Power Supply	Local
Noise Level	42 dB(A)

---

Accessories

Accessory	Model
Temperature recorders	—
Temperature chart recorder	MTR-0621LH-PH
Chart paper	RP-G04-PW
Recorder housing	MPR-S7-PW
Circular temp. chart recorder	MTR-G04-PW
Ink pen	PG-R-PW
External mounting power failure alarm	MPR-48B-PW (V-B)
RS485 interface module	MTR-480-PW

---

Dimensions (Extracted Text Summary)

Front View

1800 (70.9)
1700 (66.9) (inside)
158 (6.2) (duct)     158 (6.2) (duct)
1790 (70.5)

Side View

9 (0.4)
659 (25.9)
600 (23.6)
50 (2.0)
50 (2.0)
150 (5.9)
300 (11.8)
122 (4.8)
465 (18.3)
1202 (47.3)
415 (16.3)
1078 (42.4)
1200 (47.2)
1300 (51.2)
1350 (53.1)
466 (18.3)
440 (17.3)

Unit: mm

---

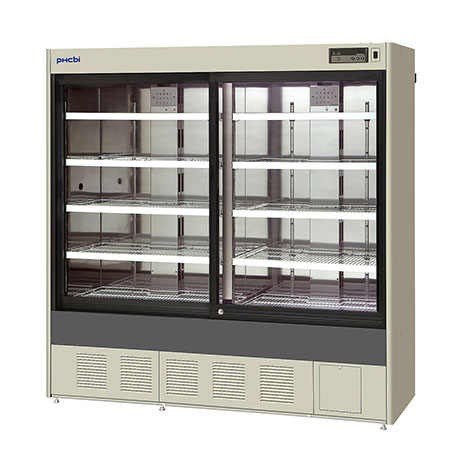

제품 이미지
