The most secure ultra-low temperature freezers for the storage of high value samples

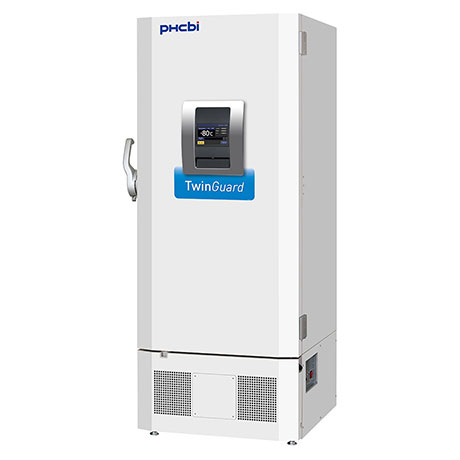

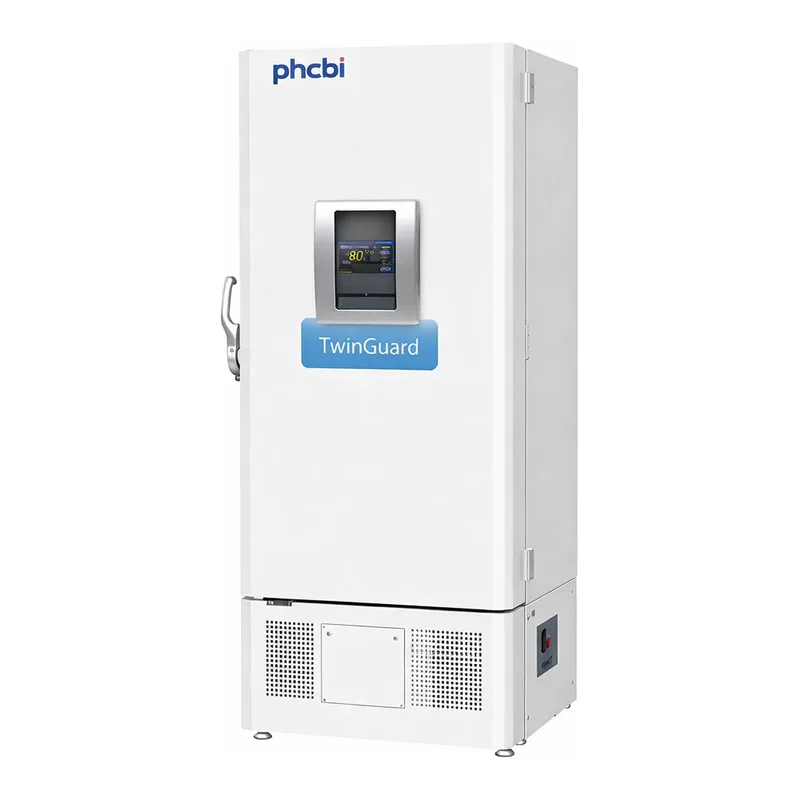

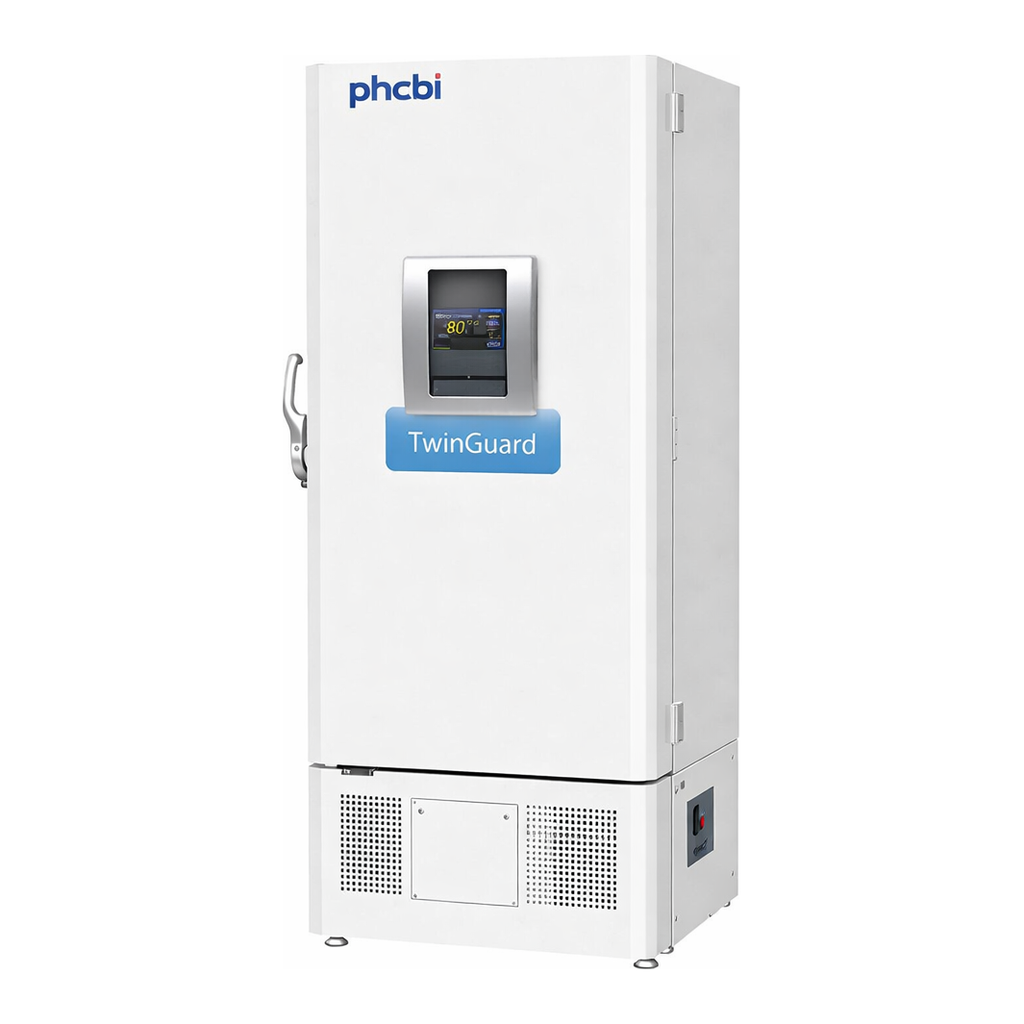

The TwinGuard MDF-DU502VX -86°C Ultra Low Temperature Freezer satisfies an industry demand for safe, long-term storage for the most high-valued materials. Two, independent refrigeration systems, combined with optional liquid nitrogen or liquid CO2 back-up systems, offer a circle of protection unmatched in the marketplace.
With two independent refrigeration systems TwinGuard freezers maintain a reliable and uniform -86ºC ultra low temperature environment. Should one cooling system suffer an unexpected failure, the other circuit will keep irreplaceable samples safely around -70ºC until service can be arranged.
Ultimate Sample Protection
The Dual Cooling System offers the highest level of protection through the use of two independent refrigeration systems. If one system unexpectedly fails the other can maintain the freezer in the -70°C range. Securely store valuable and irreplaceable samples with the upmost confidence that they won’t be lost in the case of compressor failure.
Efficient Sample Storage
The combination of VIP PLUS vacuum insulation and an enhanced cabinet design with insulated outer door, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity.
Flexible shelf layout
Multiple shelf configurations allow a variety of storage options. Organize your samples by transferring your current inventory racks.
The EZlatch makes access to stored samples even easier. A colour LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC convenient. Significantly extended time to react to any sudden mechanical failures and data logging are ideal for high security applications such as pathogenic research.
- Extreme secure Dual Cooling System
- VIP PLUS insulation
- Flexible shelf layout
- Intelligent Interface
- Innovative Cabinet Design
- Dual Cooling System
- LCD Touch screen
- USB port
- Eco Mode Operation

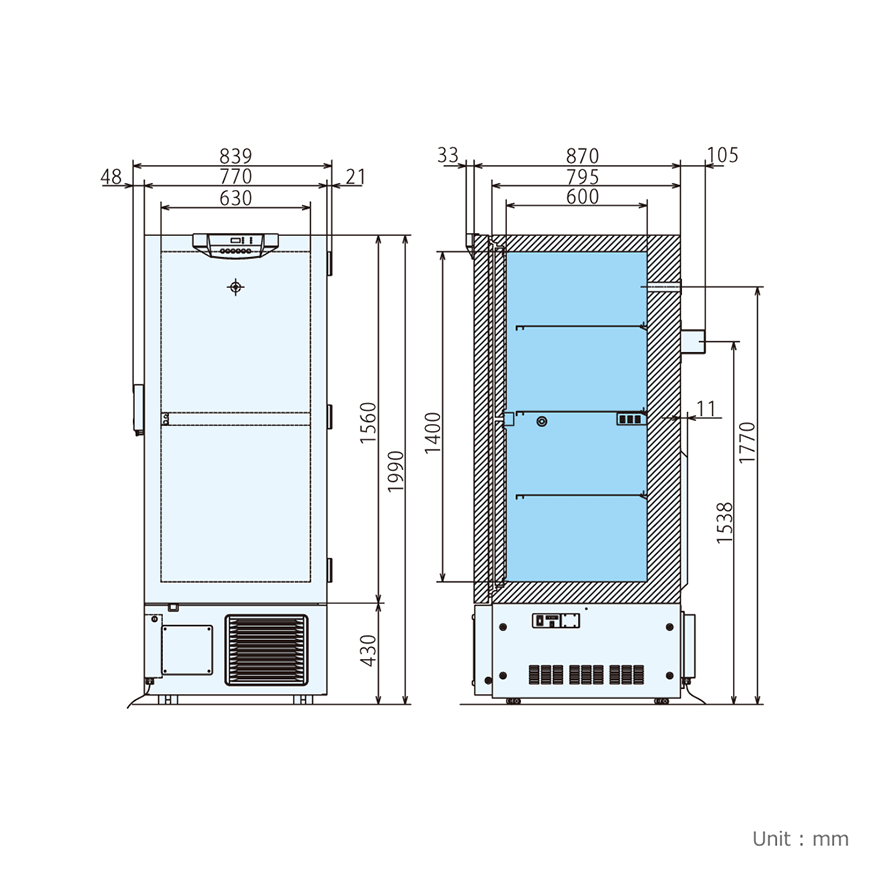

|External Dimensions (W x D x H)||790 x 882 x 1993 mm|
|Internal Dimensions (W x D x H)||630 x 600 x 1400 mm|
|Net Weight||285 kg|
|Capacity (Aluminium Racks 2” Boxes)||384 (2” boxes)|
|Capacity (Stainless Steel Racks 2” Boxe)||-|
|Cooling Performance||-86 °C|
|Temperature Setting Range||-50 to -90 °C|
|Temperature Control Range||-50 to -86 °C|
|Controller||Microprocessor, non-volatile memory|
|Display||LCD Touch Screen|
|Refrigeration System||Independent Dual-Cooling|
|Compressors||2 x 1100 W|
|Insulation Material||PUF / VIP Plus|
|Insulation Thickness||80 mm|
|Exterior Material||Painted Steel|
|Interior Material||Painted Steel|
|Outer Door Lock||Y|
|Max. Load - Per Shelf||50 kg|
|Max. Load - Total||415 kg|
|Vacuum Release Port||2 (1 automatic, 1 manual)|
|Access Port Position||back x 1, bottom x 2|
|Access Port Diameter||17|
|Casters||4 (2 leveling feet)|
|Noise Level||52 dB [A]|
|MDF-DU502VX||The price might vary in country. Please send the inquiry form for getting quotation.|
|기본 배송비||교환/반품 배송비|
결제 및 환불 안내
교환 및 반품 접수
|교환 및 반품 접수 기한|
|교환 및 반품 접수가 가능한 경우|
|교환 및 반품 접수가 불가능한 경우|
교환 및 반품 신청
(주)대일사이언스의 다른 상품들
Features Safe and Secure Extra-Large Capacity Ultra-Low Freezer with Dual Cooling System Secure storage with new dual cooling system The Dual Cooling System is newly designed to securely...
Features The most secure ultra-low temperature freezers for the storage of high value samples The TwinGuard MDF-DU702VX -86°C Ultra Low Temperature Freezer satisfies an industry demand for safe...
Features The most secure ultra-low temperature freezers for the storage of high value samples The TwinGuard MDF-DU502VX -86°C Ultra Low Temperature Freezer satisfies an industry demand for safe...
Features The most secure ultra-low temperature freezers for the storage of high value samples The TwinGuard MDF-DU302VX -86°C Ultra Low Temperature Freezer satisfies an industry demand for safe...

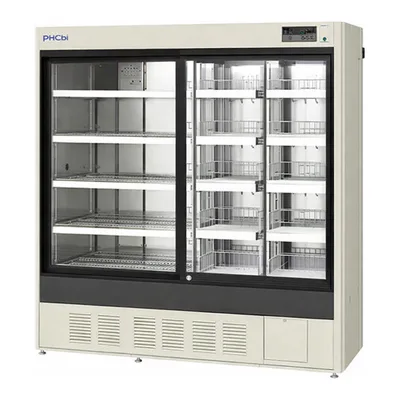

Features Uniform storage temperature for the most demanding applications The +4°C MPR-1014R Pharmaceutical Refrigerator offers a complete and integrated solution for the growing requirements fo...
