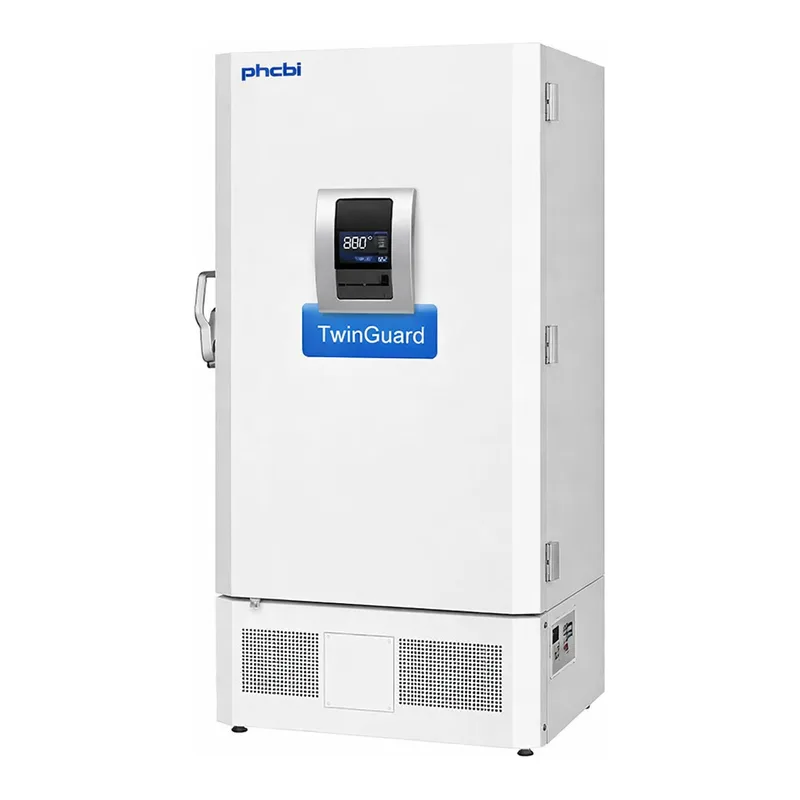

MDF-DU702VX TwinGuard ULT Freezers (-86°C)

MDF-DU702VX TwinGuard ULT Freezers (-86°C)

The most secure ultra-low temperature freezers for the storage of high value samples

The TwinGuard MDF-DU702VX -86°C Ultra Low Temperature Freezer satisfies the demand for safe, long-term storage of high-value materials. Two independent refrigeration systems, combined with optional liquid nitrogen or liquid CO₂ back-up, provide unmatched protection.

If one cooling system fails, the other maintains approximately -70°C, ensuring sample safety until service is arranged.

Ultimate Sample Protection

The Dual Cooling System ensures maximum protection with two independent refrigeration circuits. Even in case of compressor failure, the freezer maintains -70°C, safeguarding irreplaceable samples.

Efficient Sample Storage

VIP PLUS vacuum insulation and optimized cabinet design ensure temperature uniformity and maximize storage capacity by reducing wall thickness.

Flexible Shelf Layout

Multiple shelf configurations allow flexible storage options and easy organization of existing inventory racks.

Intelligent Interface

The EZlatch facilitates easy access. A color LCD touch panel allows full control even with gloves, and the USB port enables convenient data transfer.

Benefits

• Extreme secure Dual Cooling System
• VIP PLUS insulation
• Flexible shelf layout
• Intelligent Interface
• Innovative Cabinet Design

Features

• Dual Cooling System
• EZlatch
• LCD Touch Screen
• USB Port
• Eco Mode Operation

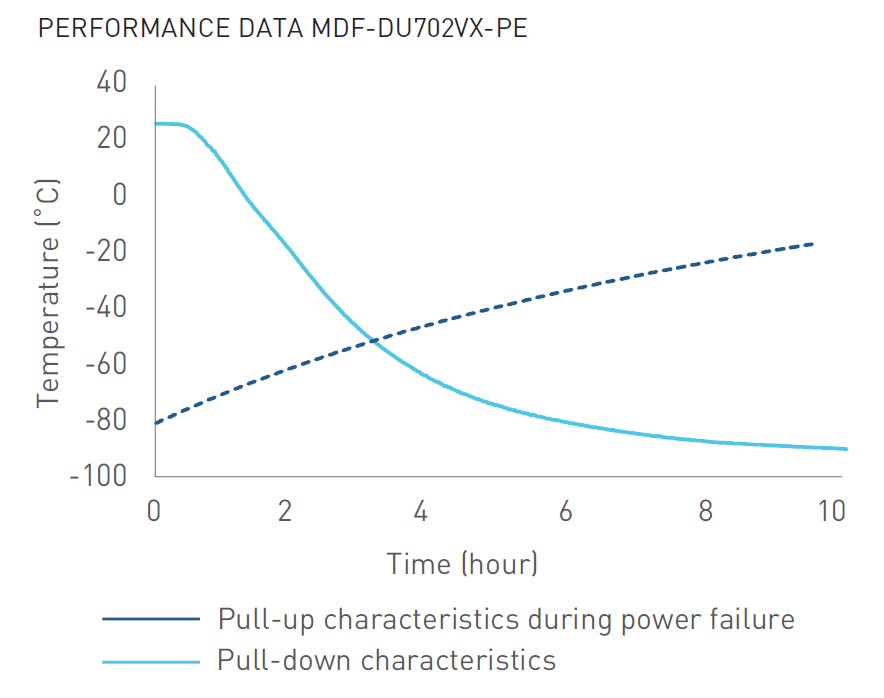

Performance Data

PERFORMANCE DATA MDF-DU702VX-PE

• Vertical axis: Temperature (°C)
• Horizontal axis: Time (hour)
• Legend:
  • Pull-up characteristics during power failure
  • Pull-down characteristics

Specifications

항목	내용
External Dimensions (W × D × H)	1030 × 882 × 1993 mm
Internal Dimensions (W × D × H)	870 × 600 × 1400 mm
Volume	729 L
Net Weight	328 kg
Capacity (Aluminium Racks 2” Boxes)	576 boxes
Cooling Performance	-86°C
Temperature Setting Range	-50 to -90°C
Temperature Control Range	-50 to -86°C
Controller	Microprocessor, non-volatile memory
Display	LCD Touch Screen
Temperature Sensor	Pt-1000
Refrigeration System	Independent Dual-Cooling
Compressors	2 × 1100 W
Insulation Material	PUF / VIP Plus
Insulation Thickness	80 mm
Exterior Material	Painted Steel
Interior Material	Painted Steel
Outer Doors/Lid	1
Outer Door Lock	Yes
Inner Doors/Lid	2
Max. Load per Shelf	50 kg
Max. Load Total	515 kg
Vacuum Release Port	2 (1 automatic, 1 manual)
Access Port	3
Access Port Position	Back ×1, Bottom ×2
Access Port Diameter	17 mm
Casters	4 (2 leveling feet)
Power Failure Alarm	Visual, Buzzer, Remote
High Temperature Alarm	Visual, Buzzer, Remote
Low Temperature Alarm	Visual, Buzzer, Remote
Door Open Alarm	Visual, Buzzer
Filter	Filterless Design
Power Supply	Local
Frequency	Local
Noise Level	52 dB(A)

Price

Model	Price
MDF-DU702VX	Price Upon Inquiry (Contact local dealer)

Dimensions (Unit: mm)

The equipment drawing shows major dimensions in millimeters:

• Vertical dimensions: 430, 1090, 1560, 1770, 1538, 1400 mm
• Horizontal dimensions: 870, 1010, 1079, 795, 600, 33, 105, 21, 48, 11 mm

---
