MIR-H163 Heated Incubators

MIR-H163 Heated Incubators

Intuitive and Easy Operable Heated Incubator

The MIR-H163 Heated Incubator provides a precise and stable incubation environment. An accurate microprocessor timer allows experiments up to 99 hours and 59 minutes.

The MIR series incorporates an 8-bit microprocessor controller for precise heat control (±0.2°C). Programmable models include three-step functions useful for microbiology, plant cell biology, and related research.

---

Microprocessor Timer Function

An accurate microprocessor timer enables experiments up to 99 hours 59 minutes with optional delayed start.
When the experiment completes, a buzzer alerts the user, and samples are maintained at the set temperature until removal.
Various operating patterns can be configured via the display panel.

---

Benefits

• Precise and stable incubation environment
• Suitable for biological cultures and environmental studies
• Accurate microprocessor-based temperature control
• PID control and Air Jacket system for uniform heating
• Operation timer function
• Safety ensured by alarms and self-diagnostic functions
• Temperature range: 5°C above ambient to 80°C
• Temperature accuracy: ±0.2°C at +37°C

---

Features

• Temperature range: 5°C above ambient to 80°C
• Temperature accuracy: ±0.2°C at +37°C
• Microprocessor controlled timer
• Advanced design and high reliability
• Capacity: 93 liters
• Precise temperature control

---

Performance

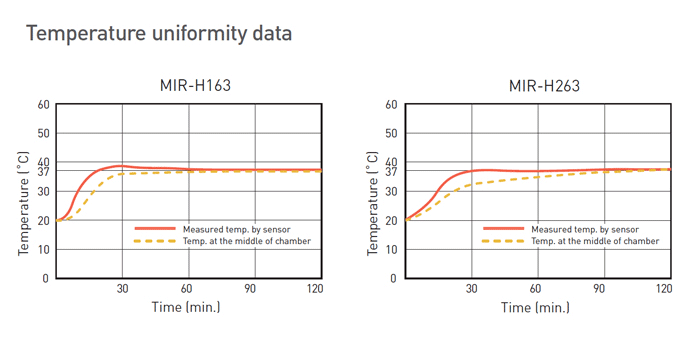

Temperature Uniformity Data

MIR-H163

축	단위
세로축 (Y축)	Temperature [°C]
가로축 (X축)	Time (min.)

범례 (Legend):

• ― Measured temp. by sensor
• -- Temp. at the middle of chamber

MIR-H263

축	단위
세로축 (Y축)	Temperature [°C]
가로축 (X축)	Time (min.)

범례 (Legend):

• ― Measured temp. by sensor
• -- Temp. at the middle of chamber

두 그래프 모두 X축은 0, 30, 60, 90, 120 (min.),
Y축은 0, 10, 20, 30, 40, 50, 60 (°C)로 표시되어 있습니다.

---

Specifications

항목	사양
External Dimensions (W × D × H)	580 × 595 × 820 mm
Internal Dimensions (W × D × H)	450 × 460 × 450 mm
Volume	93 L
Net Weight	50 kg
Temperature Control Range	Ambient temp +5 ~ +80 °C
Temperature Fluctuation	±0.2 °C (<60°C) ~ ±0.5 °C (60~80°C)
Temperature Uniformity	±1 °C
Controller	-
Display	LED
Temperature Sensor	Thermistor
Exterior Material	Painted steel
Interior Material	Stainless steel (SUS-304)
Insulation Material	Glass fibre
Outer Doors	1
Outer Door Lock	-
Reversible Door	-
Inner Doors	1
Shelves	2
Max. Load Per Shelf	-
Max. Total Load	-
Out of Temperature Setting	V-B
High Temperature	V-B
Power Supply	Local
Frequency	Local
Noise Level	-

---

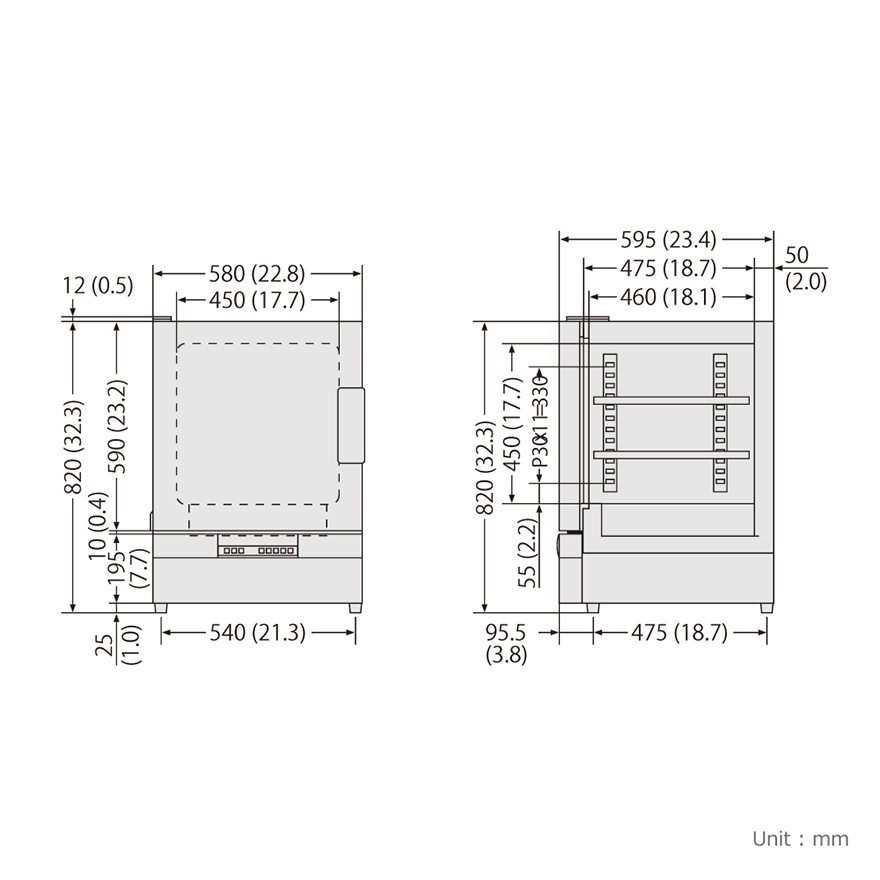

Dimensions

도면 정보 (이미지에서 추출된 텍스트)

왼쪽 도면

12 (0.5)
580 (22.8)
450 (17.7)
820 (32.3)
590 (23.2)
10 (0.4)
195 (7.7)
25 (1.0)
540 (21.3)

오른쪽 도면

595 (23.4)
475 (18.7)
460 (18.1)
50 (2.0)
820 (32.3)
450 (17.7)
+30 MAX 139
55 (2.2)
95.5 (3.8)
475 (18.7)

단위: mm (괄호 안은 인치)

---

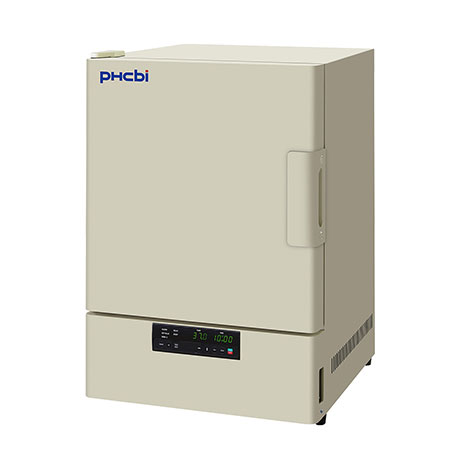

제품 이미지
