MDF-1156 Cryogenic ULT freezers (-152°C)
Features
The most uniform storage temperatures for cryopreservation solutions
The Cryogenic MDF-1156 Ultra Low Temperature Freezer is a mechanically refrigerated cryogenic freezer without harmful CFCs. This Ultra Low Temperature Freezer achieves stable long-term preservation of cells and tissues.
New VIP PLUS technology maximizes storage capacity over conventionally insulated models. The Cryogenic MDF-1156 Ultra Low Temperature conservation system employs advanced technology to insure a high precision temperature environment.
Specially designed compressor and cascade refrigeration system for an ultra-low temperature of -152ºC
Highly efficient compressors have been specially developed and incorporated in the freezing unit. With a powerful low noise design afforded by traditional ultra-low temperature technology, this freezer delivers durable, stable cooling.
Benefits
- Safe and Convenient Usability.
- Specially designed cascade refrigeration system.
- Standard LN2 backup
- Low operational costs.
- LN2 Cost Savings.
- No liquid supply problems.
- No danger of sudden liquid eruptions.
- Compressors are specifically designed for refrigeration systems that achieve ultra low temperatures
Features
- Recheargeable battery
- Three levels of cabinet security
- High performance, quiet-running PHCbi-designed refrigeration
- No CFC`s in the by PHCbi developed special mixed Refrigerant
- Enhanced reliability of long-term preservation
- Advanced controlling features
- LED digital display and flat key data entry for accurate temperature setting, confirmation and operation
- Inner cabinet maintains temperature safely below the -130°C
- Ultra-low temperature created by a high-efficiency oil separator
- Special foamed-in-place polyurethane insulation material for maximum cabinet protection
- Microprocessor-controlled filter-clogged check function
- High temperature warning equipment
- Power failure alarm lamp and buzzer
- Remote alarm contact
- Liquid nitrogen back-up system
- Optional CO2 back-up system
Performance

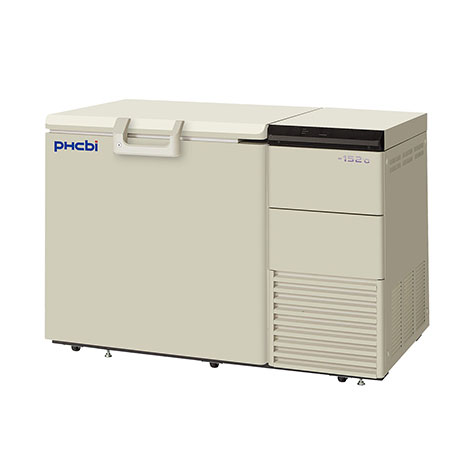

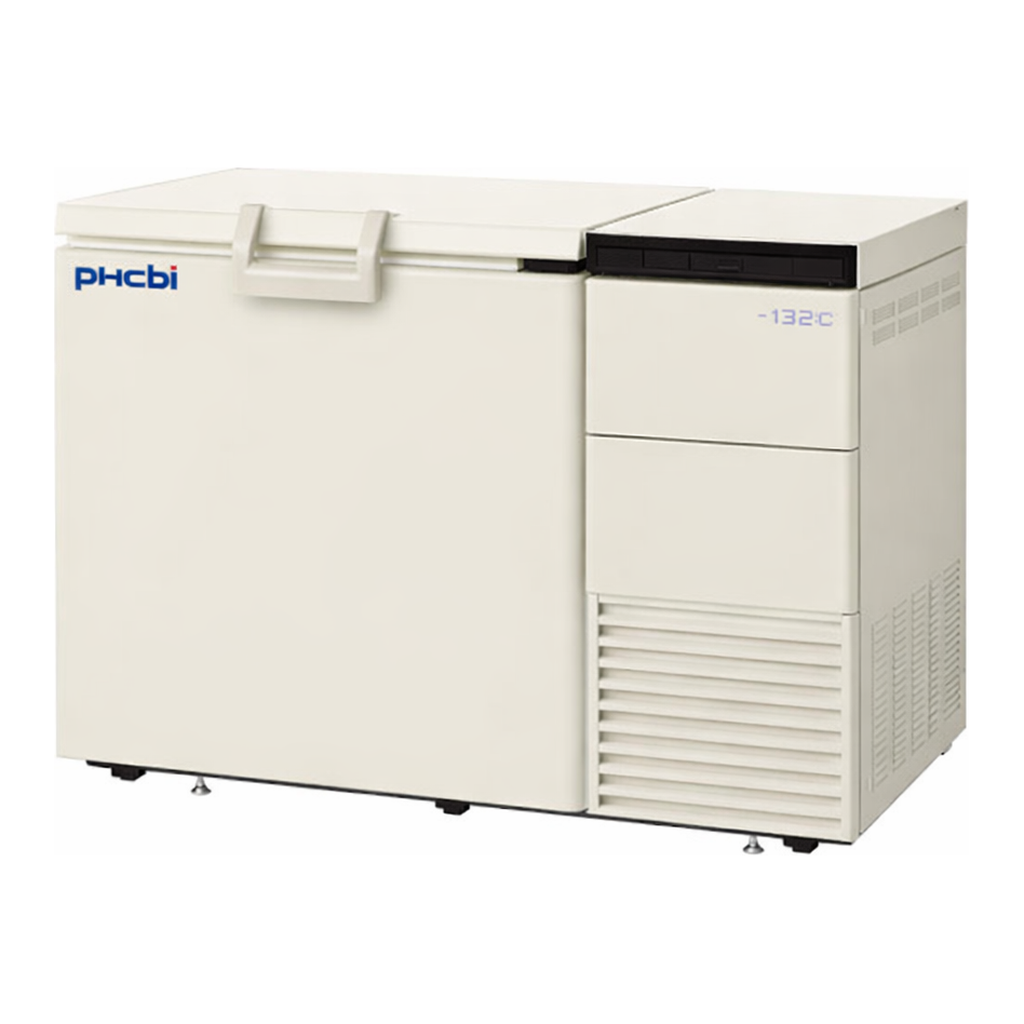

Product Photos
Specfications
| External Dimensions (W x D x H) | 1400 x 800 x 945 mm |
| Internal Dimensions (W x D x H) | 500 x 450 x 572 mm |
| Volume | 128 litres |
| Net Weight | 265 kg |
| Capacity (Aluminium Racks 2” Boxes) | - |
| Capacity (Stainless Steel Racks 2” Boxe) | - |
| Cooling Performance | -152 °C |
| Temperature Setting Range | -125 ~ -155 °C |
| Temperature Control Range | -130 ~ -152 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LED |
| Temperature Sensor | Pt-100 |
| Refrigeration System | Cascade |
| Compressors | 1100 W |
| Refrigerant | |
| Insulation Material | PUF |
| Insulation Thickness | 175 mm |
| Exterior Material | Painted steel |
| Interior Material | Aluminium |
| Outer Doors/Lid | - |
| Outer Door Lock | - |
| Inner Doors/Lid | Y |
| Shelves | |
| Max. Load - Per Shelf | - |
| Max. Load - Total | 300 kg |
| Vacuum Release Port | - |
| Access Port | left |
| Access Port Position | left |
| Access Port Diameter | 40 |
| Casters | 6 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | - |
| Filter | V-B |
| Door Open | - |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 61 dB [A] |
Price
| MDF-1156 | The price might vary in country. Please send the inquiry form for getting quotation. |

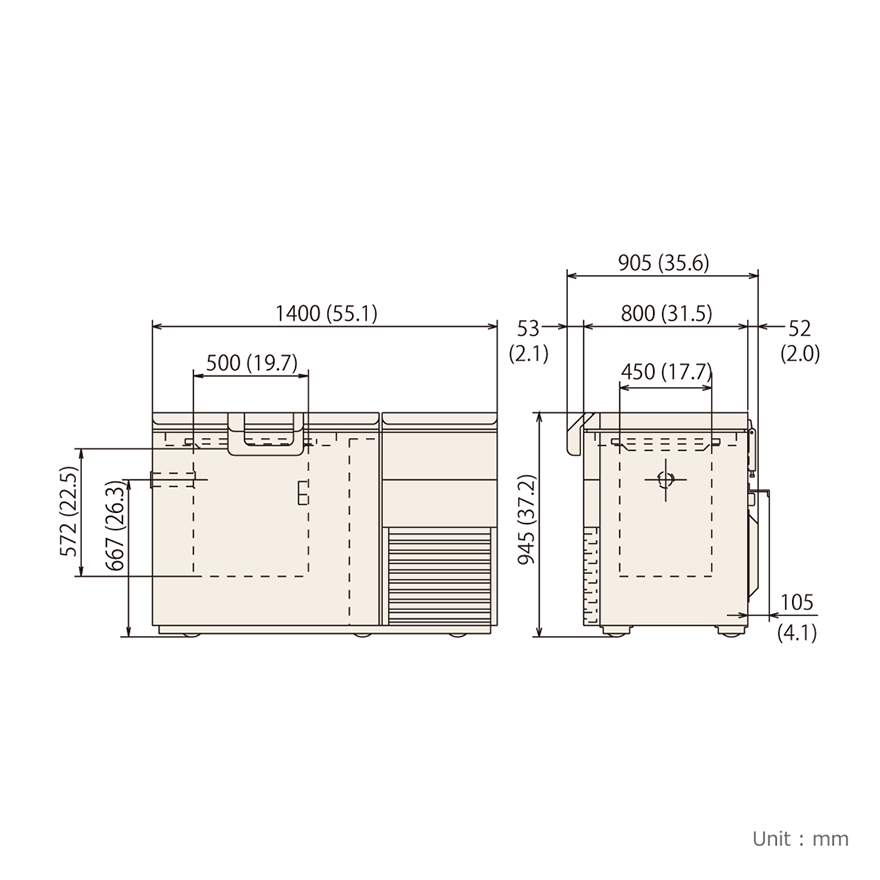

Dimensions
