MCO-170M IncuSafe Multigas Incubators

MCO-170M IncuSafe Multigas Incubator

So comfortable, your cells will feel in vivo

The IncuSafe MCO-170M Multigas Incubator offers precise regulation of oxygen and other gases, while maintaining superior temperature uniformity, contamination control, and usability.

The Dual Infra Red sensor ensures ultra-fast CO₂ recovery without overshoot, even after multiple door openings, while the solid Zirconia O₂ sensor provides accurate control of physiological oxygen levels to simulate in vivo conditions.

---

Sensitive Cell Culturing

Culturing cells at physiological oxygen levels allows faster growth, longer lifespan, and fewer mutations. The MCO-170M is ideally suited for mammalian tissue research, cellular therapy, stem cell research, pathophysiological studies, and pharmaceutical production.

---

Active Background Decontamination

The exclusive InCu-saFe copper-enriched stainless steel interior combines the germicidal properties of copper with the durability of stainless steel. The optional SafeCell UV lamp decontaminates circulating air and humidifying water without harming cultured cells.

Ideally suited for:

• Stem Cell Research & Differentiation
• In vitro Fertilization
• Regenerative Medicine
• Primary Cell Culturing
• Cancer Research
• Embryo Studies

---

Benefits

• Reproduction of in vivo conditions
• Time-Saving H₂O₂ Decontamination
• Improved Use & Maintenance
• Efficient Workflows
• Intuitive Usability

---

Features

• Unique solid Zirconia O₂ sensor
• USB port
• Optional electric door lock with password
• LCD touch screen
• Integrated shelf supports
• SafeCell UV system
• Exclusive InCu-saFe copper-enriched stainless steel interior
• PHCbi proprietary single-beam, dual detector infrared (IR₂) CO₂ sensor
• Direct Heat and Air Jacket Heating System
• Field-reversible doors
• Adjustable shelves
• Hydrogen Peroxide Vapour Decontamination (Optional)

---

Performance

MCO-170M Performance Data

Temperature pull-up characteristics

Temperature (°C)
40 ─
35 ─
30 ─
25 ─
20 ─
    0     1     2     3     4     5
           Time (hr.)

Temperature recovery characteristics

Temperature (°C)
38 ─
37 ────────────────────────────────
36 ─
35 ─
34 ─
33 ─
32 ─
    0     10     20     30     40
           Time (min.)

Legend:
— — —  One small inner door opening 30 sec.
─────  One small inner door opening 60 sec.

Humidity recovery characteristics

Humidity (%) RH
100 ─
 90 ────────────────────────────────
 80 ─
 70 ─
 60 ─
 50 ─
 40 ─
     0     10     20     30     40     50     60
                Time (min.)

Legend:
— — —  Door opening 30 sec. (with N₂ bubbling)
─────  Door opening 60 sec. (with N₂ bubbling)
— — —  Door opening 30 sec. (without N₂ bubbling)
─────  Door opening 60 sec. (without N₂ bubbling)

CO₂ level recovery characteristics

CO₂ level (%)
6 ─
5 ────────────────────────────────
4 ─
3 ─
2 ─
1 ─
0 ─
    0     10     20     30     40
           Time (min.)

Legend:
— — —  Door opening 30 sec.
─────  Door opening 60 sec.

O₂ level recovery characteristics

O₂ level (%)
20 ─
15 ─
10 ─
 5 ─
 0 ─
    0     10     20     30     40
           Time (min.)

Legend:
— — —  Door opening 30 sec.
─────  Door opening 60 sec.

✅ Summary:
Performance graphs show time-based recovery characteristics for temperature, humidity, CO₂, and O₂ levels under various door-opening conditions.

---

Specifications

항목	내용
External Dimensions (W × D × H)	620 × 730 × 905 mm
Internal Dimensions (W × D × H)	490 × 523 × 665 mm
Volume	161 L
Net Weight	77 kg
Temperature Control Range & Fluctuation	AT +5 ~ +50, ±0.1 °C
Temperature Uniformity	±0.25 °C
CO₂ Control Range & Fluctuation	0 ~ 20, ±0.15 %
O₂ Control Range & Fluctuation	1–18 and 22–80, ±0.2 %
Humidity Level & Fluctuation	95 ±5 %RH
Sterilisation Method	H₂O₂ Decontamination
Temperature Sensor	Thermistor
CO₂ Sensor	Dual IR
O₂ Sensor	Stabilized Zirconia Sensor
Display	Touch Panel (WVGA full color LCD) and USB data logging
Exterior Material	Painted Steel (rear cover not painted)
Interior Material	Stainless Steel Copper-Enriched Alloy
Insulation Material	Styrene AcryloNitrile copolymer
Heating Method	Direct Heat & Air Jacket System
Outer Doors	1
Outer Door Lock	Optional
Field Reversible Door	Included
Inner Doors	4 gastight tempered glass
Shelves	3 (standard)
Shelf Dimensions (W × D × H)	470 × 450 × 12 mm
Max. Load Per Shelf	7 kg
Max. Shelf Capacity	10
Access Port	1
Access Port Position	Rear Upper Left
Access Port Diameter	30 mm
Power Failure	R
Out of Temperature Setting	V-B-R
High Temperature	V-B-R
Out of CO₂ Setting	V-B-R
Out of O₂ Setting	V-B-R
Door Open	V-B
Power Supply	Local
Frequency	Local
Noise Level	25 dB

---

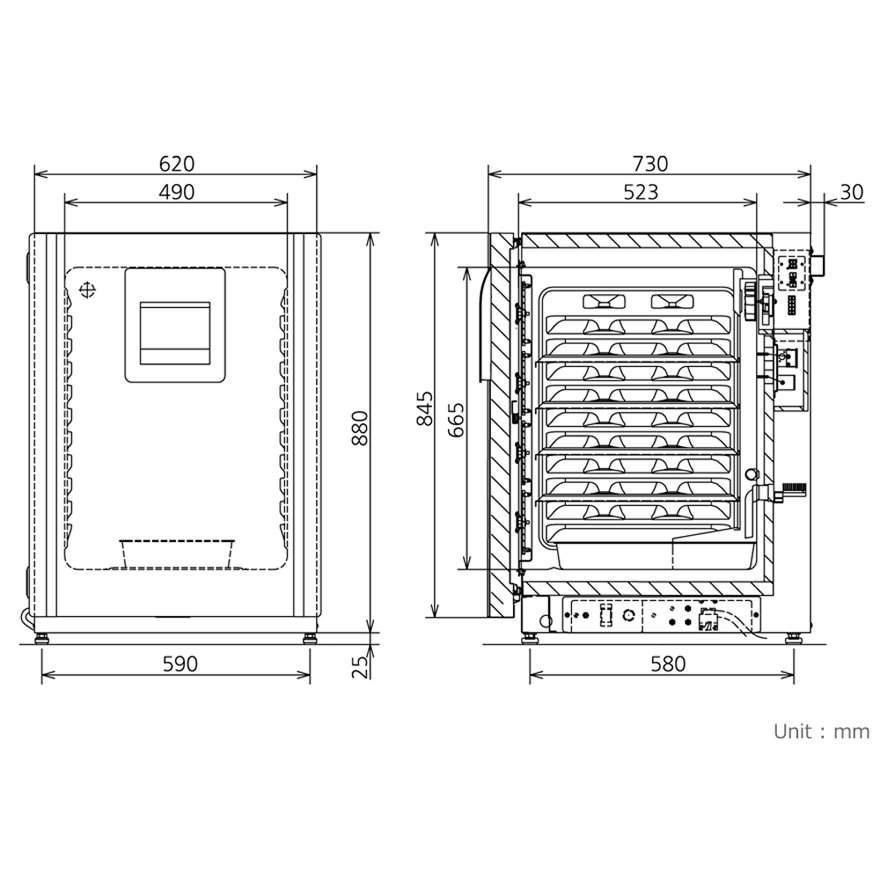

Dimensions

620
490
880
590
25
730
523
30
845
665
580

Unit : mm

---

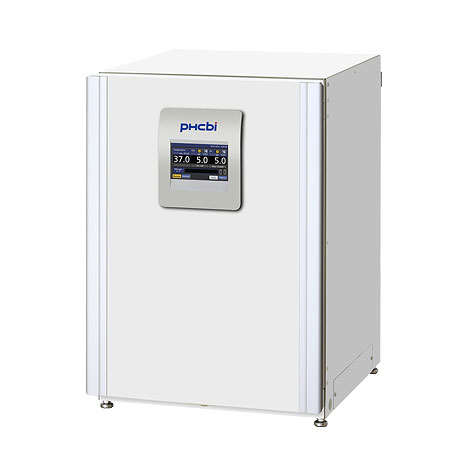

Display Information

phcbi
37.0 5.0 5.0
(Displayed values likely indicate temperature 37.0°C, CO₂ 5.0%, and O₂ 5.0%)

---
