MDF-C2156VAN Cryogenic ULT freezers (-150°C)
Features
The most uniform storage temperatures for cryopreservation solutions
The Cryogenic MDF-C2156VAN Ultra Low Temperature Freezer is Ideally suited for cryogenic and long-term storage in laboratories and no loger uses harmfull CFC`s to achieve a ultra low temperature of -150ºC. The Cryogenic MDF-C2156VAN is a mechanical cryogenic freezer.
VIP PLUS technology maximizes storage capacity over conventionally insulated models. Whatever your preservation needs are, PHCbi provides the right equipment to meet your exact requirements. PHCbi preservation systems employ advanced technology to insure a high precision temperature environment.
Environmentally friendly
The Cryogenic MDF-C2156VAN utilises binary mixed non-HCFC refrigerants. The new Vacuum Insulation Panels and double door gaskets reduce the power consumption.
Compared to liquid nitrogen systems, Cryogenic MDF-C2156VAN offers the following advantages:
- Lower running cost
- Easy maintenance
- No occurrence of contamination
Benefits
- Safe and Convenient Usability.
- Specially designed cascade refrigeration system.
- Standard LN2 backup
- Low operational costs.
- Convenient Control with LCD panel.
- LN2 Cost Savings.
- No liquid supply problems.
- No danger of sudden liquid eruptions.
- Compressors are specifically designed for refrigeration systems that achieve ultra-low temperatures
- VIP PLUS insulation maximizes storage capacity
Features
- Recheargeable battery
- Panasonic patented VIP Plus Vacuum Insulation
- Three levels of cabinet security
- High performance, quiet-running PHCbi-designed refrigeration
- No CFC`s in the by PHCbi developed special mixed Refrigerant
- Enhanced reliability of long-term preservation
- Advanced controlling features
- LED digital display and flat key data entry for accurate temperature setting, confirmation and operation
- Inner cabinet maintains temperature safely below the -130°C
- Ultra-low temperature created by a high-efficiency oil separator
- Special foamed-in-place polyurethane insulation material for maximum cabinet protection
- Microprocessor-controlled filter-clogged check function
- High temperature warning equipment
- Power failure alarm lamp and buzzer
- Remote alarm contact
- Optional liquid nitrogen and CO2 back-up system

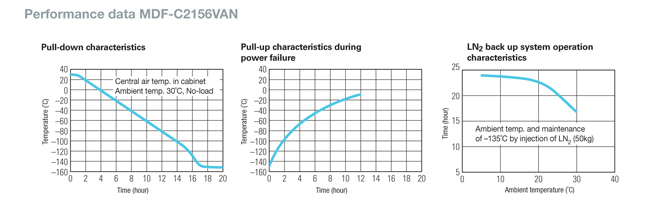

Performance

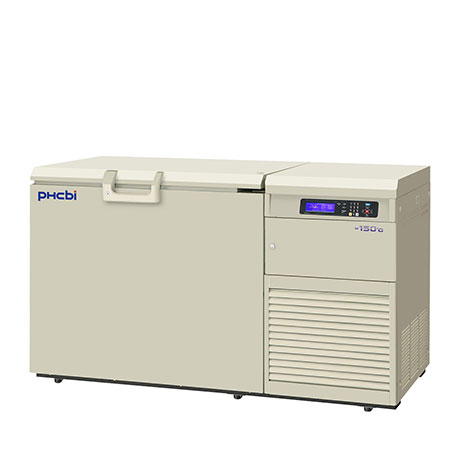

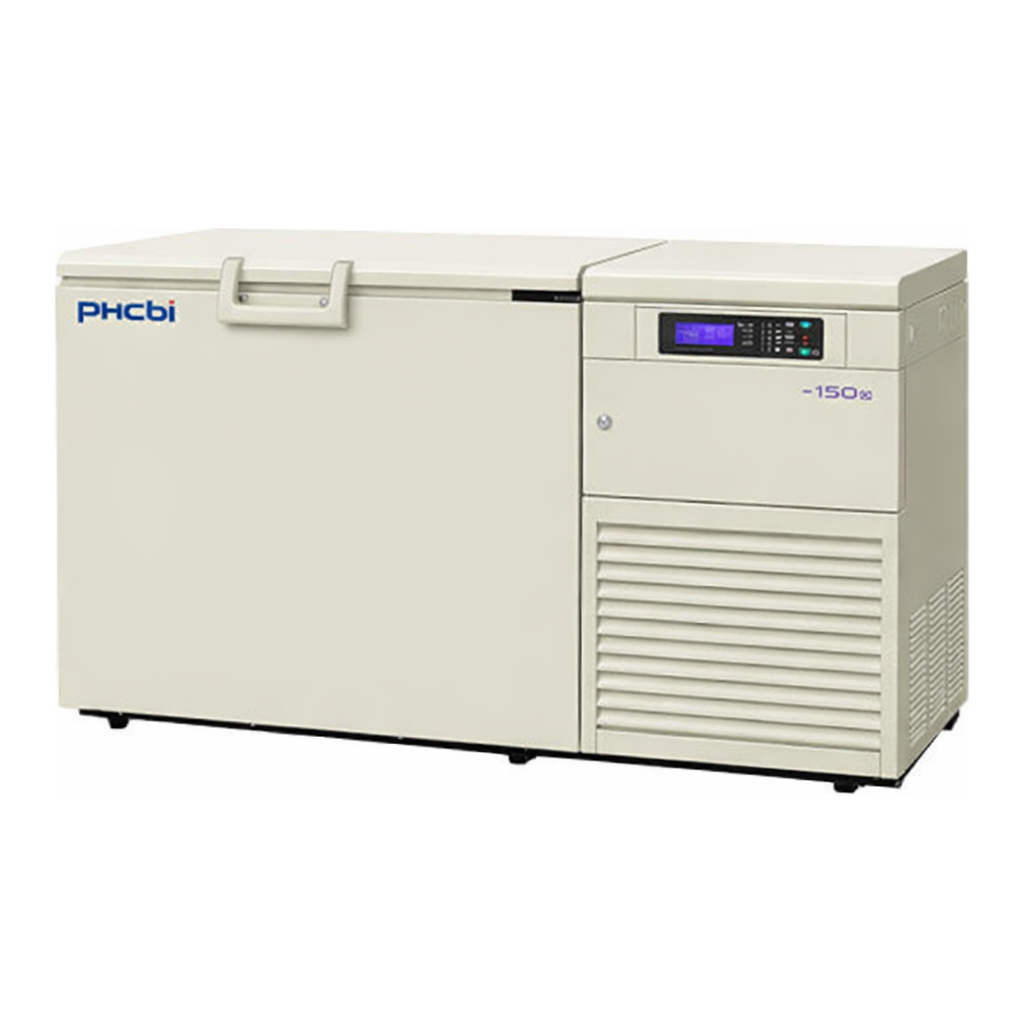

Product Photos
Specifications
| External Dimensions (W x D x H) | 1730 x 765 x 1010 mm |
| Internal Dimensions (W x D x H) | 760 x 495 x 615 mm |
| Volume | 231 litres |
| Net Weight | 318 kg |
| Capacity (Aluminium Racks 2” Boxes) | - |
| Capacity (Stainless Steel Racks 2” Boxe) | - |
| Cooling Performance | -150 °C |
| Temperature Setting Range | -125 ~ -152 °C |
| Temperature Control Range | -130 ~ -150 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LED |
| Temperature Sensor | Pt-1000 |
| Refrigeration System | Cascade with auto-cascade low-stage |
| Compressors | 1100 W |
| Refrigerant | |
| Insulation Material | PUF / VIP Plus |
| Insulation Thickness | 135 mm |
| Exterior Material | Painted steel |
| Interior Material | Aluminium |
| Outer Doors/Lid | - |
| Outer Door Lock | Y |
| Inner Doors/Lid | 2 |
| Shelves | |
| Max. Load - Per Shelf | - |
| Max. Load - Total | 207 kg |
| Vacuum Release Port | - |
| Access Port | 1 |
| Access Port Position | left |
| Access Port Diameter | 40 |
| Casters | 6 (3 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | V-B |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 51 dB [A] |
Accessories
| Continuous strip type | MTR-155H |
| Recorder housing(if required) | MDF-S30150 |
| RS485 interface module | MTR-480 |
| Liquid N2 Back-up | Supplied as standard |

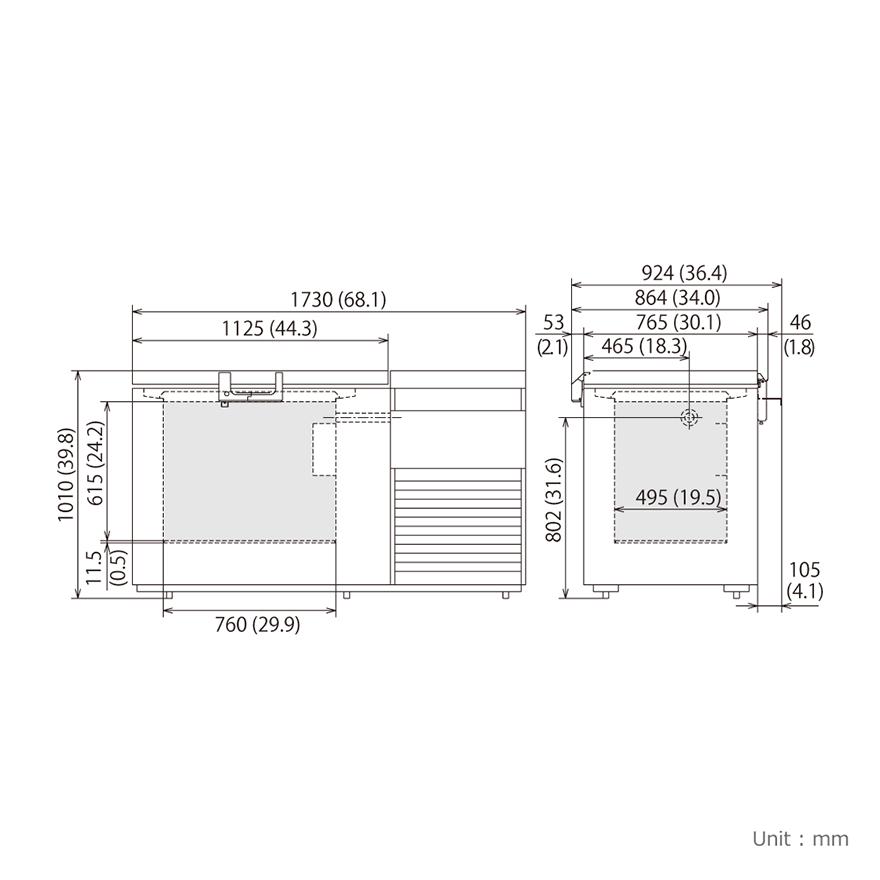

Dimensions
