XYZ & Grantry Sytems/다축 이송장치
■ XYZ & Grantry Sytems(다축 이송장치)은 2가지 제품군으로 분류
- XYZ Motorized Stage
- Gantry Systems
■ 제품별 주요 특징은 하단 설명 참조
- XYZ Motorized Stage
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-460 | X-XYZ-LSQ075B-K0060-SQ3 | Motorized XYZ stage: 3x X-LSQ075B, 75 mm travel per axis |
M01-680-465 | X-XYZ-LSQ150B-K0060-SQ3 | Motorized XYZ stage: 3x X-LSQ150B, 150 mm travel per axis |
M01-680-470 | X-XYZ-LSM025A-K0061-SQ3 | Motorized XYZ stage: 3x X-LSM025A, 25 mm travel per axis |
M01-680-475 | X-XYZ-LSM050A-K0061-SQ3 | Motorized XYZ stage: 3x X-LSM050A, 50 mm travel per axis |
M01-680-480 | X-XYZ-LSM100A-K0061-SQ3 | Motorized XYZ stage: 3x X-LSM100A, 100 mm travel per axis |
M01-680-485 | X-XYZ-LSM150A-K0061-SQ3 | Motorized XYZ stage: 3x X-LSM150A, 150 mm travel per axis |
M01-680-490 | X-XYZ-LSM200A-K0061-SQ3 | Motorized XYZ stage: 3x X-LSM200A, 200 mm travel per axis |
M01-680-495 | T-XYZ-LSR075B-KT04U-SQ3 | Motorized XYZ stage: 3x T-LSR075B, 75 mm travel per axis |
M01-680-500 | T-XYZ-LSR150B-KT04U-SQ3 | Motorized XYZ stage: 3x T-LSR150B, 150 mm travel per axis |
- XYZ Motorized Stage Specification
Specification | |||
--- | --- | --- | --- |
Value | Value | Value | |
--- | --- | --- | --- |

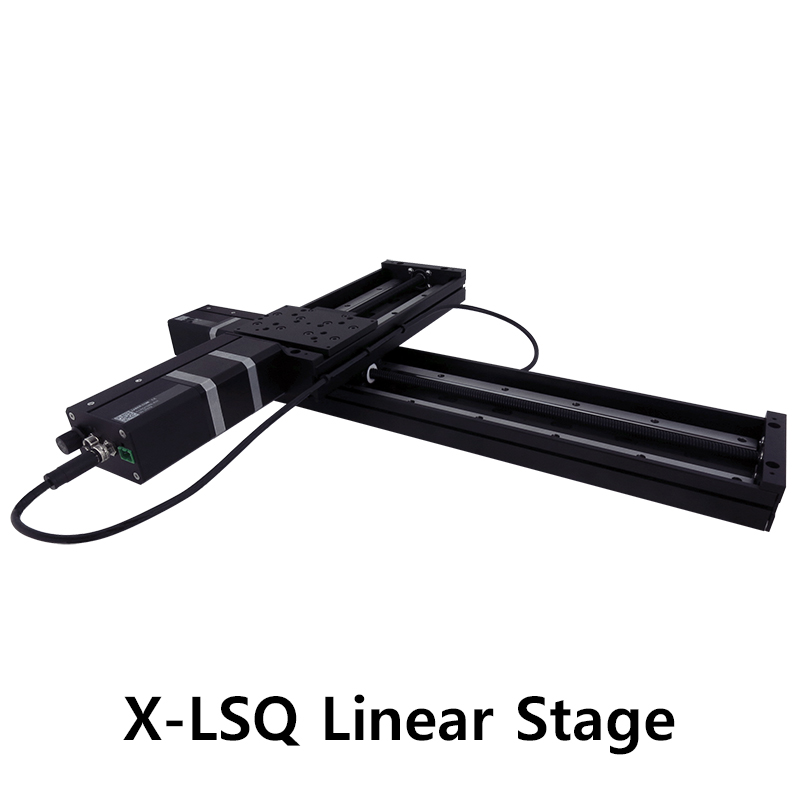

Model | X-LSQ Linear Stages: | X-LSM Miniature Linear Stages: | T-LSR Linear Slides: |
Feature | XYZ system configured by X-LSQ stages | XYZ system configured by X-LSM stages | XYZ system configured by T-LSR stages |
Tranvel Range | 75 to 450 mm travel | 25 to 200 mm travel | 75 to 450 mm travel |
Maximum Centered Load | 20 kg max payload | 10 kg load capacity | 100 N max thrust (vertical axis payload) |
Speed & thrust | Up to 1 m/s speed and 100 N max thrust (vertical axis payload) | 25 N max thrust (vertical axis payload) | Up to 80 mm/s speed and up to 20 kg payload |
Mounting devices | Mounts directly in XY and XYZ | Mounts directly in XY and XYZ | Mounts directly in XY and XYZ |
Combination | Can be combined directly with T-LS stages | Our most compact motorized stage with built-in controllers | Can be combined directly with T-LS stages |
Available with motor encoders | Yes | Yes | Yes |

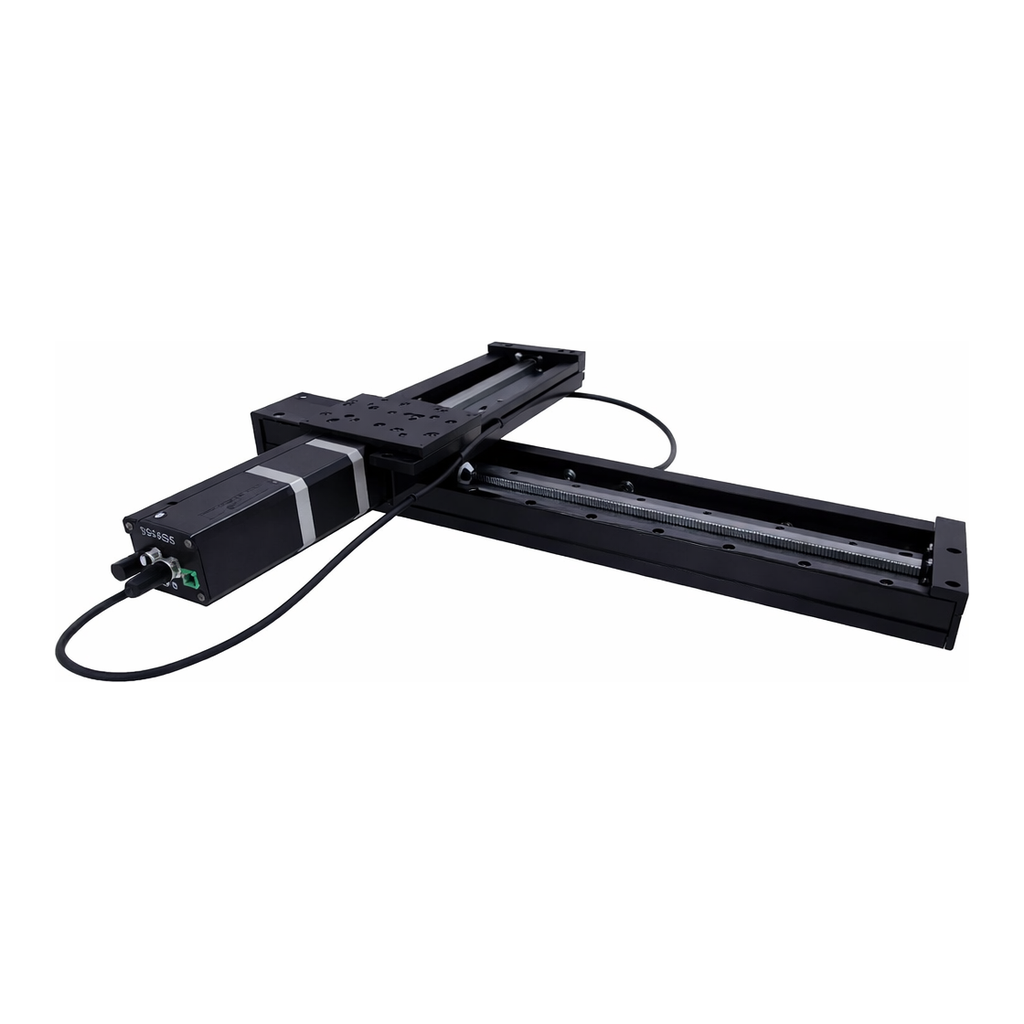

- Gantry Systems
Cat. No. | Model | Description |
--- | --- | --- |
M01-680-510 | G-LSQ150A150A-T4-K0048 | Motorized XY gantry system, 150 mm x 150 mm travel, fine resolution, low speed |
M01-680-515 | G-LSQ300A300A-T4-K0048 | Motorized XY gantry system, 300 mm x 300 mm travel, fine resolution, low speed |
M01-680-520 | G-LSQ450A450A-T4-K0048 | Motorized XY gantry system, 450 mm x 450 mm travel, fine resolution, low speed |
- Gantry Systems Specification
Specification | |
--- | --- |
Value | |
--- | --- |
Model | G-LSQ Stages: |
Feature | Gantry Systems |
Built-in Controller | No |
Recommended Controller | X-MCB2(48 V) Included |
Repeatability | < 4 µm |
Encoder Type | None |
Maximum Centered Load | 180 N |
Maximum Cantilever Load | 800 N-cm |
Guide Type | Roller Bearing |
Maximum Current Draw | 1200 mA |
Motor Steps Per Rev | 200 |
Motor Type | Stepper (2 phase) |
Motor Rated Current | 1200 mA/phase |
Motor Winding Resistance | 3.3 ohms/phase |
Inductance | 2.8 mH/phase |
Motor Rated Power | 9.6 Watts |
Motor Connection | D-sub 15 |
Mechanical Drive System | Precision lead screw |
Limit or Home Sensing | Magnetic home sensor |
Axes of Motion | 2 |
Mounting Interface | M6 threaded holes and 8-32 threaded holes |
Operating Temperature Range | 0 to 50 degrees C |
Stage Parallelism | < 100 µm |
RoHS Compliant | Yes |
CE Compliant | Yes |
Tranvel Range | 150x150 ~ 450x450 mm |
Accuracy | 15 ~ 45 um |
Maximum Speed | 23 ~ 330 mm/s |
Maximum Continuous Thrust | 10 ~ 140 N |
