Asynt fReactor MAXI Complete Kit

fReactor MAXI Complete Kit

==========================

Read more

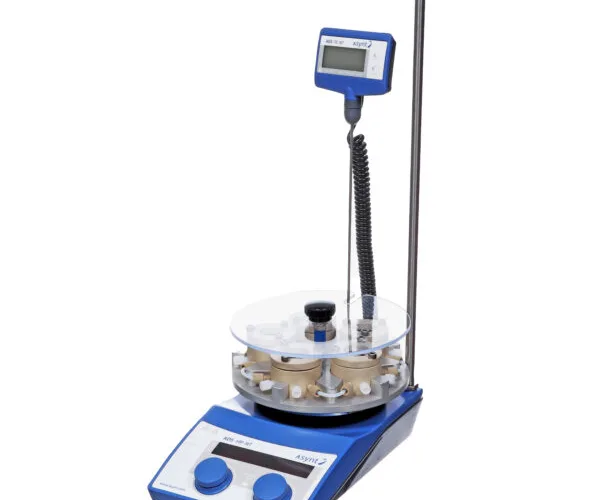

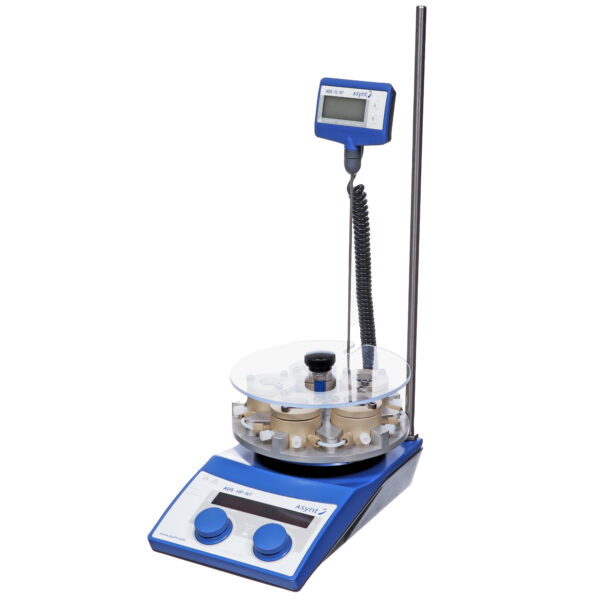

Designed by chemists and engineers from within the Institute of Process Research and Development at the University of Leeds, the fReactor MAXI is simple to assemble and modify, making it suitable for a wide range of continuous-flow processes.

fReactor MAXI includes 5 x Continuous Stirred Tank Reactors (CSTR) of 7.5 mL volume each.

Heating and mixing are provided by a standard magnetic hotplate stirrer and fluidic pumps (e.g. HPLC, syringe, peristaltic, gear) are used to drive the reagents around the modules.

Integrating the efficiency of pipe-flow processing with the advanced mixing of a CSTR, the fReactor range delivers a general “plug-and-play” setup which is well-suited to multiphasic reactions; allowing chemists to explore continuous-flow processing, with little expertise required.

fReactor isn’t just about the hardware; we also offer a dedicated website to help you get started with flow chemistry, and with setting up your fReactor module/s: https://www.freactor.com/

Close

Downloads

Asynt – fReactor Range V1.4
Read our press release here: https://www.asynt.com/press-releases/entry-level-flow-reactors-for-synthetic-development/
NEW PAPER: Continuous synthesis of block copolymer nanoparticles via telescoped RAFT solution and dispersion polymerisation in a miniature CSTR cascade**
NEW PAPER:** Acetylation of ethylene diamine in liquid bi-phase
NEW PAPER: A Hybridised Optimisation of an Automated Photochemical Continuous Flow Reactor
NEW PAPER: High-pressure asymmetric hydrogenation in a customized flow reactor and its application in multi-step flow synthesis of chiral drugs

Technical Specifications

Kit comprises:

• 5 x PEEK fReactor MAXI modules
• 1 x aluminium holding plate with thermocouple hole & protective screen
• 15 x Viton o-rings
• 6 x PTFE cross stirrer bars
• 20 x flangeless PEEK fittings with ETFE ferrules
• 15 x Tefzel blanking plugs
• 2.5 m x PTFE tubing
• 1 x tube cutter
• 1 x hex key

Further information on the fReactor platform, including examples of different reaction types conducted using the platform, can be found in: Org. Process Res. Dev. 2017, 21, 9, 1294-1301.

For further information on the principles of flow chemistry and how the fReactor MAXI platform fits into this please visit www.freactor.com

Complete your setup with the following accessories that we also provide:

• Kalrez O-rings
• Back pressure regulators
• Pressure relief valves
• Hotplate stirrers
• Syringe pumps
