Asynt LightSyn Illumin8 Parallel Photoreactor
| 상품 옵션 정보 | |||||||
|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| ADS26-365 | Asynt ADS26-365 LightSyn Illumin8 MkII 365 nm pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-450 | Asynt ADS26-450 LightSyn Illumin8 MkII 365 nm: 8 position photoreactor, includes LED housing with 8x Royal Blue LEDs pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-BASE | Asynt ADS26-BASE LightSyn Illumin8 Temperature Controlled Base: with M16 connectors, does not include temperature control unit. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-365 | Asynt ADS26-LED-CARTRIDGE-365 LightSyn Illumin8 UV LED Cartridge: 365 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-395 | Asynt ADS26-LED-CARTRIDGE-395 LightSyn Illumin8 UVA LED Cartridge: 390-395 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-405 | Asynt ADS26-LED-CARTRIDGE-405 LightSyn Illumin8 Violet LED Cartridge: 405 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-450 | Asynt ADS26-LED-CARTRIDGE-450 LightSyn Illumin8 Royal Blue LED Cartridge: 440-450 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-470 | Asynt ADS26-LED-CARTRIDGE-470 LightSyn Illumin8 Blue LED Cartridge: 460-470 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-525 | Asynt ADS26-LED-CARTRIDGE-525 LightSyn Illumin8 Green LED Cartridge: 520-525 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-595 | Asynt ADS26-LED-CARTRIDGE-595 LightSyn Illumin8 Yellow LED Cartridge: 590-595 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-625 | Asynt ADS26-LED-CARTRIDGE-625 LightSyn Illumin8 Red LED Cartridge: 620-625 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
| ADS26-LED-CARTRIDGE-660 | Asynt ADS26-LED-CARTRIDGE-660 LightSyn Illumin8 Deep Red LED Cartridge: 650-660 nm, for interchangable use with the LightSyn Illumin8 housing. pk | 재고문의 | pk | 0원 | - | 0원 | |
LightSyn Illumin8 Parallel Photoreactor
=======================================
Read more

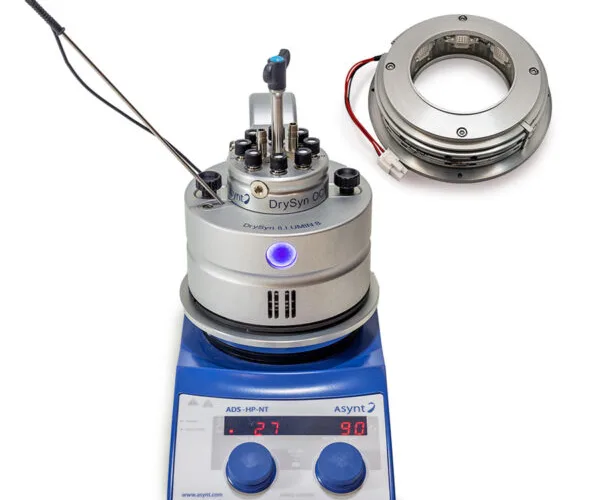

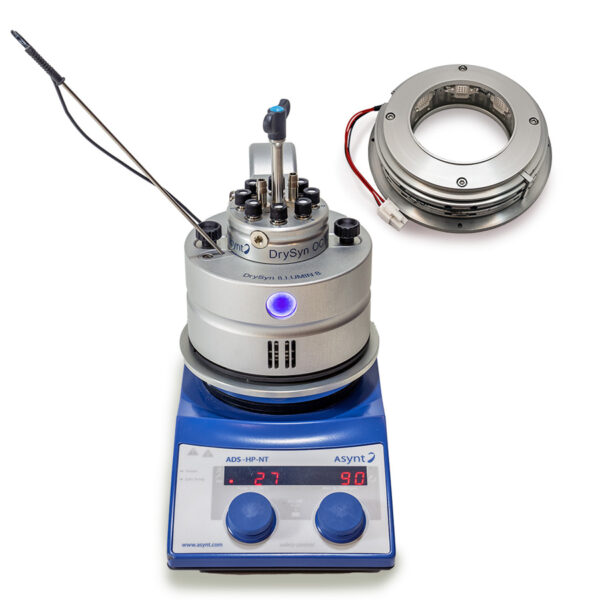

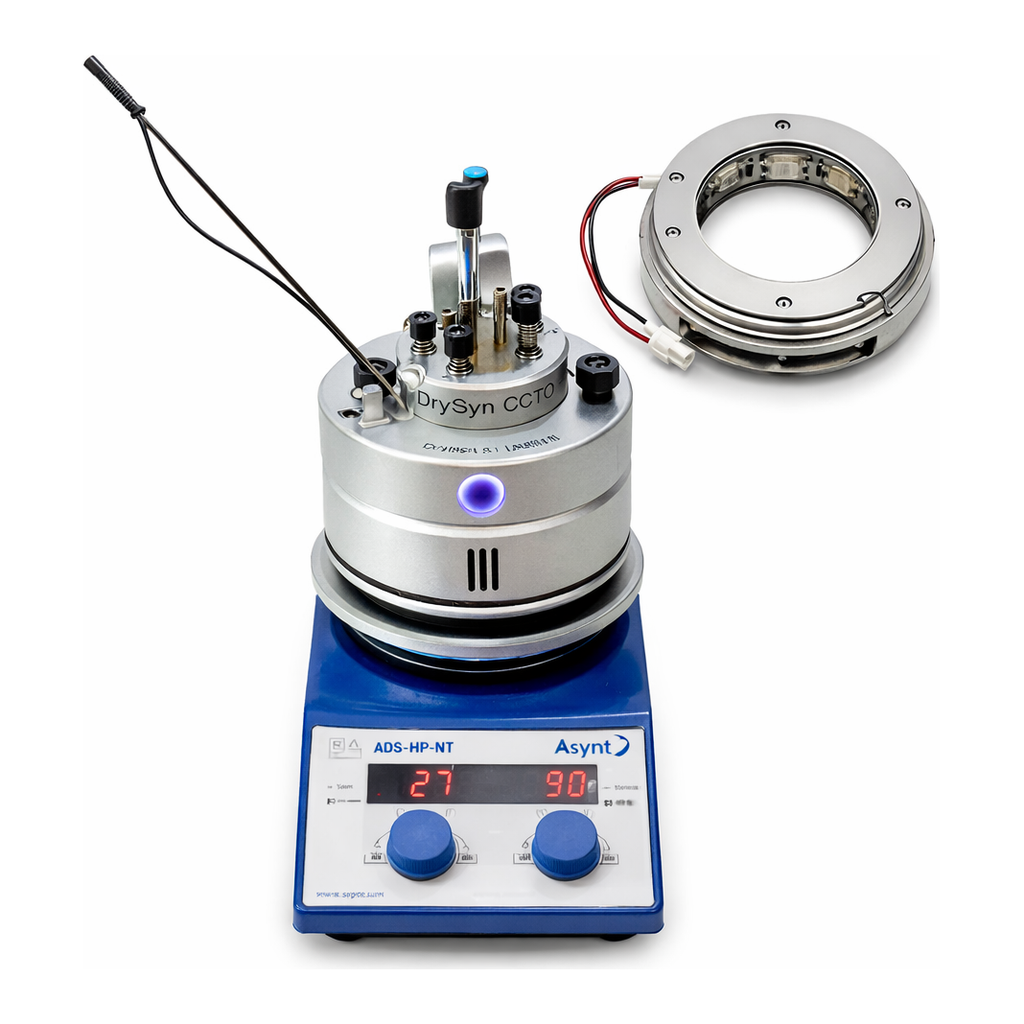

Asynt’s LightSyn Illumin8 parallel photoreactor is ideal for safe, benchtop parallel photochemistry. Working closely with some of our key customers we took their “go to” tool for parallel screening, our OCTO parallel reactor, and developed a high powered LED photo array to compliment it. Illumin8 is a no-compromise, safe, well-engineered module based on the DrySyn OCTO MINI 8-position reaction station with magnetic stirring and optional heating via any standard hotplate stirrer.
CLICK the VIDEO tab to find out all about the LightSyn Illumin8 with NEW cooling base.
- Our most popular models:
- 8 x 450 nm (Royal Blue) 10w LED COB chips
- 8 x 365 nm (UV) 10w LED COB chips
With the 10w LED COB chips positioned close to each corresponding OCTO Mini reaction tube, the Illumin8 efficiently delivers an even photon flux to each sample. Compact in design, the module includes safety interlocks to ensure that your photochemical experiments are light-tight and safe with active cooling to keep the reaction tubes from getting too hot from photo irradiation.
The LightSyn Illumin8 incorporates interchangeable light modules for flexible use in different Photochemical reactions, and a wide range of LEDs to choose from.
Other wavelengths available upon request.
Close
Downloads
Asynt – DrySyn Illumin8 Application Note
Asynt – LightSyn Illumin8 Photo Reactor V2.0
Photochemistry with Illumin8 – LCC white paper
Technical Specifications
STANDARD WAVELENGTH MODULES AVAILABLE
- Most popular LED modules; Royal Blue 450 nm LEDs OR 365 nm LEDs.
- Other wavelengths include: UVA LED 390-395 nm, Violet LED 405 nm, Blue LED 460-470 nm, Green LED 520-525 nm, Yellow LED 590-595 nm, Red LED 620-625 nm, Deep Red LED 650-660 nm.
- Other wavelengths available upon request
- Each reaction tube has a dedicated 10 w rated LED COB light source
- 8 position photoreactor, utilising DrySyn OCTO parallel reactor
- 8 x reaction volume from 1 mL to 8 mL
- Even photon flux to each reaction
- Sampling & additions possible to individual reaction tubes whilst in operation
- Heating up to 80 oC
- Low cost consumables
- Safe and simple to use
Videos
[Request info](https://www.asynt.com/information/?ppp=LightSyn Illumin8 Parallel Photoreactor)
