Asynt LightSyn Lighthouse

상품 한눈에 보기

광화학 반응용으로 설계된 안전한 반응기 시스템으로 시료에 균등한 광 노출을 제공합니다. 자석 교반 및 가열 기능을 지원하며 가스 반응, 샘플 추가/제거 등 다양한 실험 설정이 가능합니다. 내장 안전 스위치로 사용 중 노출 위험을 최소화합니다.

브랜드: Asynt
카테고리: Reaction Vessels, Photochemical
판매단위: pk

#Asynt #Reactor Systems #Photo reactor #광반응기

카탈로그

8개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Asynt ADS28-365 single position photoreactor, 365 nm, includes power supply, 2x glass reaction tubes with caps and stirrer bars. pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

견적요청

Asynt ADS28-3WA 3-Position Adapter Kit: includes 3-way adapter plate, hex key & splitter cable. pk판매 단위 pk · 대체품 문의

단종단종대체품 문의

견적요청

Asynt ADS28-460 single position photoreactor, 460 nm, includes power supply, 2x glass reaction tubes with caps and stirrer bars. pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

견적요청

Asynt ADS28-ACC LightSyn Accessory Pack: includes PTFE tubing (2m), fittings (x10), ferrules (x20), luer adapters (x5) & blanking plugs (x2). pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

견적요청

Asynt ADS28-LA-365 LightSyn Light Assembly: interchangeable lamp, 365 nm. pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

견적요청

Asynt ADS28-LA-460 LightSyn Light Assembly: interchangeable lamp, 460 nm. pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

견적요청

Asynt ADS28-PROBE LightSyn Lighthouse Replacement Quartz Probe pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

견적요청

Asynt ADS28-TUBES LightSyn Lighthouse Vials: with caps & stirrer bars, pack of 5. pk판매 단위 pk ·

재고 확인 필요재고 확인 필요

견적요청

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Asynt · Asynt LightSyn Lighthouse

Asynt LightSyn Lighthouse

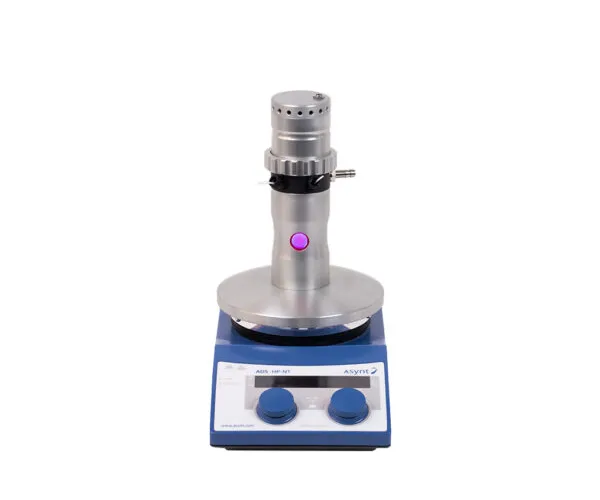

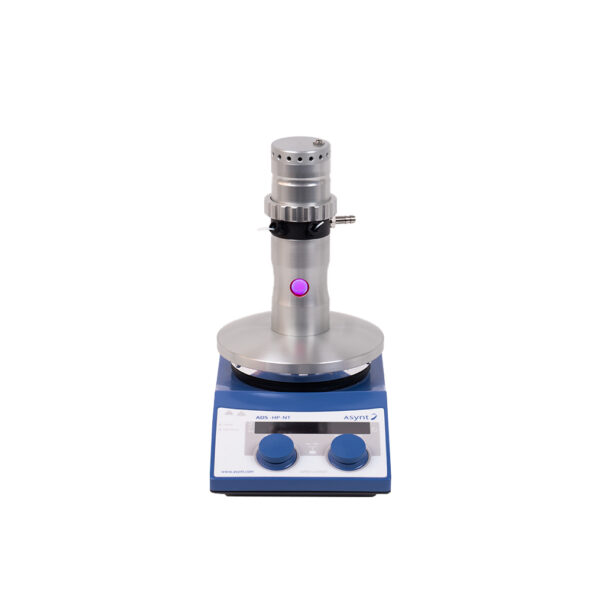

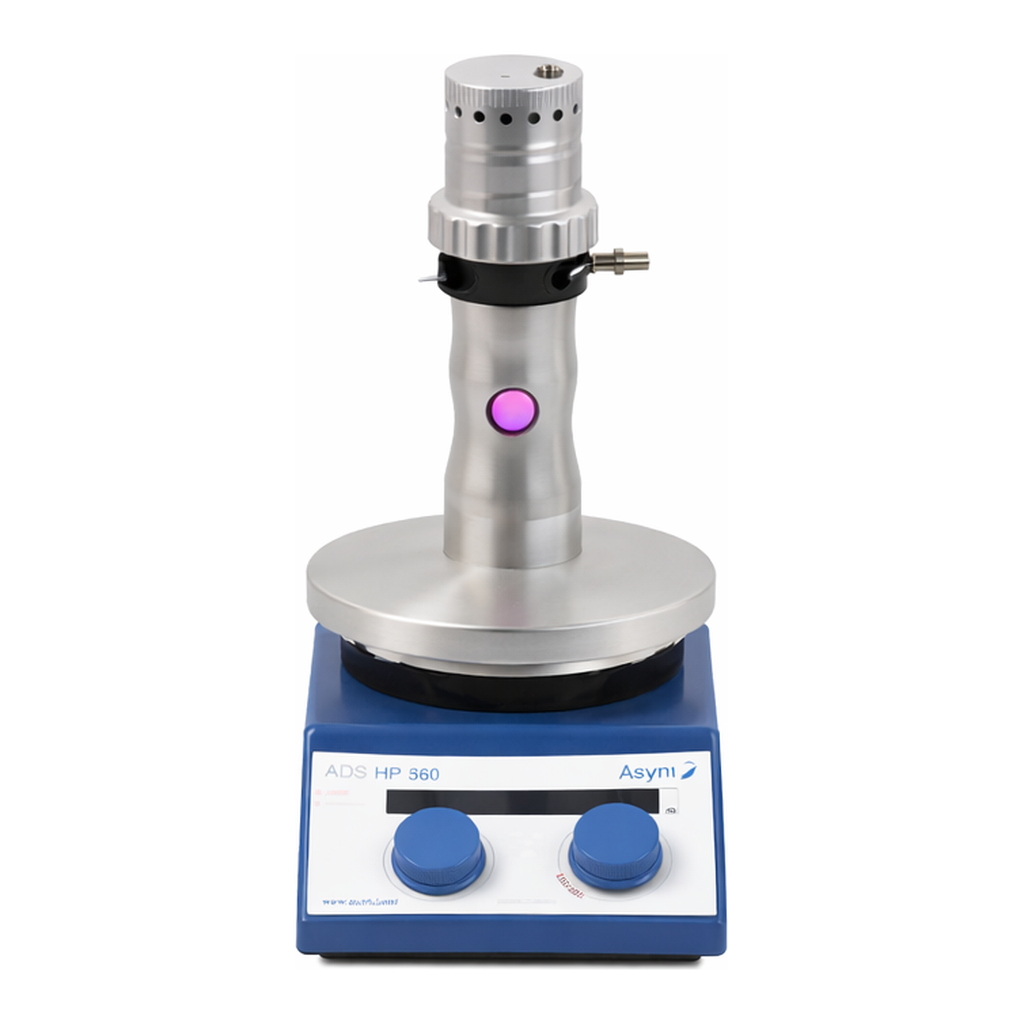

The Asynt LightSyn Lighthouse is a specialised photochemistry reaction vessel designed to safely provide equal light exposure to your sample batch while enabling simultaneous magnetic stirring and heating.

Who is the LightSyn Lighthouse designed for?

The LightSyn Lighthouse is ideal for photochemists seeking uniform photon flux throughout their reaction medium. By channelling light through quartz directly into the sample, the system increases the effective power the medium receives.
This easy-to-use device includes built-in safety features to minimise exposure risks, making it an excellent addition to any laboratory exploring photochemical reactions.

Key Features and Benefits

Equal light penetration for consistent photon flux
Safe, sealed operation with microswitch to prevent accidental exposure
Supports gas reactions, sampling, additions, and flow chemistry setups
Simple on/off operation for user convenience

Why do I need this in my lab?

This system prevents light loss into the sample, maintaining photon flux efficiency and energy delivery.
Home-made photochemistry systems can be complex and unsafe; the LightSyn Lighthouse solves these issues with integrated safety mechanisms and a robust design.

For more information, contact Asynt.

Downloads

LightSyn Lighthouse Overview (PDF)

Technical Specifications

Specification	Details
Temperature Range	Ambient to 80 °C
Temperature (with cooling ring)	-30 °C to 80 °C (dependent on circulator system)
Stirring	Magnetic stirring with agitation bar
Internal Capacity	18 mL plus stirrer bar (maximum volume)
Base Capacity	Single or up to 3 positions
Inlets	1 gas inlet (hosebarb for 8 mm ID tubing included) and 2 inlets/outlets (for sampling/additions)
LED Power	10 W
Material	Anodised aluminium
