Asynt DrySyn OCTO Reaction Station
| 상품 옵션 정보 | ||||||
|---|---|---|---|---|---|---|
| 카탈로그 번호 | 설명 | 상태 | 단위 | 가격 | 가격(VAT포함) | 수량 / 장바구니 |
| ADS19 | Asynt ADS19 DrySyn OCTO Reaction Station: individual unit only, without any accessories. pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-A | Asynt ADS19-A DrySyn OCTO Starter Kit: includes DrySyn OCTO Reaction Station, 10 x tubes, 10 x caps, 10 x septa & 10 x stirrer bars. pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-KIT | Asynt ADS19-KIT DrySyn OCTO Complete Kit: includes DrySyn OCTO Reaction Station, 24 x tubes, 100 x caps, 100 x septa & 10 x stirrer bars. pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-MC | Asynt ADS19-MC DrySyn OCTO Mini Conversion Kit: includes OCTO Mini central support, 24 x short glass tubes & hex key. pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-MINI | Asynt ADS19-MINI DrySyn OCTO Mini Reaction Station: individual unit only, without any accessories. pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-MINI-A | Asynt ADS19-MINI-A DrySyn OCTO Mini Starter Kit pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-MINI-PLUS | Asynt ADS19-MINI-PLUS DrySyn OCTO MINI PLUS Complete Kit pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-M-TUBES | Asynt ADS19-M-TUBES DrySyn OCTO Mini Reaction Tubes: pack of 24, for use with the DrySyn OCTO Mini Reaction Station. pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-PLUS | Asynt ADS19-PLUS DrySyn OCTO PLUS Complete Kit: includes 3 x DrySyn OCTO Reaction Stations pk | 재고문의 | pk | 0원 | 0원 | |
| ADS19-TUBES | Asynt ADS19-TUBES DrySyn OCTO Reaction Tubes: pack of 24, for use with the DrySyn OCTO Reaction Station. pk | 재고문의 | pk | 0원 | 0원 | |

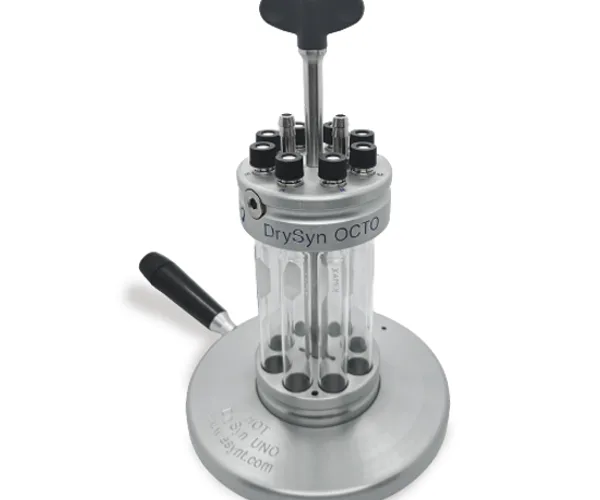

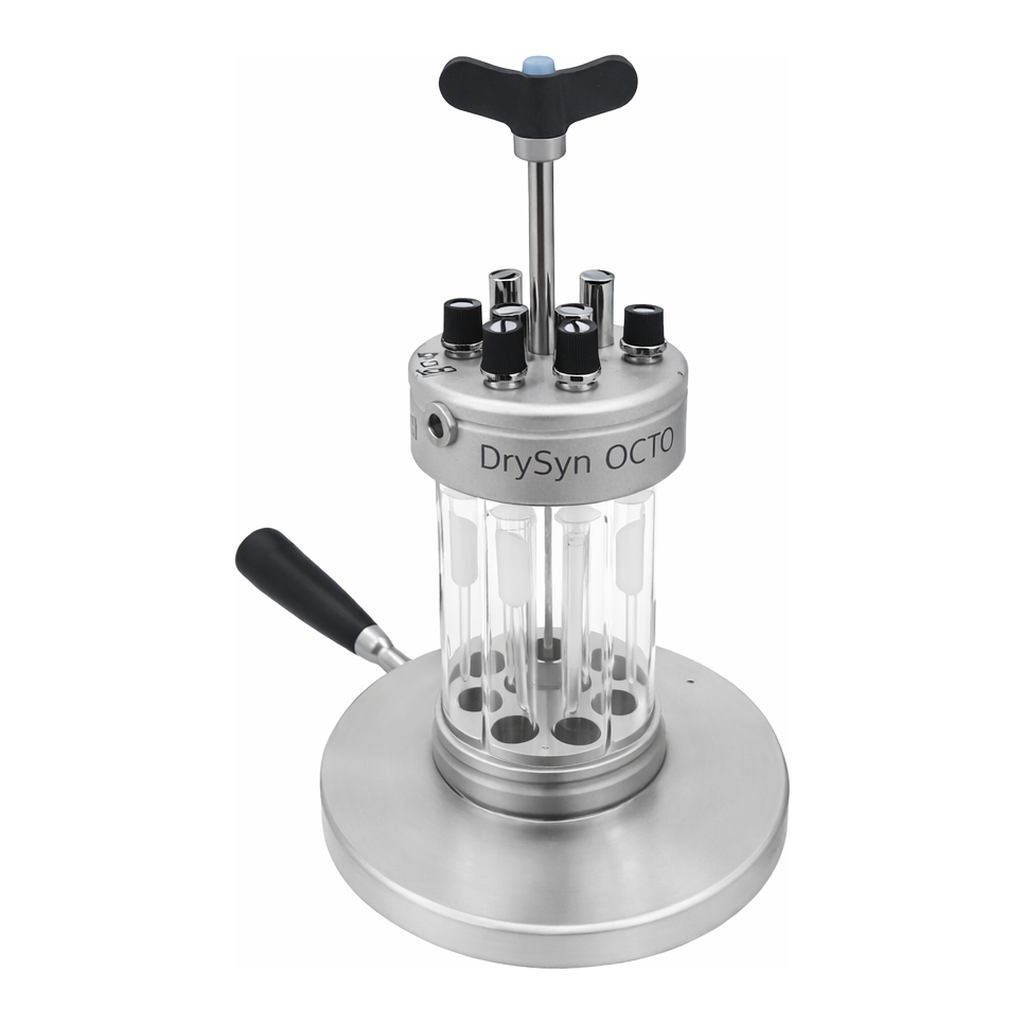

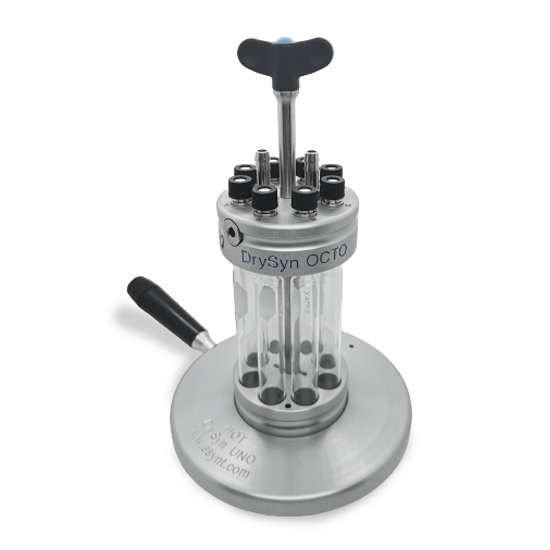

DrySyn OCTO Reaction Station
============================
Read more
Part of the DrySyn Reactors range from the Asynt chemists, the DrySyn OCTO 8 Position Reaction Station allows powerful magnetic stirring and heating, inert atmosphere and reflux, all with a tiny footprint.
This innovative design has been found incredibly useful for working volumes of up to 10 mL and has been specified to allow the use of low-cost reaction tubes to save as much as possible on consumables for your lab.
Whilst brilliant for 8 parallel reactions, you can use up to 3 DrySyn OCTO Reaction Stations on just one standard magnetic hotplate stirrer therefore allowing up to 24 parallel reactions.
The MKII DrySyn OCTO has now been launched with some aesthetically pleasing updates at no additional cost to our customers! Take a look at our “videos” tab here for more information.
Close
Downloads
Asynt – DrySyn OCTO Parallel Reaction Station System v1.7
Sustainable High Efficiency Hydrogenation Biocatalysis – using the DrySyn OCTO
DrySyn Heating & Cooling Blocks Brochure
Technical Specifications
- 8 parallel positions
- Works with any hotplate stirrer
- Powerful magnetic stirring
- Compact size
- Gas tight closure allowing inert atmospheres to be used
- The large glass area of the tubes allows for air condensing and gentle reflux conditions to be used
- Ideal working volume 5-6 mL per tube, maximum 10 mL
- Heated area within the DrySyn insert: 4ml volume
- Allows use of low cost consumable reaction tubes
- Additions or sampling can be made whilst under inert conditions using a syringe.
- The unit uses low cost easily replaceable consumable septums
- Up to 3 DrySyn Octo units can be used together on one magnetic hotplate stirrer allowing 24 parallel reactions to be performed in a very small space.
Kits/Components available:
- ADS19:
- DrySyn OCTO Reaction Station only (single unit, caps & septa not included)
- ADS19-A DrySyn OCTO Starter Kit:
- DrySyn OCTO Reaction Station
- 10 x Kimax tubes
- 10 x caps & septums
- 10 x stirrer bars.
- ADS19-KIT DrySyn OCTO Kit:
- 1 DrySyn OCTO Reaction Station (single unit)
- 24 x Kimax tubes
- 100 x caps and septums
- 10 x stirring bars
- ADS19-TUBES (Pack of 24 tubes only)
- ADS19-CAP (Pack of 100 caps only)
- ADS19-SEPTUM (Pack of 100 PTFE faced septum only)
- ADS19-STIR (Pack of 10 magnetic stirrer bars)
- ADS19-Base (DrySyn UNO Single Position base)
Videos
Evaluations
- HydRegen: Sustainable High Efficiency Hydrogenation Biocatalysis
- DrySyn OCTO Evaluation: Dr Peter Blencowe, CRUK
