TagPlus-T Temperature Data Loggers

Multi-use, configurable parameters

Temporary reports available

Up to 9 event Marks, Up to 6 alarm points

Battery life up to 180 days, replaceable batteries

±0.5°C high accuracy

Compatible with Windows and Mac OS alike

35,000 readings maximum memory capacity

FDA CFR21 certified

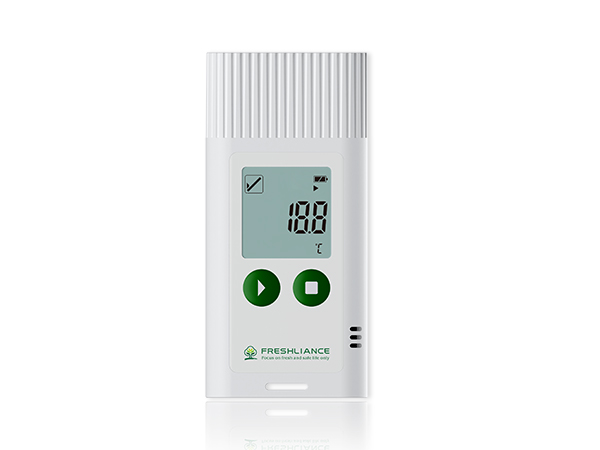

TagPlus-T is a multi-use temperature data logger with an LCD screen for easy viewing of temperature data. Parameters can be configured before use. Complete trip history will be recorded and downloaded as encrypted reports with summary data, graphs, and tables. The report can be directly read by PC at the destination. And the temporary mode allows the device to continue work after users have gotten and read the temporary report. This USB Temperature Sensor is an ideal choice for in-transit records of the temperature changes of sensitive goods.

Features

---

Smart application

To avoid reports missing, the data logger can only be reused after the report is downloaded. When the memory is full, the data logger will automatically stop recording.

Timely reminder

The Data Logger Temperature Sensor has battery exhaustion reminder and reconfiguration reminder.

Temporary report available

The temporary mode allows the device to continue working after users have generated and read the temporary report.

Intuitive LCD screen

LCD screen displays real-time temperature reading, Max, Min, Average temperature value, and high/low alarm,etc.

CE, RoHS, EN12830

The data logger complies to EN12830 and is suitable for temperature monitoring in transportation, storage, and distribution of food.

Battery replaceable

The data logger can work for up to 180 days and the battery is replaceable after it runs out of power.

Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.

Large memory capacity

Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.

Specifications

Model	TagPlus-T	Type of Use	Reusable
Temperature Range	-30℃+70℃ -40℃+60℃ (optional)	Temperature Accuracy	±0.5 F.S.
Resolution	0.1℃	Memory Capacity	PDF: 35,000 readings; PDF & CSV: Max. 20,000 readings each
Report Format	PDF/CSV/PDF&CSV	Battery Life	Max.180 days
Report Output	Automatic, no software needed	Connection	USB, NFC (optional)
Compatible OS	Windows, Mac	Logging Interval	1 minute-24 hours
Start Delay	0 minute-24 hours	Protection Grade	IP65
Battery	3.0V CR2032 lithium battery	Parameters Configurable	Yes
Dimensions	82mm*39mm*13.5mm	Weight	29.3g

Applications

TagPlus-T Multi-use Temperature Data Loggers USB PDF Multipurpose is important in cold chain transportation for perishable products, especially for food. Non-breaking cold chains could guarantee food products retain their high quality and optimum shelf life.

For meat and fish products, also called frozen food, the Data Logger Temperature Sensor is especially important that the growth of microbes is kept as low as possible by maintaining temperature threshold values.

For fruit and vegetables, the most important thing is to prevent the produce from ripening too early. Fruits, vegetables and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest handling to maximize freshness, quality and shelf life from the field to the table.

The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage to ensure food safety, quality and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat and poultry and floral product.

TagPlus-T Multi-use USB Sensor Temperature Data Logger Multipurpose is a necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.

Freshliance provides professional temperature/humidity monitoring and recording solutions to make sure every change in the whole cold chain solution will be traced and recorded irreversibly. In addition to the advanced USB type data loggers, Freshliance also provides IOT-based wireless monitoring solutions, including Bluetooth, NFC, LTE/NB, WiFi etc.

Freshliance Tools is a desktop software for users to use Freshliance USB data loggers. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.

Freshliance Tools-FDA is a desktop software specially designed for TagPlus series with U.S. FDA 21 CFR Part 11 compliance. In addition to Freshliance Tools function, this software provides an audit-proof central data management platform. It is designed with security measures such as data encryption and access control to ensure data confidentiality and integrity. It also records all key operations and supports electronic signature to ensure data authenticity and traceability. It helps users avoid common FDA compliance missteps help users easily maintain FDA compliance.
