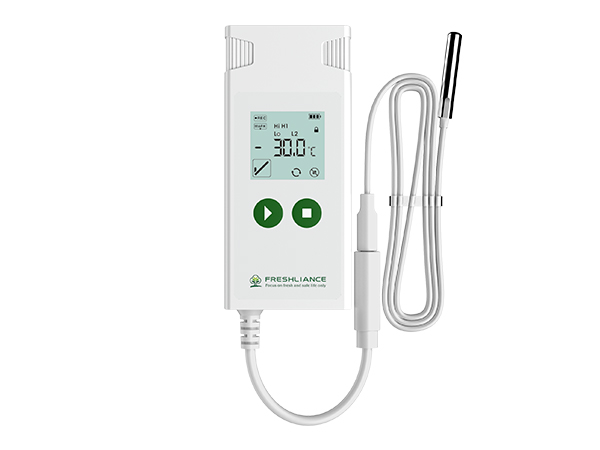

Atlas Log-30 Temperature Data Logger

Suitable for food, vaccines

Single use/Multi use, parameters configurable

Flexible ultra thin cable

Up to 6 alarm points

Mark and pause function

Temporary reports

Battery replaceable

Buffered temperature probe

Atlas Log-30 is a Single use/Multi-use temperature data logger is an USB thermograph with an external probe for the temperature range of -30 to 70°C. It comes with up to 35,000 readings with a real-time temperature display on the screen. Parameters can be freely configured on the configuration software provided by our company. The built-in PDF/CSV file generation function enables this logger to directly generate irreversible PDF/CSV data reports on a computer, with no software required. This temperature data logger can be used for temperature monitoring in wide applications such as shipping containers, sea or air freight, distribution, storage and freezing of pharmaceuticals, frozen foods, etc.

Features

Online software configuration

Parameters can be freely configured on the configuration software.

Alarm points and Mark function

Up to 6 alarm points can be set. And in case of any key events, a mark can be made. Up to 9 marks can be made.

Intuitive LCD display

LCD screen displays running status, current temperature, alarm status, battery level, alarm points, Max, Min, and Average temperature value, etc.

Temporary report available

The temporary mode allows this temperature data logger to continue working after users export and read the temporary report.

Automatic PDF/CSV data report

With the integrated USB design, the temperature data logger can be directly connected to one computer to automatically generate PDF/CSV/PDF&CSV reports with graph and table, no cable or reader required.

LCD alarm indication and optional buzzer alarm available

Once the temperature is out of the preset alarm range, the alarm symbol(x) will be displayed on the LCD screen, and the buzzer, if set, will emit an alarm sound of 60 decibels at 3m.

Temperature units switchable

Celsius (℃) and Fahrenheit (℉) can be freely switched.

Multiple probe types optional

The external pluggable cable is normally 2m long and other cable lengths are customizable; cable insulation materials are also customizable, including PVC, Teflon, Silicone and flexible ultra thin cable, etc.

Flexible ultra thin cable is suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.

Propylene glycol encased temperature probe for vaccine monitoring

It is designed to buffer readings against temporary air temperature shifts caused by opening doors or loading coolers and accurately simulate the thermal changes experienced by products stored in the monitored environment.

It is ideal for vaccines, pharmacies and walk-in coolers, etc.

Specifications

Model	Atlas Log-30	Type	Single use/Multi use
Protection Grade	IP65	Memory Capacity	PDF: Max. 35,000 readings; PDF&CSV: Max. 20,000 readings each
Temperature Range	-30℃~+70℃	Temperature Accuracy	±0.5℃ F.S.
Alarm Type	LCD screen display, optional buzzer (about 60dB at 3m)	Battery	CR2450
Resolution	0.1℃	Logging Interval	1 minute-24 hours
Start Delay	0 minute-24 hours	Report Format	Automatic PDF/CSV report
Connection	USB, NFC (optional)	Compatible OS	Windows, Mac
Certifications	CE, RoHS, EN12830	Dimensions	96mm*44mm*15mm

Applications

Atlas Log-30 Single use/Multi use Temperature Data Logger with External Probe can be used for in-transit temperature records of biopharmaceuticals, life sciences, biological samples, blood cold chain, diagnostic reagents, including biological reagents, molecular reagents, and cell biology agents during the low-temperature environment.

Our Atlas Log Single use/Multi use Temperature Data Logger has an external probe that can record and monitor the ultra-low temperature in cold storage, cold chain transportation, and dry ice storage environment.

Atlas Log temperature data logger with an external probe is an ideal temperature monitoring solution for low-temperature shipments that requires frequent temperature samplings. It can be used in a wide range of applications such as monitoring dry-ice shipments, sea or air freight, distribution, storage and freezing, pharmaceuticals, frozen foods, and shipping containers.

Biologics and vaccines have a short shelf life, so the temperature change during transportation should be controlled in time. Our Atlas Log Temperature Sensor with real-time temperature display is ideal for the pharmaceutical industry and biologics.

Freshliance Tools

Freshliance Tools is a desktop software for users to use Freshliance USB data loggers. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.

The software is designed for Fresh Tag 10T/TH, Thermis Log 10T/TH, Tagplus-T/TH, Atlas Log-30/60/90/200/IUT, Rugged data logger, Keeper 1/IUT, COEUS-UEX.
