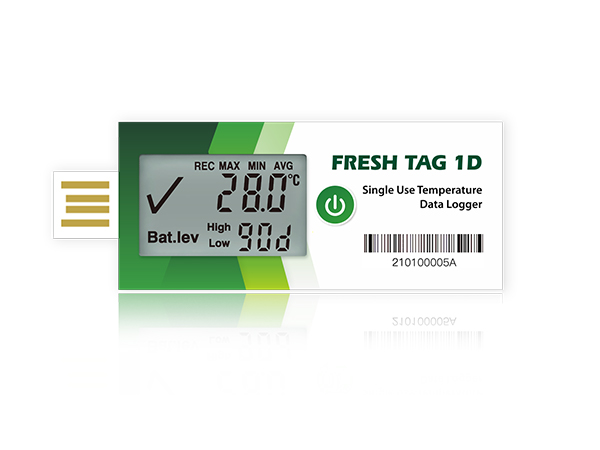

Fresh Tag 1D Temperature Data Logger

Shelf life of 2 years

±0.5℃ over the measurement range of -30℃~+70℃

Intuitive LCD display

65,000 readings Max. capacity

Working days up to 240 days

Parameters customizable

Automatic PDF/CSV reports

DGM report and calibration certificate optional

Compatible with Windows and Mac OS alike

Display remaining power, professionally certified

Fresh Tag 1D is a disposable PDF temperature data logger with LCD display function that makes it easy to view real-time temperature data. Its built-in file generation function allows the logger to be plugged into a PC to generate unmodifiable PDF/CSV data reports without additional software.

This disposable PDF temperature data logger has the advantages of low cost, easy operation and small space occupation. Fresh Tag 1D Single Use PDF temperature data logger is mainly used to record the temperature of fruits and vegetables, food, drugs, chemical products and other products in their cold chain storage and logistics.

Features

Shelf life of 2 years

This USB temperature logger has a shelf life up to 2 years before power on.

High accuracy and large memory

This logger features a high accuracy of ±0.5℃within the temperature range from -30℃ to +70℃. It can work for up to 240 days and record up to 65,000 readings.

Factory pre-programmed and calibrated

This single-use USB temperature logger will be calibrated and all parameters will be preset according the customers’ requirements.

Small size but large display

The USB temperature sensor has a compact profile and lightweight design, but the LCD screen accounts for a large proportion. It can show the temperature data more clearly and intuitively.

Easy to place and operate

The small and light disposable USB thermograph can be placed anywhere. It requires no software or drivers to set up or download data.

Automatic PDF/CSV data report

The built-in USB connector can be plugged into any PC USB port, and PDF/CSV/PDF+CSV format reports with graphs and tables are automatically generated, with no cable or reader required.

Pass professional certification

The USB temperature sensor has passed CE certification and meets the basic requirements stipulated in European laws on health, safety, environmental protection, and consumer protection. Besides, DGM report and calibration certificate are optional.

Specifications

Model	Fresh Tag 1D	Type of Use	Single use
Display	LCD screen	Memory Capacity	Max. 65000 readings
Shelf Life	2 years	Battery Life	Max. 240 days
Temperature Range	-30℃～+70℃	Temperature Accuracy	±0.5℃ F.S.
Resolution	0.1℃	Sensor	Internal NTC
Logging Interval	User customizable	Start Delay	User customizable
Connection	USB, NFC (optional)	Start Mode	Manual Start
Button	Start/Stop	Battery	3.0V CR2032 lithium battery
Compatible OS	Windows, Mac	Report Format	PDF/CSV/PDF&CSV(optional)
Certificates	CE, RoHS, EN12830	Dimensions	86mm *50mm *4mm

Applications

Fresh Tag 1D USB temperature data logger is important to cold chain transportation for perishable products, especially food products. The non-breaking cold chain could guarantee food products maintain high quality and optimum shelf life.

For the meat and fish products, also called frozen food, it is very important to keep the growth of microbes as low as possible by maintaining temperature threshold values.

For fruits and vegetables, the most important thing is to prevent them from ripening too early. Fruits, vegetables, and flowers are highly perishable commodities that require proper environmental monitoring in post-harvest processing to maximize freshness, quality, and shelf life from the field to the table.

The environmental condition of temperature-sensitive products must be carefully monitored and documented during handling and storage, to ensure food safety, quality, and longer shelf life, especially for highly perishable products such as produce, dairy, seafood, meat, poultry, and floral product.

The USB Temperature Data Logger is the necessary evidence for the product owner and the cold chain carrier if the cold chain performance objection is required.

Freshliance provides all kinds of temperature data logging or temperature and humidity data logging solutions to make sure every change in the whole cold chain solution will be traced and recorded. Irreversible PDF Logging, CSV temperature history, and online IOT logging in any format are available.
