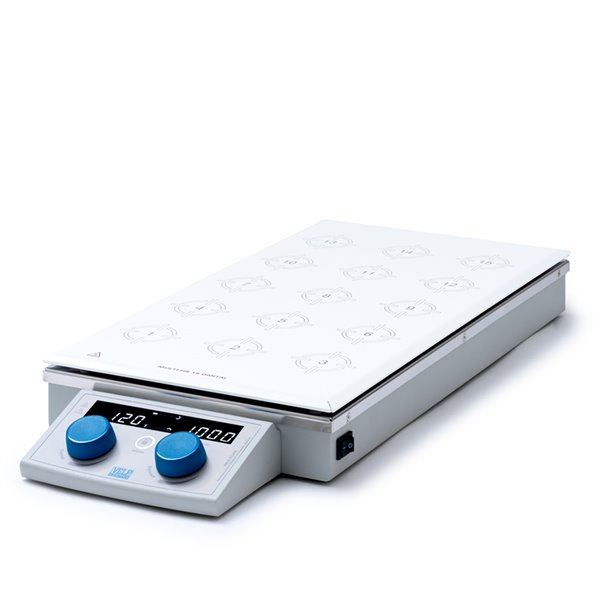

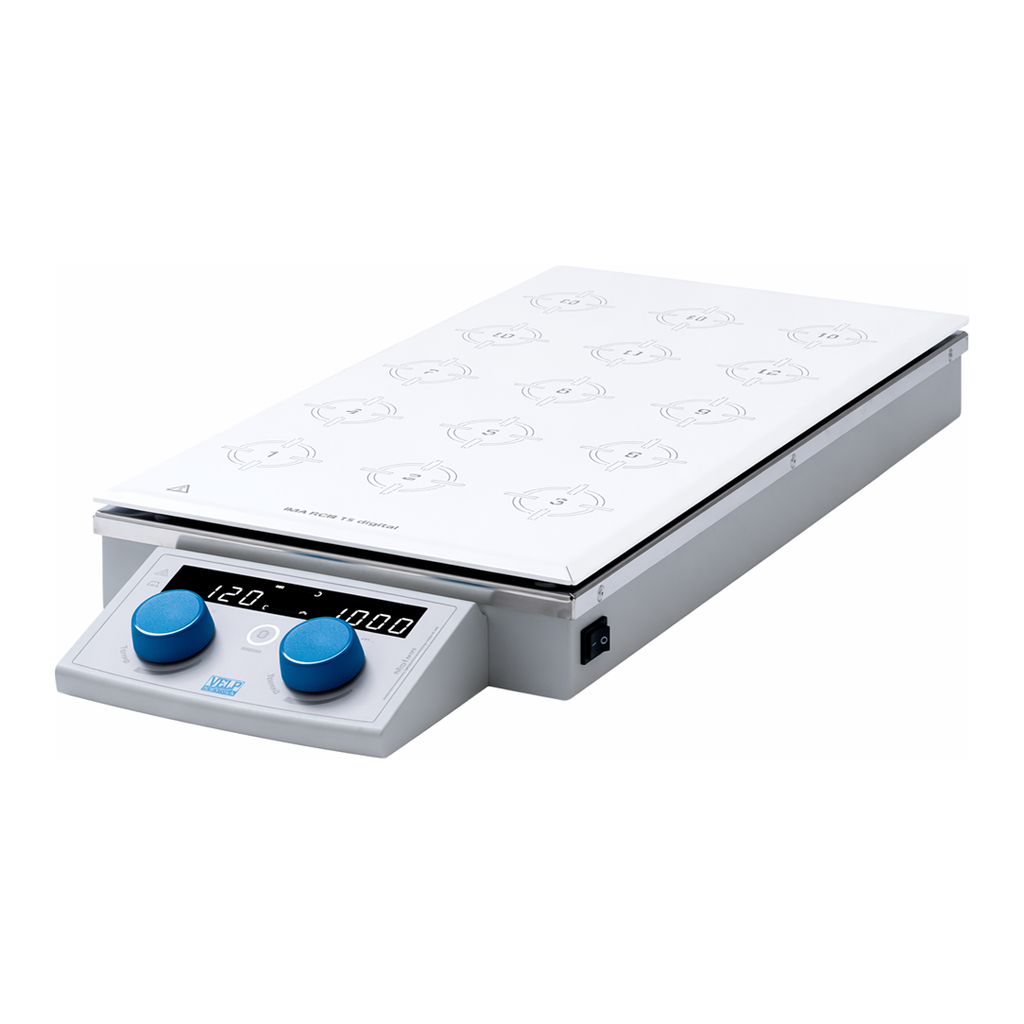

VELP MULTI-HS 6/15 Digital Multi-position Hot Plate Stirrer

Superior Safety and Resistance

The MULTI-HS Hot Plate Stirrers have a unique system of warnings: when the plate temperature reaches 50°C the display will show a residual hot plate message preventing potential burning.

The Safety Lock feature avoids possible alteration of the working conditions or unintentional modification of the settings in order to meet all the Labs safety standards.

The VELP CerAlTop™top plate is made of aluminum alloy that guarantees temperature homogeneity with optimum heat distribution and a high specific power thanks to the circular configuration. A thin layer of ceramic protecting the plate from scratches and chemicals and ensure high resistance to thermal stress and thermal shocks.

Smart User Interface for an easy use

The LED display is easy to read and thanks to the intuitive icons the operator has always the clear readout of the working conditions:

• Heat activation
• Set Point temperature
• Timer activation
• Auto-reverse option
• Lock button

Two extremely precise turning knobs control the temperature and speed setting and for starting the heating is now necessary to tap the knob for complete safety.

By tapping at the same time both knobs is possible to access to the advanced menu for the most suitable configuration of all operating modes

Power and Accuracy

The extremely powerful Brushless motors are able to stir from 100 up to 1000 rpm offering a virtually unlimited duration. Size and shape of the magnetic stir bar determines the stirring efficiency at any given speed and it is always constant as viscosity changes with the torque compensation SpeedServo™.

The central button permits to set the timer in order to save time to the operator and enabling unsupervised work.

The Timer is settable from 1 min up to 99 hours and in the advanced menu is possible to configure it as follow:
Snap: timer countdown starts as soon as one main function (Temperature/Speed) is on
SetP: timer countdown starts when temperature set point is reached

The Auto-reverse option enhances the kinetics by changing the direction of the stirring direction. Is also possible to set the change in direction at the preferred interval of time.

TECHNICAL DATA

USER INTERFACE	Digital
MOTOR	MULTI-HS 6 Digital 6 Brushless motors MULTI-HS 15 Digital 15 Brushless motors
PLATE MATERIAL	CerAlTopTM (ceramic coated aluminum alloy)
PLATE DIMENSION	432 x 223 mm
STIRRING VOLUME (H2O)	MULTI-HS 6 Digital 6 beakers of 400 ml MULTI-HS 15 Digital 15 beakers of 250 ml
STIRRING POSITION DISTANCE	MULTI-HS 6 Digital 100 mm MULTI-HS 15 Digital 74 mm
STIRRING SPEED	100 - 1000 rpm
SPEED SETTING RESOLUTION	5 rpm
TEMPERATURE RANGE	0 - 120°C
TEMPERATURE SETTING RESOLUTION	1°C
HOT TOP WARNING	On display (>50°C)
TIMER	From 1 min to 99 h : 59 min
TIMER SETTING STEPS	1 min
AUTOREVERSE	From 5 s to 99 min : 59 s
AUTOREVERSE SETTING STEPS	1 s
DIMENSIONS (WXHXD)	240x65x550 mm (9.4x2.6x21.7 in)
WEIGHT	MULTI-HS 6 Digital 4.7 kg (10.4 lb) MULTI-HS 15 Digital 4.8 kg (10.5 lb)
POWER INPUT	MULTI-HS 6 Digital 620W - 2,7A MULTI-HS 15 Digital 620W - 5,4A
WORKING IN CONTINUOUS	Admitted
HEATING OUTPUT	600 W

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

Magnetic Stirrer MULTI-HS 6/15 Digital - Leaflet
Laboratory Equipment - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Instruction manuals

Download the instruction manual that contains all the main technical specifications of the instrument and the necessary information for its correct use.

MULTI-HS Digital 6/15 instruction manual

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.
