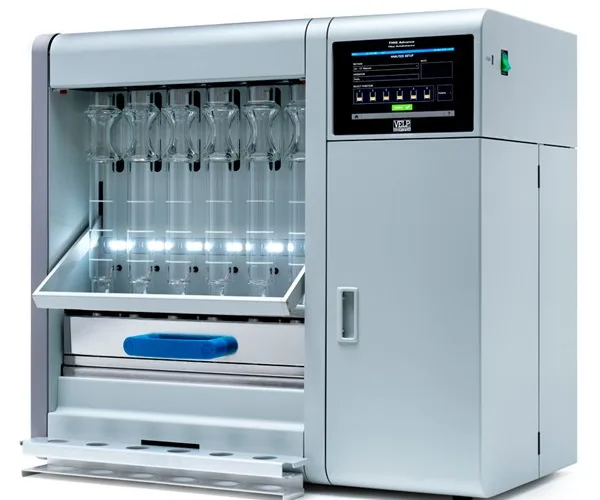

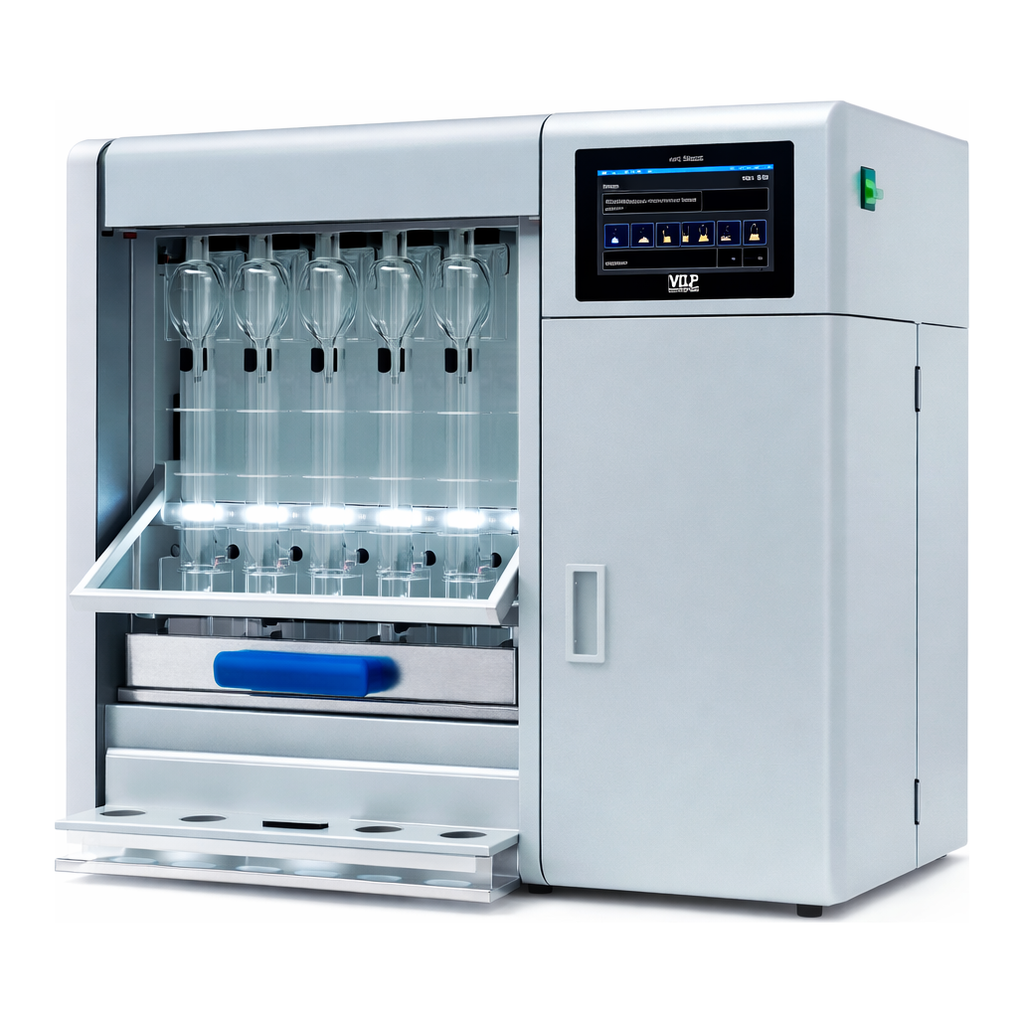

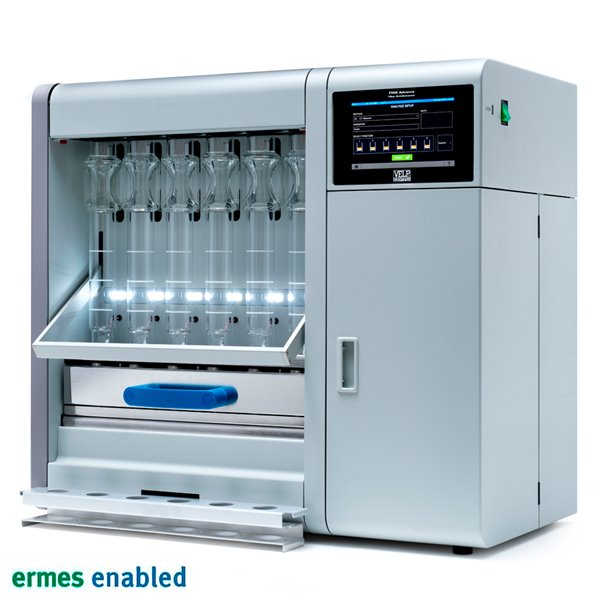

F30500500VELP F30500500 FIWE Advance, Automatic Fiber Analyzer, 6구 자동 조섬유 분석기 set재고문의set0-0

Fully Automatic Crude and Detergent Fiber


Accurate and reproducible results are what a scientist of the animal feed industry needs for fiber determinations to meet the requirements of product labeling and quality control.

The FIWE Advance automates digestion, washing and filtration steps guaranteeing consistency for Crude Fiber with Weende Method and Detergent Fiber for fiber fraction with Van Soest Method NDF, ADF and ADL.

Compliance and consistency


FIWE Advance produces accurate results that always comply with official ISO and AOAC methods for both Crude Fiber and Detergent Fiber.

In addition, the FIWE Advance method using crucibles avoids the loss of fibre due to the transfer of the sample which remains in the crucible for the duration of the analytical procedure.

The sample in fact remains inside the crucibles during the extraction, digestion, washing and filtration phases, and also during weighing and finally for drying and ashing eliminating the risks of error.

Load the samples and go


FIWE Advance saves you valuable time by reducing costs and improving your lab's productivity.

FIWE Advance requires only 2 minutes of operator time compared to more than 50 minutes/operator of a semi-automatic solution.

You will no longer need to preheat and pour chemicals into the columns, manage the temperature for proper boiling, or make sure the filtration is successful.

With FIWE Advance all these operations are automatic and thanks to the cloud connection you are always informed with immediate notifications.

Smart and easy-to-use


With FIWE Advance, fiber analysis becomes easy and convenient for your laboratory. The 7-inch touchscreen display and the User Interface developed by VELP make operations simple and smart.

The FIWE Advance comes with pre-installed methods developed by VELP in accordance with official methods. You can create custom methods and select your favorites for maximum convenience and to speed-up your daily work.

FIWE Advance has 3 USB ports and allows you to connect VELP barcode readers to facilitate data insertion and to avoid transcription errors.

Connecting your balance will make data transfer and calculation of results quick and easy.

Maximum safety through full automation


Fiber determination with the FIWE Advance is absolutely safe. All the reagents required are contained in dedicated glass tanks and bottles located inside the instrument.

The FIWE Advance pre-heats, dispenses, and collects hot chemicals automatically so the risk of contact with the operator is eliminated.

Dedicated LED shows the active columns and facilitates residues detection.

Raise the bar of automation with the cloud!


The FIWE Advance is designed to work automatically and unattended and with the connectivity option to VELP Ermes cloud platform, you will be able to monitor and control your analyses from a virtual cockpit wherever you are, anytime you need to avoiding routine instrument check and download of data.

VELP Ermes is available for PC, smartphone and tablet.

  • Real-time monitoring and notification
  • Maximum security and data protection
  • Enhanced Service Support (VELP and partners)
  • Immediate Software Updates
  • Create and share reports, track trend and get useful insights

TEMS™ Technology


TECHNICAL DATA

POSITIONS / NUMBER OF SAMPLES Up to 6 samples
CAPACITY PER DAY Up to 36 (Crude Fiber / Wendee Method)
Up to 60 (Other methods)
SAMPLES Individually processed
SAMPLE QUANTITY From 0,5 to 3 g
DISPLAY 7” color touch screen
MEASUREMENT RANGE 0.1-100%
REPEATABILITY ± 1% relative at 5%-30% fiber amount
LIGHTING LED lights show active positions
LEVEL OF AUTOMATION Fully automated
HEATING AND DISPENSING OF REAGENTS Automatic
REAGENT PRE-HEATING TIME 5 - 7 min
TIME FROM PREHEATED TEMPERATURE TO BOILING 5 - 10 min
CONNECTIVITY Cloud via LAN or USB Wi-Fi adapter (accessory)
INTERFACES 3 x USB (balance, barcode scanner, mouse, USB stick, USB Wi-Fi Adapter), Ethernet (Pc)
RESULT CALCULATION Automatic, On-board archive for data storage
PROTOCOL LIBRARY 5 standard methods + 30 customizable methods
WATER CONSUMPTION from 1.0 l/min
DIMENSION (WXDXH) 735 x 420 x 666 mm (28,9 x 16,5 x 26,2 in)
WEIGHT 57 Kg (125 lb)
POWER SUPPLY 230 – 50/60 V-Hz
POWER CONSUMPTION 2100 W

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

FIWE Advance Fiber AutoExtractor - Brochure[EN]
FIWE Advance - How to connect to VELP Ermes
Analytical Instruments - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Comparison tables

Select the category of products you are interested in and this tool will give you an easy overview of what is available at VELP in order to find the product that is perfect for you. These comparison tables provide a brief description with side by side features from basic equipment to the most advanced analytical solutions.

VELP Glass Crucible Comparison Table

Application notes

Choose among a comprehensive library of Application Notes / White Papers and learn more on how to optimize the performance of your VELP instruments. These documents offer typical analyses of well-known samples, together with official references and suggestions, to make you an expert!

E-book - Barley and Feed: N/Protein Determination and Fiber Determination
ADF Determination in Feed - FIWE Advance
Crude Fiber Determination in Feed
Crude Fiber Determination in Feed (Weende Method) - FIWE Advance
NDF Determination in Feed - FIWE Advance

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CB Certificate VELP Scientifica FIWE Advance
CE Declaration of Conformity VELP Scientifica Automatic Fiber Extractor
cNEMKOus VELP Scientifica FIWE Advance
