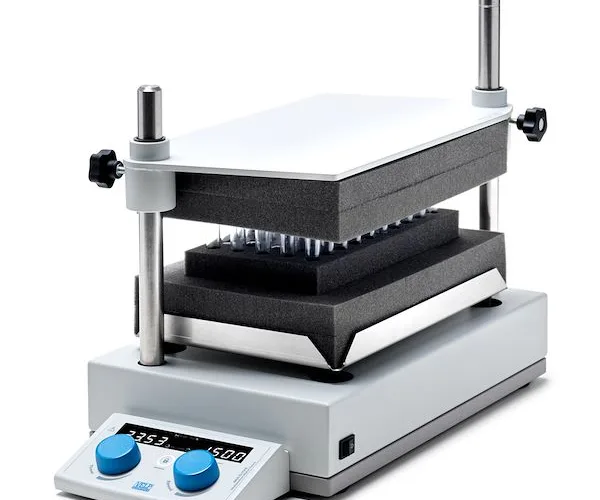

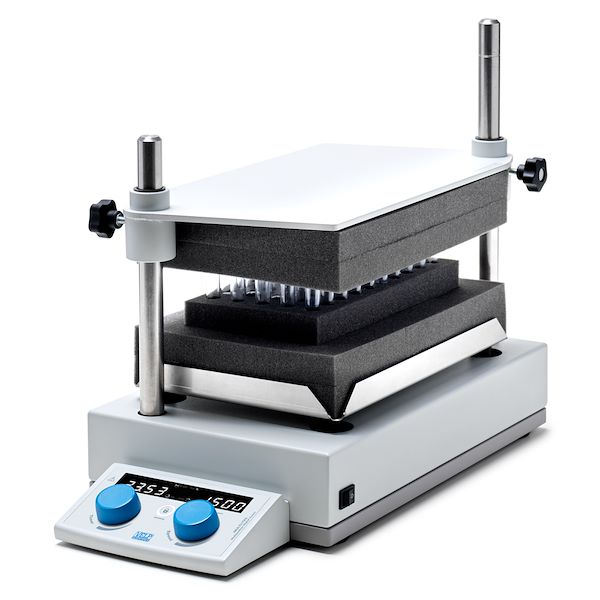

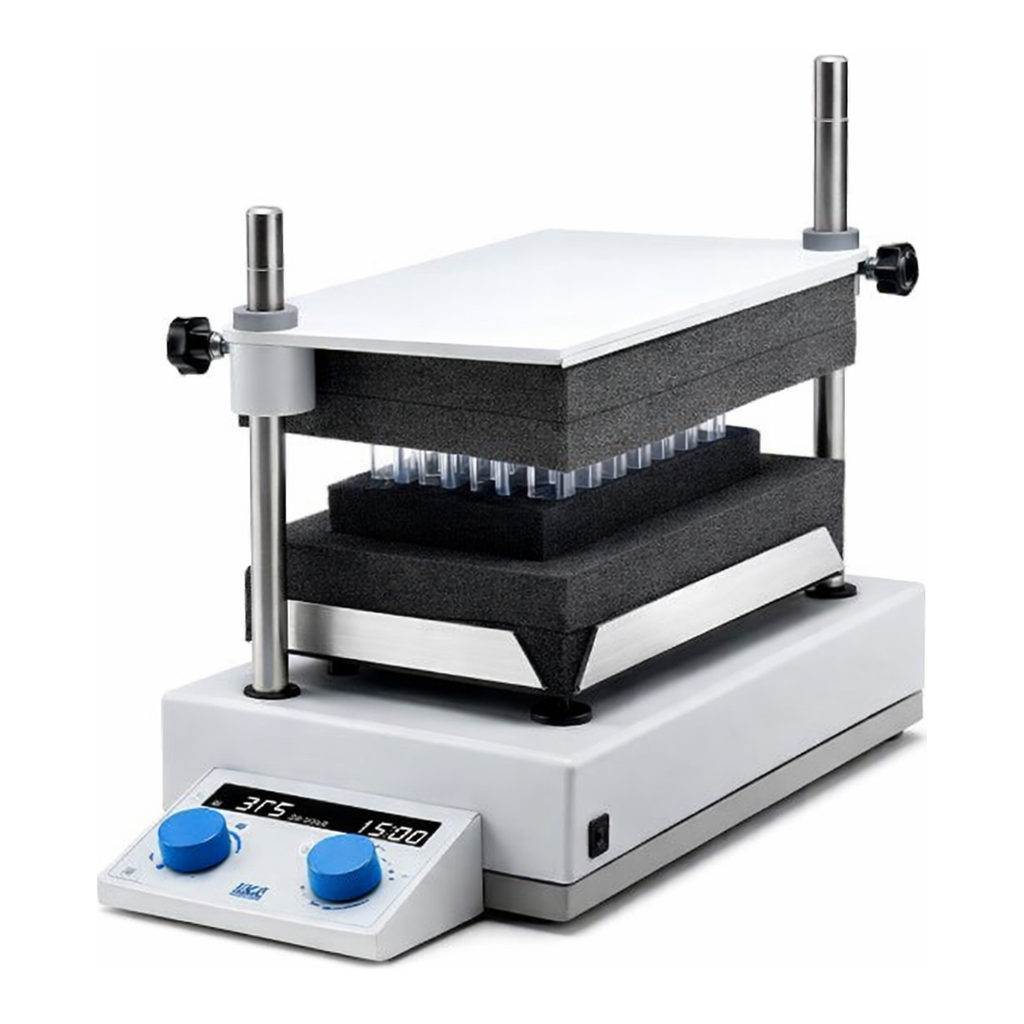

VELP MULTI-TX5 Digital Multi-tube Vortex

Outstanding performance and versatility for your mixing tasks

The MULTI-TX5 Digital is the exclusive solution for all the multi-tube mixing tasks, even the most challenging ones.

The MULTI-TX5 Digital supports various foam racks for different vortexing tubes being an extremely versatile multi-tube vortex mixer to emulsify, disintegrate, mix, or homogenize samples. Typical applications include suspensions, genotyping, DNA and RNA Testing.

You can rely on the MULTI-TX5 Digital for a wide variety of mixing tasks, as it stirs solutions from 100 up to 2500 rpm thanks to the powerful brushless motor.

Vigorous as well as gentle mixing is supported with premium performance, making MULTI-TX5 Digital ideal both for microbiology tasks and R&D or quality control in diverse industries like pharma, cosmetics, food and beverage, and chemicals.

Maximized comfort and simplified operation, no matter what application

With the MULTI-TX5 Digital you can perform any mixing tasks and then change the foam rack for your next application in just a few simple steps.

Prepare the foam rack with the test tubes, then loosen both screw knobs on the closing plate and lift the plate up.

Decide whether to remove the plate or hold it on the longer shaft for streamlined manual operations.

Place the foam rack inside the foam support, lower the closing plate until it reaches the test tubes and tighten the screw knobs.

All ready for the vortex mixing to start!

Superior safety and ease-of-use for lab operators

The MULTI-TX5 Digital ensures a premium level of safety and protection for laboratory operators, as it is made with stainless steel.

The structure is carefully designed for outstanding comfort, maximized resistance, and minimized footprint over the bench.

The control panel is easily accessible and extremely intuitive.

Easily set and monitor the stirring time and the stirring speed thanks to the handy knobs and the bright easy-to-read double digital display.

The Safety Lock feature avoids any possible alterations of the working conditions or unintentional modification of the settings in order to meet all the Labs safety standards.

Programmable operation for premium laboratory efficiency

The MULTI-TX5 Digital is equipped with some exclusive and extremely advanced features that optimize unattended operation:

• Built-in timer to meet your lab workflow – from 1 min to 99 h 59 min (1 min steps)
• Pulse mode thanks to which the instrument shakes the samples at full speed with an immediate ramp for 2 seconds and then stops for 1 second, repeating the operation until manually stopped or the timer reaches zero
• Continuous mode with displayed time counting up
• Autoreverse of the stirring direction that ensures enhanced mixing capabilities – from 5 s to 99 min 59 s (1 s steps)
• Intermittent mode programs for enhanced programming of unattended operations – from 5 s to 99 min 59 s (1 s steps)

MULTI-TX5 Digital premium functions are easy to interact with thanks to the Smart User Interface with intuitive icons on the LED display.

TECHNICAL DATA

USER INTERFACE	Digital
SPEED CONTROL	Electronic
STIRRING SPEED	100 - 2500 rpm
SPEED SETTING REGULATION	5 rpm
TIMER	From 1 min to 99 h : 59 min
TIMER SETTING STEPS	1 min
AUTOREVERSE	From 5 s to 99 min : 59 s
AUTOREVERSE SETTING STEPS	1 s
INTERMITTENT MODE	From 5 s to 99 min : 59 s
INTERMITTENT MODE SETTING STEPS	1 s
PULSE MODE	2 s shaking, 1 s pause (cyclic)
LOCK FUNCTION	Yes
MOTOR	BLDC
TYPE OF MOVEMENT	Orbital
ORBITAL DIAMETER	3.6 mm
WORKING IN CONTINUOUS	Max 2 hours
POWER INPUT	40 W
WEIGHT	19 kg 42 lb
SUPPORT PLATE DIMENSION	294 x 194 mm 11.6 x 7.6 in
DIMENSIONS (WXHXD)	245 x 380 x 490 mm 9.6 x 14.9 x 19.3 in

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

MULTI-TX5 Digital Multi-position Vortex Mixer - Leaflet
Laboratory Equipment - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Instruction manuals

Download the instruction manual that contains all the main technical specifications of the instrument and the necessary information for its correct use.

MULTI-TX5 Digital instruction manual

Application notes

Choose among a comprehensive library of Application Notes / White Papers and learn more on how to optimize the performance of your VELP instruments. These documents offer typical analyses of well-known samples, together with official references and suggestions, to make you an expert!

Preparation of cosmetic samples for microbiological analysis: good practice for a correct mixing

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CE Declaration of Conformity VELP Scientifica MULTI-TX5 Digital Vortex
