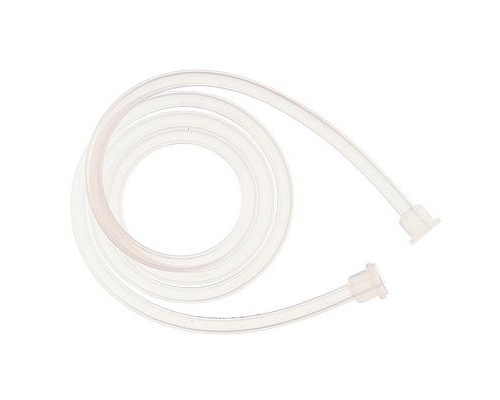

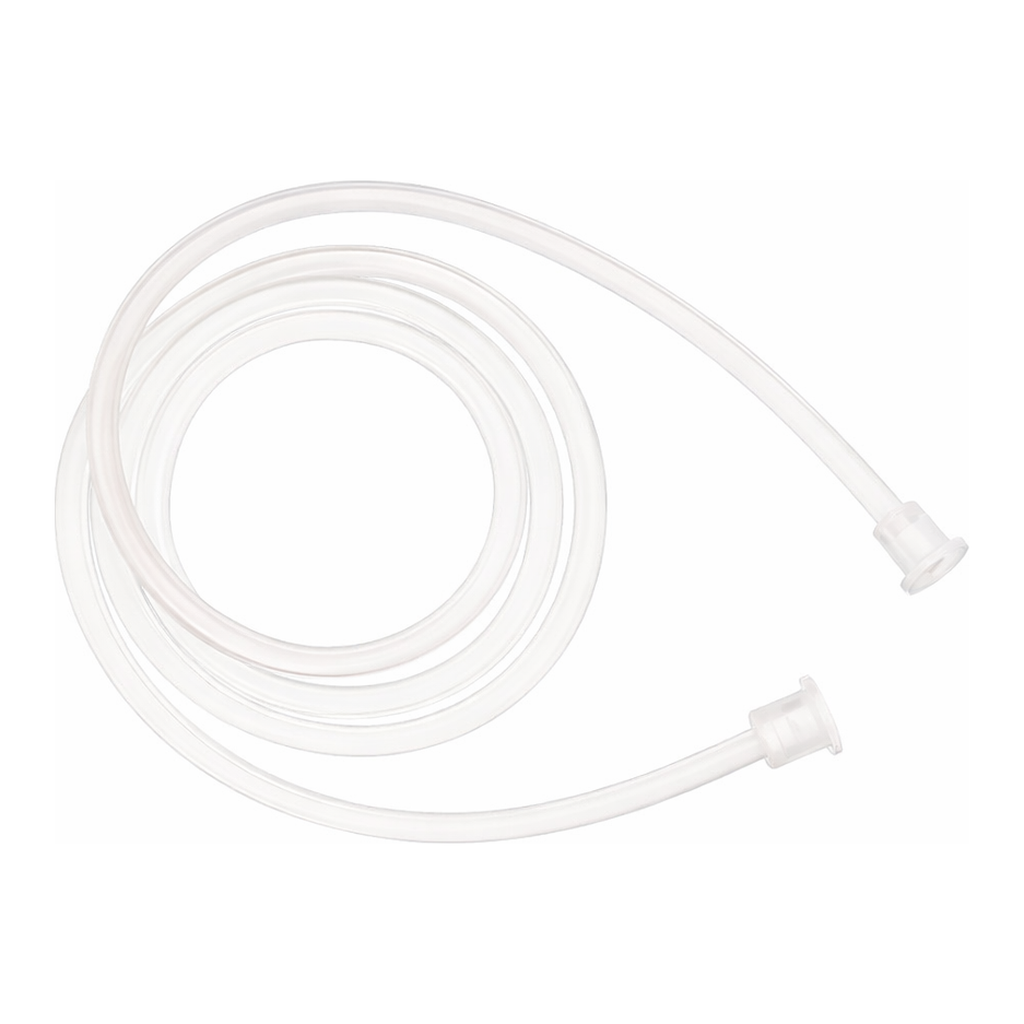

L/S® Sanitary Pump Tubing Assemblies
주요특징
- Get quicker connection of tubing
- Meets stringent demands of biotechnology, pharmaceutical, and the food, beverage, and dairy processing industries
- Smooth, pre-molded tubing ends allow quick connection to an adapter or to another length of sanitary tubing
- Connectors help maintain cleanliness and purity of your fluids
- Sanitary tubing is less thermally conductive than metallic tubing systems and not subject to galvanic action, RFI, or EMI
- All L/S platinum-cured silicone and PharMed® BPT sanitary tubing conforms to USP Class VI and FDA standards
- FREE Certificate of resin or elastomer Compliance is available upon request
L/S® Sanitary Pump Tubing Assemblies
Get quicker connection of tubing
**
Features/Benefits**
· Meets stringent demands of biotechnology, pharmaceutical, and the food, beverage, and dairy processing industries
· Smooth, pre-molded tubing ends allow quick connection to an adapter or to another length of sanitary tubing
· Connectors help maintain cleanliness and purity of your fluids
· Sanitary tubing is less thermally conductive than metallic tubing systems and not subject to galvanic action, RFI, or EMI
· All L/S platinum-cured silicone and PharMed® BPT sanitary tubing conforms to USP Class VI and FDA standards
· FREE Certificate of resin or elastomer Compliance is available upon request
How to Connect Tubing
· Each length of tubing features pre-molded ends. Tubing with 1⁄2" mini-connections uses molded-in gasket at one end to ensure quality seal
· Pre-molded ends allow quick connection to an adapter or additional length of sanitary tubing. Order adapters below, right.
· Join 1⁄2" mini-connection to another 1⁄2" mini-connection, adapter, or to your system with a push/pull clamp
*How to Order
*1. Order your desired tubing formulation and length. Choose tubing size based on flow range
2. Order PVDF push/pull clamp (separately below).
3. Order silicone or Viton® gaskets as needed to connect to your system or to adapters
4. Select sanitary adapters as needed
Tubing size | Platinum-cured silicone (96410-series) 5-ft (1.5-m) length |
Platinum-cured silicone (96410-series) 10-ft (3-m) length |
PharMed BPT (06508-series) 5-ft (1.5-m) length |
PharMed BPT (06508-series) 10-ft (3-m) length |
L/S Precision sanitary pump tubing | ||||
L/S 13 | GY-96100-13 | GY-96101-13 | GY-96112-13 | GY-96113-13 |
L/S 14 | GY-96100-14 | GY-96101-14 | GY-96112-14 | GY-96113-14 |
L/S 16 | GY-96100-16 | GY-96101-16 | GY-96112-16 | GY-96113-16 |
L/S 25 | GY-96100-25 | GY-96101-25 | GY-96112-25 | GY-96113-25 |
L/S 17 | GY-96100-17 | GY-96101-17 | GY-96112-17 | GY-96113-17 |
L/S 18 | GY-96100-18 | GY-96101-18 | GY-96112-18 | GY-96113-18 |
L/S High-Performance Precision sanitary pump tubing | ||||
L/S 15 | GY-96100-15 | GY-96101-15 | GY-96112-15 | GY-96113-15 |
L/S 24 | GY-96100-24 | GY-96101-24 | GY-96112-24 | GY-96113-24 |
L/S 35 | — | — | GY-96112-35 | GY-96113-35 |
L/S 36 | — | — | GY-96112-36 | GY-96113-36 |
