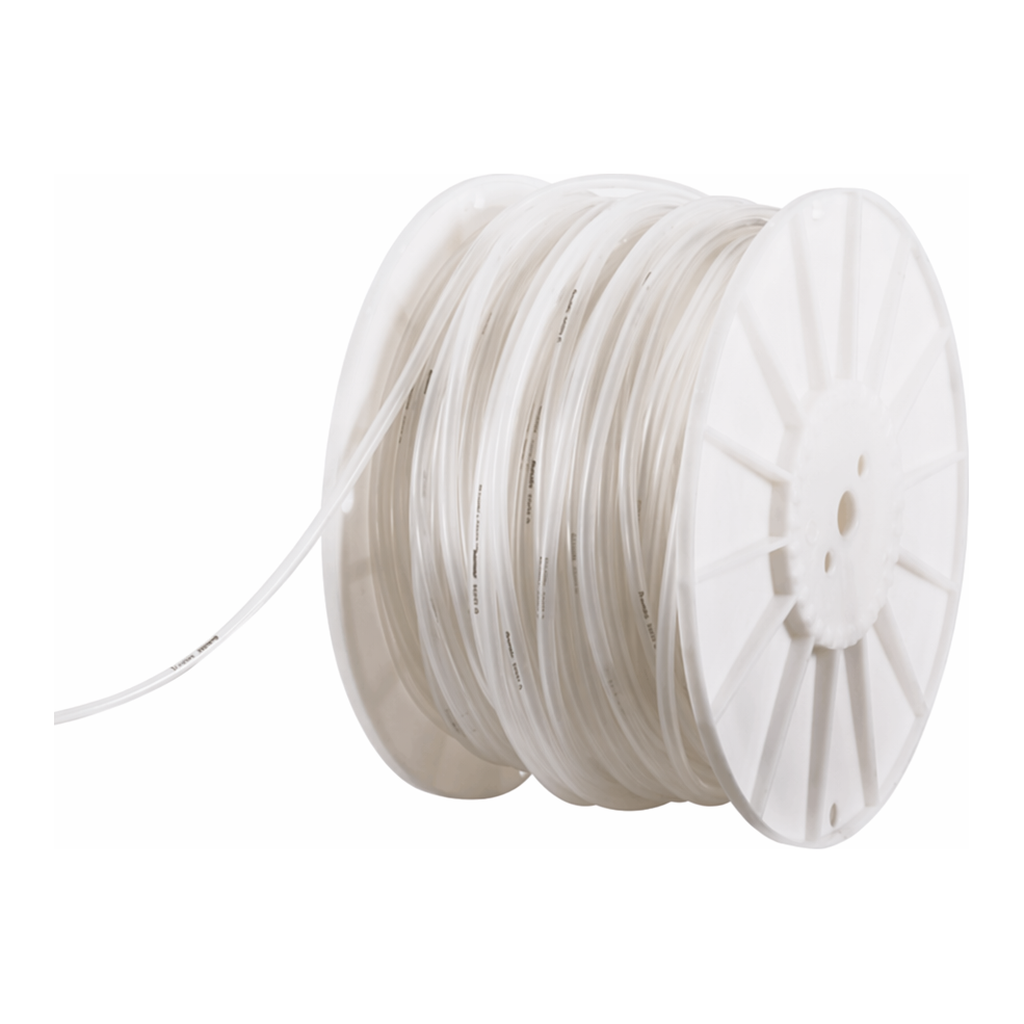

EMP Series용 I/P Precision Pump Tubing

주요특징

• EMP Series용 I/P Precision Pump Tubing

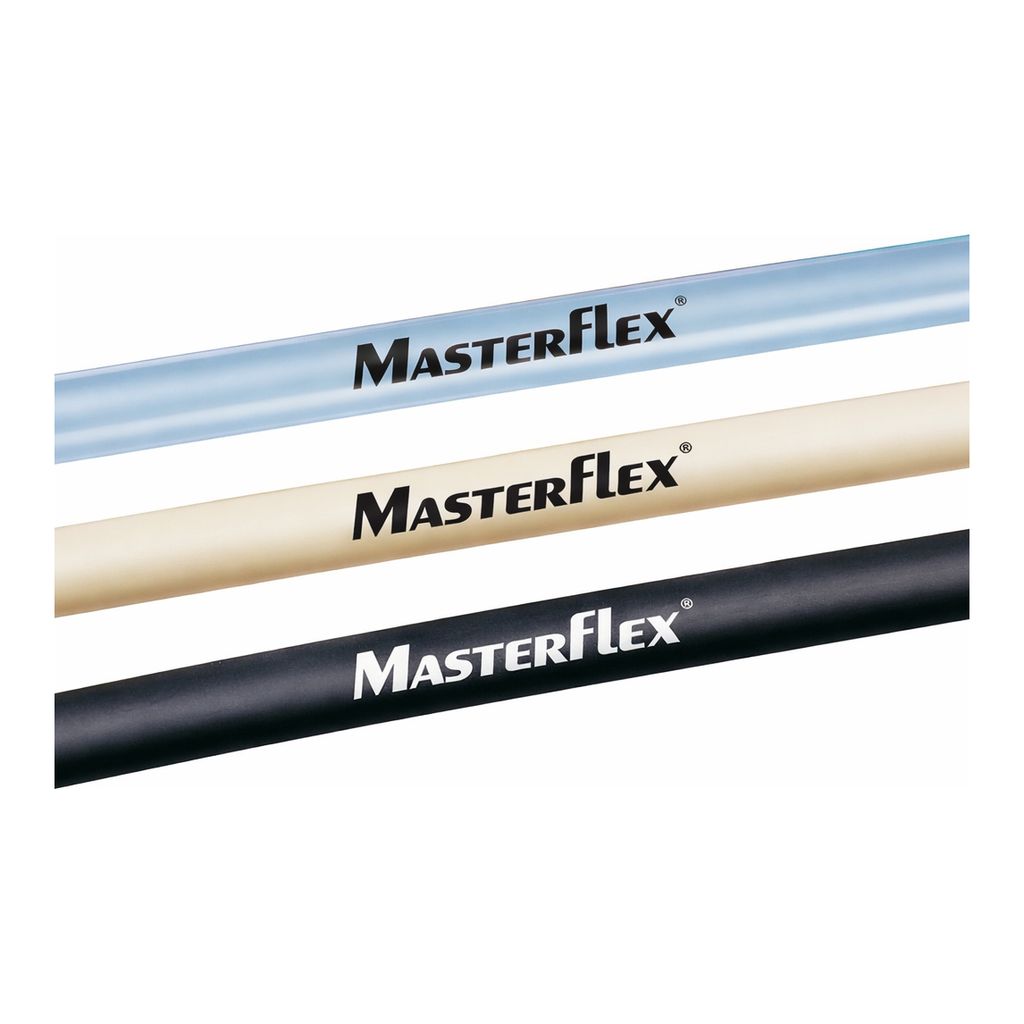

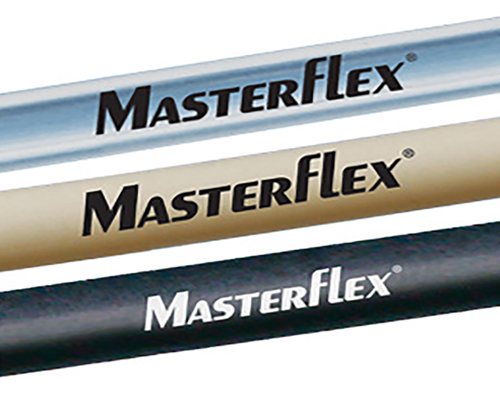

EMP Series용 Precision Pump Tubing
Engineered for long life in peristaltic pumps

Features

· Ensure optimal Masterflex® pump performance
· Custom extruded to fit Masterflex pumps
· Lot-to-lot consistency for superior accuracy and repeatability

		Tubing size	** I/P 26**	** I/P 73**	I/P 82
Inner diameter	6.4 mm (0.25")	9.5 mm (0.37")	12.7 mm (0.5")
Hose barb size	6.4 mm (1⁄4")	9.5 mm (3⁄8")	12.7 mm (1⁄2")
Flow range (approximate)	0.01 to 4 LPM 0.002 to 1.1 GPM	0.01 to 8 LPM 0.002 to 2.1 GPM	0.02 to 13 LPM 0.005 to 3.5 GPM
Pump tubing ​formulation	Description	Compatible pump head
Silicone (platinum-cured)	– Complies with USP Class V, EP, FDA, REACH, RoHS, ADCF – Fungus-resistant` phthalate- and latex-free – Accommodates a wide temperature range	✓ Standard ✓ Easy-Load	GY-96410-26	GY-96410-73	GY-96410-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Silicone (peroxide-cured)	– Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF – Greater physical compression capability – Economical, longer tubing life	✓ Standard ✓ Easy-Load	GY-96400-26	GY-96400-73	GY-96400-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
BioPharm Silicone (platinum-cured)	Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF – Lower absorption` excellent biocompatibility – Very low extractable and weather, ozone, corona, radiation resistant	✓ Standard ✓ Easy-Load	GY-96420-26	GY-96420-73	GY-96420-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
BioPharm Plus Silicone ​(platinum-cured)	– Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF – Ultra-smooth—minimizes particle entrapment – Very low extractable—ideal for lab, biotech pharma applications	✓ Standard ✓ Easy-Load	GY-96440-26	GY-96440-73	GY-96440-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Puri-Flex™	– Complies with USP Class VI, EP, REACH, RoHS, ADCF – Heat sealable, weldable, and economical – Long pump life when compared to silicone or many other TPE tubings	✓ Standard ✓ Easy-Load	GY-96419-26	GY-96419-73	GY-96419-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
C-Flex®	– Complies with USP Class VI, EP, REACH, RoHS, ADCF – Heat sealable, weldable, economical – Better resistance to pH fluctuations	✓ Standard ✓ Easy-Load	GY-06424-26	GY-06424-73	GY-06424-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
C-Flex® ULTRA	– Complies with USP Class VI, EP, REACH, RoHS, ADCF – Longest life of any C-Flex formulation – Lowest spallation and reduced residue	✓ Standard ✓ Easy-Load	GY-06434-26	GY-06434-73	GY-06434-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
PharMed® BPT	– Complies: USP Class VI, EP, FDA, NSF, REACH, RoHS – Over 10,000 hours of tubing life, sealable, weldable – Ideal for tissue and cell culture work	✓ Standard ✓ Easy-Load	GY-06508-26	GY-06508-73	GY-06508-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
PharmaPure®	– Complies with USP Class VI, EP, FDA, REACH, RoHS – Nontoxic and nonhemolytic biocompatible – Long life even under pressure with VERY low spallation		GY-06435-26	GY-06435-73	GY-06435-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Chem-Durance® Bio	– Complies: USP Class VI, FDA, REACH, RoHS – Excellent chemical compatibility and biocompatibility – Excellent pump life, durable under pressure	✓ Standard ✓ Easy-Load	GY-06442-26	GY-06442-73	GY-06442-82
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon® E-LFL	– Complies with USP Class VI, EP, FDA, EU Food, REACH, RoHS, ABCF – Longest life of all Tygon formulations – Broad chemical resistance	✓ Standard ✓ Easy-Load	GY-06440-26	GY-06440-73	GY-06440-82
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Tygon E-Food (B-44-4X)	– Complies with FDA, EU Food, NSF, 3A, REACH, RoHS, ABCF – Smooth inner surface unaffected by commercial sanitizers – Nontoxic, will not affect taste or odor	✓Easy-Load	GY-06418-26	GY-06418-73	GY-06418-82
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon E-Lab (E-3603)	– Complies with USP Class VI, FDA, EU Food, NSF, REACH, RoHS, ABCF – Ideal for general transfer applications – Nonaging, nonoxidizing, low gas permeability	✓ Standard ✓ Easy-Load	GY-06509-26	GY-06509-73	GY-06509-82
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon Fuel & Lubricant (F-4040-A)	– Complies with REACH, RoHS, ABCF – Specially formulation to transport hydrocarbons, petroleum products, distillates – Very low gas permeability	✓Easy-Load	-	GY-06401-73	GY-06401-82
	-	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon Chemical (2001)	– Complies with FDA 21 CFR 175.300, REACH, RoHS, ABCF – Best chemical resistance of any Tygon formulation – Plasticizer-free and low gas permeability	✓ Easy-Load	GY-06475-26	GY-06475-73	GY-06475-82
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Norprene® (A-60 G)	– Complies with NSF, REACH, RoHS – Up to 10,000 hours of tubing life – Best choice for pressure/vacuum applications	✓ Standard ✓ Easy-Load	GY-06404-26	GY-06404-73	GY-06404-82
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Norprene Food (A 60 F)	– Complies with FDA, 3A, NSF, REACH, RoHS – Ideal for high-temperature food applications – Resists heat, ozone, acids, and alkalis	✓ Standard ✓ Easy-Load	GY-06402-26	GY-06402-73	GY-06402-82
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Viton®	– Complies with FDA, ABCF – Perfect where FDA and chemical compatibility are needed – Resists corrosives, solvents, and oils at elevated temperatures	✓ Standard ✓ Easy-Load	GY-96412-26	GY-96412-73	-
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	-
