EMP Series용 I/P High-Performance Precision Pump Tubing

주요특징

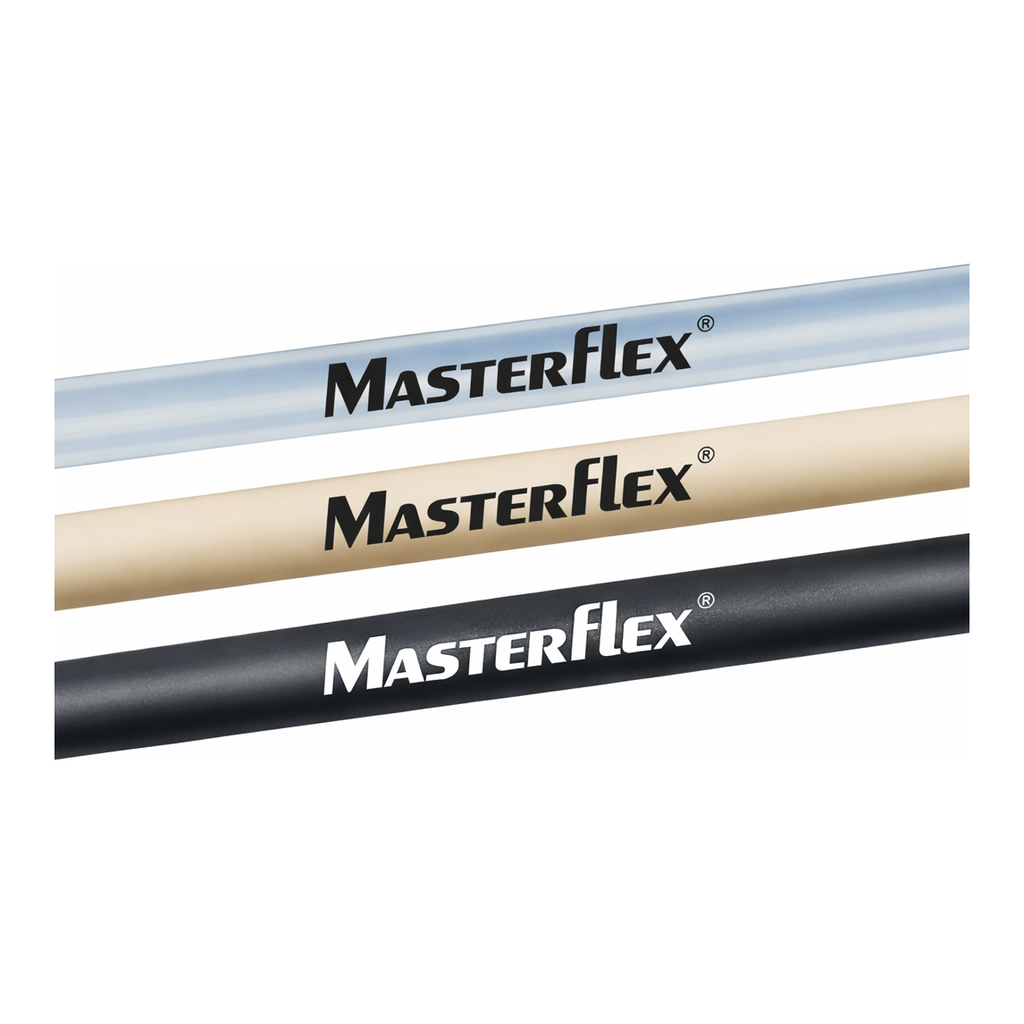

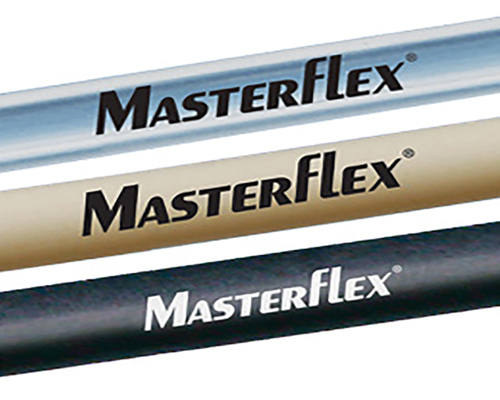

• I/P High-Performance Precision Pump Tubing

EMP Series용 High-Performance Precision Pump Tubing
Thicker wall compared to our Precision pump tubing

**
Description**

· Best choice for applications involving pressure, suction lift, viscous fluids, or long tubing life

		Tubing size	** I/P 70**	** I/P 88**	** I/P 89**
Inner diameter	9.5 mm (0.37")	12.7 mm (0.5")	15.88 mm (0.62")
Hose barb size	9.5 mm (3⁄8")	12.7 mm (1⁄2")	15.88 mm (5⁄8")
Flow range (approximate)	0.01 to 8 LPM 0.002 to 2.1 GPM	0.02 to 17 LPM 0.005 to 4.5 GPM	0.03 to 19 LPM 0.007 to 5.0 GPM
Pump tubing ​formulation	Description	Compatible pump head
Silicone (platinum-cured)	Complies: USP Class V, EP, FDA, REACH, RoHS, ADCF ​ Fungus-resistant` phthalate- and latex-free Accommodates a wide temperature range	High- Performance	GY-96510-70	GY-96510-88	GY-96510-89
	3 m (10 ft)/pk	3 m (10 ft)/pk	3m (10 ft)/pk
BioPharm Silicone	Complies with USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF Lower absorption` excellent biocompatibility	High- Performance	GY-96421-70	GY-96421-88	GY-96421-89
	3 m (10 ft)/pk	3 m (10 ft)/pk	3 m (10 ft)/pk
BioPharm Plus Silicone (platinum-cured)	Complies: USP Class VI, EP, FDA, 3A, REACH, RoHS, ADCF Ultra-smooth—minimizes particle entrapment	High- Performance	GY-96441-70	GY-96441-88	GY-96441-89
	3 m (10 ft)/pk	3 m (10 ft)/pk	3 m (10 ft)/pk
Puri-Flex™	Complies: USP Class VI, FDA, REACH, RoHS, ADCF Heat sealable, weldable, and economical Long pump life when compared to silicone	High- Performance	GY-96419-70	GY-96419-88	GY-96419-89
	3 m (10 ft)/pk	3 m (10 ft)/pk	3 m (10 ft)/pk
C-Flex®	Complies: USP Class VI, EP, REACH, RoHS, ADCF Heat sealable, weldable, economical Better resistance to pH fluctuations	High- Performance	GY-06424-70	GY-06424-88	GY-06424-89
	3 m (10 ft)/pk	3 m (10 ft)/pk	3 m (10 ft)/pk
PharMed® BPT	Complies: USP Class VI, EP, FDA, NSF, REACH, RoHS >10,000 hours of tubing life, sealable, weldable Ideal for tissue and cell culture work	High- Performance	GY-06508-70	GY-06508-88	-
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	-
Chem-Durance Bio	Complies: USP Class VI, EP, FDA, NSF, REACH, RoHS >10,000 hours of tubing life, sealable, weldable Ideal for tissue and cell culture work	High- Performance	GY-06442-70	GY-06442-88	GY-06442-89
	15.2 m (50 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Tygon® E-LFL	Complies with USP Class VI, EP, FDA, EU Food, REACH, RoHS, ABCF Longest life of all Tygon formulations	High- Performance	GY-06440-70	GY-06440-88	GY-06440-89
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Tygon® E-Food (B-44-4X)	Complies: FDA, EU Food, NSF, 3A, REACH, RoHS, ABCF Smooth inner surface unaffected by commercial sanitizers` will not affect taste or odor	High- Performance	GY-06418-70	GY-06418-88	GY-06418-89
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Tygon® E-Lab (E-3603)	Complies with USP Class VI, FDA, EU Food, NSF, REACH, RoHS, ABCF Ideal for general transfer applications` nonaging, nonoxidizing, low gas permeability	High- Performance	GY-06509-70	GY-06509-88	GY-06509-89
	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
Norprene® (A-60 G)	Complies with NSF, REACH, RoHS Up to 10,000 hours of tubing life Best choice for pressure/vacuum applications	High- Performance	GY-06404-70	GY-06404-88	GY-06404-89
	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
Norprene Food (A-60 F)	Complies with FDA, 3A, NSF, REACH, RoHS Ideal for high-temperature food applications Resists heat, ozone, acids, and alkalis	High- Performance	-	GY-06402-88	GY-06402-89
	-	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
