Vena®Bio Braided (Technosil)

상품 한눈에 보기

고압 환경에서도 유연성과 내구성을 갖춘 실리콘 브레이디드 튜브 식품, 제약, 화장품, 화학 산업의 액체 및 반고체 수송에 적합 무취, 무미, 비독성 소재로 안전한 유체 이송 가능 -60°C~+180°C의 넓은 온도 범위에서 안정적 사용 가능 사용자 맞춤 라벨, QR 코드, 피팅 및 클램프 옵션 제공

브랜드: VenAir
카테고리: Silicone Tubing

#VenAir #Tubing #Silicone Tubing

VenAir · Vena®Bio Braided (Technosil)

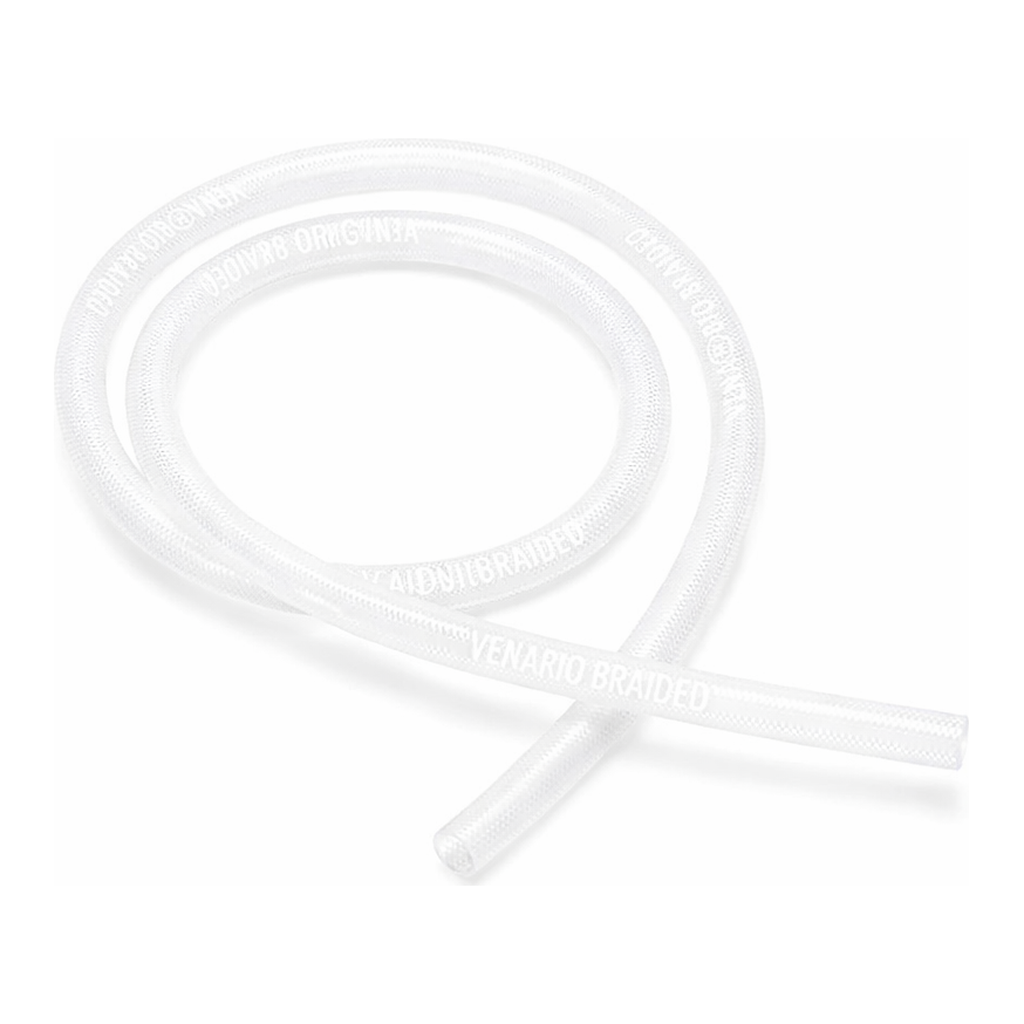

Vena®Bio Braided (Technosil)

Flexible silicone tubes manufactured by extrusion with a polyester yarn braiding inside the tube.

Applications

Recommended for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical, and pharmaceutical industries.
The design ensures a balance between strength and lightness, making it easy to handle.
Can be used in high-pressure environments due to its internal reinforcement.
The translucent appearance allows visibility of the product inside the hose during processing.

Properties

Odorless, tasteless, and completely non-toxic
Can be equipped with 316L stainless steel fittings on each end (Ra < 0.8 µm, or 0.5 µm on request)
Operational temperature range: -60ºC (-75ºF) to +180ºC (356ºF); up to 200ºC (392ºF) for short periods
Standard manufacturing length: 10 meters (32.81 ft); other lengths available upon request

More Information

항목	내용
Appearance	Translucent, smooth inner and outer surface; optional colored outer layer
Temperature	-60ºC (-75ºF) to +180ºC (356ºF); up to 200ºC (392ºF) for short periods
Construction	Extruded silicone with internal polyester yarn braiding

Certificates

Complete Validation Package (see page 4)
3A Sanitary Standard 62-02 (for fitted hoses)

Customizations

항목	설명
Labels	Indelible silicone labels for specific client information
QR Marking	Ensures 100% traceability of the hose
Assemblies	Equipped with crimped fittings using SZR Systems for smooth, non-retentive transitions
Molded Clamps	Reduce installation time (no gaskets), improve cleanliness (no retention zone), and maintain silicone benefits

제품 이미지

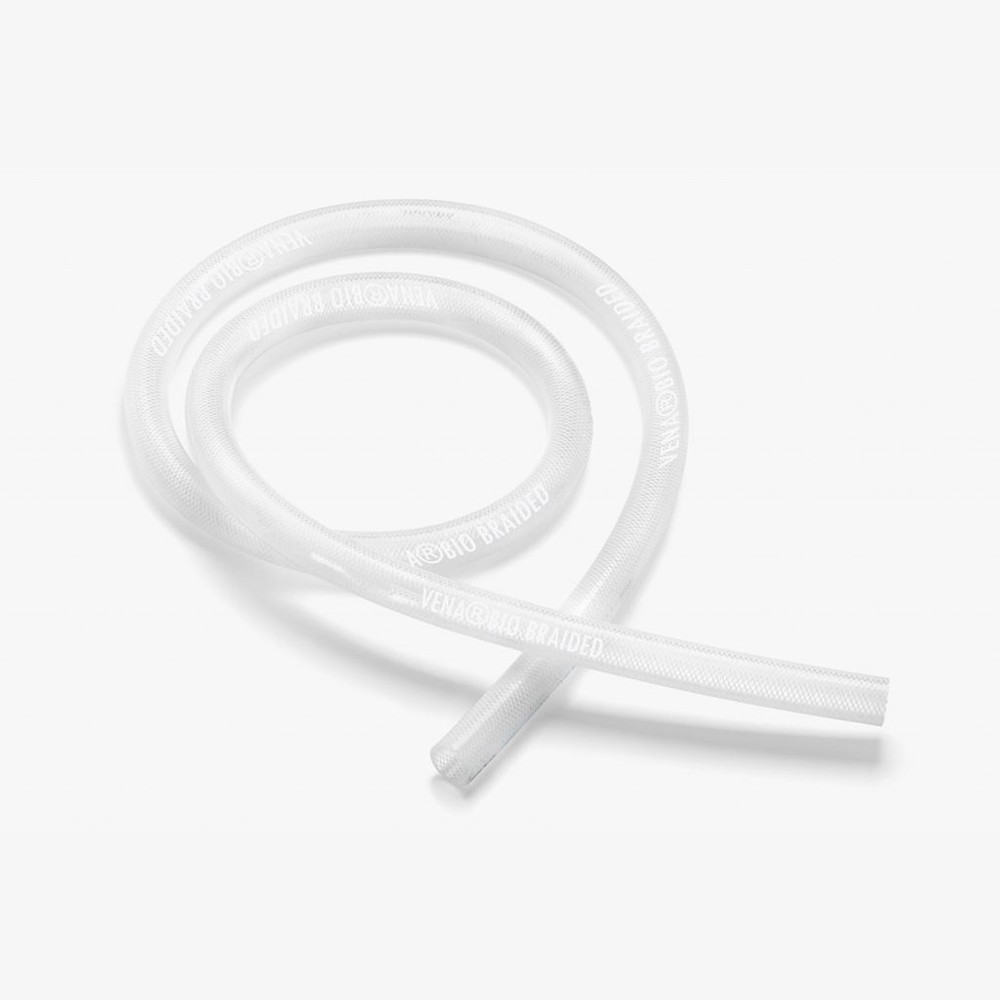

Vena Bio Braided

VenAir 상품 둘러보기

전체보기

VenAirVena®Bio Double Braided가격 문의VAT별도

VenAirVENA®Bio Braided ISO 7가격 문의VAT별도

VenAirVena® Sil 655가격 문의VAT별도

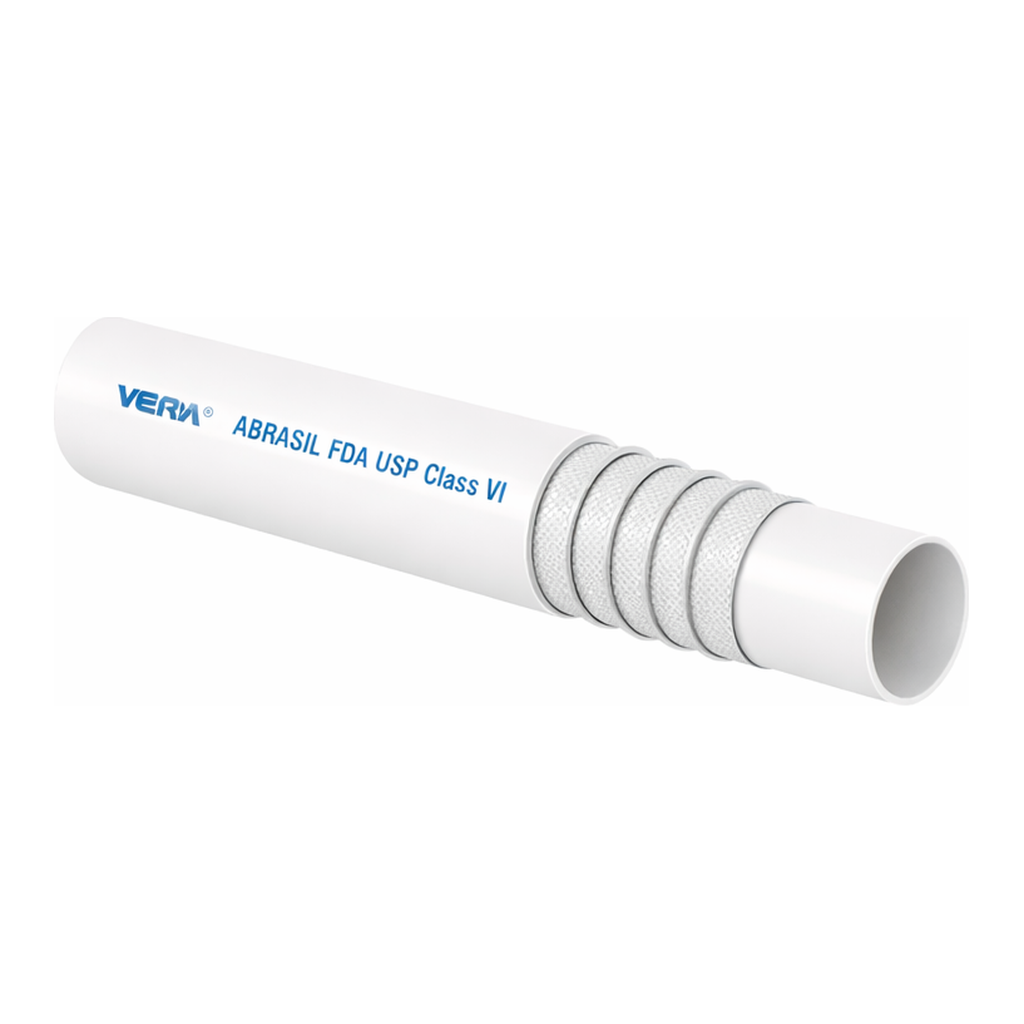

VenAirVena® Abrasil가격 문의VAT별도
