Vena® Abrasil

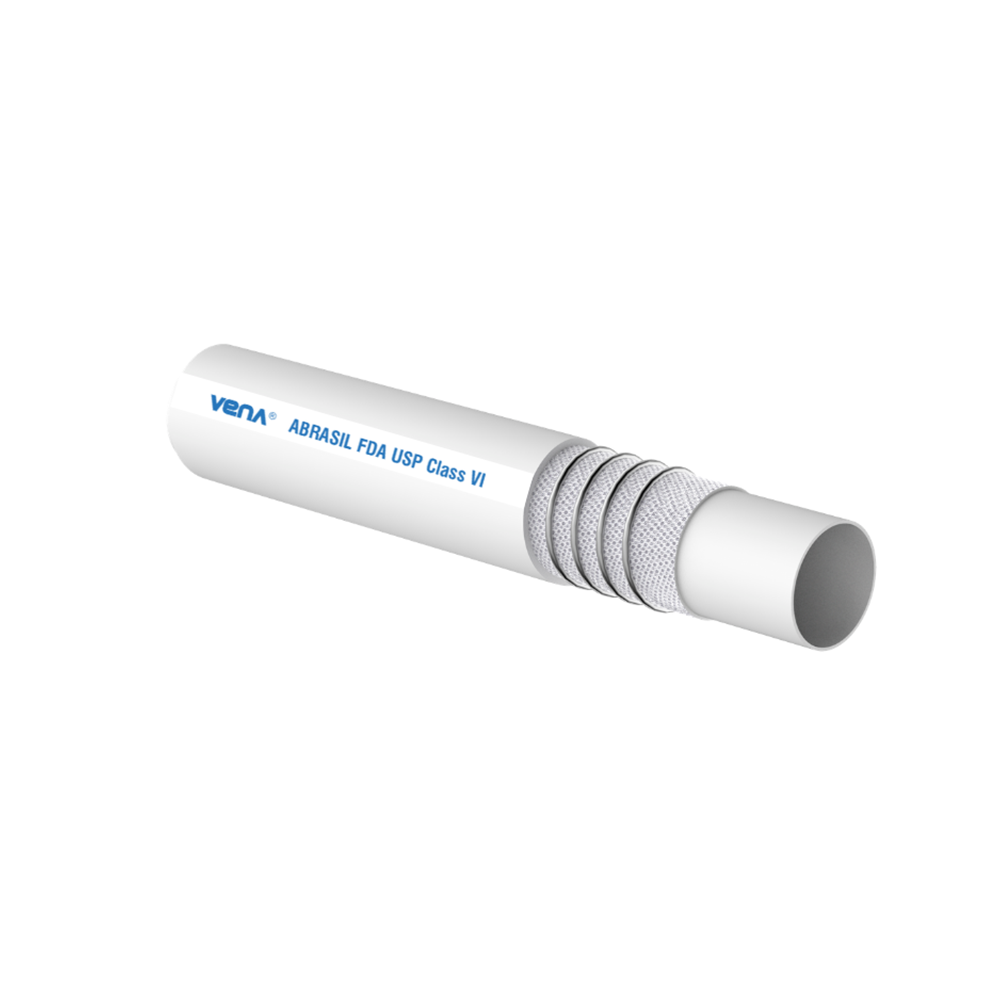

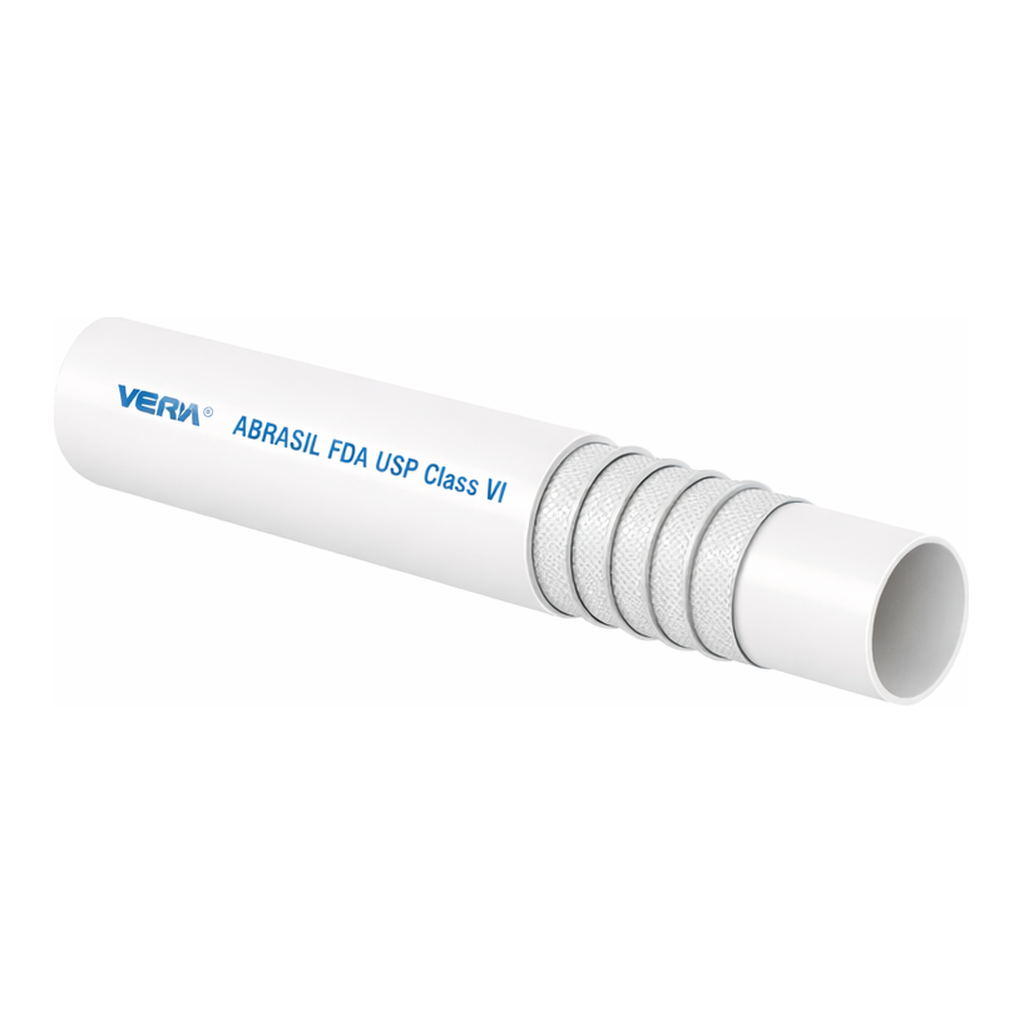

Flexible silicone tube with a polyester fabric reinforcement and stainless steel wire spring encased inside the hose wall.

Applications:

Hose recommended for suctions and transport in the food and pharmaceutical industries. Generally acceptable for pneumatic transport of non-flammable bulk materials and suction of all types of abrasive particles. Also recommended for the chemical industry.
It is recommended especially when the inner product is abrasive. It has a smooth inner and outer appearance.

Properties:

• Completely non-toxic.
• White and smooth inner and outer appearance.
• Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0.8 m (or 0.5 0,5 m on request).
• Operational temperature range from -20ºC (-4ºF) to +90ºC (194ºF), it may reach up to +120ºC (248ºF) during short periods of time.
• The standard manufacturing length is 4 meters long (13.12 ft.), but in specific diameters, a length of 6 meters (19.69 ft) can be manufactured.
• It can be cleaned with SIP process

More information

Appearance: White and smooth inner and outer appearance.

Temperature: -20ºC (-4ºF) to +90ºC (194ºF), it may reach up to +120ºC (248ºF) during short periods of time.

Construction: This reference is manufactured with one polyester fabric reinforcement and a plastic wire spring, everything encased inside the hose.

Certificates

Certifications:

• US FDA Standard 21 CFR 177.260
• USP Class VI <88>, in vivo test.
• EU Directive 2002/95/ECC for Restriction of the use of hazardous substances (RoSH)

Customizations

• It can be manufactured with a plastic wire spring, encased inside the wall and corrugated cover.
