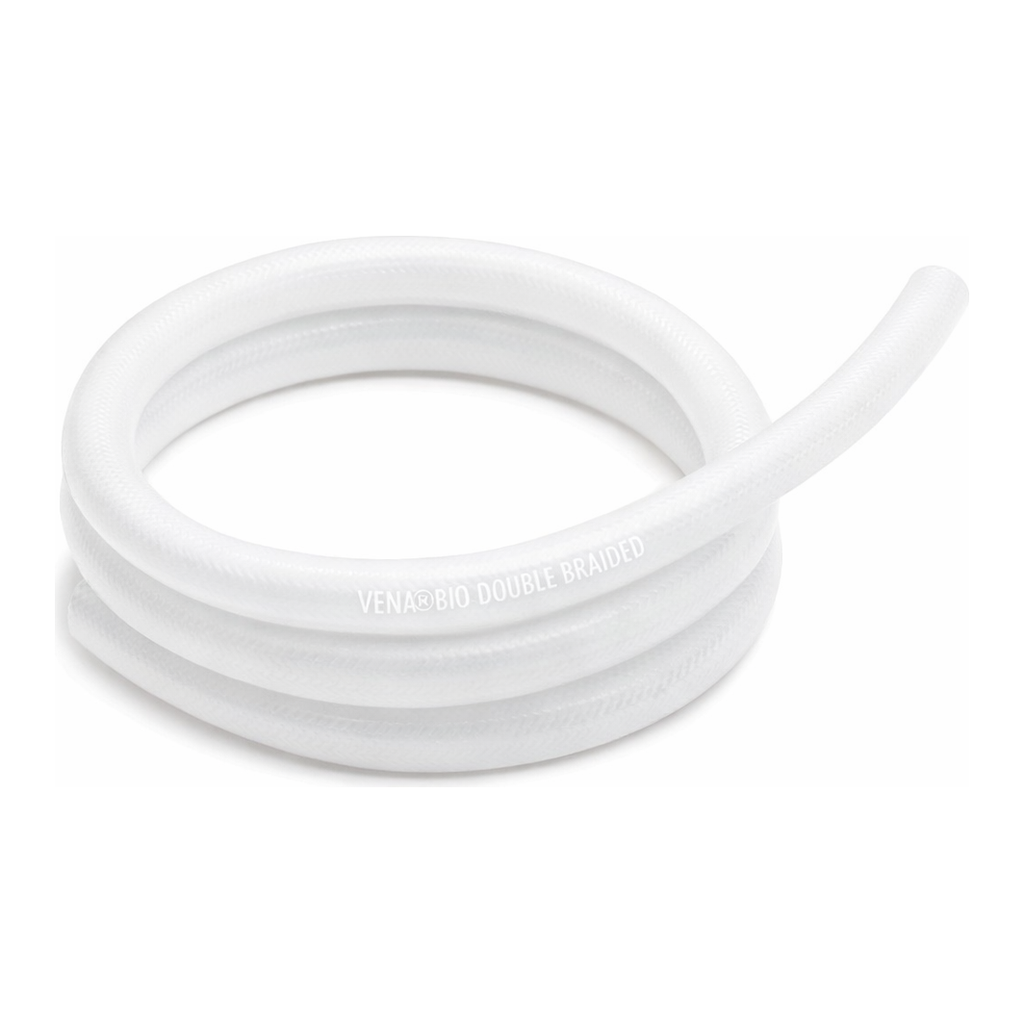

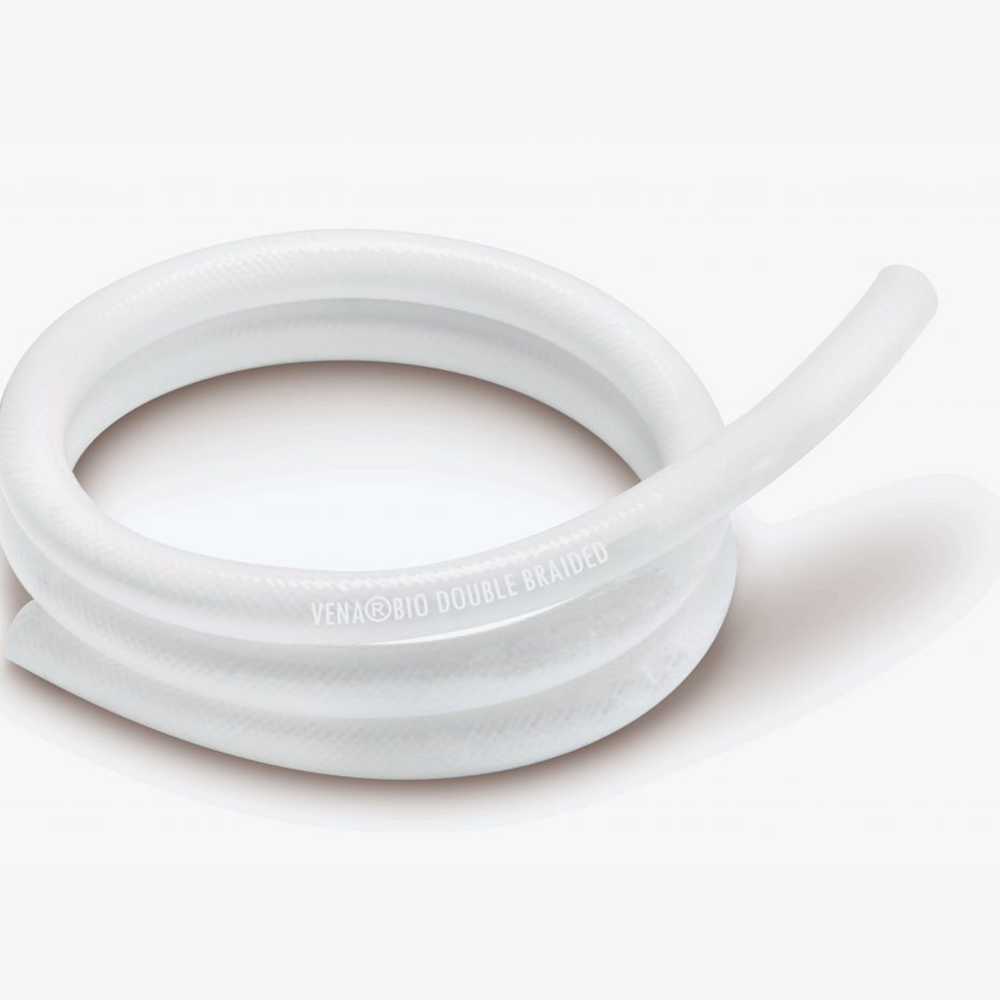

Vena®Bio Double Braided
THE SILICONE HOSES RECOMMENDED FOR APPLICATIONS WHERE A HIGH PRESSURE AND A SMALL BENDING RADIUS IS REQUIRED.
Applications:
It is especially recommended for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries. It offers an extremely broad field of applications.
These hoses are especially recommended for the use under high pressure.
Properties:
- Odorless, tasteless and completely non-toxic.
- Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0,8 µm (or 0,5 µm on request).
- The standard manufacturing length is 10 m (32.81 ft)
More information
Appearance: Translucent and smooth inner appearance, white and smooth outer appearance.
Temperature: -60°C (-75 F) to +180°C (356 F)
Construction: Extruded hose with double polyester yarn reinforcement.
Certificates
Certifications:
- Complete Validation Package. Check page 4.
- 3A Sanitary Standard 62-02 (fitted hoses).
Customizations
| Labels | Can be customized with the indelible silicone labels that can be placed over any hose in order to mark specific information required by the client. |
| QR marking | The QR code assures 100% traceability of the hose. |
| Assemblies | Can be equipped with crimped fittings with the best technology to ensure the safest and smoothest transition connections. (SZR Systems – Non- retention area). |
| Molded clamps | Can be customized by molded clamps in order to reduce installation time (no gaskets), improve |
