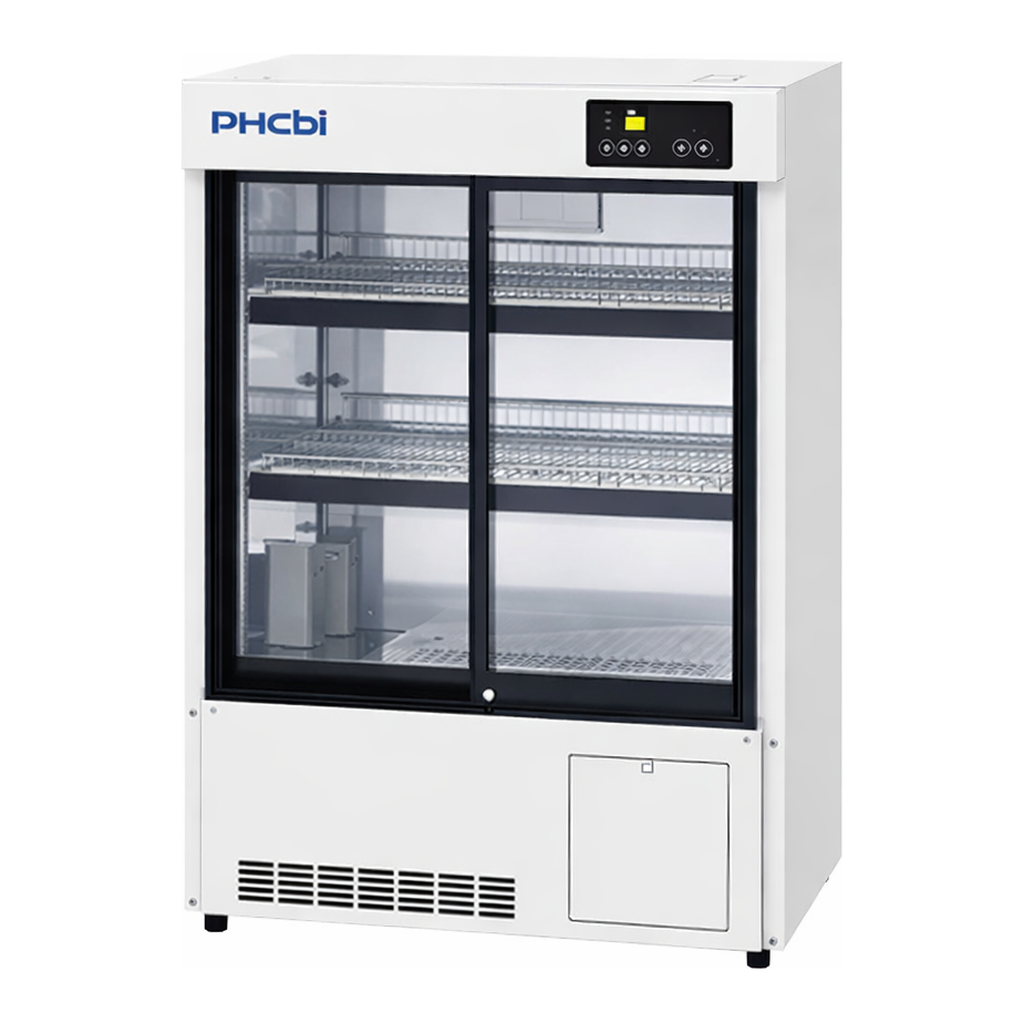

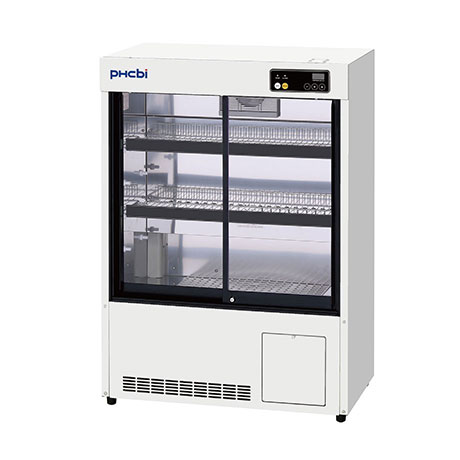

MPR-S163 MPR Sliding Door Pharmaceutical Refrigerators

MPR-S163 MPR Sliding Door Pharmaceutical Refrigerator

Uniform Storage Temperature for the Most Demanding Applications

The MPR-S163 (former KM-RS16A1E) Pharmaceutical Refrigerator is a compact yet large-capacity unit designed for reliable storage of pharmaceutical and medical supplies. The Medi-Cool series is equipped with advanced cooling and electronic technology for precise temperature control, ensuring optimal preservation of medical materials.

Manufactured and distributed by PHCbi, these laboratory refrigerators are engineered to meet the most rigorous standards required in laboratories and medical facilities. They feature effective temperature control, quiet operation, ease of use, and ergonomic design.

Environmentally-Friendly

CFC-Free

PHCbi refrigerators use commercially available CFC-free, HFC refrigerants and CFC-free insulation, minimizing environmental impact.

RoHS Compliant

Compliant with RoHS legislation (EU Directive 2002/95/EU) effective since July 1, 2006, restricting hazardous substances such as lead, cadmium, mercury, and chromium 6+. The MPR Pharmaceutical Refrigerators meet these environmental regulations.

Benefits

• Superior cooling performance
• Energy efficient
• CFC-free, HFC refrigerants and insulation
• RoHS compliant
• Uniform storage unaffected by ambient temperature
• Effective temperature control
• Space-saving design
• Self-diagnostic functions and parts replacement notifications
• Optional power failure alarm with remote alarm contacts

Features

• Alarm and safety devices
• Ridged wire shelves with zinc-plated finish
• Microprocessor temperature control
• Fan-forced air circulation
• Cycle defrost system
• Digital temperature display
• Door open alarm
• Adjustable high/low temperature alarm (±2 ~ ±14°C)
• Adjustable door alarm delay time (0 ~ 15 minutes)
• Adjustable auto recovery function for alarm buzzer

---

Performance

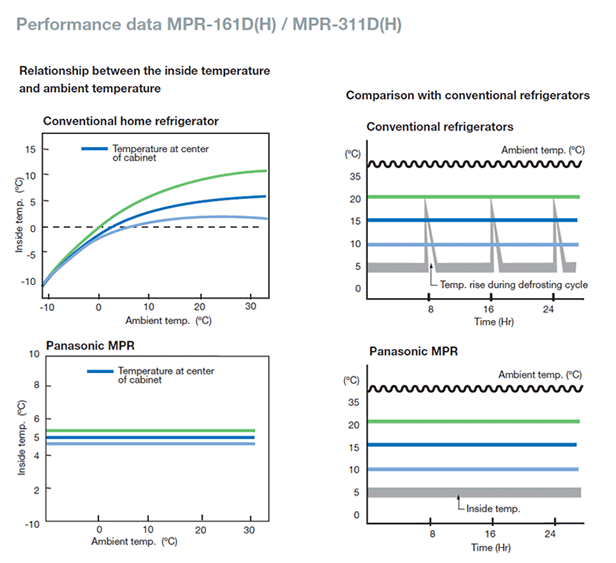

Performance Data MPR-161D(H) / MPR-311D(H)

Relationship Between Inside Temperature and Ambient Temperature

Conventional Home Refrigerator

Inside temp. (°C)
15 |                           (green line)
10 |
 5 |
 0 |-----------------------------------------
-5 |          (blue line)
-10|
    -----------------------------------------
     -10   0   10   20   30
           Ambient temp. (°C)

Legend:

• Blue line: Temperature at center of cabinet

Panasonic MPR

Inside temp. (°C)
15 |
10 |
 5 |======================== (blue line)
 0 |
-5 |
-10|
    -----------------------------------------
     -10   0   10   20   30
           Ambient temp. (°C)

Legend:

• Blue line: Temperature at center of cabinet

---

Comparison with Conventional Refrigerators

Conventional Refrigerators

(°C)
35 |~~~~~~~~~~~~~~~~~~~~~~~~ Ambient temp. (°C)
30 |
25 |
20 |
15 |-------------------------
10 |-------------------------
 5 |____/‾‾‾\____/‾‾‾\____/‾‾‾\____ (Temp. rise during defrosting cycle)
 0 |________________________________
     8      16      24
           Time (Hr)

Panasonic MPR

(°C)
35 |~~~~~~~~~~~~~~~~~~~~~~~~ Ambient temp. (°C)
30 |
25 |
20 |
15 |-------------------------
10 |-------------------------
 5 |-------------------------
 0 |========================= Inside temp.
     8      16      24
           Time (Hr)

Summary Legend

• Blue line: Temperature at center of cabinet
• Green line: Ambient temperature
• Gray area: Inside temperature variation
• Wavy line: Ambient temperature fluctuation

---

Specifications

항목	내용
External Dimensions (W × D × H)	800 × 465 × 1090 mm
Internal Dimensions (W × D × H)	720 × 300 × 725 mm
Volume	158 L
Net Weight	71 kg
Temperature Setting Range	+2 to +14 °C
Temperature Control Range	+2 to +14 °C
Controller	Microprocessor
Display	LED
Temperature Sensor	Thermistor
Cooling Method	Forced air circulation
Defrost Method	Cyclical defrost (plus forced defrost)
Refrigerant	—
Insulation Material	PUF
Exterior Material	Painted steel
Interior Material	Stainless steel
Outer Doors	2 sliding doors
Outer Door Lock	Yes
Max. Load per Shelf/Drawer	20 kg
Max. Load Total	40 kg
Access Port	1 (Back, Ø30 mm)
Casters	2
Interior Light	LED
Power Failure Alarm	V-B-R (Optional)
High Temperature Alarm	V-B-R
Low Temperature Alarm	V-B-R
Door Open Alarm	V-B
Power Supply	Local
Noise Level	35 dB(A)

---

Accessories

항목	모델명
Temperature Chart Recorder	MTR-0621LH-PH
Chart Paper	RP-06-PW

---

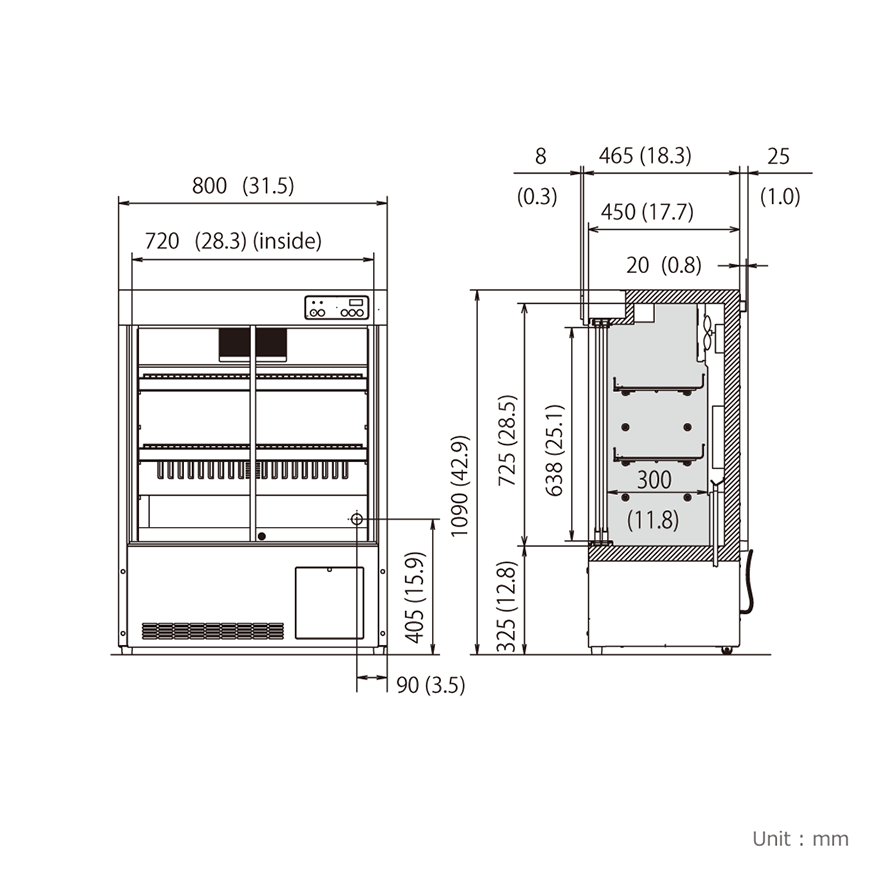

Dimensions

도면 치수 정보 (단위: mm, 괄호 안은 inch)

800 (31.5)
720 (28.3) (inside)
1090 (42.9)
405 (15.9)
90 (3.5)
8 (0.3)
465 (18.3)
25 (1.0)
450 (17.7)
20 (0.8)
725 (28.5)
638 (25.1)
300 (11.8)
325 (12.8)
Unit: mm

---
