MPR-514 MPR Sliding Door Pharmaceutical Refrigerators

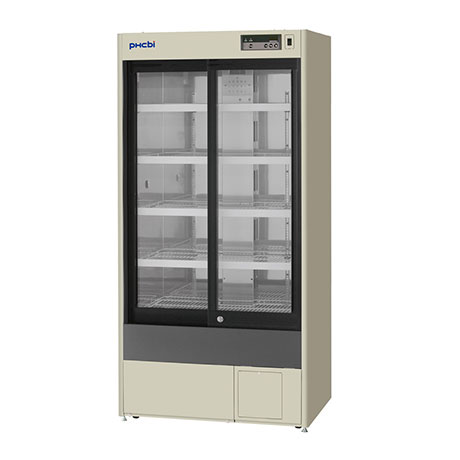

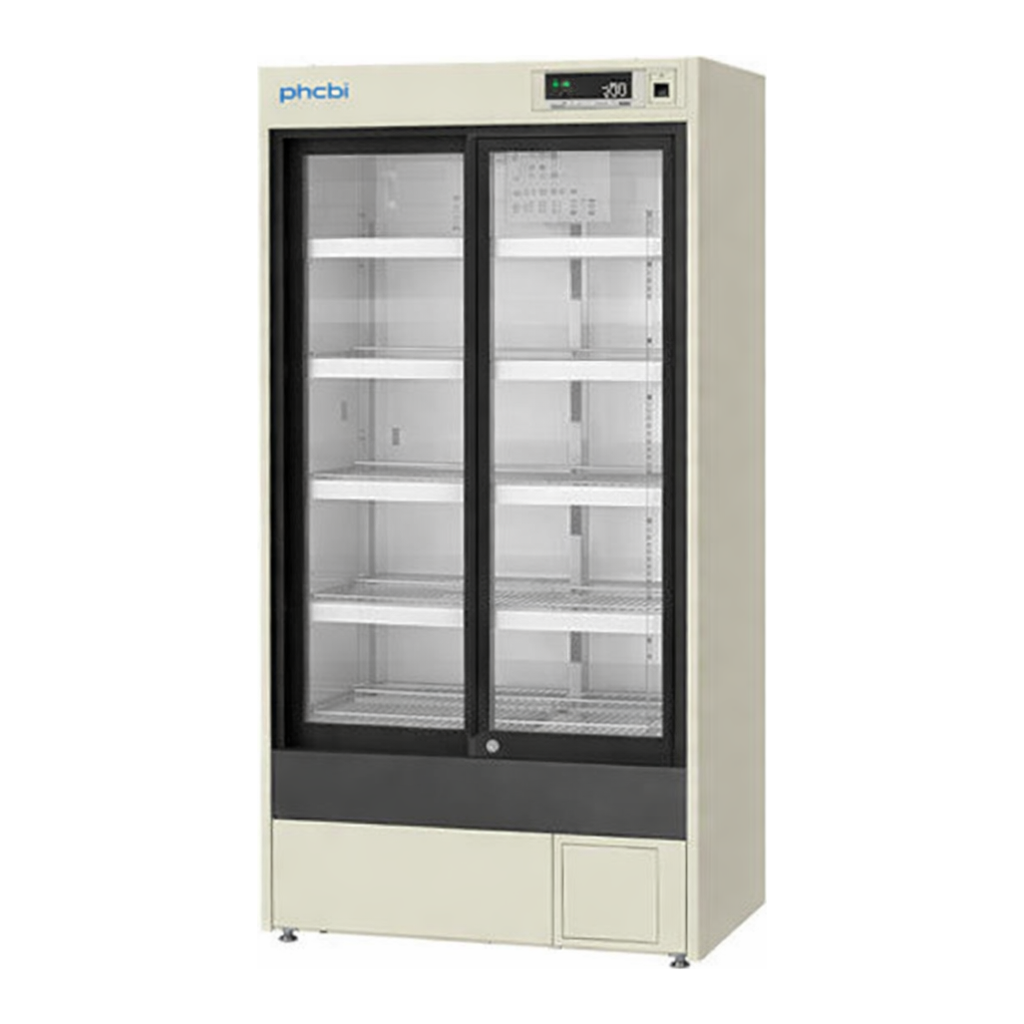

MPR-514 Sliding Door Pharmaceutical Refrigerator

Uniform Storage Temperature for the Most Demanding Applications

The +4°C MPR-514 Pharmaceutical Refrigerator provides an integrated solution for storing pharmaceuticals, medicines, vaccines, and other temperature-sensitive materials (2–14°C).
Its slim design and optional sliding shelves ensure ergonomic, easy-reach access to stored products.

Manufactured by PHCbi, this refrigerator meets the highest standards required for laboratory and pharmaceutical use. It offers reliable temperature control, quiet operation, ease of use, and ergonomic design as standard.

CFC-Free

PHCbi refrigerators use CFC-free, HFC refrigerants and CFC-free insulation materials.

RoHS Compliant

Compliant with EU Directive 2002/95/EU, restricting hazardous substances such as lead, cadmium, mercury, and chromium 6+. The MPR series meets these environmental safety standards.

Available Models

PHCbi also offers seven other models of the same type:

• MPR-721
• MPR-721R
• MPR-1411
• MPR-1411R
• MPR-514R

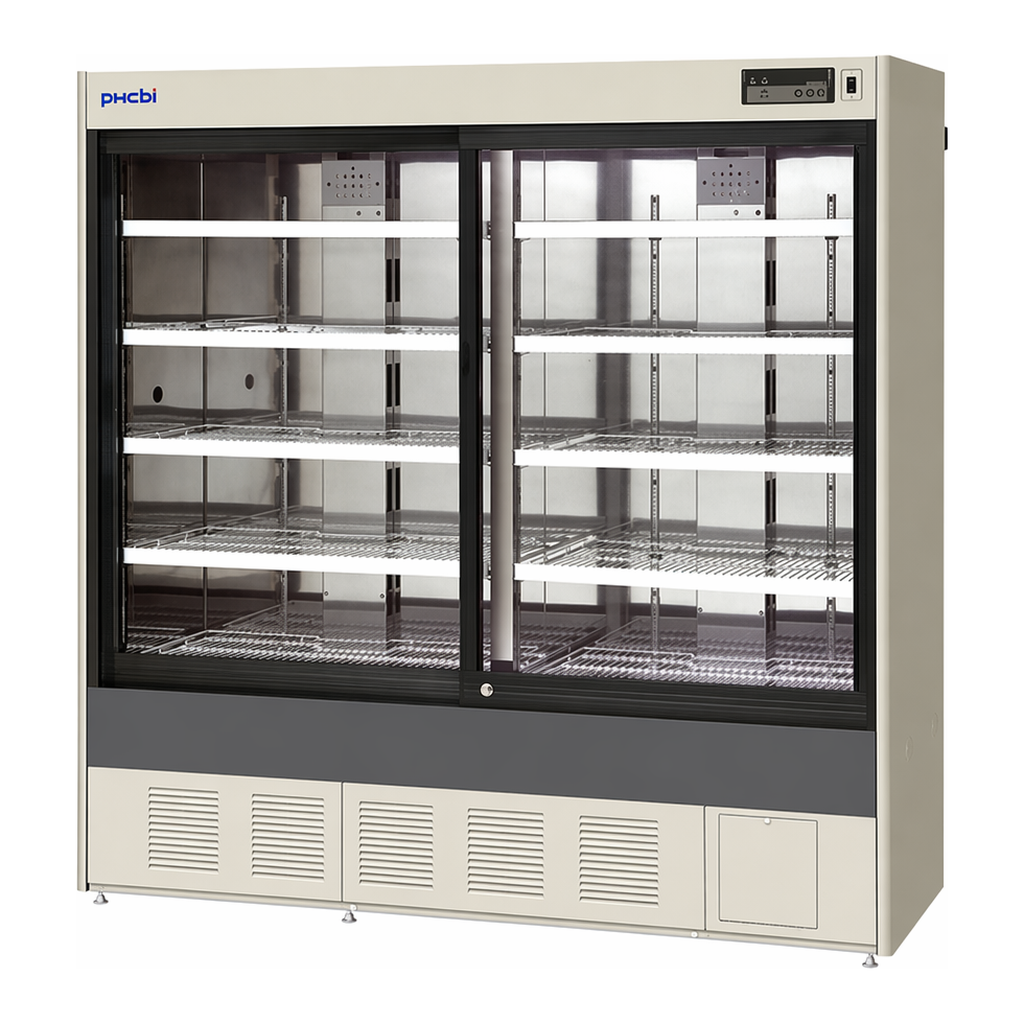

• MPR-1014
• MPR-1014R

---

Benefits

• Sliding Door
• Temperature Stability
• Wide Temperature Range
• Speedy and Powerful Refrigeration
• Filterless condenser reduces maintenance
• Superior cooling performance
• RoHS Compliant

---

Features

• Alarm and safety devices
• High-efficiency cooling compressor
• Microprocessor temperature control
• Fan-forced air circulation
• Cycle defrost system
• Digital temperature display
• Door open alarm
• Abnormal temperature alarm and safety devices

---

Performance Data

Performance data MPR-1014 / MPR-1014R / MPR-514 / MPR-514R

Uniform Storage Temperature - Ambient Temperature

Panasonic MPR

Axis	Label
Y-axis	Inside Temperature (°C)
X-axis	Ambient Temperature (°C)

Legend:

• Magenta line — Upper limit of cycle
• Black line — Center of Cabinet
• Blue line — Lower limit of cycle

Conventional Refrigerator

Axis	Label
Y-axis	Inside Temperature (°C)
X-axis	Ambient Temperature (°C)

Legend:

• Magenta line — Upper limit of cycle
• Black line — Center of Cabinet
• Blue line — Lower limit of cycle

Uniform Storage Temperature - Cycle Defrost

Panasonic MPR

Axis	Label
Y-axis	Temperature (°C)
X-axis	Time (Hr)

Text inside graph:

• Ambient Temperature (°C)
• Inside Temperature (°C)

Conventional Refrigerator

Axis	Label
Y-axis	Temperature (°C)
X-axis	Time (Hr)

Text inside graph:

• Ambient Temperature (°C)
• Temp. rise during defrost cycle

---

Specifications

항목	사양
External Dimensions (W × D × H)	900 × 600 × 1790 mm
Internal Dimensions (W × D × H)	800 × 465 × 1300 mm
Volume	489 L
Net Weight	141 kg
Temperature Setting Range	+2 to +14 °C
Temperature Control Range	+2 to +14 °C
Controller	Microprocessor
Display	LED
Temperature Sensor	Thermistor
Cooling Method	Forced cool air circulation
Defrost Method	Forced type, fully automatic
Refrigerant	—
Insulation Material	PUF
Exterior Material	Painted steel
Interior Material	Stainless steel
Outer Doors	2 sliding doors
Outer Door Lock	Yes
Shelves	—
Drawers	—
Max. Load (Per Shelf/Drawer)	50 kg
Max. Load (Total)	250 kg
Access Port	1
Access Port Position	Left
Access Port Diameter	30 mm
Casters	4
Interior Light	Fluorescent
Power Failure	V-B-R (Optional)
High Temperature	V-B-R
Low Temperature	V-B-R
Door Open	V-B
Power Supply	Local
Noise Level	42 dB (A)

---

Accessories

항목	모델명
Temperature recorders	—
Temperature chart recorder	MTR-0621LH-PH
Chart paper	RP-G04-PW
Recorder housing	MPR-S7-PW
Circular temp. chart recorder	MTR-G04-PW
Ink pen	PG-R-PW
External mounting power failure alarm	MPR-48B-PW (V-B)
RS485 interface module	MTR-480-PW

---

Dimensions (단위: mm)

900 (35.4)
800 (31.5) (inside)
158 (6.2) (duct)
1790 (70.5)
658 (25.9)
600 (23.6)
50 (2.0)
150 (5.9)
50 (2.0)
300 (11.8)
8 (0.3)
122 (4.8)
465 (18.3)
415 (16.3)
1202 (47.3)
1200 (47.2)
1300 (51.2)
1350 (53.1)
1085 (42.7)
466 (18.3)
440 (17.3)
Unit : mm

---
