MPR-215F MPR Pharmaceutical Refrigerators with Freezer
냉장고와 냉동고가 결합된 일체형 의약품 전용 보관 장비 정밀한 온도 제어와 균일한 온도 분포로 생물학적 시료 보관에 적합 이중 도어 설계로 냉기 손실 최소화 및 에너지 효율 향상 마이크로프로세서 제어와 알람 시스템으로 안정적 모니터링 가능 컴팩트한 설치 공간으로 연구실 및 병원 환경에 적합
- 브랜드
- PHCBI
PHCBI · MPR-215F MPR Pharmaceutical Refrigerators with Freezer

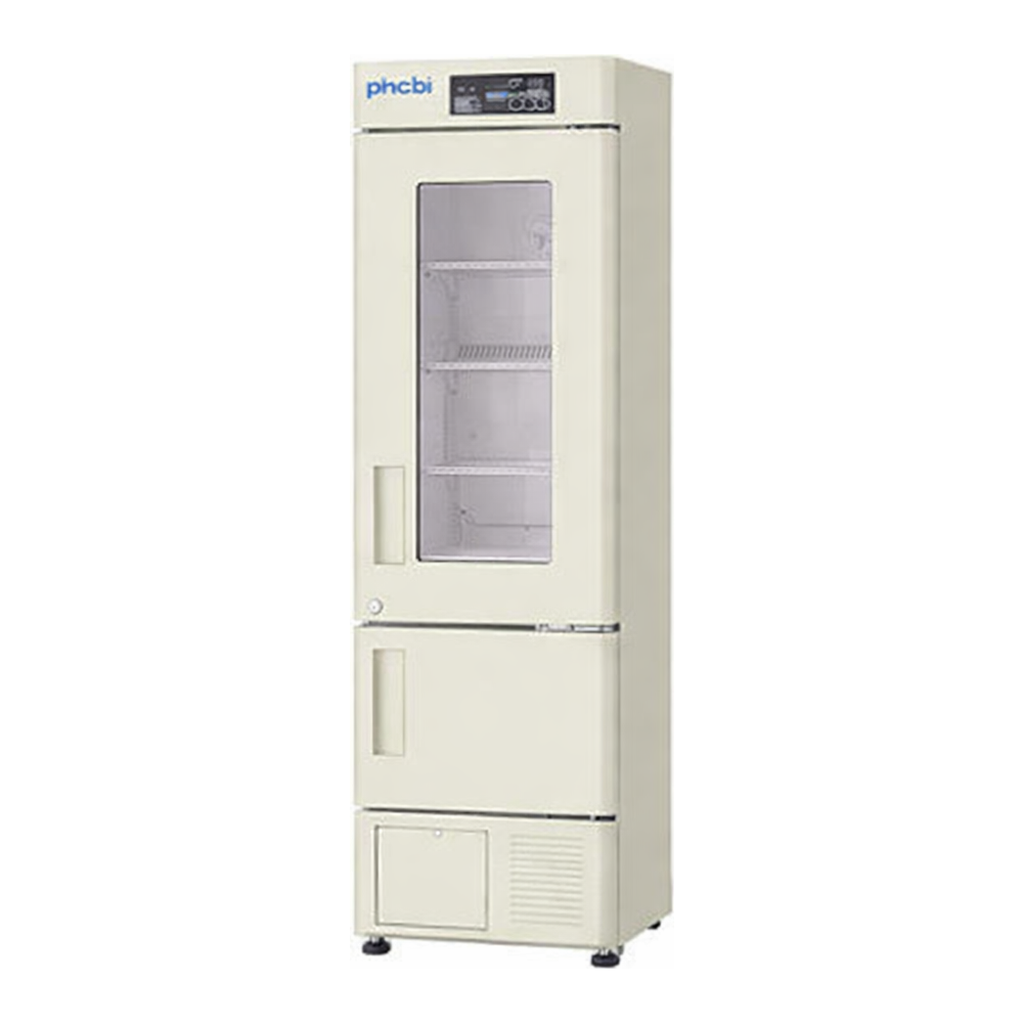

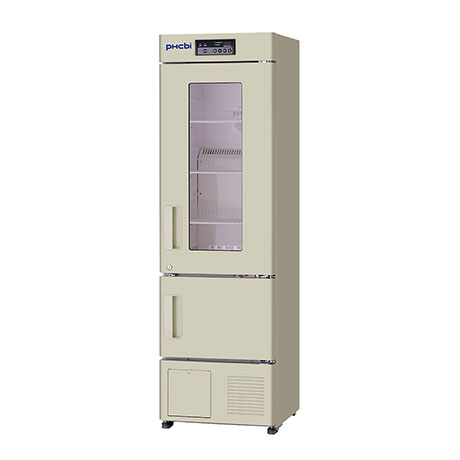

MPR-215F Pharmaceutical Refrigerator with Freezer
Providing a complete storage solution; refrigerator and freezer in one unit
The MPR-215F Pharmaceutical Refrigerator with Freezer provides an ideal biologic storage environment with precise temperature control and superior uniformity.
It combines high-performance refrigeration, control, and alarm/monitoring systems with an energy-efficient cabinet design.
The dual temperature zones require minimal installation space, and the two-door design reduces air loss during door openings.
Triple or double-pane windows with heat reflection film minimize condensation.
Calibration adjustment is available through the control panel for easier validation services.
The MPR series features two separate compressors for quiet and reliable operation.
Benefits
- Maintains required temperature range throughout the year
- Separate doors for refrigerator and freezer
- Large capacity suitable for annual vaccine inventory
- Secure storage with keyed locking doors
- Recommended for biologics by the Centers for Disease Control
- Unique defrost system prevents temperature fluctuation during defrost cycle
- Secondary safety device prevents over- or under-temperature conditions
Features
- Integrated alarm functions with remote alarm contacts and monitoring
- Microprocessor control for accurate temperature management
- Mechanical convection airflow ensures uniform temperature and rapid recovery after door openings
- High/low temperature alarm with audible and visual warnings
- Remote alarm connection capability
- Open door indicator with delayed audible alarm (15 minutes)
- Keyed door locks for enhanced security
Specifications
| 항목 | 사양 |
|---|---|
| External Dimensions (W × D × H) | 540 × 557 × 1794 mm |
| Internal Dimensions (W × D × H) | 455 × 466 × 917 mm (Ref) / 420 × 342 × 267 mm (Frz) |
| Volume | 176 / 39 L (Ref / Frz) |
| Net Weight | 86 kg |
| Temperature Setting Range | +2 to +14 °C (Ref) / −20 to −30 °C (Frz) |
| Temperature Control Range | +2 to +14 °C (Ref) / −20 to −30 °C (Frz) |
| Controller | Microprocessor |
| Display | LED |
| Temperature Sensor | Thermistor |
| Cooling Method | Fan forced air circulation (Ref) / Direct cooling (Frz) |
| Defrost Method | Cyclical (Ref) / Manual (Frz) |
| Refrigerant | — |
| Insulation Material | PUF |
| Exterior Material | Painted steel |
| Interior Material | Styrol resin (Ref) / Painted aluminium (Frz) |
| Outer Doors | 2, glass window (1) |
| Outer Door Lock | Yes |
| Max. Load (Per Shelf/Drawer) | 20 / 10 kg (Ref / Frz) |
| Max. Load (Total) | 70 kg |
| Access Port | 2 (Left side, Ø30 mm) |
| Casters | 4 |
| Interior Light | Fluorescent (Ref) |
| Alarm (Power Failure) | R |
| Alarm (High Temp.) | V-B-R |
| Alarm (Low Temp.) | V-B-R |
| Alarm (Door Open) | V-B |
| Power Supply | Local |
| Noise Level | 35 dB(A) |
Accessories
| 항목 | 모델명 |
|---|---|
| Temperature chart recorder | MTR-0621LH-PH |
| Chart paper | RP-40-PW |
| Recorder housing | MPR-S30-PW |
| Circular temperature chart recorder | MTR-G3504C-PE |
| Ink pen | PG-RB-PW |
| Continuous strip type (-40 °C to +14 °C) | MTR-4015LH-PE |
| RS485 interface module | MTR-480-PW |
| Drawers for bottom left compartment | MPR-41F-PW |
Dimensions
도면에는 냉장고(상부)와 냉동고(하부)의 구조 및 주요 치수가 표시되어 있습니다.
아래는 이미지에서 추출된 도면 정보입니다.
정면도 (Front View)
123 (4.8)
540 (21.3)
455 (17.9)
97 (3.8)
Power cord position
250 (9.8)
420 (16.5)
750 (29.5)
1794 (70.6)측면도 (Side View)
57 (2.2)
557 (21.9)
500 (19.7)
450 (17.7)
36 (1.4)
63 (2.5)
917 (36.1)
466 (18.3)
267 (10.5)
342 (13.5)
315 (12.4)
469 (18.5)
155 (6.1)
Access port범례 (Legend)
Refrigerator [회색 영역]
Freezer [사선 음영 영역]
Unit : mm제품 이미지
