MPR-1412R MPR Pharmaceutical Refrigerators

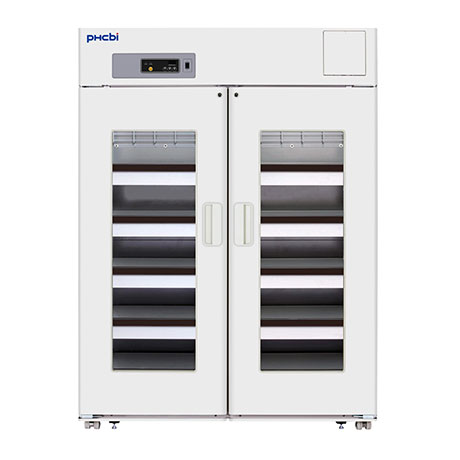

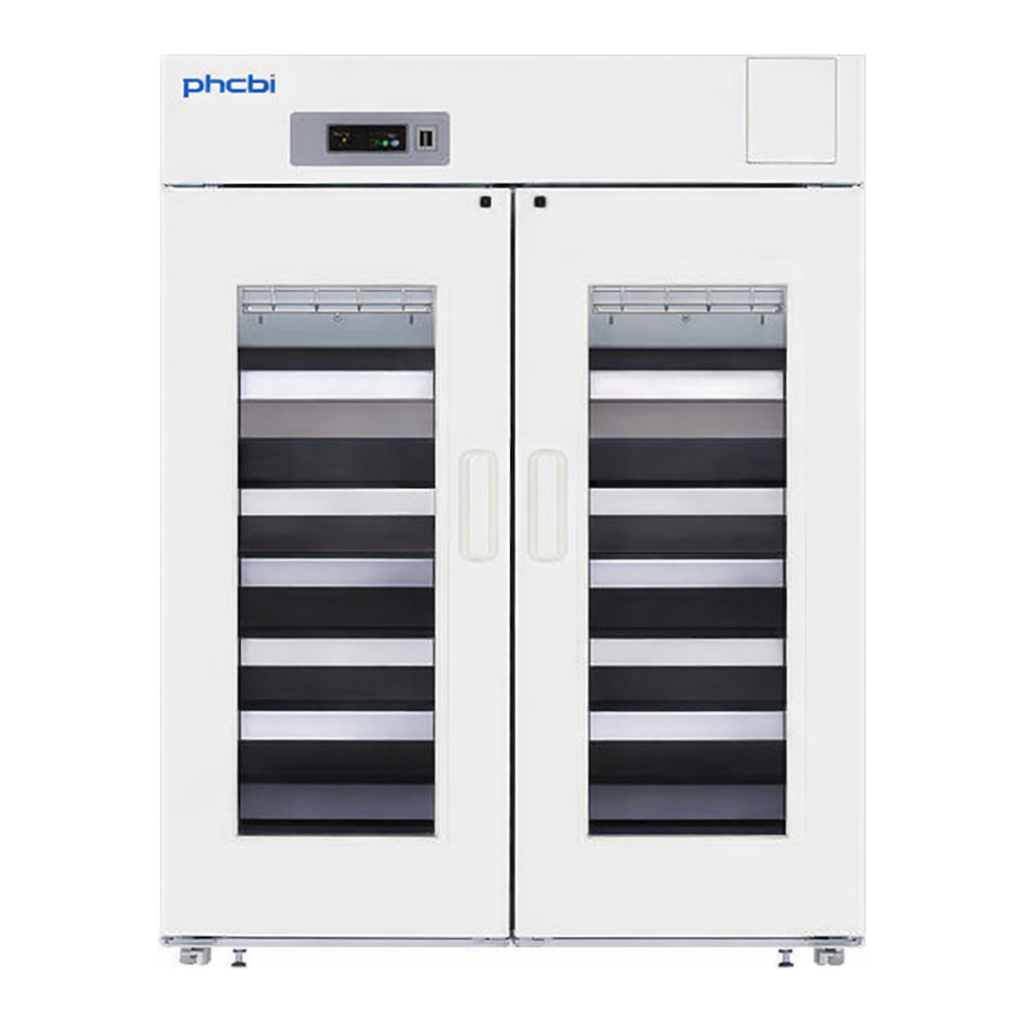

Pharmaceutical Vaccine Refrigerator MPR-1412R

Airflow Assures Quick Recovery and Interior Uniformity

The MPR-1412R large-capacity Pharmaceutical Refrigerator with solid steel drawers provides stable and reliable temperature control for clinical, pharmaceutical, and biomedical storage and processing.
Fast recovery following door openings ensures safe storage even with frequent access and high ambient conditions. Vertical forced-air circulation using a blower maintains uniform temperature from top to bottom and front to back.
Internal clearances between shelves or drawers allow positive airflow, restoring temperature to setpoint quickly after door openings.
Temperature range: 2°C to 23°C, suitable for tests requiring stable, cool temperatures or general cold storage.

Manufactured by PHCbi, this refrigerator meets the highest standards for pharmaceutical use. It features effective temperature control, quiet operation, ease of use, and ergonomic design.

---

Benefits

• Temperature stability
• Wide temperature range
• Speedy and powerful refrigeration
• Easy-to-manage layout
• Large capacity
• Cycle defrost
• Filterless condenser reduces cleaning maintenance

---

Features

• Adjustable shelves
• Standard alarm and safety features
• HFC and HFO combined (CFC-free) refrigerant and insulation
• Top-mounted air circulation blower
• Cycle defrost

---

Performance Data

AT 35°C Pull-down & Pull-up Temperature

Air temp. at center of chamber
Ambient temp. 35°C
Internal temperature (°C) vs Time (hour)

• Pull-down (pink line)
• Pull-up (blue line)

This graph illustrates temperature recovery performance under 35°C ambient conditions.

---

Test of Permissible Inside Thermal Load

Inside thermal load (W) vs Ambient temperature (°C)

X축 (Ambient temperature, °C)	Y축 (Inside thermal load, W)
0–35	0–900

Legend: 23°C, 10°C, 5°C, 2°C
Each curve represents the thermal load performance under different internal temperature settings.

---

Specifications

항목	내용
External Dimensions (W×D×H)	1440 × 830 × 1950 mm
Internal Dimensions (W×D×H)	1320 × 710 × 1500 mm
Volume	1359 L
Net Weight	287 kg
Temperature Setting Range	+2 to +23 °C
Temperature Control Range	+2 to +14 °C (at fridge part center, AT -5 to 0°C) +2 to +23 °C (at fridge part center, AT 0 to 35°C)
Controller	Microprocessor with non-volatile memory (Safety Lock with keypad)
Display	LED
Temperature Sensor	Thermistor
Cooling Method	Forced cool air circulation
Defrost Method	Forced type (cycle defrost), fully automatic
Refrigerant	HFC and HFO combined (CFC-Free)
Insulation Material	Rigid polyurethane foamed insulation (CFC-free)
Exterior Material	Painted steel
Interior Material	Painted steel
Outer Doors	2 doors, double pane glass, self-closing
Outer Door Lock	Yes
Shelves	10 solid steel drawers (550 × 530 × 100 mm, adjustable)
Max. Load per Shelf/Drawer	40 kg
Max. Load Total	400 kg
Access Port	3 (Left / Right / Top)
Access Port Diameter	30 mm
Casters	4
Interior Light	Fluorescent
Power Failure Alarm	R (V-B optional)
High Temperature Alarm	V-B-R
Low Temperature Alarm	V-B-R
Door Open Alarm	V-B
Power Supply	Local
Noise Level	48 dB(A)

---

Options

항목	모델명
Temperature chart recorder	MTR-0621LH-PE
Chart paper	RP-06-PW
Recorder housing	MPR-S30-PW
Circular type recorder	MTR-G04C-PE
Chart paper	RP-G04-PW
Ink pen	PG-R-PW
Recorder housing	MPR-S7-PW
External mounting power failure alarm	MPR-48B1-PW
Blackout panel	MPR-72BP-PW

---

Dimensions

Front View

1440
60   615   1320   615   60
1885
1950
65

Side View

830
710
90
300
Acess port
1500
1030

---
