MPR-722R MPR Pharmaceutical Refrigerators
Pharmaceutical Vaccine Refrigerator MPR-722R Features
Airflow Assures Quick Recovery, Interior Uniformity
The MPR-722R large capacity Pharmaceutical Refrigerators (with drawers) delivers stable, reliable temperature control for clinical, pharmaceutical, biomedical storage and processing. Fast recovery following door openings assures safe storage even with frequent access and high ambient conditions and to remove heat loads generated by powered instruments. Vertical, forced air circulation with blower creates a uniform temperature at all shelf or drawer levels, top to bottom and front to back. Internal shelf or drawer clearances permit positive airflow to help restore temperature to setpoint following door openings, and safely accommodates busy, high traffic demand for access to stored contents in pharmacies, clinics and hospitals.
With a temperature range of 2°C to 23°C, the MPR-722R Pharmaceutical Refrigerator is ideally suited for many tests that require a stable, cool temperature or general cold storage.
Manufactured and distributed by PHCbi, all our Laboratory Refrigerators / Pharmacy Fridges / Vaccine Fridges / lab fridges are designed to meet the most exacting standards required of a specialist Pharmaceutical Refrigerator. Effective, reliable temperature control, quiet operation, ease of use and ergonomic design are just a few of the features you can expect as standard from a PHCbi Refrigerator.
Benefits
- Temperature Stability
- Wide Temperature Range
- Speedy and Powerful Refrigeration
- Easy-to-Manage Layout
- Large Capacity
- Cycle Defrost
- A filter less condenser cuts down on cleaning maintenance
Features
- Solid Steel Drawers
- Standard Alarm and Safety Features
- HFC and HFO combined (CFC-Free) Refrigerant & CFC-Free Insulation
- Top-mounted air circulation blower
- Cycle Defrost
Pharmaceutical Vaccine Refrigerator MPR-722R Performance Data
AT35˚C Pull-down & Pull-up Temperature
Test of permissible inside thermal load

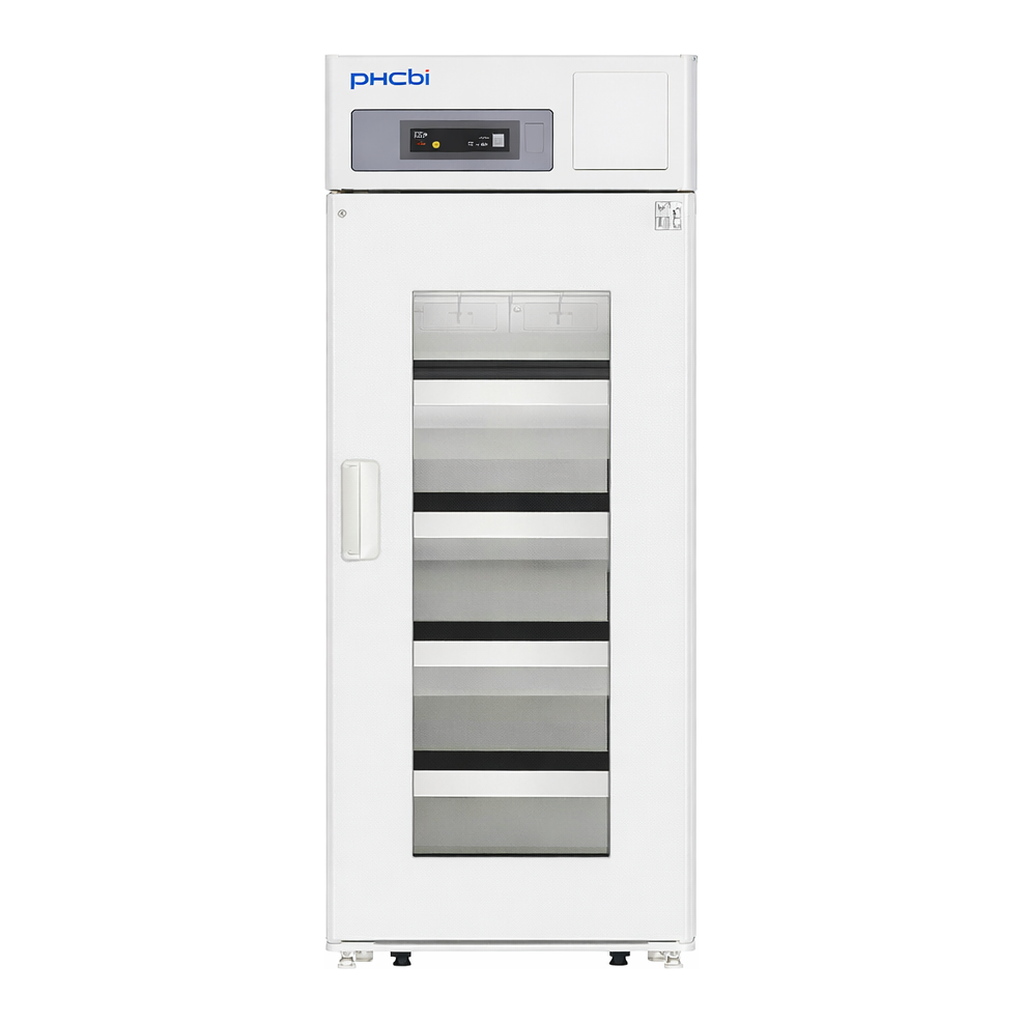

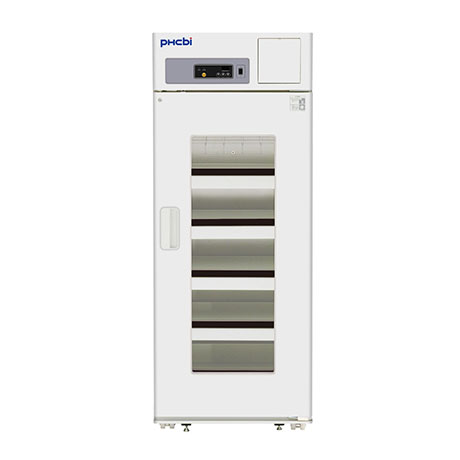

Pharmaceutical Vaccine Refrigerator MPR-722R Product Photos
Pharmaceutical Vaccine Refrigerator MPR-722R Specifications
| External Dimensions (W x D x H) | 770 x 830 x 1955 mm |
| Internal Dimensions (W x D x H) | 650 x 710 x 1500 mm |
| Volume | 671 liters |
| Net Weight | 193 kg |
| Temperature Setting Range | +2 to +23 °C |
| Temperature Control Range | +2 to +14 °C (at fridge part center, AT -5 to 0ºC) +2 to +23 °C (at fridge part center, AT 0 to 35ºC) |
| Controller | Microprocessor with non-volatile memory (Safety Lock with keypad) |
| Display | LED |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced cool air circulation |
| Defrost Method | Forced type (cycle defrost), fully automatic |
| Refrigerant | HFC and HFO combined (CFC-Free) |
| Insulation Material | Rigid polyurethane foamed insulation (CFC-free) |
| Exterior Material | Painted steel |
| Interior Material | Painted steel |
| Outer Doors | 1 door, double pane glass, self closing |
| Outer Door Lock | Y |
| Shelves | N |
| Drawers | 5 solid steel drawers (painted steel, 550 x 530 x 100 mm) |
| Max. Load - Per Shelf/Drawer | 40 kg |
| Max. Load - Total | 200 kg |
| Access Port | 3 |
| Access Port Position | Left / Right / Top |
| Access Port Diameter | 30 mm |
| Casters | 4 |
| Interior Light | Fluorescent |
| Power Failure | R (V-B optional) (V=Visual alarm, B=Buzzer, R=Remote alarm) |
| High Temperature | V-B-R (V=Visual alarm, B=Buzzer, R=Remote alarm) |
| Low Temperature | V-B-R (V=Visual alarm, B=Buzzer, R=Remote alarm) |
| Door Open | V-B (V=Visual alarm, B=Buzzer) |
| Power Supply | Local |
| Noise Level | 48 dB [A] |
Options
| Temperature chart recorder | MTR-0621LH-PE |
| Chart paper | RP-06-PW |
| Recorder housing | MPR-S30-PW |
| Circular type recorder | MTR-G04C-PE |
| Chart paper | RP-G04-PW |
| Ink pen | PG-R-PW |
| Recorder housing | MPR-S7-PW |
| External mounting power failure alarm | MPR-48B1-PW |
| Blackout panel | MPR-72BP-PW |
