MLS-3781L Laboratory Autoclaves

MLS-3781L Laboratory Autoclaves

Convenient Sterilisation on Demand

The MLS-3781L top-loading autoclave provides a safe, reliable high-pressure steam sterilising environment within a self-contained unit that is particularly easy to use. These reliable, energy-saving autoclaves are ideal for a wide range of laboratory applications.

PHC Europe B.V. also offers three other sizes of the same type MLS Portable Laboratory Autoclave:

• MLS-3020U (48 litres)
• MLS-3751L (50 litres)

Benefits

• Surprisingly large chamber

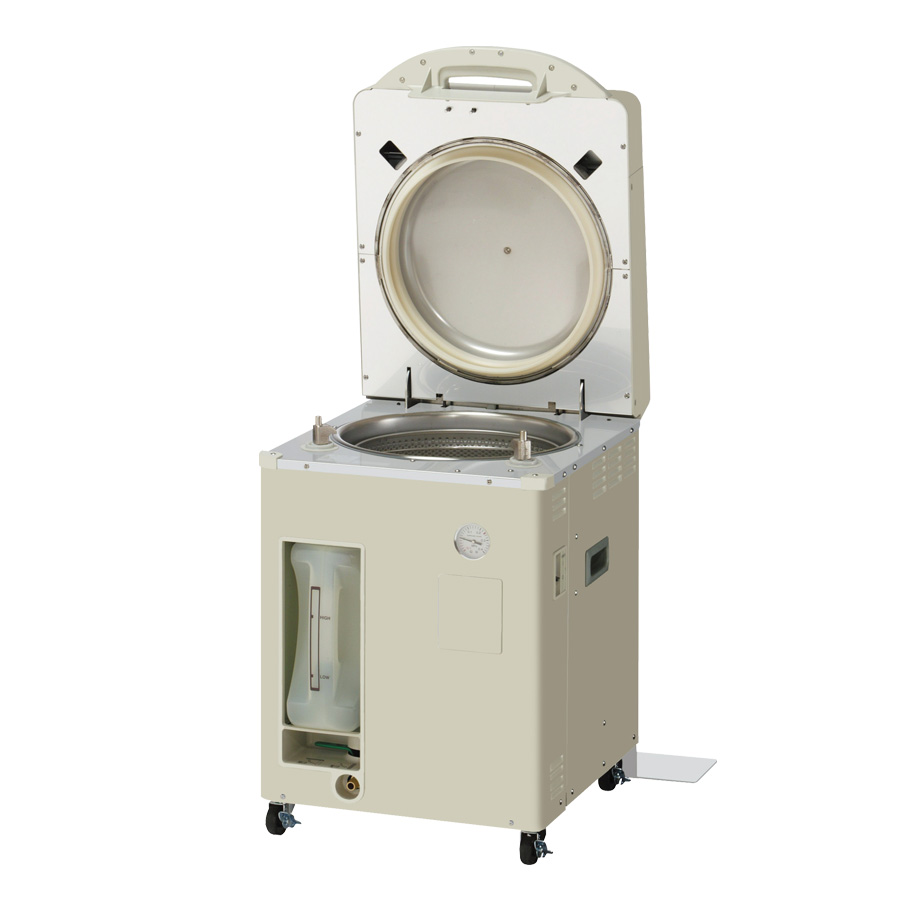

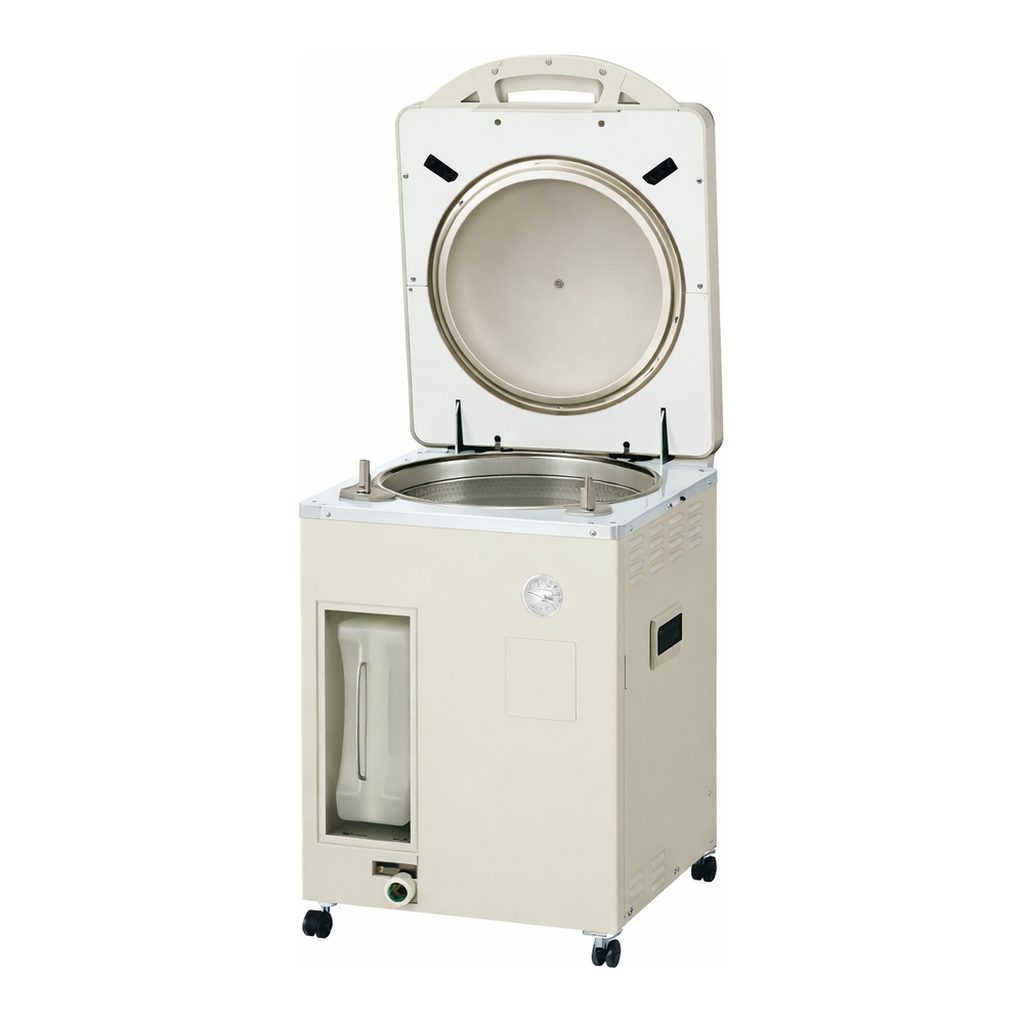

• Compact design with swing-up lid for easy access

Features

• Thermal printer (optional)
• Microprocessor temperature control
• Air vent control

---

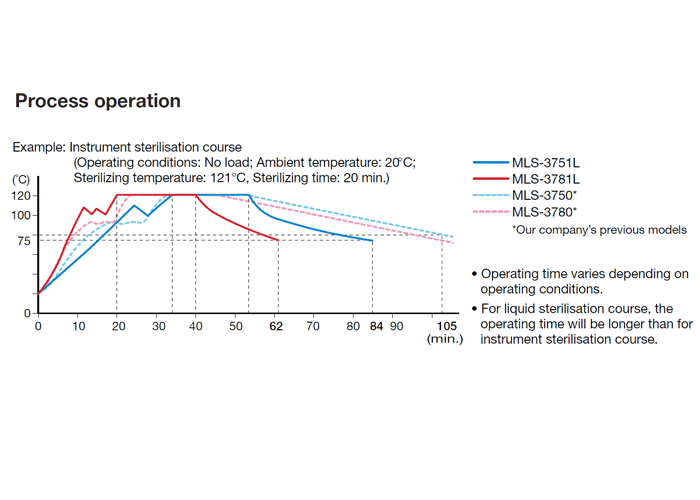

Performance

Process Operation Example: Instrument sterilisation course
(Operating conditions: No load; Ambient temperature: 20°C;
Sterilising temperature: 121°C, Sterilising time: 20 min.)

Temperature (°C)	Time (min.)
0	0
75	10
100	20
120	30
121	40
100	62
75	84
0	105

Legend:

• Blue solid line: MLS-3751L
• Red solid line: MLS-3781L
• Purple dashed line: MLS-3750*
• Pink dashed line: MLS-3780*
  *Our company’s previous models

Notes:

• Operating time varies depending on operating conditions.
• For liquid sterilisation course, the operating time will be longer than for instrument sterilisation course.

---

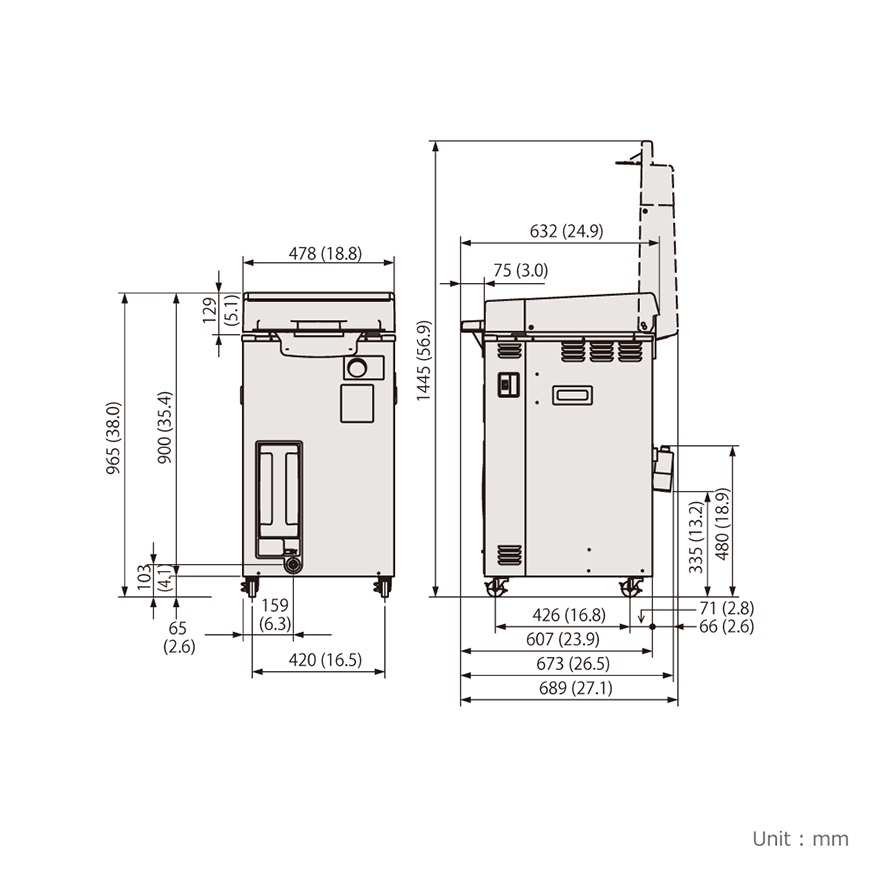

Dimensions

구분	치수 (mm)	치수 (inch)
전체 높이 (전면)	965	38.0
본체 높이	900	35.4
하단 여유	103	4.1
바닥 간격	65	2.6
하단 폭	159	6.3
본체 폭	420	16.5
상단 두께	129	5.1
전체 폭	478	18.8
전체 높이 (측면)	1445	56.9
본체 깊이	632	24.9
상단 돌출	75	3.0
하단 깊이	426	16.8
중간 깊이	607	23.9
전체 깊이	673	26.5
최대 깊이	689	27.1
중간 높이	335	13.2
돌출부 높이	480	18.9
돌출부 두께	71	2.8
하단 두께	66	2.6

단위: mm (inch)

---
