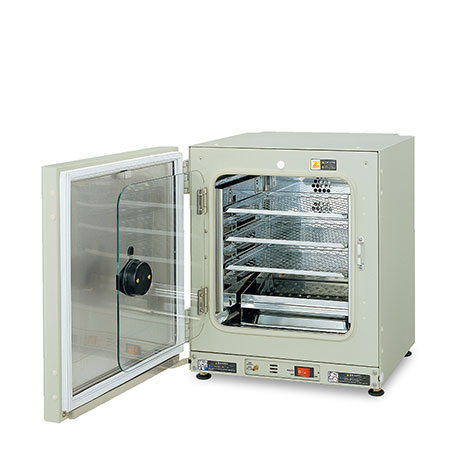

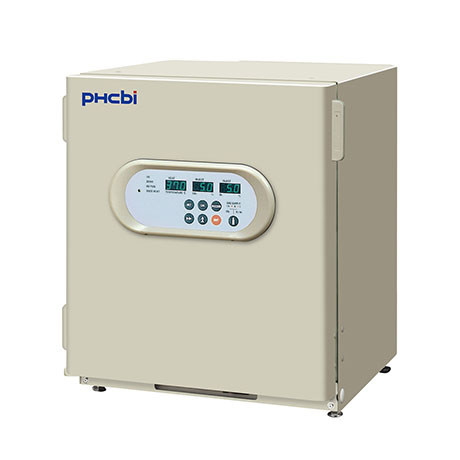

MCO-5M IncuSafe Multigas Incubators

MCO-5M IncuSafe Multigas Incubators

Personal-size Compact Multigas Incubator

The PHCBI MCO-5M IncuSafe Multigas Incubator provides precise CO₂ and O₂ level control to ensure a stable cell culture environment. Equipped with multiple patented technologies, it delivers safe and reliable in-vitro performance. Its compact design allows stacking up to three units, optimizing laboratory space.

This professional-grade incubator integrates inCu-saFe and SafeCell UV contamination control technologies, making it ideal for:

• One-donor/one-chamber use
• Patient-derived cell incubation
• In-vitro fertilization (IVF)
• Personal or small-scale laboratory research

For larger capacity, PHC Europe B.V. offers the MCO-170M model with 161 L volume.

---

Benefits

• Preventive contamination control
• Ergonomic, space-saving design
• Improved temperature stability with direct heat system
• Active background contamination control
• No need for heat decontamination
• High-performance in-vitro modeling
• Suitable for IVF applications

---

Features

• Automatic O₂ cylinder switchover system
• Compact, triple-stacking ergonomic design
• TC sensor system
• Active background contamination control
• Patented direct heat and air jacket heating system
• inCu-saFe copper-alloy stainless interior, shelves, and plenum
• SafeCell UV continuous active background sterilization
• Field-reversible door
• Water level sensor

---

Specifications

항목	사양
External Dimensions (W × D × H)	480 × 548 × 575 mm
Internal Dimensions (W × D × H)	350 × 378 × 375 mm
Volume	49 L
Net Weight	50 kg
Temperature Control Range & Fluctuation	AT +5 ~ +50 °C, ±0.1 °C
Temperature Uniformity	±0.25 °C
CO₂ Control Range & Fluctuation	0 ~ 20 %, ±0.15 %
O₂ Control Range & Fluctuation	1–18 % and 22–80 %, ±0.2 %
Humidity Level & Fluctuation	95 %, ±5 %RH
Sterilisation Method	-
Temperature Sensor	Thermistor
CO₂ Sensor	TC
O₂ Sensor	Stabilized Zirconia Sensor
Exterior Material	Painted Steel
Interior Material	Stainless Steel Copper-Enriched Alloy
Insulation Material	Rigid polyurethane, foamed-in place
Heating Method	Direct Heat & Air Jacket System
Outer Door	1
Field Reversible Door	Included
Inner Door	1
Shelf Dimensions (W × D × H)	310 × 310 × 12 mm
Max. Load Per Shelf	4 kg
Max. Shelf Capacity	6
Access Port	1 (rear upper left, Ø30 mm)
Power Supply	Local specification
Frequency	Local specification
Noise Level	24 dB

---

Accessories

품목	모델 번호
Shelves and brackets (InCu-saFe)	MCO-30ST-PW
Roller base	MCO-5RB-PW
CO₂ gas pressure regulator	MCO-100L-PW
Automatic CO₂ switchover system	MCO-5GC-PW
UV-system kit	MCO-18UVS-PW
Stacking kit	Standard
Digital interface	MTR-480-PW
Analogue interface	MCO-420MA-PW

---

Price

모델	가격
MCO-5M	Price Upon Inquiry (문의 요망)

---

Dimensions

도면상의 주요 치수 정보는 다음과 같습니다.

• 측면도: 480 mm (18.9 in), 350 mm (13.8 in), 21 mm (0.8 in), Access port, 100 mm (3.9 in), 575 mm (22.6 in), 375 mm (14.8 in)
• 정면도: 548 mm (21.6 in), 378 mm (14.9 in), 310 mm (12.2 in)
• 단위: mm

---

이미지 내 텍스트 반영

이미지 1 (전면 상단 로고):

• “PHCbi”

이미지 2 (제어 패널):

• 경고 표시: ⚠️ “CAUTION HOT”
• 버튼 및 표시: “POWER”, “HEATER”, “TIMER”, “TEMP”, “ON/OFF”, “SET”, “START/STOP”

---

제품 이미지
