Features
All-round performance
The MIR-554 Cooled Incubator with a capacity 406 liters of is recognized as an exceptional unit suitable for a wide range of applications requiring a -10ºC to +60ºC environment. The wide variety of temperature and lighting patterns that are essential in research, environmental studies and testing can now be accurately reproduced and controlled.
PHC also offers two other sizes of the same type MIR Cooled Incubators:
Benefits
- Programmable with 12 step, 10 program capability.
- Wide temperature range from -10ºC to +60ºC with excellent uniformity.
- Multi-purpose for a wide range of applications from the food industry to water treatment and microbiology.
- Precise Temperature Control For Accurate, Repeatable Conditions.
- Chamber temperature uniformity ±0.5°C.
- Energy Saving Operation.
- Ultimate Secure, Comprehensive Alarm System.
- Modern Design for Exceptional Usability.
- Ultimate Security and Sample Safety.
Features
- High precision microprocessor controller combined with a heater P.I.D. and compressor On-Off system.
- Wide temperature range settable from -10°C to +60°C with control up to ±0.1°C.
- Chamber temperature uniformity ±0.5°C.
- Energy Saving Operation.
- Intelligent LCD Controller.
- Automatic Setting Temperature Alarm.
- Independent Over-temperature Protection Device.
- Programmed Memory Back-up Mechanism.
- Automatic Return Buzzer Switch.
- Key Lock.
- Trouble Monitor (Self Diagnostic Function).

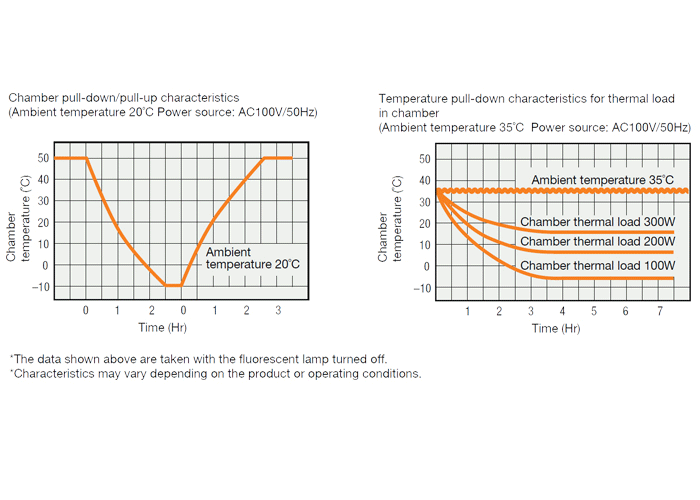

Performance

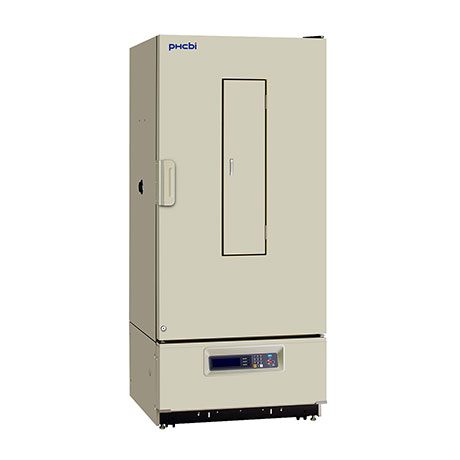

Product Photos
Specifications
| External Dimensions (W x D x H) | 800 x 832 x 1810 mm |
| Internal Dimensions (W x D x H) | 640 x 550 x 1160 mm |
| Volume | 406 litres |
| Net Weight | 195 kg |
| Temperature Control Range | -10°C ~ +60°C (AT +5°C ~ +35°C, no load) |
| Temperature Fluctuation | ±0.2 with Heater PID control (SV 50°C, Ambient Temp 20°C, No load), ±1.5 with Compressor control (SV 5°C, Ambient Temp 20°C, No load) |
| Temperature Uniformity | ±0.5 (SV 37°C, Ambient Temp 20°C, No load) |
| Controller | Microprocessor PID System (ON-OFF control when compressor operates) |
| Display | LCD |
| Temperature Sensor | Thermistor |
| Cooling Method | Forced air circulation |
| Compressors | 250 W |
| Refrigerant | |
| Insulation Material | PUF |
| Insulation Thickness | 80 mm |
| Exterior Material | Painted steel |
| Interior Material | SS SUS-304 |
| Outer Doors | |
| Outer Door Lock | |
| Reversible Door | |
| Inner Doors | |
| Shelves | |
| Max. Load Per Shelf | 50 kg |
| Max. Total Load | 250 kg |
| Access Port | |
| Access Port Position | left and right side |
| Access Port Diameter | 40 |
| Interior Fluorescent Lamp | 1, 15 W, with MIR-L152 option |
| Power Failure | - |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Door Open | V-B |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 45 dB |

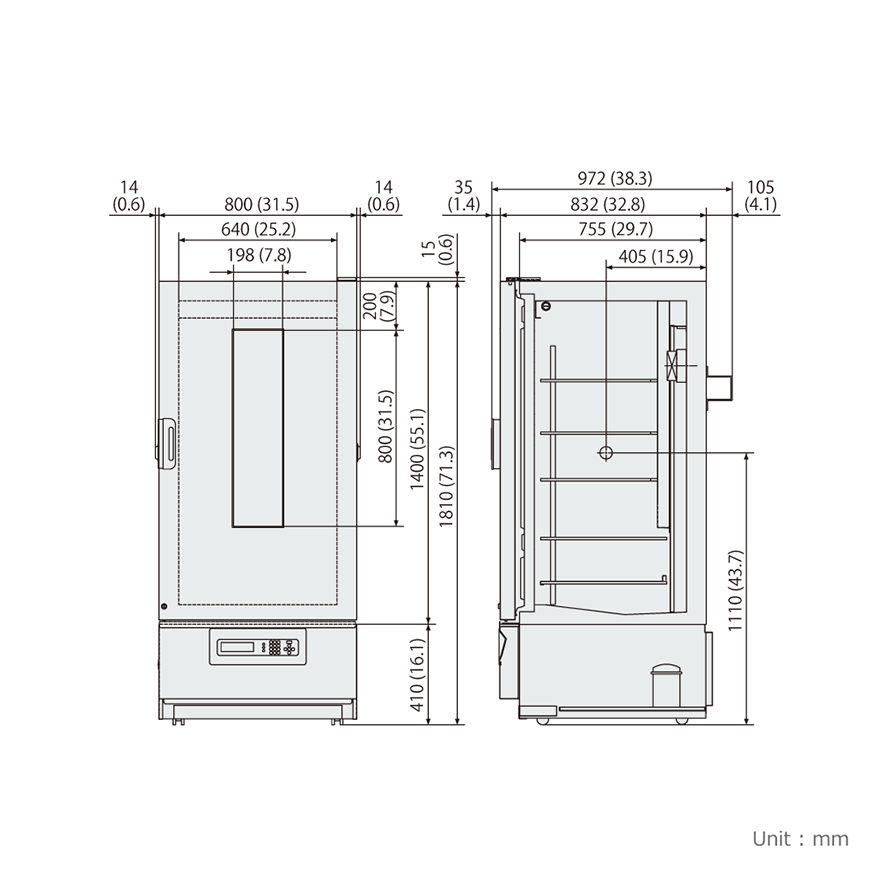

Dimensions
