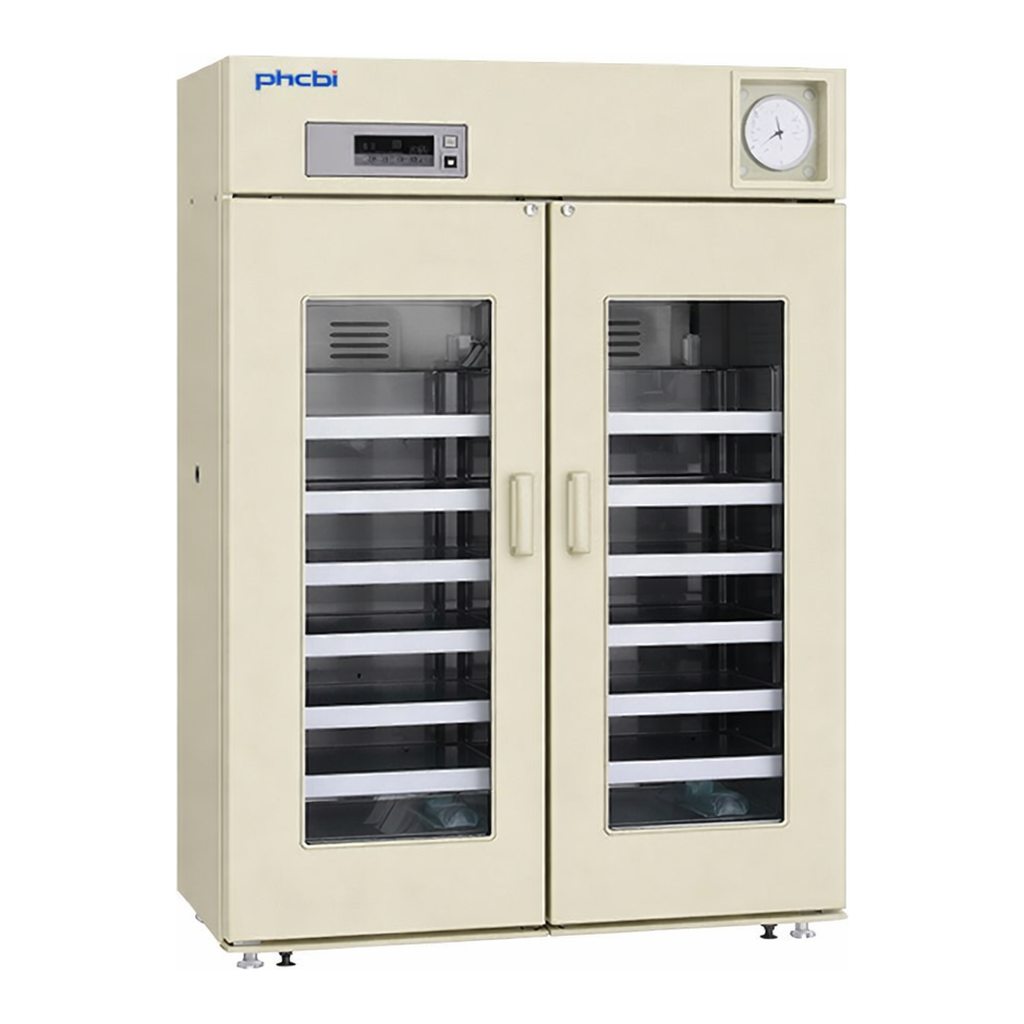

MBR-1405GR Blood Bank Refrigerators
Features
Robust design for safest storage of whole blood
The MBR-1405GR Blood Bank Refrigerator is designed to is designed to store 720 pcs of 450ml blood bags by the reliable temperature control utilizing PHCbi original technology. A special highly efficient compressor designed and developed by PHCbi provides rapid cooling and quiet performance for each model. Ideally suited for whole blood storage with stable and reliable temperature control for various inventory loads.
MBR Blood Bank Refrigerators with a highly efficient compressor that provides superior temperature recovery, rapid cooling and quiet performance for each model. Designed with all the features for blood product preservation such as superior uniformity, microprocessor control, and large flexible storage capacity. Whatever your preservation needs are, PHCbi provides the right equipment to meet your exact needs.
PHC also offers three other sizes of the same type MBR Blood Bank Refrigerator:
Benefits
- User Friendly Design
- Environmental Friendly
- The Ideal +4°C Environment for Safe & Reliable Storage of Whole Blood
- PHCbi MBR series are designed to minimize cold air loss even with frequent door openings.
Features
- Temperature Control
- Roll-out drawers
- Plexiglas inner doors
- Forced Air Circulation for Enhanced Temperature Stability
- Temperature Monitoring Features
- Fluorescent interior lamp with ON/OFF switch
- Audible and flashing LED visual alarms with remote alarm contacts
- Unified remote monitoring system for PHCbi products (optional)
- PHCbi Data Acquisition Software MTR-2000
Performance

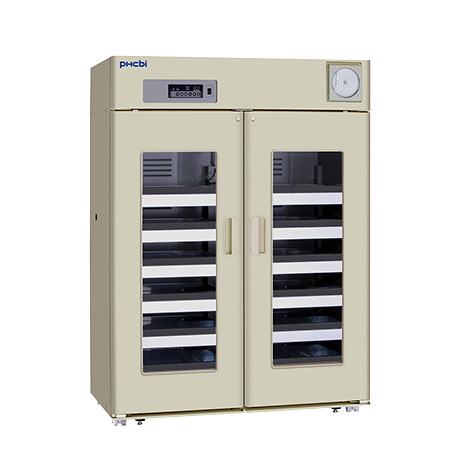

Product Photos
Specifications
| External Dimensions (W x D x H) | 1440 x 830 x 1950 mm |
| Internal Dimensions (W x D x H) | 1320 x 697 x 1500 mm |
| Volume | 1301 litres |
| Net Weight | 315 kg |
| Capacity | 720 bags (450ml) |
| Temperature Setting Range | 4 °C +/-1.5 °C (AT 35°C) |
| Controller | Microprocessor |
| Display | Digital LED |
| Temperature Recorder | MTR-G04 (Included) |
| Temperature Sensor | 2 bottles with thermistor sensor |
| Exterior Material | Baked-on acrylic finish galvanised steel |
| Interior Material | Baked-on acrylic finish galvanised steel |
| Outer Doors | Insulated steel frame with double-layer glass windows |
| Outer Door Lock | 2 |
| Inner Doors | 6 Acrylic |
| Shelves | 12 coated hard steel wire shelves |
| Max. Load - Per Shelf/Drawer | 40 kg |
| Max. Load - Total | - |
| Access Port | 2 |
| Access Port Position | left and right hand side |
| Access Port Diameter | 30 |
| Casters | 4 |
| Interior Light | - |
| Power Failure | Y |
| High Temperature | Y |
| Low Temperature | Y |
| Door Open | Y |
| Power Supply | Local |
| Noise Level | - |
Accessories
| RS485 interface module | MTR-480-PW |
| Temperature chart recorder | included |
| chart paper | RP-G04-PW |
| Ink pen | PG-R-PW |
Dimensions
