Features
Optimising cell culture outcomes and reproducibility
We understand that creating successful cell cultures requires a CO2 incubator that offers the highest levels of precision, security and ease of use.
Our latest IncuSafe MCO-170AIC CO2 Incubators with innovative technologies offer outstanding quality in performance, maximise cell culture productivity and provide optimum results and reproducibility. The MCO-170AICUVH has a built-in UV lamp and a H2O2 Decontamination board and Electric door lock with password.
PHC Europe B.V. also offers three other sizes IncuSafe CO2 Incubators with Safecell UV lamp:
Benefits
- Improved insulation performance and lower running costs
- PID Control of CO2 and temperature
- Dual IR CO2 sensor
- Optimum protection for your cell culturers
- More space for more cultures
- PHCbi’s H2O2 vapour sterilisation cycle reduces downtime to less than 3 hours for complete, validatable decontamination for increased productivity.
Features
- DHA Direct heat and air jacket system
- Dual IR CO2 sensor
- InCu saFe® copper-enriched stainless steel interior
- Standard Safe Cell UV® with NEW increased UV lamp life
- Standard electric door lock with password
- Integrated shelf supports
- Full colour LCD touch screen
- USB port
- H2O2 Decontamination board

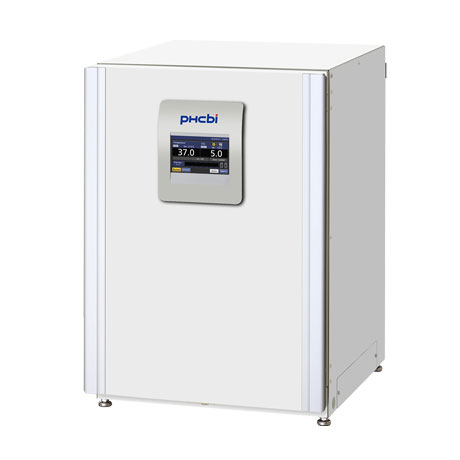

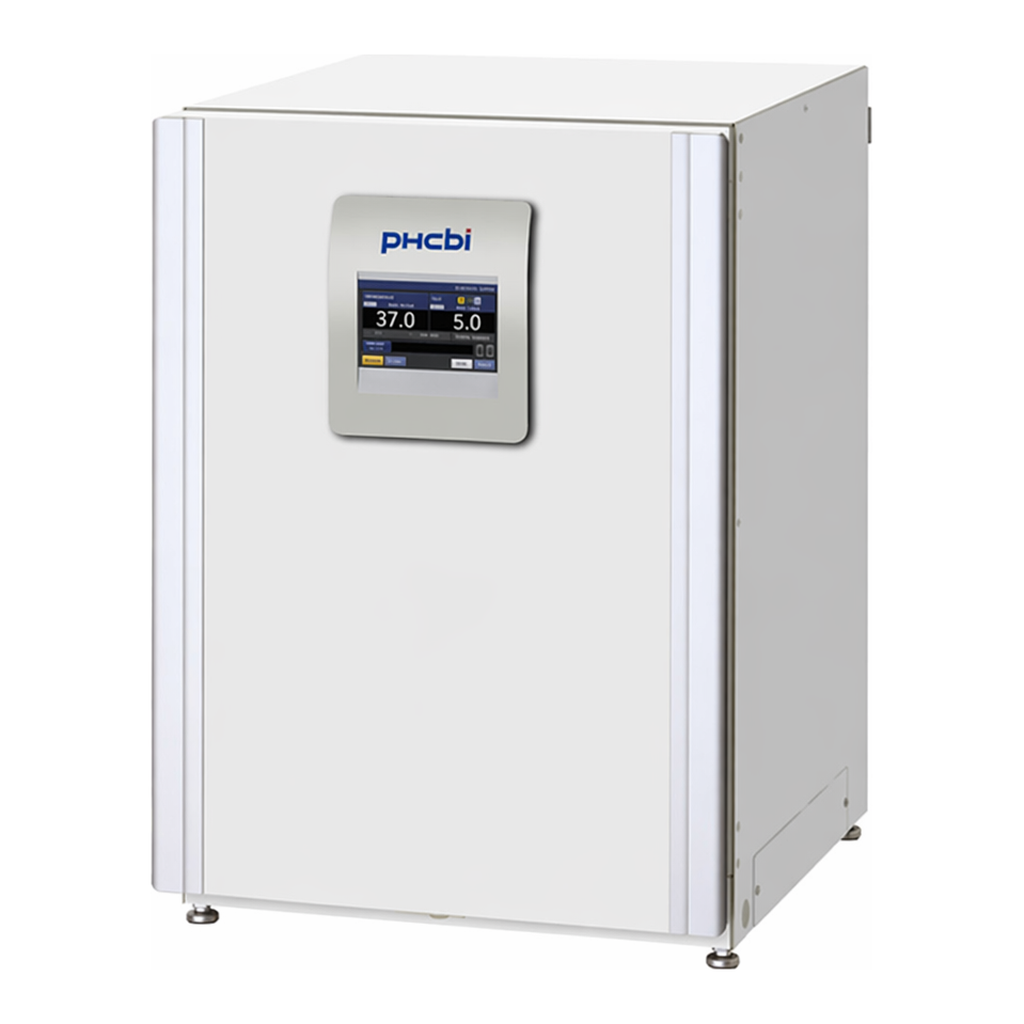

Product Photos

Specifications
|
|
External Dimensions (W x D x H) |
620 x 730 x 905 mm |
Internal Dimensions (W x D x H) |
490 x 523 x 665 mm |
Volume |
165 liters |
Net Weight |
80 kg |
Temperature Control Range & Fluctuation |
AT +5 ~ +50, ±0.1 °C |
Temperature Uniformity |
±0.25 °C |
CO2 Control Range & Fluctuation |
0 ~ 20, ±0.15 % |
O2 Control Range & Fluctuation |
- |
Humidity Level & Fluctuation |
95, ±5 %RH |
Sterilisation Method |
H2O2 Decontamination |
Temperature Sensor |
Thermistor |
CO2 Sensor |
Dual IR |
O2 Sensor |
- |
Display |
|
Exterior Material |
Painted Steel (rear cover not painted) |
Interior Material |
Stainless Steel Copper-Enriched Alloy |
Insulation Material |
Styrene AcryloNitrile copolymer |
Heating Method |
Direct Heat & Air Jacket System |
Outer Doors |
1 |
Outer Door Lock |
Standard |
Field Reversible Door |
Included |
Inner Doors |
1 gastight - made of tempered glass |
Shelves |
|
Shelf Dimensions (W x D x H) |
470 x 450 x 12 mm |
Max. Load Per Shelf |
7 kg |
Max. Shelf Capacity |
10 |
Access Port |
1 |
Access Port Position |
Rear Upper Left |
Access Port Diameter |
30 |
Power Failure |
R |
Out of Temperature Setting |
V-B-R |
High Temperature |
V-B-R |
Out of CO2 Setting |
V-B-R |
Out of O2 Setting |
- |
Door Open |
V-B |
Power Supply |
Local |
Frequency |
Local |
Noise Level |
29 dB |
Accessories
Options
|
|
Safe Cell UV system |
standard |
H2O2 Decontamination board |
standard |
Electric door lock with password |
standard |
H2O2 vapour generator |
MCO-HP-PW |
H2O2 reagent |
MCO-H2O2-PE |
Double stacking bracket |
MCO-170PS-PW |
Stacking plate |
MCO-170SB-PW |
CO2 gas pressure regulator |
MCO-100L-PW |
Automatic CO2 cylinder changeover system |
MCO-21GC-PW |
Semi-automatic one point gas calibration kit |
MCO-SG-PW |
InCu saFe shelf |
MCO-170ST-PW |
InCu saFe half tray system |
MCO-25ST-PW |
Roller base |
MCO-170RB-PW |
Optional communication systems
|
|
Ethernet interface (LAN) |
MTR-L03-PW |
Digital interface (RS232C/RS485) |
MTR-480-PW |
Analogue interface (4-20mA) |
MCO-420MA-PW |
Dimensions
