MBR-705GR Blood Bank Refrigerators

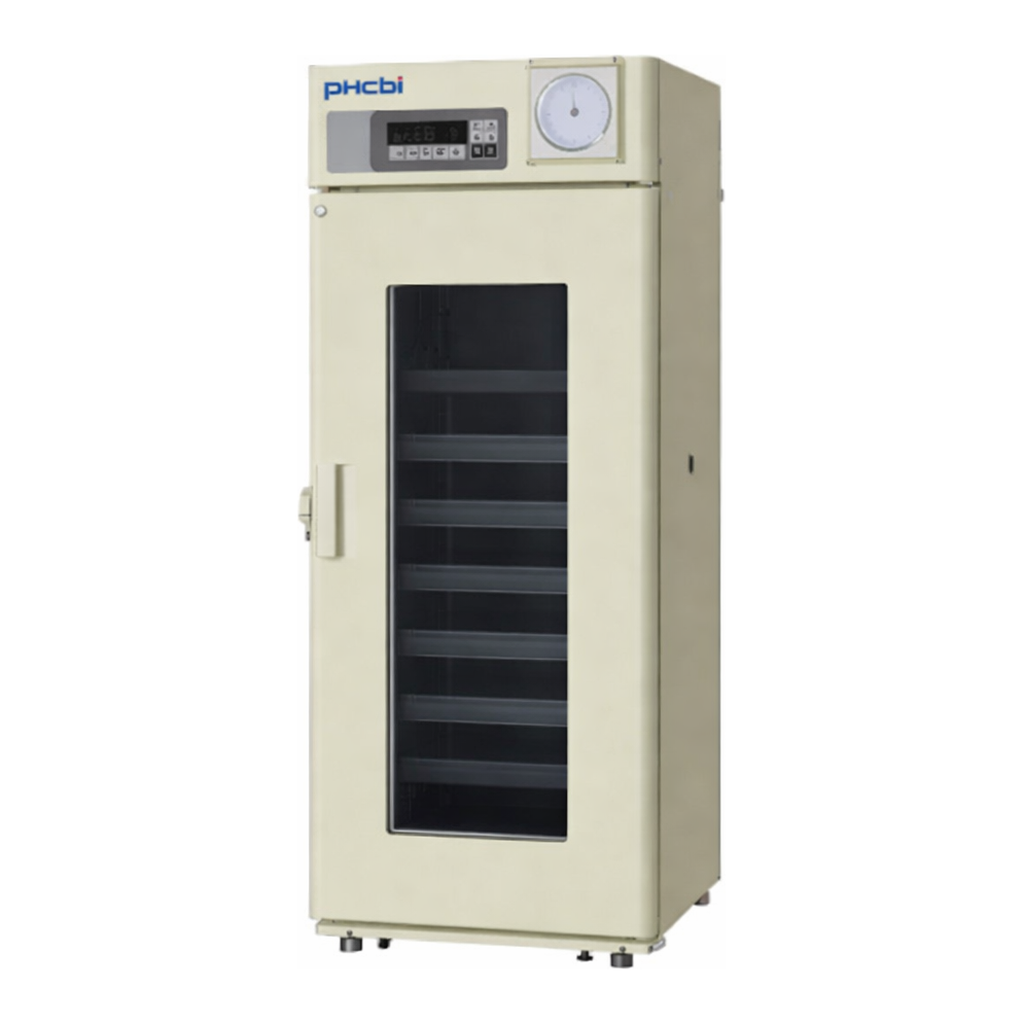

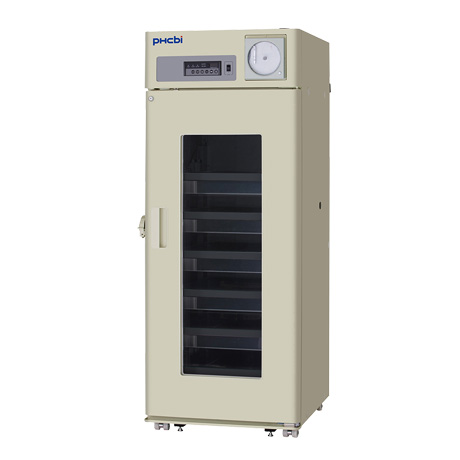

MBR-705GR Blood Bank Refrigerator

Robust Design for Safe Storage of Whole Blood

The MBR-705GR Blood Bank Refrigerator is designed to store up to 360 pcs of 450ml blood bags with stable and reliable temperature control utilizing PHCbi’s original technology.
A highly efficient compressor ensures rapid cooling and quiet performance, ideal for whole blood storage under various inventory loads.

The MBR Series features superior temperature recovery, uniformity, and flexible storage capacity, making it suitable for all blood product preservation needs.

Other Available Models

• MBR-1405GR

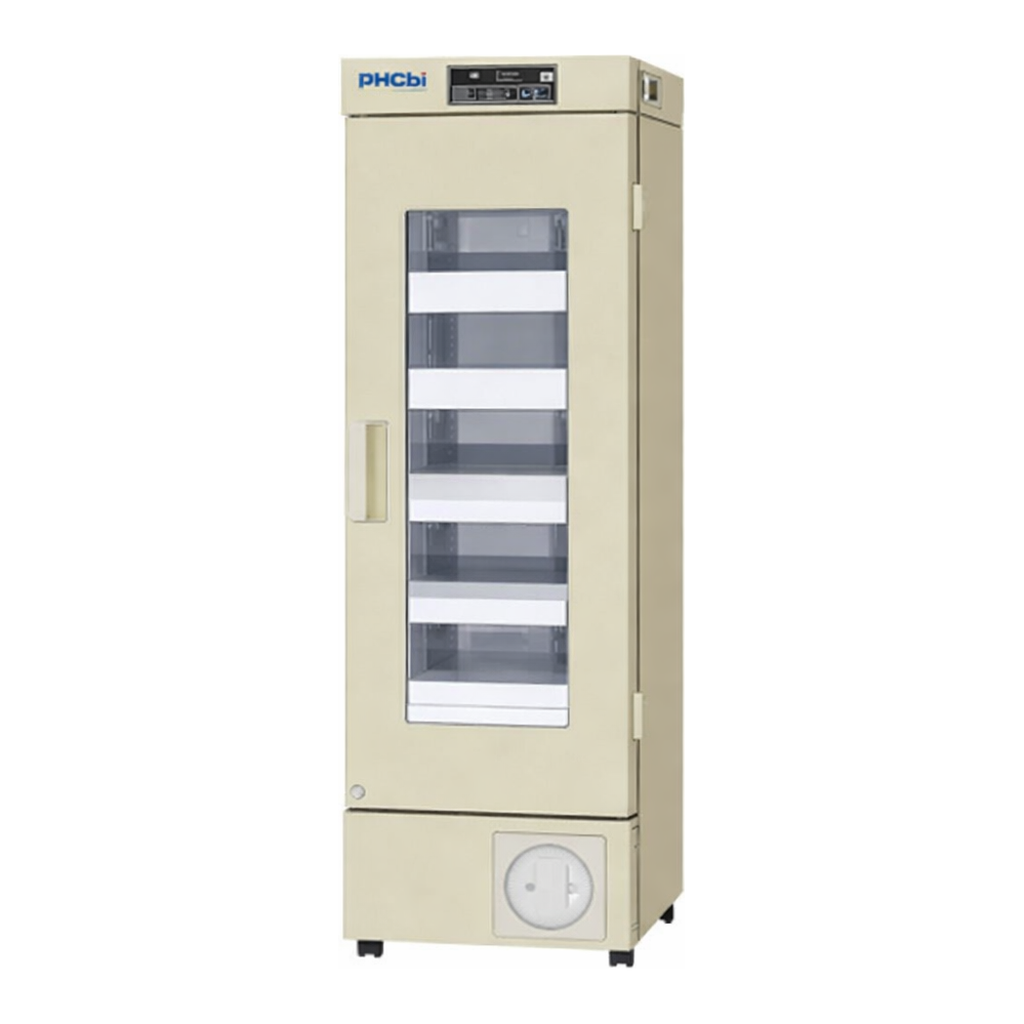

• MBR-305GR

---

Benefits

• Stable Temperature Control
• Forced Air Circulation for Enhanced Temperature Stability
• User-Friendly Design
• Environmentally Friendly Operation
• Ideal +4°C Environment for Safe & Reliable Storage of Whole Blood

---

Features

• Roll-out drawers
• Plexiglas inner doors
• Single outer door
• Temperature monitoring with two thermistor sensors
• Minimizes cold air loss even with frequent door openings
• Audible and flashing LED visual alarms
• Built-in temperature recorder (standard)
• Optional unified remote monitoring system for Panasonic Biomedical products
• Compatible with Panasonic Data Acquisition Software MTR-2000 (analogue module required)

---

Performance

Pull-down Characteristics

• Ambient Temperature: 35°C, no-load
• Power Source:
  • (Dashed line) AC 230 V 50 Hz
  • (Solid line) AC 220 V 60 Hz
• Central Air Temp. in Cabinet
  • Y-axis: Temperature (°C)
  • X-axis: Time (min.)

Pull-up Characteristics During Power Failure

• Ambient Temperature: 35°C, no-load
• (Solid line) Central air temp. in cabinet
• Y-axis: Temperature (°C)
• X-axis: Time (min.)

---

Specifications

Specification	Detail
External Dimensions (W × D × H)	770 × 830 × 1955 mm
Internal Dimensions (W × D × H)	650 × 697 × 1500 mm
Volume	617 L
Net Weight	210 kg
Capacity	360 bags (450 ml)
Temperature Setting Range	4°C ±1°C (at 35°C ambient)
Controller	Microprocessor
Display	Digital LED
Temperature Recorder	MTR-G04 (Included)
Temperature Sensor	2 bottles with thermistor sensor
Exterior Material	Baked-on acrylic finish galvanized steel
Interior Material	Baked-on acrylic finish galvanized steel
Outer Doors	Insulated steel frame with double-layer glass windows
Outer Door Lock	1
Inner Doors	3 Acrylic
Max. Load per Shelf/Drawer	40 kg
Access Ports	2 (left and right sides)
Access Port Diameter	30 mm
Casters	4
Power Failure Alarm	Yes
High/Low Temp. Alarm	Yes
Door Open Alarm	Yes
Power Supply	Local
Noise Level	—

---

Accessories

Accessory	Part Number
RS485 Interface Module	MTR-480-PW
Temperature Chart Recorder	Included
Chart Paper	RP-G04-PW
Ink Pen	PG-R-PW

---

Dimensions

Front View (Left Diagram)

• 770 (30.3)
• 650 (25.6)
• 273 (10.7)
• 5 (0.2)
• 1612 (63.5)
• 1885 (74.2)
• 1955 (77.0)
• 65 (2.6)

Side View (Right Diagram)

• 30 (1.2)
• 60 (2.4)
• 830 (32.7)
• 770 (30.3)
• 697 (27.4)
• 300 (11.8)
• 1500 (59.1)
• 1030 (40.6)

Unit: mm

---
