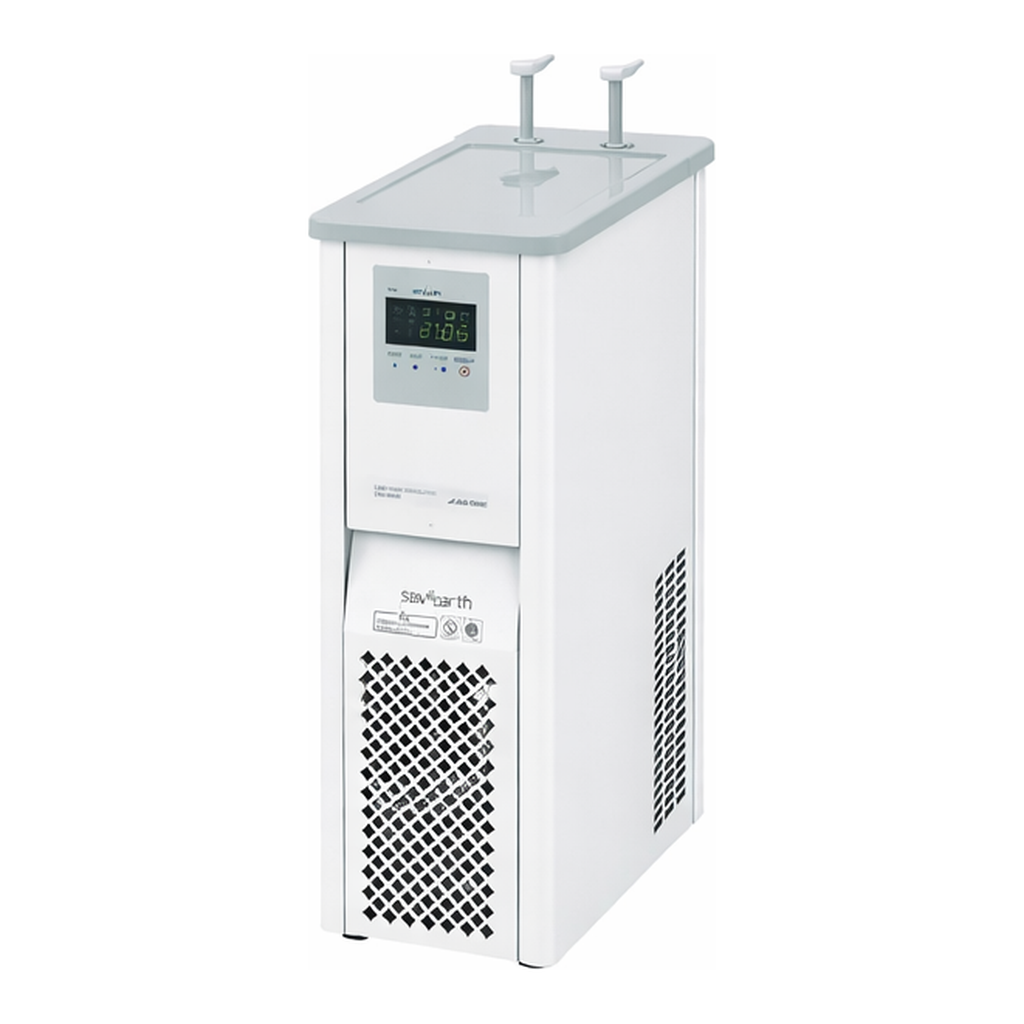

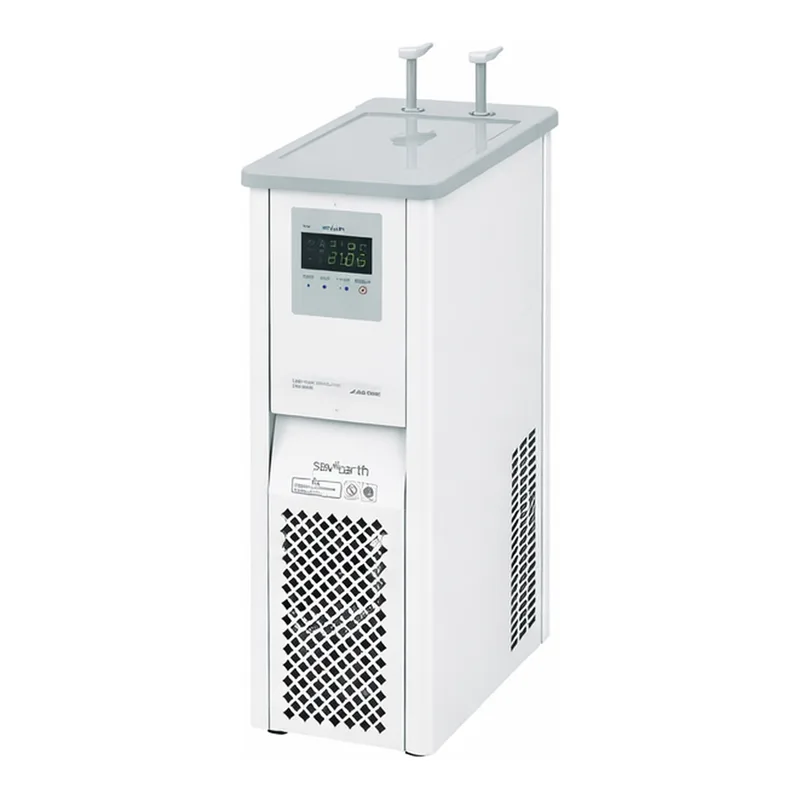

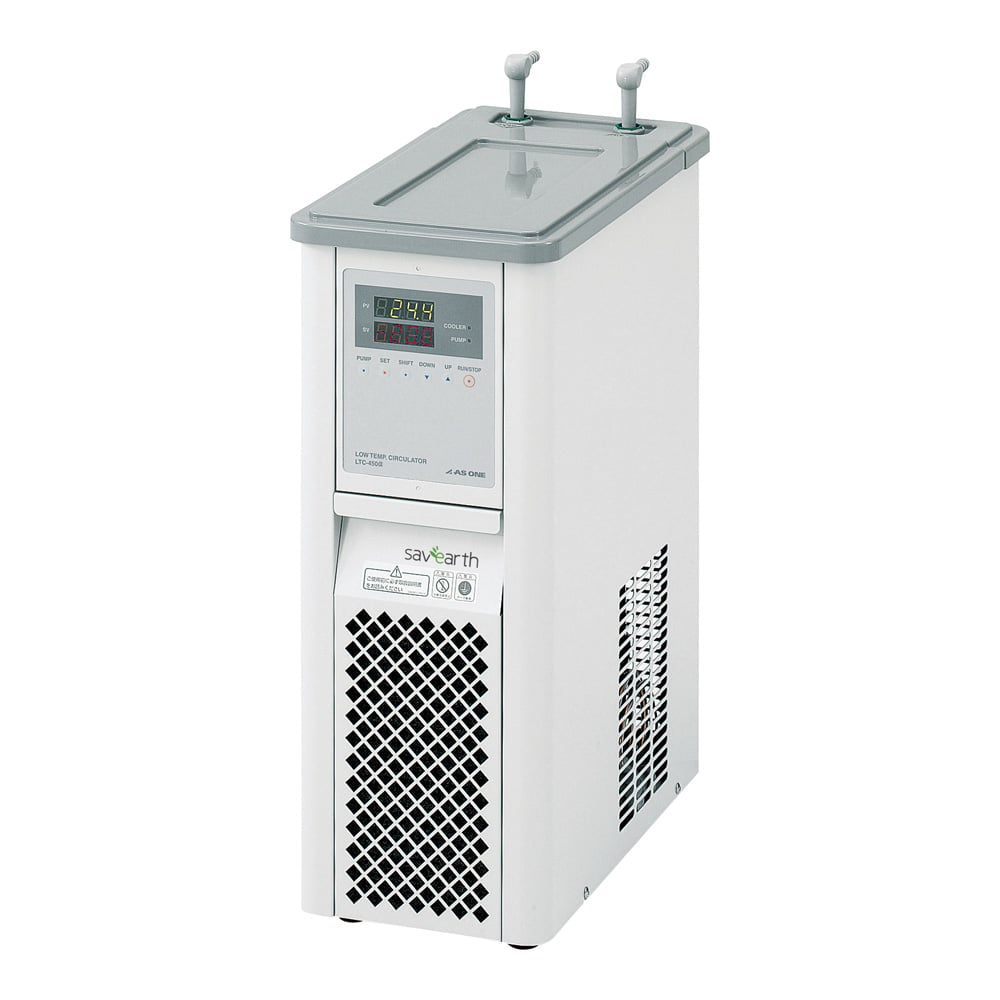

AS ONE 4-4565-01 Cooling Water Circulation Device LTC -450 beta

Features

• Uses R448 A, an earth-friendly low-GWP refrigerant. (GWP: 1386) - GWP is approximately 65% lower than LTC-450 alpha (GWP: 3920).
• Compact and slim, it can be installed in many places.
• Made with durable stainless steel coils.
• It uses a new HFC refrigerant with zero ozone depletion potential.
• The wetted part is made of stainless steel, so it has excellent durability and allows pure water to circulate.
• It has strong cooling capacity and can be used in a wide range of fields.
• With the use of an external temperature sensor, the temperature of the object can be measured directly.
• It has an overload protection device, a high-pressure switch, a safety breaker, and a self-diagnostic function.

Spec

• Temperature range (deg. C): -20 to + 20
• Temperature control accuracy: +/- 2.0 degrees C (Room temperature 20 degrees C/Circulation maximum/Power supply 100 VAC 50/60 Hz/Setting 5 ~ 20 degrees C/No load)
• Circulation system: closed system countercirculation
• Type of solution used: municipal water, pure water, ethylene glycol, etc.
• Circulation pump (50/60 Hz): Maximum flow rate 12/12 L/min, Maximum head 5.4/6.6 m (Circulation pump performance is when the pump is used alone)
• Cooling Capacity: 500 W at 10 C (Ambient temperature: 20 degrees C, 50 Hz, no load.)
• Circulation nozzle outer diameter: 11 mm (adaptable tube inner diameter: 9 mm)
• Refrigerator: 450 W
• Liquid tank: phi 180 x H 180 mm approx. 4.5 L
• Refrigerant: R 448 A
• Power supply: 100 VAC 50/60 Hz
• Timer function: 1 minute to 47 hours 59 minutes (1 minute increments)
• Self-diagnostic function: Upper/Lower temperature anomaly detection/Sensor anomaly/Refrigerator overload relay/Refrigerator protection timer/Power outage detection/Control temperature anomaly/Memory error
• External input/output: External temperature sensor input terminal/analog output terminal for thermometer (1 ~ 5 VDC) Alarm output terminal (12 VDC to 17 VDC)
• Size: 218 x 430 x 563 mm
• Weight: approximately 32 kg
• *Pure water that can be used has a conductivity of 10 microS/cm or more (low purity).
• This product is compatible with the Validation Service (IQ/OQ).　Please contact us.
• *Validation service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed and inspection documents are submitted at the customer`s site.

Package size：525×330×650 mm　 [About Package size]
