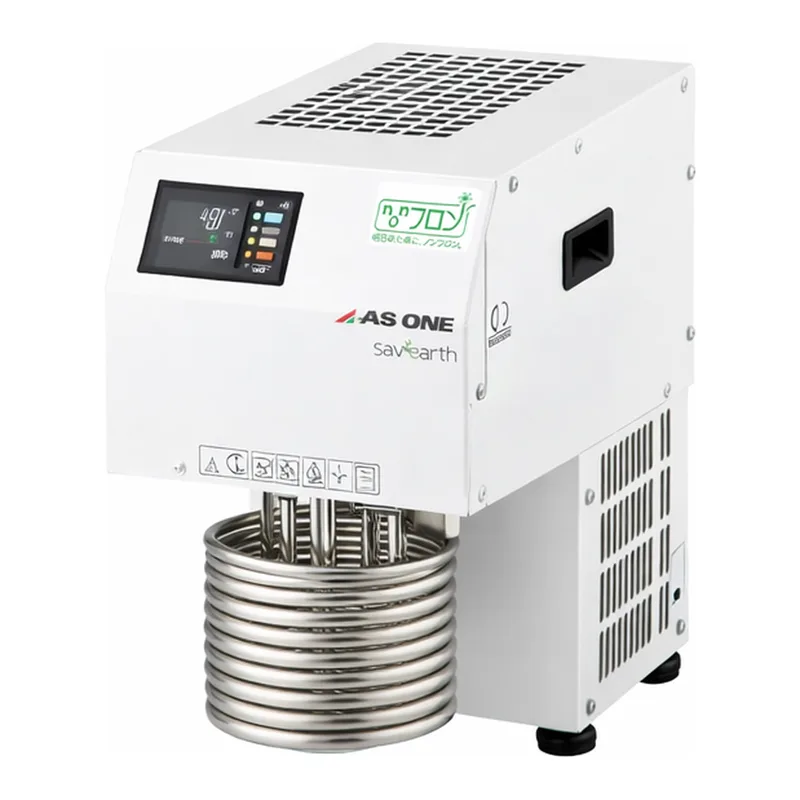

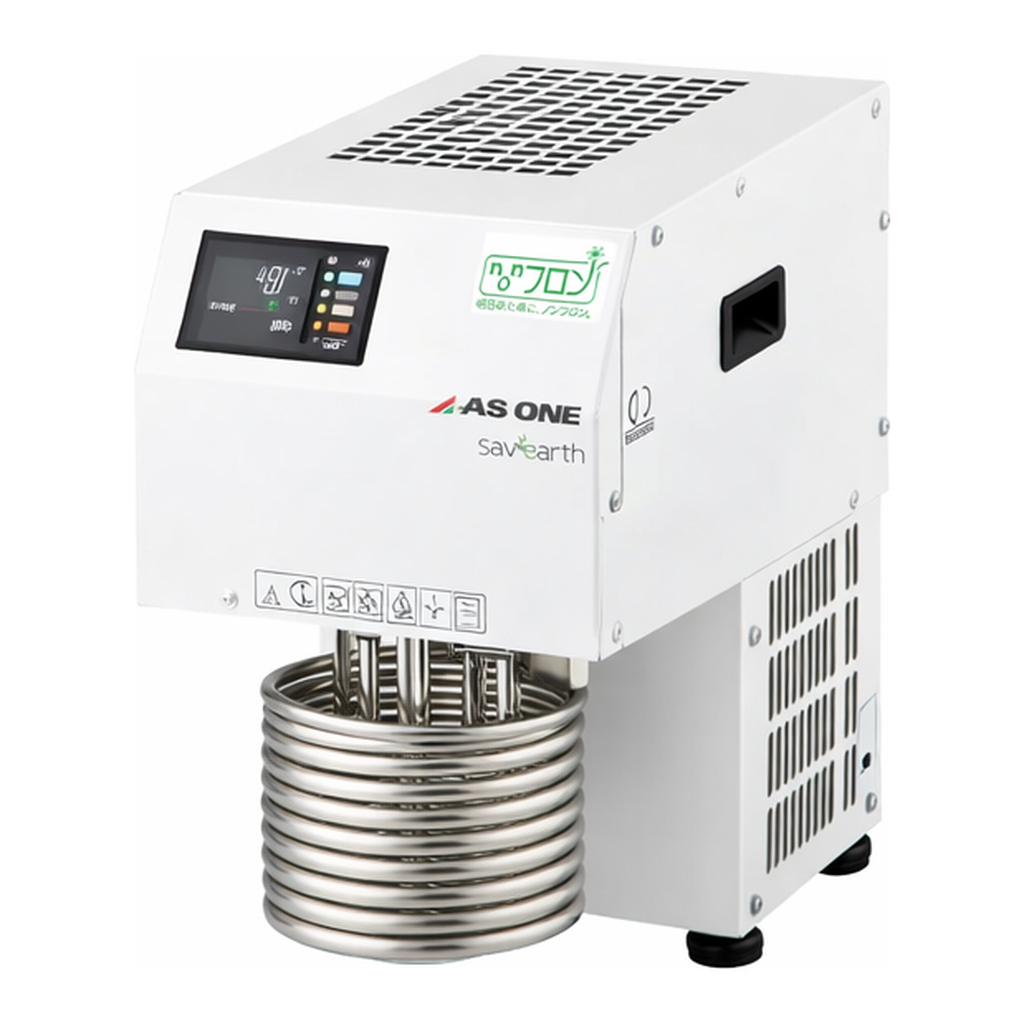

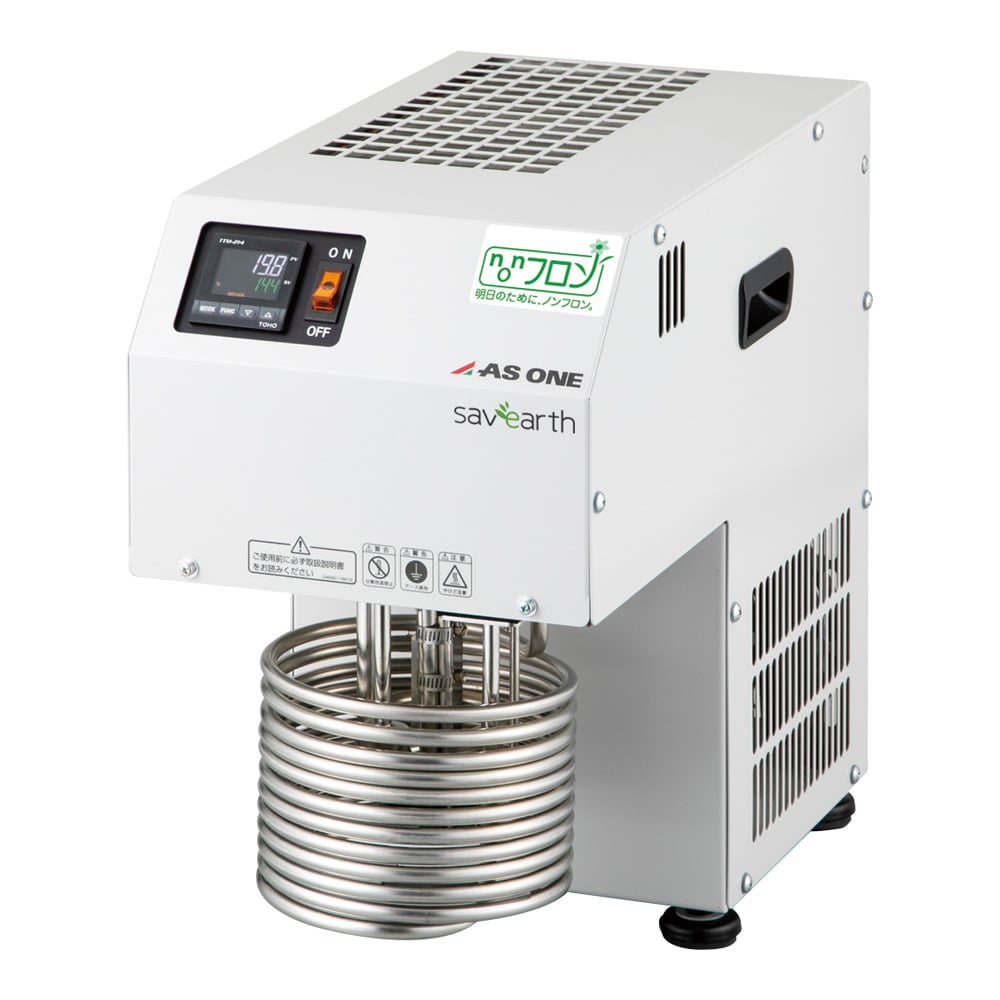

AS ONE 4-4566-01 Non-Flon Multi-Thermo　LCM250AH

Features

• Just add a cooling coil to the water tank for heating and cooling.
• Stirring function is standard.
• It uses R1234yf, an environmentally friendly non-CFC refrigerant with an ozone depletion potential of 0 and a global warming potential of less than 1.
• Since it is not subject to the CFC Emission Control Law, periodic inspections, record keeping, and CFC disposal costs are no longer required.
• It is equipped with various safety protection functions.

Spec

• External dimensions (mm): 230 x 415 x 390 * External dimensions do not include protrusions.
• Number of pieces: 1
• Liquid temperature range: -10 to + 60 degrees C
• Cooling capacity (50/60 Hz): 350 W/370 W/at 20 deg. C, 105 W/145 W/at -10 deg. C * Ambient temperature: 32 deg. C, used solution When operating in ethylene glycol aqueous solution
• Temperature control range: +/- 0.2 degrees C * Ambient temperature: 32 degrees C, set temperature: 20 degrees C, water tank (S -1), reference value when using 12 L of ethylene glycol aqueous solution. It depends on the water tank, liquid amount, set temperature and liquid type.
• Display method: PV/SV digital 2-step display (0.1 degrees Celsius)
• Temperature control method: PID control
• Temperature sensor: Temperature resistor (Pt 100 ohm)
• Type of solution used: fresh water, ethylene glycol aqueous solution
• Refrigerant: R 1234 yf
• Stirring Function: Jet Stirring
• Heating heater: 1000 W
• Protective devices: Ground fault breaker, compressor motor protector, high pressure switch, upper temperature anomaly detection
• Maximum operating current (50/60 Hz): 13.2/12.8 A
• Power supply: 100 VAC 50/60 Hz
• Weight: 18 kg
• *A water tank is not included (recommended: 1 -4163 - 01).

Package size：325×500×465 mm　 [About Package size]
