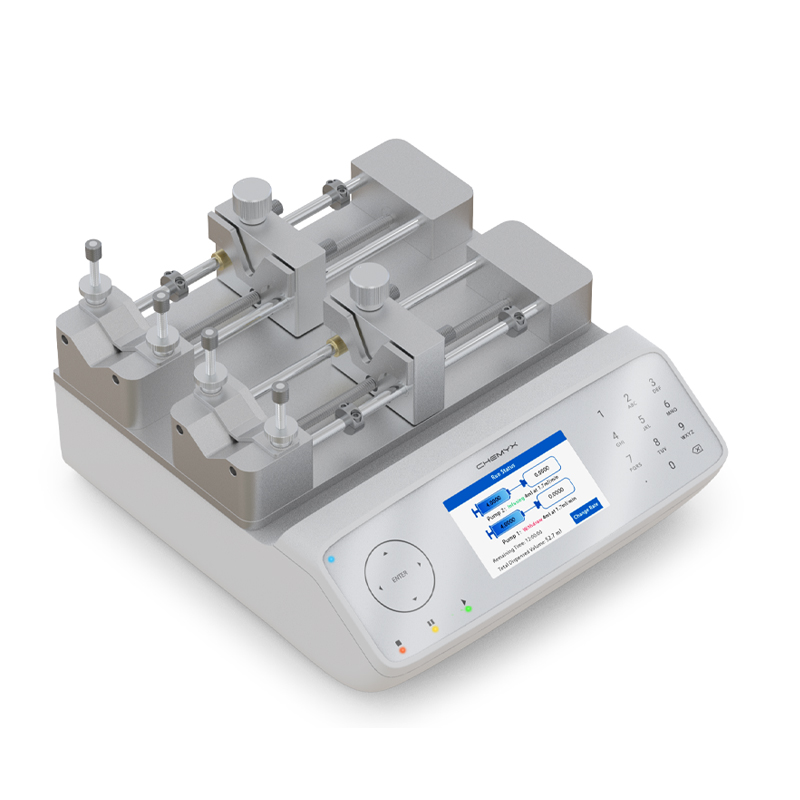

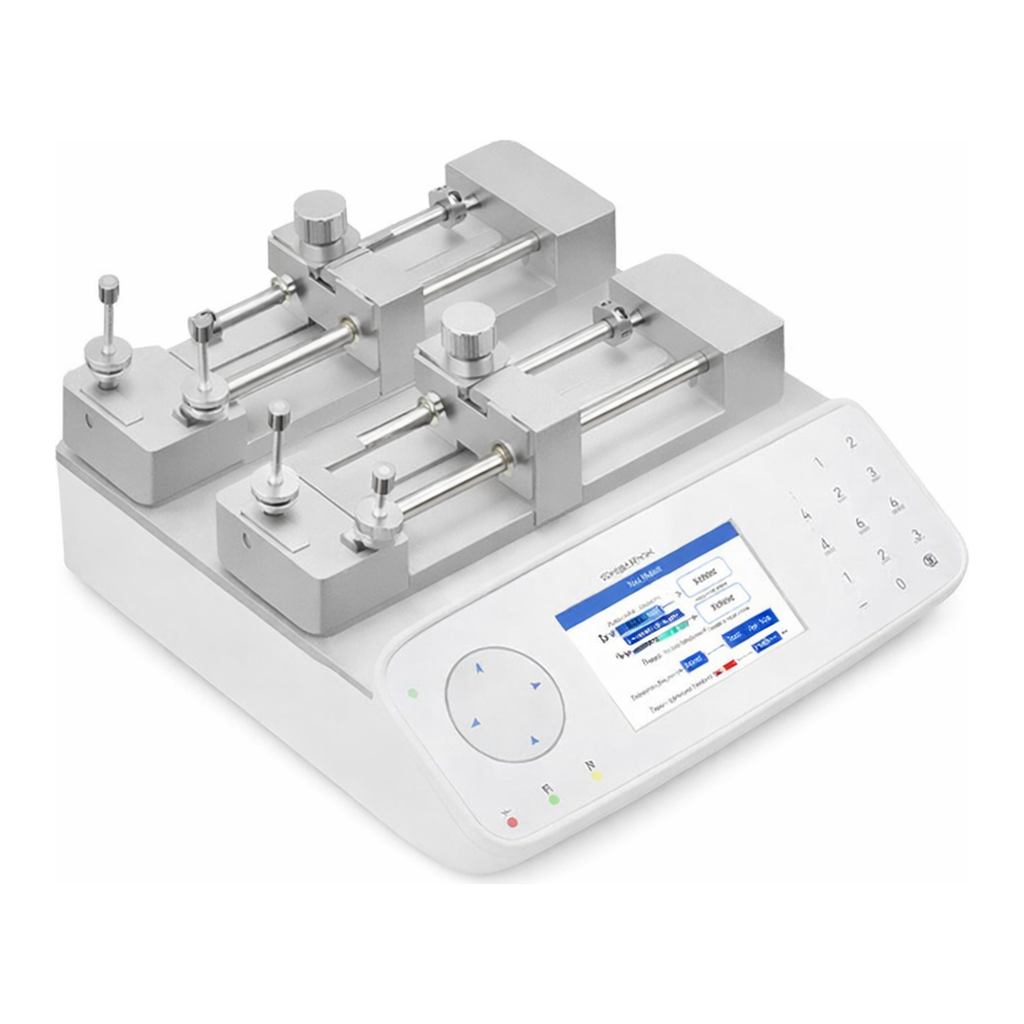

Fusion 4000X Syringe Pump

Chemyx Fusion 4000X는 프로그래밍 가능한 스텝 속도 기능이 있는 독립적인 듀얼 채널 주입 및 인출 제어 정밀 주사기 펌프로 구성되어 있어 시장에서 가장 독특하고 진보된 시스템 중 하나입니다. 주사기 수를 4개로 늘리기 위한 추가 2-주사기 푸시 앤 풀 랙이 있습니다 . 이 시스템은 어려운 연구 응용 분야에서 복잡한 듀얼 속도, 푸시-풀 및 진동 흐름 요구 사항을 허용합니다. 모든 유리 인터페이스와 가공된 금속 디자인을 갖춘 Fusion 주사기 펌프는 내화학성이 있으며 모든 유형의 실험실 환경에 대해 매우 뛰어난 내구성을 가지고 있습니다.

Specifications

Mode	Infuse/Withdraw
Accuracy	± < 0.35%
Reproducibility	± < 0.2%
Syringe Size (Min/Max)	0.5µL to 100mL
Syringe Type	Plastic, Glass, and Stainless Steel Syringe Type Chart
Syringe Flow Rates	See Syringe Library for Min & Max Flow Rates
Minimum Flow Rate	.0001 µL/min (with 0.5 µL syringe)
Maximum Flow Rate	170.5 mL/min (with 100mL syringe)
Linear Force	85lb (38.5kg)
Maximum Pressure	See Max Pressure
Display	4.3 inch LCD Glass Touch Screen
Connectivity	USB-B, RS232, RS485 and TTL Ports
System Dimensions	11 x 12 x 4.9 inches (28 x 31 x 13 cm)
Power	110/220 VAC
Weight	19 lbs (8.6kg)
Motor Drive	1.8˚ MicroStepper Motor
Step Resolution	0.0293 µm/step
Operating Temperature	4°C to 40°C (40°F to 104°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Humidity	20% to 80% RH, non-condensing
Installation Category	II
Regulatory Compliance	CE, RoHS, REACH, ETL

Features

Dual Independent Pump Channels

The Fusion 4000-X multi-channel syringe pump comes with a dual drive system to allowing two independent pumping channels to be controlled for simultaneous infusion and withdrawal at same/different flows. This allows both syringes to operate in a variety of different ways to accommodate a wide range of applications.

The Fusion multi-channel syringe pumps infuse and withdraw solutions at extremely high precision, and has reproducible flow rates via a state of the art microstepper motor. Easily and effortlessly deliver a wide range of flow rates in precise amounts for a multitude of applications like microfluidics, injections into a reactor, mass-spec calibration, and neuro-drug delivery to animals.

Complex Flow Controls

The Fusion 4000-X multi-channel syringe pump allows both channels to be controlled independently. This allows the system to dose variable-size syringes at different rates, for example, a saline & drug combination infusion or a catalyst & co-catalyst reagent addition into a reactor. Additionally, the Fusion 4000 multi-syringe pump also comes with continuous cycle mode (push-pull functionality) that will oscillate the syringe the 2 pump channels to provide non-stop flow.

Resistant Glass Machined Components Built to Last

Chemyx multi-channel syringe pumps are precision machined with metal components for a level of accuracy needed for micro flow applications and for both chemical resistance and mechanical wear. Chemyx high precision pumps last for years with an equipment value that is hard to match.

• Machined metal design
• Chemical-resistant polypropylene coated screen
• 2-year limited* warranty

Programmable & Intuitive

Intuitive, user-friendly software lets users program and customize flow profiles and offers a robust database of brand-name syringes. Remote computer control capabilities are available through USB, TTL, and RS232 communication connections.

• Programmable variable rate profiles via keypad
• Computer control via USB, RS232, RS485, TTL
• LabVIEW and MATLAB drivers available
